Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 3

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

TSB Revision

GENERAL <BODY AND CHASSIS>

00-9

HARNESS INSPECTION
Check for an open or short circuit in the harness
between the terminals which were faulty according to
the connector measurements. Carry out this
inspection while referring to GROUP 00E, Harness
Connector Inspection

P.00E-2

. Here, "Check

harness between power supply and terminal xx" also
includes checking for blown fuse. For inspection
service points when there is a blown fuse, refer to
"Inspection Service Points for a Blown Fuse

P.00-

ACX00862

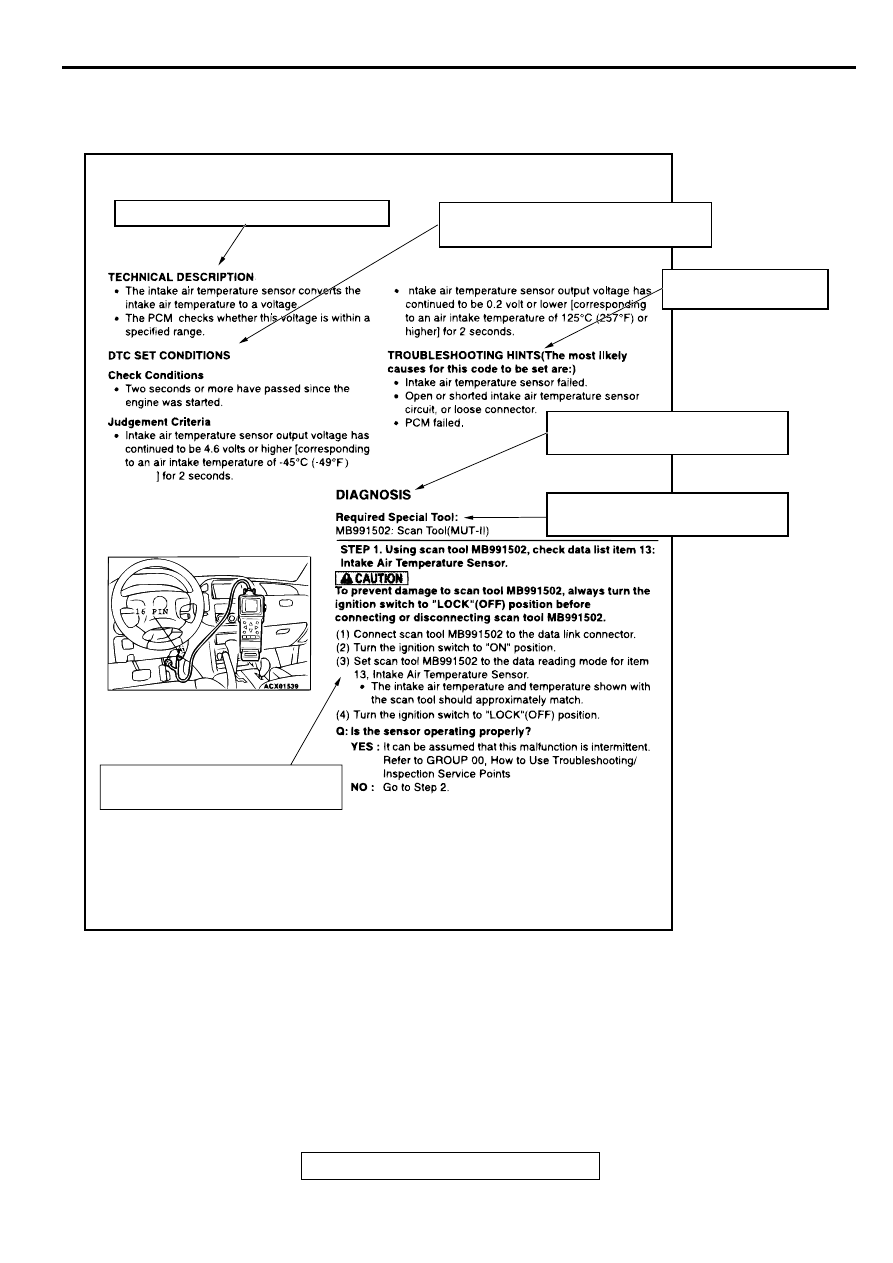

(4) Explains about technicai details.

(5) Describes the conditions for that DTC
being set (stored).

(6) Describes possible
cause(s)for that DTC.

(7) Describes the diagnosis procedure
for that DTC.

(8) Describes the special tool(s)
necessary for that DTC.

(9) Describes the inspection procedure
for that DTC step by step.

lower

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

TSB Revision

GENERAL <BODY AND CHASSIS>

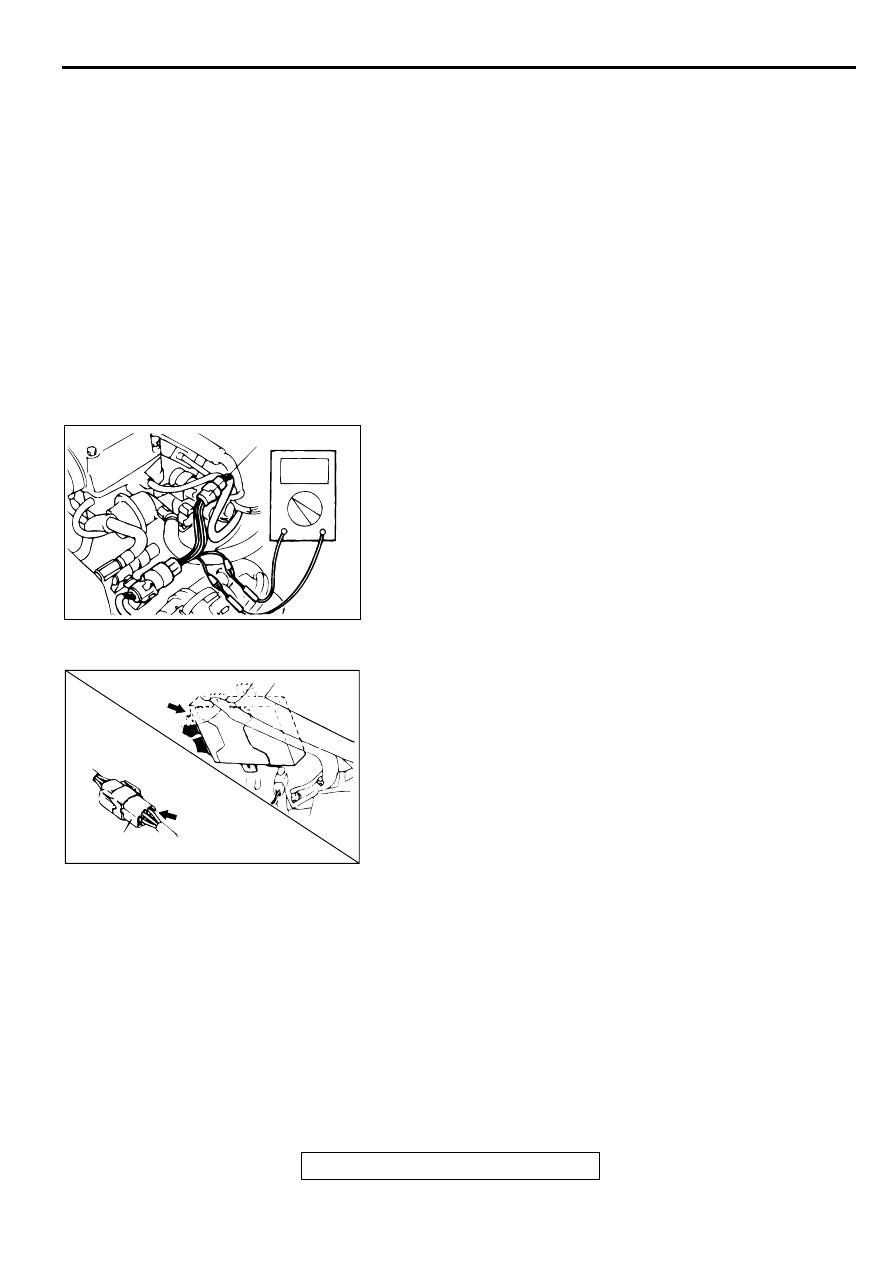

00-10

MEASURES TO TAKE AFTER REPLACING THE
ECU
If the trouble symptoms have not disappeared even
after replacing the ECU, repeat the inspection
procedure from the beginning.

CONNECTOR MEASUREMENT SERVICE POINTS

Turn the ignition switch to the "LOCK" (OFF) position when
connecting and disconnecting the connectors. Turn the ignition
switch to "ON" when measuring if there are no instructions to
the contrary.
IF INSPECTING WITH THE CONNECTOR CONNECTED
(WITH CIRCUIT IN A CONDITION OF CONTINUITY)

Required Special Tool:
MD998459: Test Harness

Waterproof Connectors

Be sure to use special tool, MB998459. Never insert a test
probe from the harness side, as this so will reduce the
waterproof performance and result in corrosion.

Ordinary (non-waterproof) Connectors

Check by inserting the test probe from the harness side.
Note that if the connector (control unit, etc.) is too small to
permit insertion of the test probe, it should not be forced;
use the backprobing tool for this purpose.

IF INSPECTING WITH THE CONNECTOR DISCONNECTED

<When Inspecting a Female Pin>

•

From front side of the connector

Required Special Tool:
MB991219:

Inspection Harness (Included in MB991223, Harness

Set)

ACX00863 AB

MD998459

AC001606AB

CONNECTOR

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

TSB Revision

GENERAL <BODY AND CHASSIS>

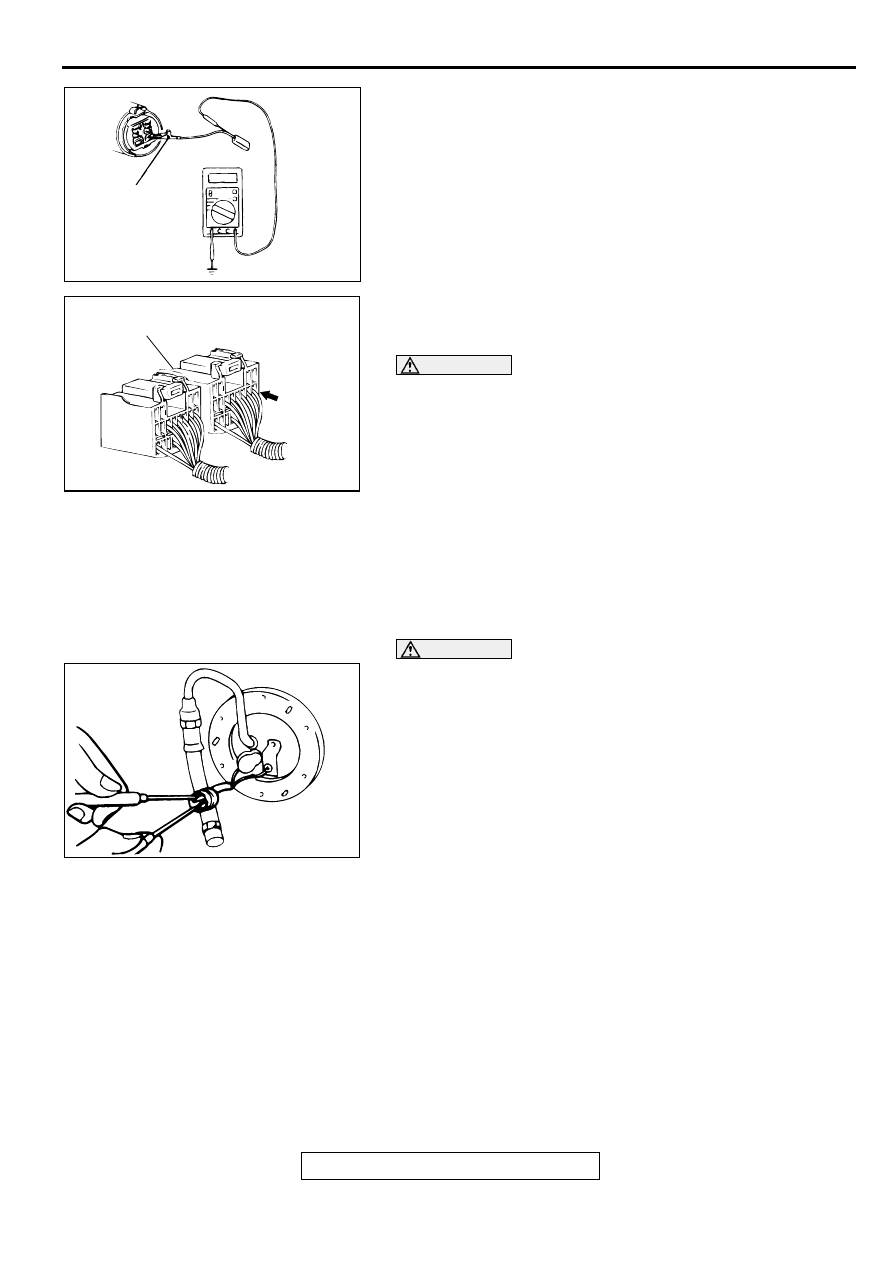

00-11

The inspection harness for connector pin contact
pressure should be used. The test probe should never
be forcibly inserted, as it may cause a defective contact.

•

From back side of the connector (SRS-ECU harness side
connector)

Since the SRS-ECU harness connector is plated to
improve conductivity, observe the warning below when
checking this connector.

WARNING

Insert the backprobing tool into connector from
harness side, and connect the tester to the
backprobing tool. If any tool other than the
backprobing tool is used, it may cause damage to the
harness and other components. Furthermore,
measurement should not be carried out by touching
the backprobing tool directly against the terminals
from the front of the connector. The terminals are
plated to increase their conductivity, so that if they
are touched directly by the backprobing tool, the
plating may break, which will decrease reliability.

<When Inspecting a Male Pin>

CAUTION

At this time, be careful not to short the connector pins with
the test probes. To do so may damage the circuits inside
the ECU.
Touch the pin directly with the test bar.

ACX00865 AB

MB991219

AC001607

SRS-ECU HARNESS
CONNECTOR

ACX00867 AB

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

TSB Revision

GENERAL <BODY AND CHASSIS>

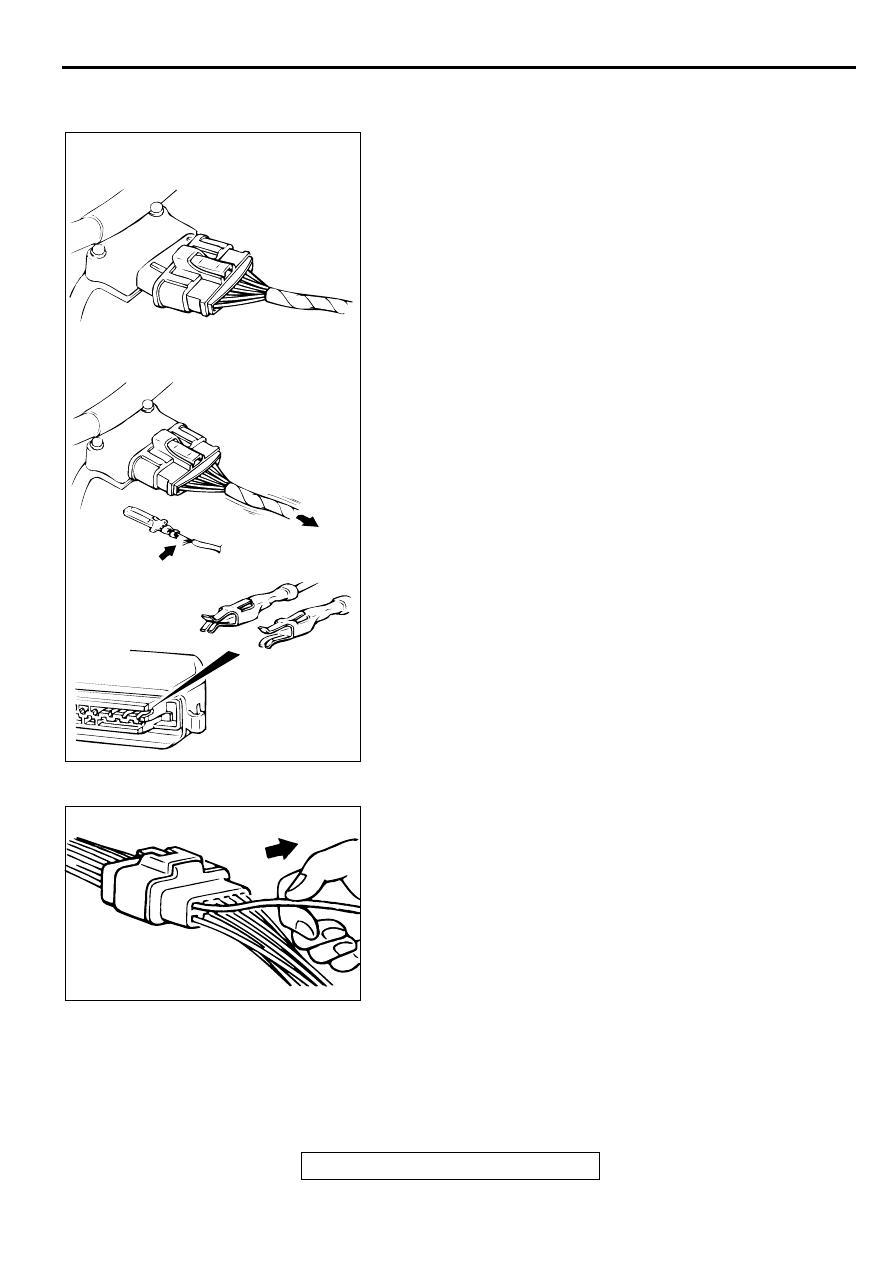

00-12

CONNECTOR INSPECTION SERVICE POINTS

VISUAL INSPECTION

•

Connector is disconnected or improperly connected

•

Connector pins are pulled out

•

Due to harness tension at terminal section

•

Low contact pressure between male and female terminals

•

Low connection pressure due to rusted terminals or foreign
matter lodged in terminals

CONNECTOR PIN INSPECTION
If the connector pin stopper is damaged, the terminal
connections (male and female pins) will not be perfect even
when the connector body is connected, because the pins may
pull out of the back side of the connector. Therefore, gently pull
the wires one by one to make sure that no pins pull out of the
connector.

ACX00868 AB

CONNECTOR DISCONNECTED OR
IMPROPERLY CONNECTED

DEFECTIVE CONNECTOR CONTACT

HARNESS WIRE BREAKAGE
AT TERMINAL SECTION

LOW CONTACT
PRESSURE

GOOD

BAD

ACX00869AB
