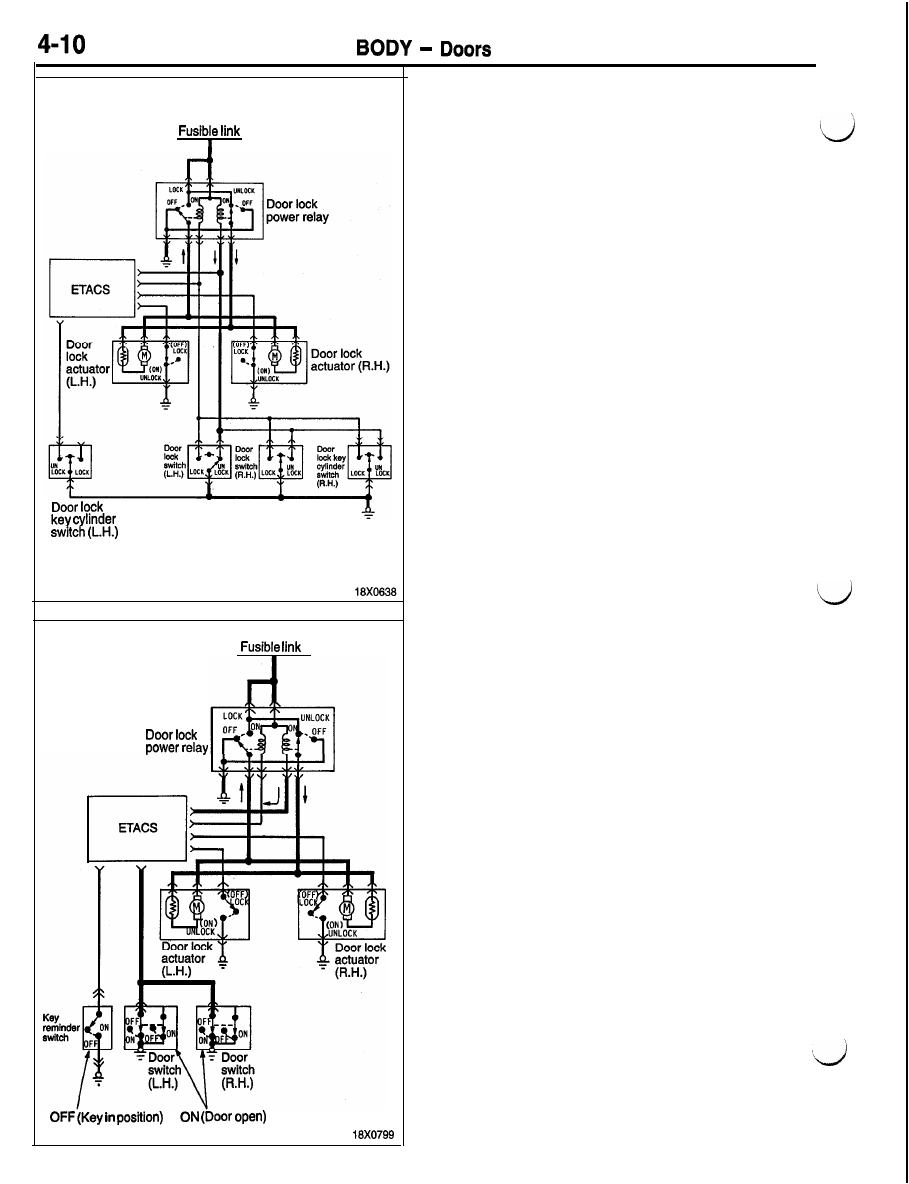

(2) Door Unlocking Operation by Door Lock Switch

When the unlock side of the door lock switch
is turned ON, the unlock side coil of the door
lock power relay is energized to operate the door
lock actuators and unlock the doors.

DOOR LOCKING PREVENTED WITH KEY IN
IGNITION SWITCH
(1) When any of the doors is opened with the key

inserted in the ignition switch (key reminder
switch), the signals from the key reminder switch
and door switch are input to the ETACS.

(2) In this state, when the driver’s door inside lock

knob is placed on the lock side (the OFF signal

from the actuator switch input to the ETACS),
an unlock output is supplied from the ETACS
for 5 seconds.

(3) This moves the door lock actuator to the unlock

side. Therefore, the door cannot be locked unless
the key is removed from the ignition switch (key

reminder switch) or the door is closed.

BODY   Doors

WINDOW GLASS REGULATOR

Since the

 doors have been adopted, highly

rigid X type window glass regulators have been

adopted.
The door glass is supported by a whole length of
hollow lip provided in the door belt line molding.
The structure, compared with the localized support
of the conventional outer stabilizers, places less

 with power window>

Door glass stabilizer

Power window regulator

Inner stabilizer

load on the glass. Therefore, the outside of glass
is less vulnerable to damage.
On power window equipped vehicles, the power

window switch has been changed to lower the door
glass when the knob is pressed in, and raise the
door glass when the knob is pulled up.

<Vehicles without power window>

Door glass stabilizer

Door belt
line molding

Inner stabilizer

Manual window regulator

HOLDING OF DOOR GLASS

When fully raised, stabilizer hook on the door glass
catches the inner stabilizer cushion to hold the door
glass securely and draw it inward. In addition, from
outside the door glass, the door glass stabilizer pres-
ses glass striker and the door glass inward.

WHEN DOOR GLASS BEGINS TO OPEN

The glass striker moves down with the door glass,

but the hollow lip provided over the full length of
the door belt line molding provides a proper pressure
against the glass. Therefore, the outside of glass
is less vulnerable to damage.

NOTE

The stabilizer hook also moves down with the glass.

BODY

 Doors

OPERATION OF POWER WINDOWS

Operation of Power Windows When Controlled by Main Switch

When the ignition switch is placed at

 current

is supplied from the ETACS-ECU to the coil

(3) Even after the ignition switch has been placed

at OFF, the power window can be operated

of the power window relay. This causes the
power window relay to be ON.

for a period of 30 seconds. During this period,

(2) Current is supplied from the power window relay

however, the output is interrupted the moment

through the main switch to the power window

the door is opened.

motor to operate the power window.

Power

Fusible link

I

OFF





window





Power window
main switch

Ignition switch

Fusible link

Power window ON

Constant

voltage

Constant

voltage

I

I

switch

Door switch

Power window

Power

window

motor

Power

windou

motor



 Doors

2. Operation of Power Windows When Controlled by Sub Switches
(1) When the ignition switch is placed at

 current

(3) Even after the ignition switch has been placed

is supplied from the ETACS-ECU to the coil

at OFF, the power window can be operated

of the power window relay. This causes the

for a period of 30 seconds. During this period,

power window relay to be ON.

however, the output is interrupted the moment

(2) Current is supplied from the power window relay

the door is opened.

through the sub switch to the power window

motor to operate the power window.

Power window
relay

Power
main switch

Fusible link

Ignition switch

Fuse

ETACS-ECU

Fusible link

Ignition switch

Door switch

P o w e r   w i n d o w

output



Power

window
motor

Power window
sub-switch
