DRIVE-CONTROL COMPONENTS

- Suspension

SUSPENSION

N732000AA

Both the front and rear suspension are a new multi-

effort for the best compromise between high-level

link design which is the result of the development

steering stability and ride.

1. New multi-link design

2. Increased caster angle, reduced kingpin angle (front)
3. Reduced initial camber (front)
4. Adoption of virtual kingpin axis scheme
5. High-mounted front and rear upper arms
6. Increased rigidity of front cross member
7.

Front shock absorbers with a damping force control valve

for very low and low speed operation

8. Use of a ball joint type stabilizer link
9.

Use of an anti-dive geometry for the front and an anti-lift

geometry for the rear

10. Use of an anti-squatting geometry

1. Reduced shock absorber friction

2. Increased wheel stroke

Reduced road noise

Crossmember with vibro-isolating supports

Toe adjustment mechanism in front and rear suspensions

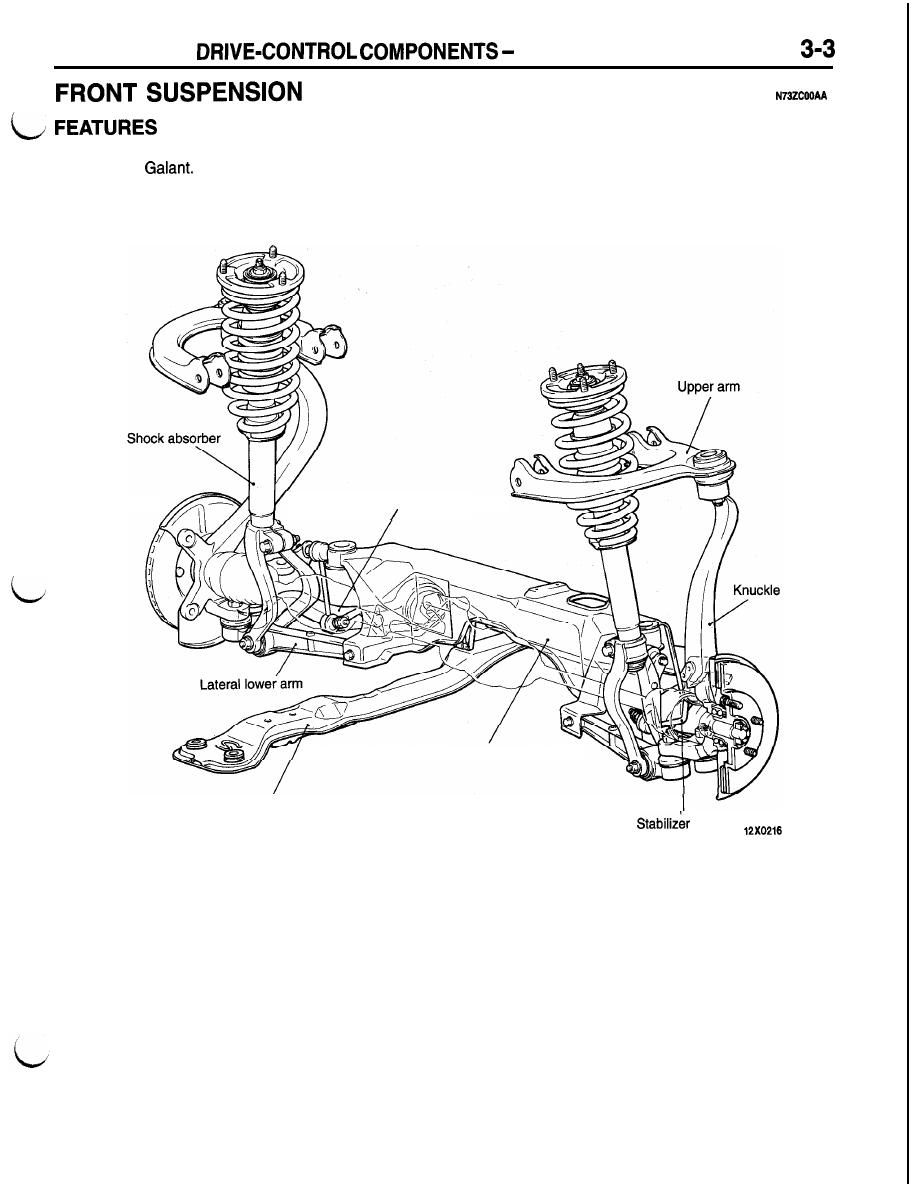

Front Suspension

The front suspension is similar to that introduced
on the 1994

It is a multi-link structure featur-

ing two lower arms by which an ideal virtual kingpin

Compression lower arm

axis is formed. In addition, the upper arms have
been raised above the tire level to improve both
directional stability and ride.

Crossmember

Centermember

bar

Front

SPECIFICATIONS

items

Suspension type

Wheel alignment

Camber
Caster
Toe-in

mm (in.)

Coil spring

Wire dia. x O.D. x
free length

mm (in.)

Identification color
Spring constant

N/mm

Shock absorber

Medium price

High price

M/T

Multi-link type

30’

13.1 x71.1

13.2x71.2-

12.9 x 70.9

111.1 x 309.5

13.1 x 71.1

111.2 x 315.5

110.9 x 300.5

x 2.80

111.1 x 306.5

x 2.80

4.37 x 12.19)

x 2.79

x 2.80

4.38 x 12.42)

4.37 x 11.83)

White Pink

4.37 x 12.07)

White Gray

Yellow Pink

Yellow Gray

43.0 (245)

Stroke

mm (in.)

Damping force
[at 0.3

Expansion

N (Ibs.)

Contraction

N (Ibs.)

Hydraulic cylindrical double-acting type

118 (4.65)

1,265 1,677 (284 377)

431 647 (97 146)

Items

Premium price

FWD

AWD

M/T

Suspension type

Multi-link type

Wheel alignment

Camber

30’

Caster

Toe-in

mm (in.)

Coil spring

Wire dia. x O.D. x

13.1 x 71.1

13.2x71.2-

free length

13.3x71.3-

mm (in.)

13.5 x 71.5

111.1 x 306.5

111.2 x 312.5

111.3 x 312.0

x 2.80

111.5 x 317.5

x 2.80

4.37 x 12.07)

x 2.81

4.38 x 12.30)

x 2.81

Identification color

4.38 x 12.28)

Yellow Gray

4.39 x 12.50)

Yellow

Green

Light Blue

Green Purple

Spring constant

N/mm

43.0 (245)

46.4 (265)

Shock absorber

Hydraulic cylindrical double-acting type

Stroke

mm (in.)

Hydraulic cylindrical double-acting type

118 (4.65)

Damping force

118 (4.65)

[at 0.3

Expansion

1,432 1,902 (322 428)

Contraction

1,471 1,961 (331 441)

N (Ibs.)

470 706 (106 159)

DRIVE-CONTROL COMPONENTS Front Suspension

CONSTRUCTION

A high mounted upper arm and two lower arms
act like a double-wishbone arrangement. In this ar-

rangement, a virtual kingpin axis is formed on the
line connecting the external vertex of the upper arm

triangle and the point where the lines extended from
the two lower arms intersect. This construction pro-
vides the following advantages:

A negative offset geometry is established which
assures better stability during braking.

Link

Upper arm

model

Compression
lower arm

Reduced offset between the virtual kingpin axis

and the wheel center results in a lower steering

movement at the time when the vehicle is accel-
erated or goes over a bump on road, assuring
better stability.

The high-mounted upper arm helps improve

the wheel supporting rigidity.

The multi-link suspension, like a double-wish-

bone suspension, suffers little change in “cam-
ber to ground” when a rolling motion occurs,

assuring better stability during cornering.

Compression
lower arm

Lateral
lower arm

axis
