AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-173

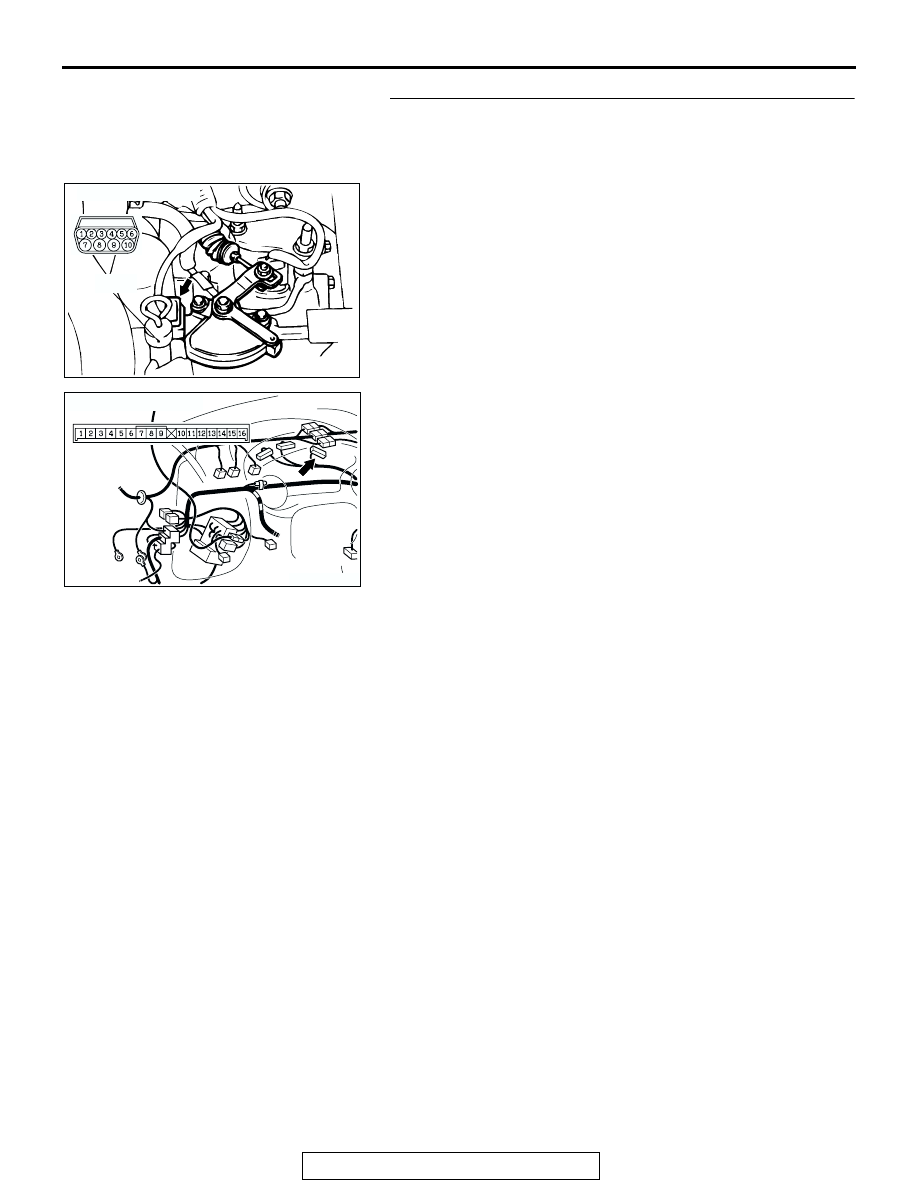

STEP 20. Check harness for short circuit to ground
between transmission range switch connector B-41
terminal 7 and combination meter connector C-43 terminal
10. <Vehicles with sport mode>
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

AC001844

CONNECTOR: B-41

DIPSTICK

AK

B-41

AC001729AW

CONNECTOR: C-43

C-43

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-174

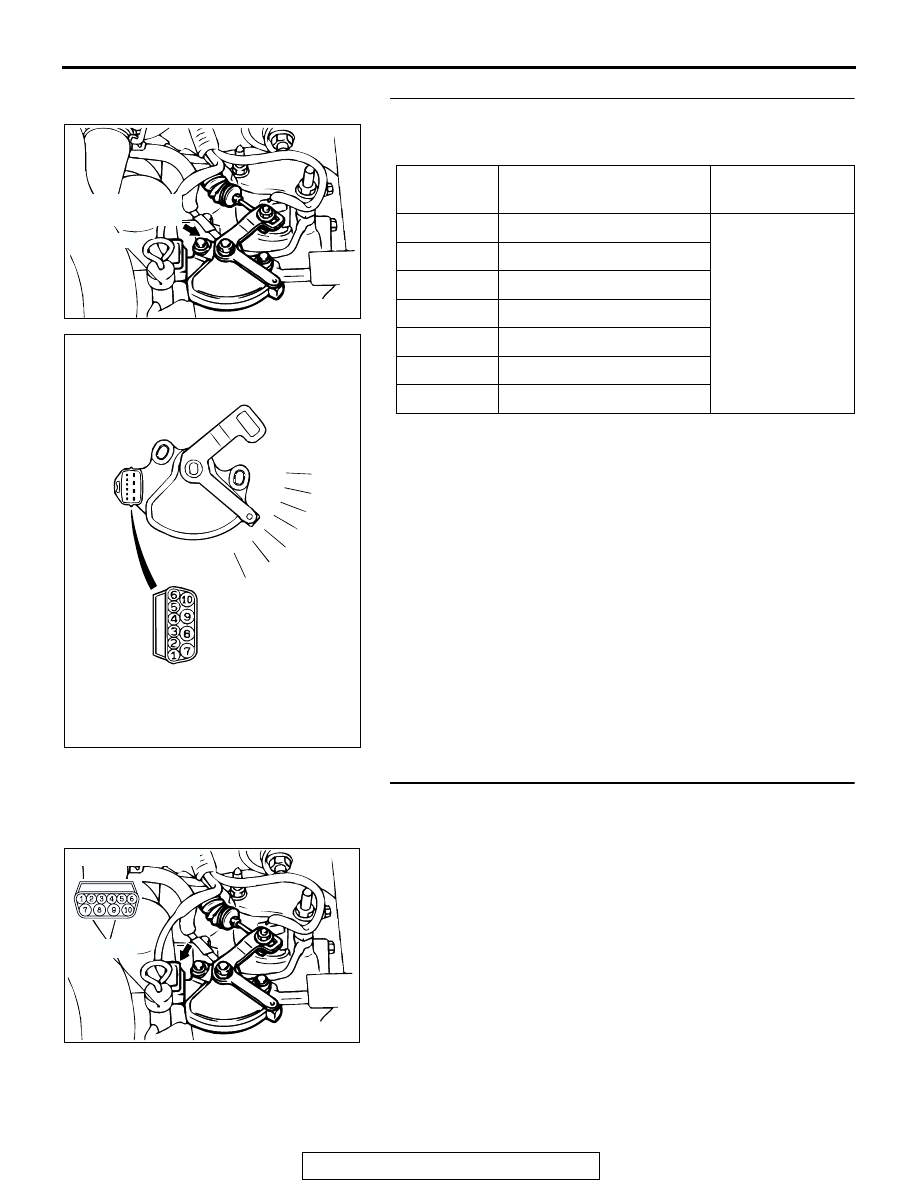

STEP 21. Check the transmission range switch.
Measure the resistance between the terminals for each selec-
tor position as indicated in the table below.

NOTE: For vehicles with sport mode, four positions (P, R, N, D)
are used.
Q: Is the measured resistance less than 2 ohms for each

selector position?
YES : Go to Step 22.
NO :  Replace the transmission range switch. Refer to

GROUP 23B, Transaxle

P.23B-10

.

STEP 22. Check transmission range switch connector B-41
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 23.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

SELECTOR
POSITION

TERMINAL CONNECTION
OF TESTER

SPECIFIED
CONDITION

P

3

− 8, 9 − 10

Less than 2 ohms.

R

7

− 8

N

4

− 8, 9 − 10

D

1

− 8

3

5

− 8

2

2

− 8

L

6

− 8

AC004672

DIPSTICK

TRANSMISSION
RANGE SWITCH

AK

AC005865

P

R

N

D

3

2

L

AB

AC001844

CONNECTOR: B-41

DIPSTICK

AK

B-41

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-175

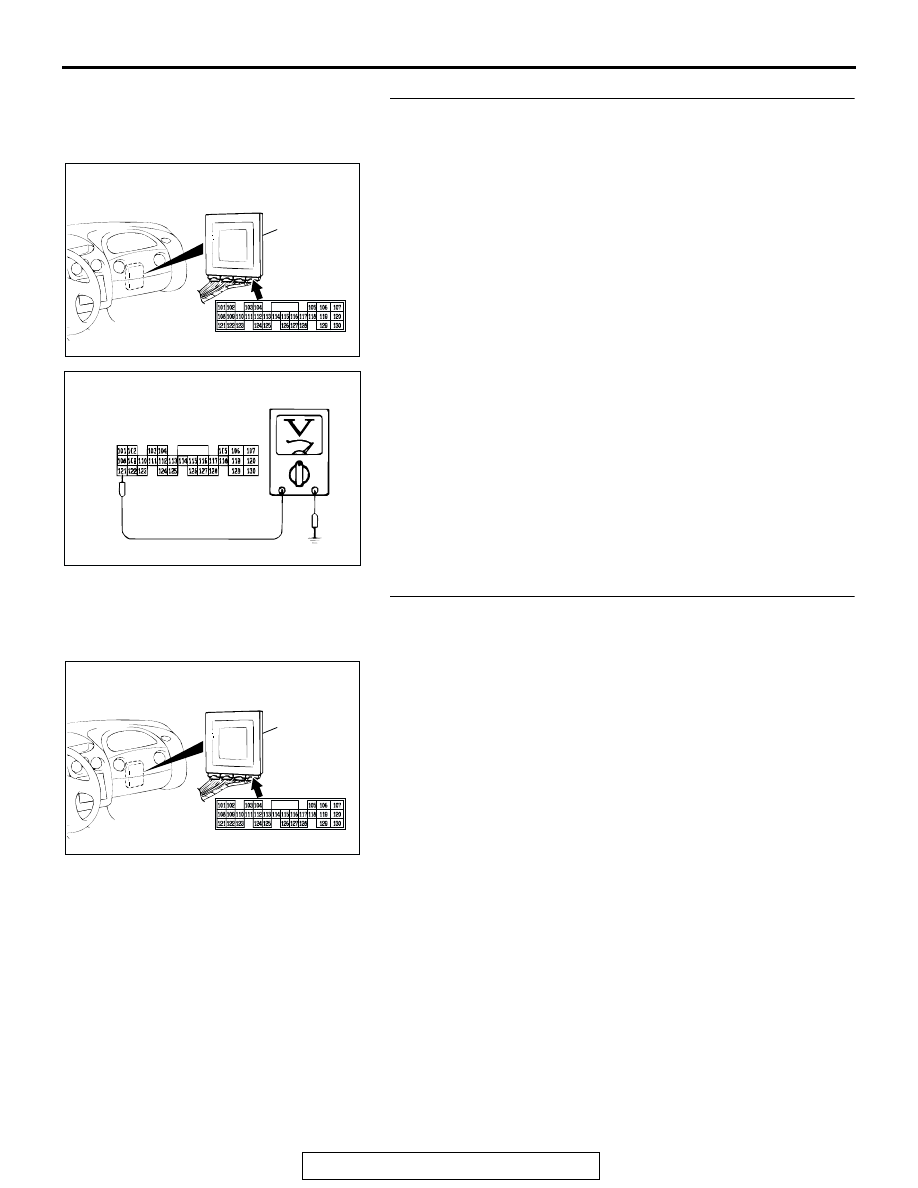

STEP 23. Measure the transmission range switch output
voltage at PCM connector C-61 <2.4L Engine> or C-63
<3.0L Engine> by backprobing.
(1) Do not disconnect connector C-61 <2.4L Engine> or C-63

<3.0L Engine>.

(2) Turn the ignition switch to the "ON" position.
(3) Move the selector lever to the "N" position.

(4) Measure the voltage between terminal 121 and ground by

backprobing.

• The voltage should measure battery positive voltage.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the voltage measure battery positive voltage?

YES : Go to Step 13.
NO :  Go to Step 24.

STEP 24. Check PCM connector C-61 <2.4L Engine> or
C-63 <3.0L Engine> for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 25.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>

AC001905 AN

C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

HARNESS CONNECTOR:
HARNESS SIDE

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-176

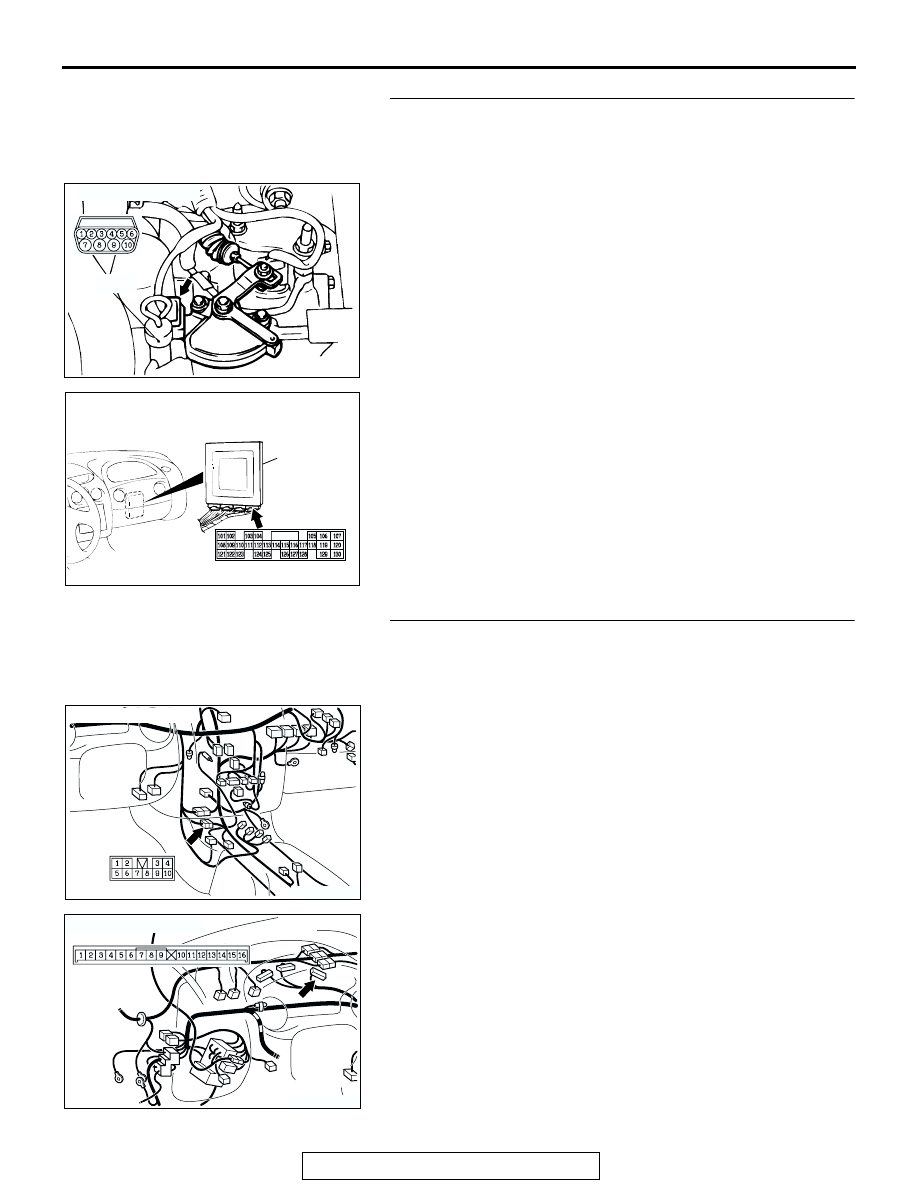

STEP 25. Check harness for open circuit or short circuit to
ground between transmission range switch connector
B-41 terminal 4 and PCM connector C-61 <2.4L Engine> or
C-63 <3.0L Engine> terminal 121.
Q: Is the harness wire in good condition?

YES <Vehicles without sport mode> : Go to Step 5.
YES <Vehicles with sport mode> : Go to Step 26.
NO :  Repair or replace the harness wire.

STEP 26. Check intermediate connector C-27 and
combination meter connector C-43 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector. <Vehicles with sport mode>
Q: Are the connectors and terminals in good condition?

YES : Go to Step 27.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC001844

CONNECTOR: B-41

DIPSTICK

AK

B-41

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>

AC001741

CONNECTOR: C-27

AR

C-27

AC001729AW

CONNECTOR: C-43

C-43
