TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-333

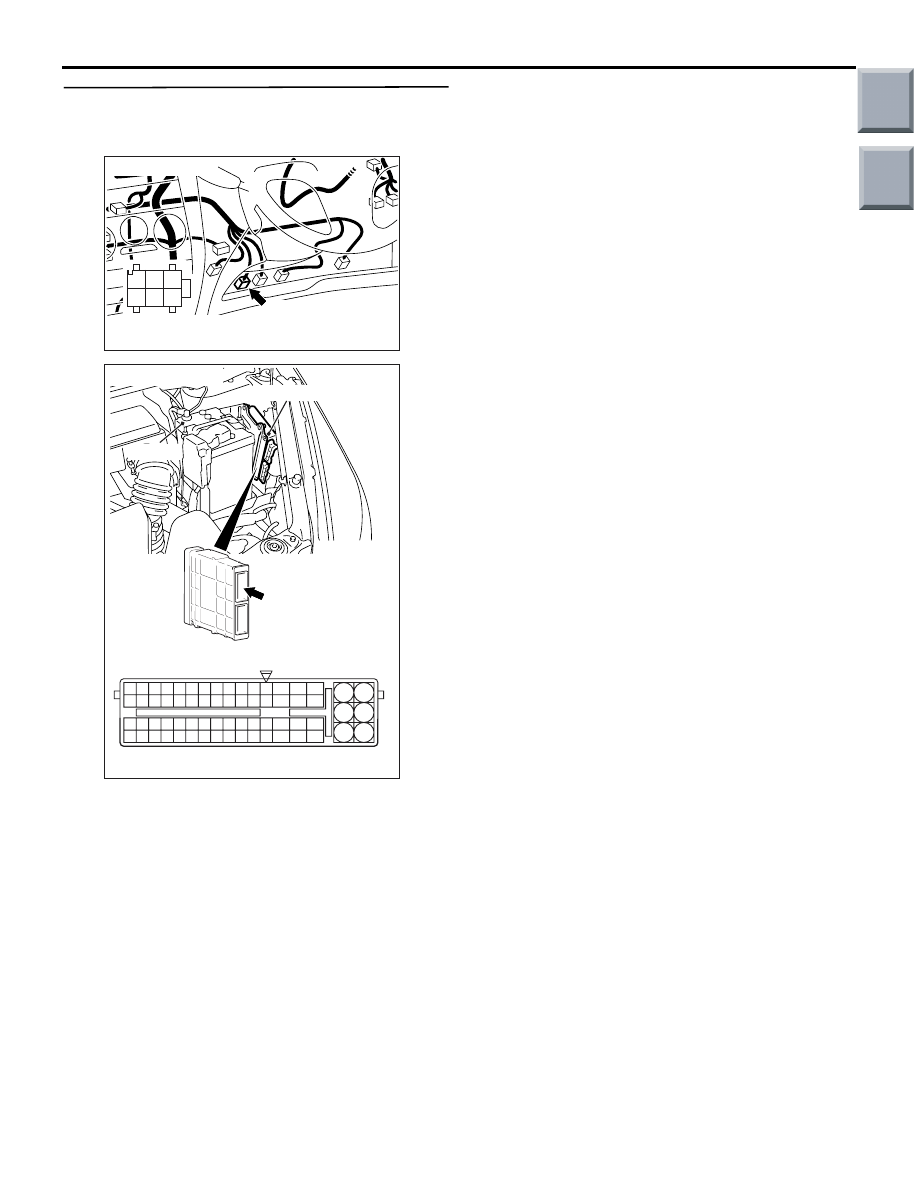

STEP 5. Check harness between B-61 (terminal
No.1) clutch switch connector and A-114
(terminal No. 44) engine-ECU connector.

• Check intermediate connector A-17, and repair

necessary.

• Check output line for open/short circuit.

Q: Is the check result normal?

YES :

Replace engine-ECU.

NO :

Repair.

STEP 6. Perform resistance measurement at B-61
clutch switch connector.

• Disconnect the connector, and measure at the

harness side.

• Resistance between terminal No. 6 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Check and repair harness between B-22

(terminal No. 6) clutch switch and body
earth.

• Check earthing line for open circuit

and damage.

STEP 7. Connector check: A-114 engine-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair.

AK600405

1

2

3

4

5

6

B-61 (L)

Connector: B-61

B-61 Harness side
connector

AG

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK600405

1

2

3

4

5

6

B-61 (L)

Connector: B-61

B-61 Harness side
connector

AG

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-334

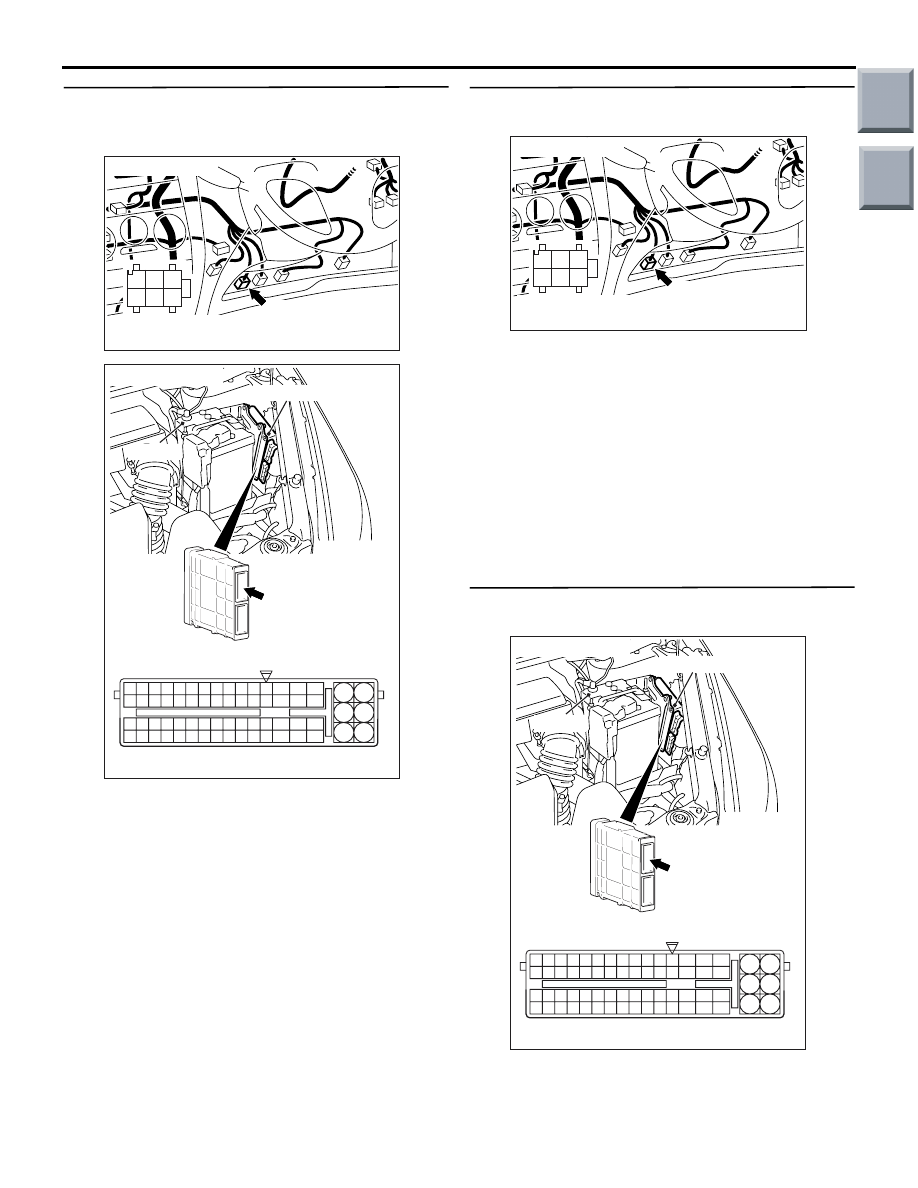

STEP 8. Check harness between B-61 (terminal
No. 1) clutch switch connector and A-114
(terminal No. 44) engine-ECU connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Replace engine-ECU.

NO :

Repair.

AK600405

1

2

3

4

5

6

B-61 (L)

Connector: B-61

B-61 Harness side
connector

AG

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-335
