TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-297

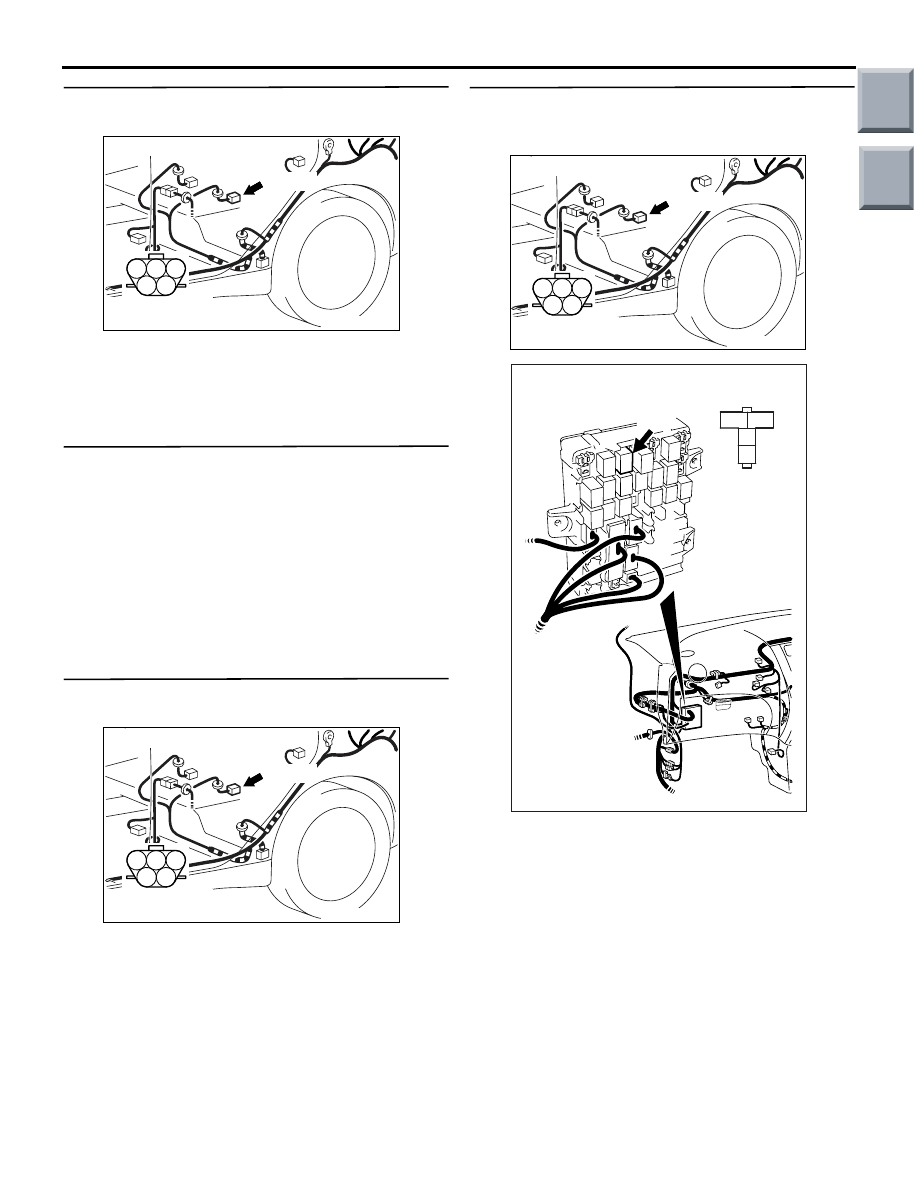

STEP 14. Check harness between C-16 (terminal
No. 4) fuel pump connector and body earth.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 15 .

NO :

Repair.

STEP 15. M.U.T.-III actuator test

• Refer to Actuator Test Reference Table

P.13B-344

.

a. Item 07: Fuel pump relay

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/Inspection

Service Points

− How to Cope with

Intermittent Malfunctions

P.00-13

).

NO :

Replace engine-ECU.

STEP 16. Perform voltage measurement at C-16
fuel pump connector.

• Disconnect connector and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 5 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 21 .

NO :

Go to Step 17 .

STEP 17. Check harness between C-16 (terminal
No. 5) fuel pump connector and B-103 (terminal
No. 4) fuel pump relay (2) connector.

NOTE: Before checking harness, check intermediate
connector B-128 and repair if necessary.

• Check output line for open/short circuit.

Q: Is the check result normal?

YES :

Go to Step 18 .

NO :

Repair.

AK402112

1

2

3

4

5

AC

Connector: C-16

Harness side
connector

C-16(G)

AK402112

1

2

3

4

5

AC

Connector: C-16

Harness side
connector

C-16(G)

AK402112

1

2

3

4

5

AC

Connector: C-16

Harness side
connector

C-16(G)

3

2

1

4

AK402111AC

J/B side
connector

Connector: B-103
J/B (front side)

B-103

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-298

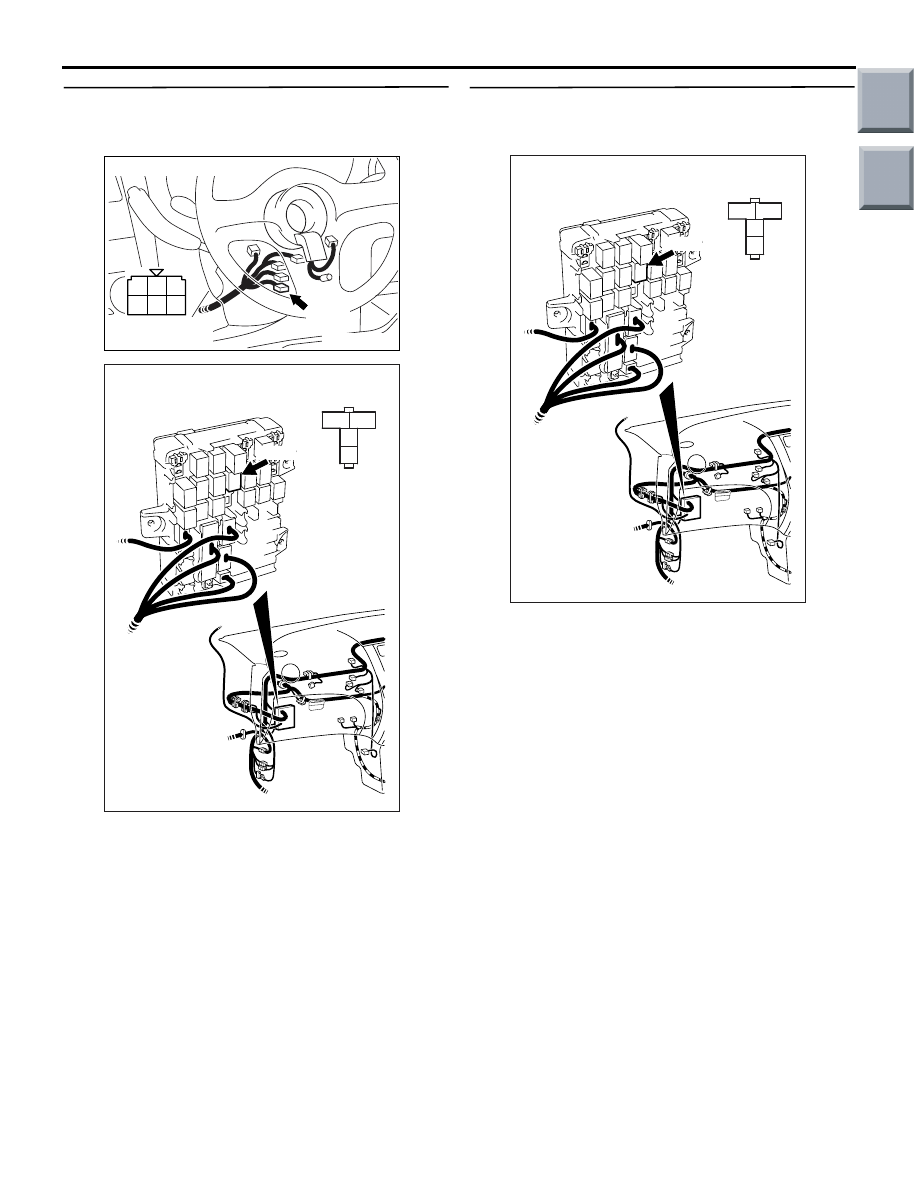

STEP 18. Connector check: B-141 ignition switch
connector

Q: Is the check result normal?

YES :

Go to Step 19 .

NO :

Repair or replace.

STEP 19. Check harness between B-141 (terminal
No. 2) ignition switch connector and B-103
(terminal No. 1) fuel pump relay (2) connector.

NOTE: Before checking harness, check intermediate
connector B-129 and repair if necessary.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 20 .

NO :

Repair.

1

2

3

4

5

6

AK402103

Connector: B-141

Harness side
connector

B-141

AC

1

2

3

4

5

6

AK402103

Connector: B-141

Harness side
connector

B-141

AC

3

2

1

4

AK402111AC

J/B side
connector

Connector: B-103
J/B (front side)

B-103

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-299

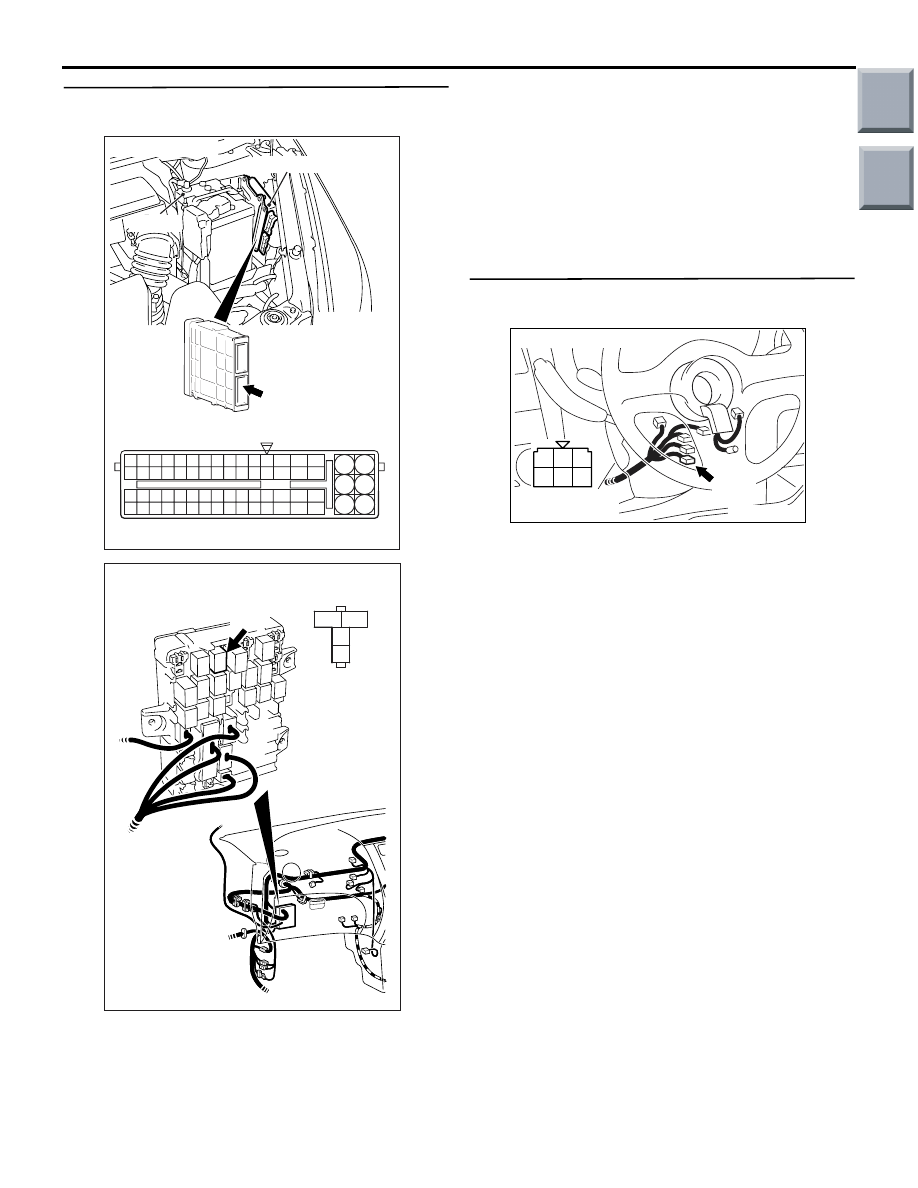

STEP 20. Connector check: A-08 engine-ECU
connector

Q: Is the check result normal?

YES :

Check intermediate connector B-110, and

repair if necessary. If the intermediate
connector is normal, check and repair
harness between B-103 (terminal No. 2) fuel
pump relay (2) connector and A-08 (terminal
No. 81) engine-ECU connector.

• Check earthing line for damage.

NO :

Repair or replace.

STEP 21. Connector check: B-141 ignition switch
connector

Q: Is the check result normal?

YES :

Go to Step 22 .

NO :

Repair or replace.

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

3

2

1

4

AK402111AC

J/B side
connector

Connector: B-103
J/B (front side)

B-103

1

2

3

4

5

6

AK402103

Connector: B-141

Harness side
connector

B-141

AC

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-300

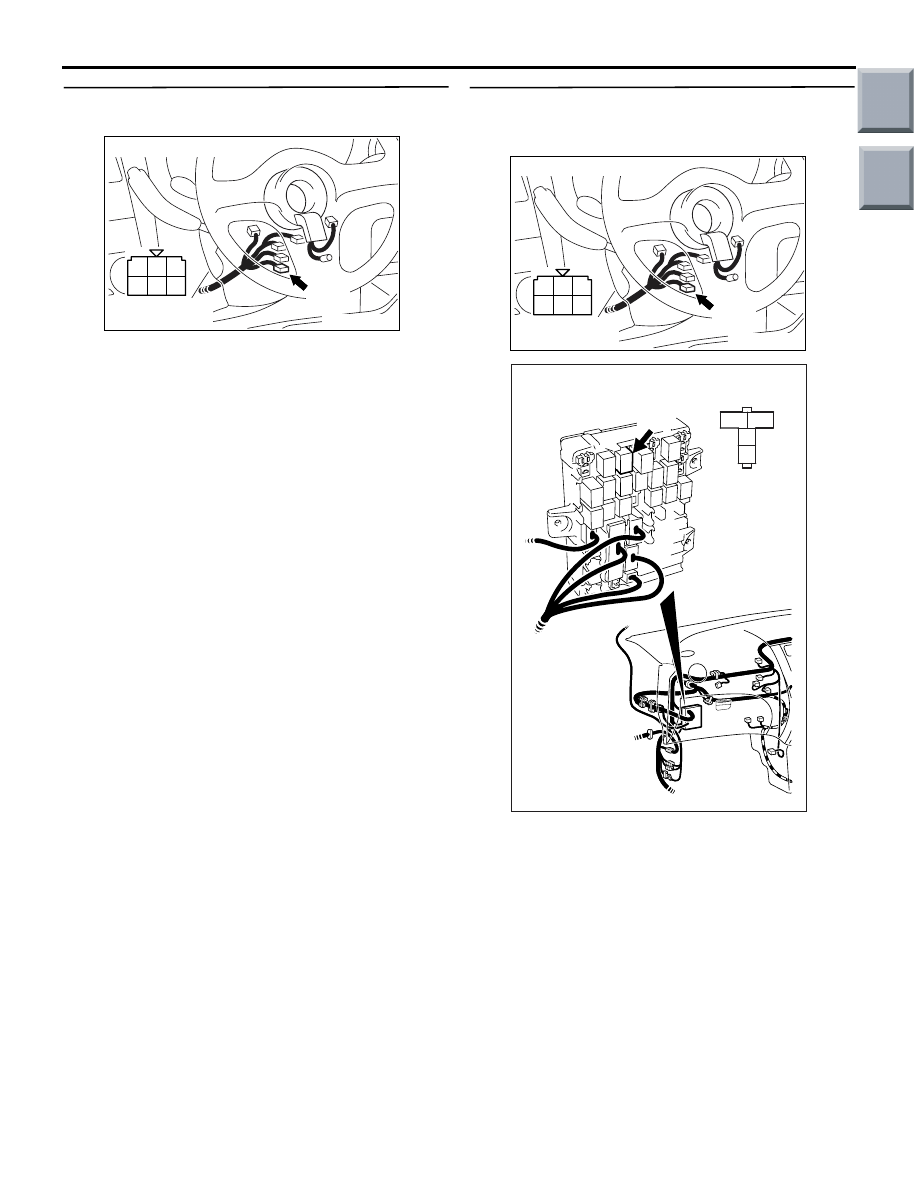

STEP 22. Check harness between B-141 (terminal
No. 2) ignition switch connector and B-117
(terminal No. 1) fuel pump relay (1) connector.

NOTE: Before checking harness, check intermediate
connector B-129 and repair if necessary.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 23 .

NO :

Repair.

STEP 23. Check harness between battery and
B-117 (terminal No. 3) fuel pump relay (1)
connector.

NOTE: Before checking harness, check intermediate
connector B-108 and repair if necessary.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 24 .

NO :

Repair.

1

2

3

4

5

6

AK402103

Connector: B-141

Harness side
connector

B-141

AC

AK402110

3

2

1

4

AC

J/B side
connector

Connector: B-117
J/B (front side)

B-117

AK402110

3

2

1

4

AC

J/B side
connector

Connector: B-117
J/B (front side)

B-117
