TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-253

STEP 8: Connector check: A-114 engine-ECU
connector

Q: Is the check result normal?

YES :

Check and repair harness between A-125

(terminal No. 1) starter connector and A-114
(terminal No. 39) engine-ECU connector.

• Check output line for open circuit or

damage.

NO :

Repair or replace.

STEP 9. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 22: Crank angle sensor

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Check crank angle sensor system (Refer to
Code No. P0335

P.13B-142

).

STEP 10. Visual check of ignition spark.

• Remove the spark plug and install it to the ignition

coil.

• Connect the ignition coil connector.

• Remove all injector connector.

• At the engine start, check each spark plug pro-

duces a spark.

Q: Is the check result normal?

YES :

Go to Step 12

NO :

Go to Step 11

STEP 11. Check spark plug.

• Check spark plug (Refer to GROUP 16 − Ignition

System

− On-vehicle Service

P.16-35

).

Q: Is the check result normal?

YES :

Check ignition circuit system (Refer to

Inspection Procedure 26

P.13B-327

).

NO :

Replace spark plug.

STEP 12. Check injector for operating sound.

• While cranking the engine, check each injector

for operating sound (Refer to

P.13B-367

).

Q: Can operating sound be heard?

YES :

Go to Step 13

NO :

Check the injector system of the defective

cylinder.

(Refer to Code No. P0201: No. 1 injector

system

P.13B-92

).

(Refer to Code No. P0202: No. 2 injector

system

P.13B-97

).

(Refer to Code No. P0203: No. 3 injector

system

P.13B-102

)

(Refer to Code No. P0204: No. 4 injector

system

P.13B-107

).

STEP 13. Fuel pressure measurement

• Fuel pressure measurement (Refer to Fuel Pres-

sure Test

P.13B-358

).

Q: Is the check result normal?

YES :

Go to Step 14 .

NO :

Repair.

STEP 14. Replace engine-ECU

• After replacing the engine-ECU, re-check the

trouble symptoms.

Q: Does trouble symptom recur?

YES :

Check if there is foreign material (water,

kerosene, etc.) in fuel. Replace as required.

NO :

Check end.

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

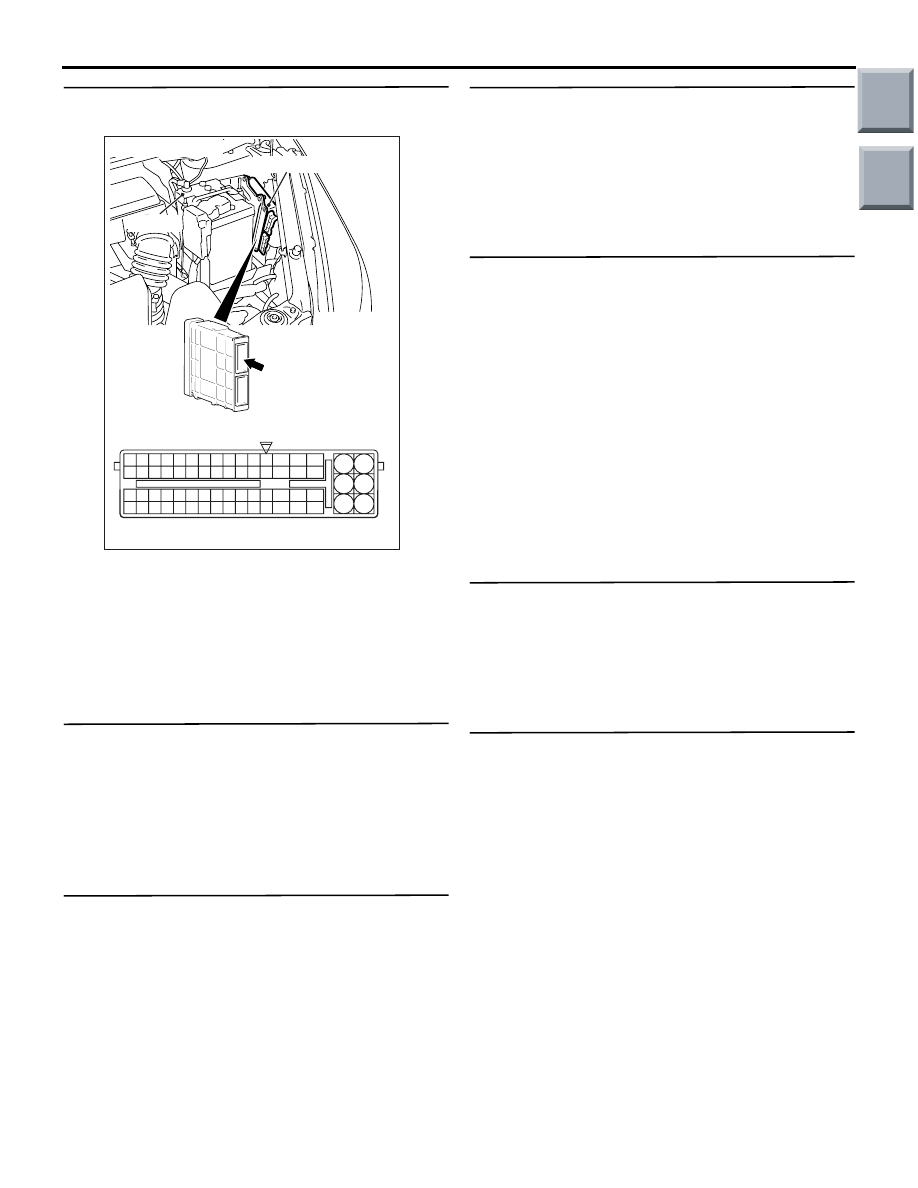

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-254

Inspection Procedure 6: Starting Impossible (Initial Combustion But No Complete Combustion),
Improper Starting (Long Time to Start)

COMMENT ON TROUBLE SYMPTOM

• Failure is possibly caused by poor ignition, incor-

rect air-fuel ratio at cranking, improper fuel pres-
sure or other faults.

PROBABLE CAUSES

• Failed battery

• Failed ignition system

• Failed fuel system

• Failed air-fuel ratio control system

• Failed intake system

• Failed exhaust emission control system

• Throttle valve body fouled

• Incorrectly installed timing belt

• Incorrect compression pressure

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check battery condition.

Q: Have the battery terminals been disconnected

recently?
YES :

Perform idle learning (Refer to GROUP 00

−

Precautions Before Service

− Learning

Procedure for Idling in MPI Engine

P.00-21

).

NO :

Go to Step 2 .

STEP 2. Check battery voltage.

• Perform battery voltage measurement during

cranking.

OK: 8 V or higher

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Check battery (Refer to GROUP 54A

−

Battery

− On-vehicle Service − Battery Test

P.54A-5

).

STEP 3. M.U.T.-III diagnosis code

Q: Is the diagnosis code output?

YES :

Inspection chart for diagnosis codes (Refer

to

P.13B-18

).

NO :

Go to Step 4 .

STEP 4. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 12: Air flow sensor
b. Item 13: Intake air temperature sensor

c. Item 21: Engine coolant temperature sensor

d. Item 25: Barometric pressure sensor

Q: Are the check results normal?

YES :

Go to Step 5 .

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Code

P.13B-18

).

STEP 5. Check throttle body (throttle valve) for
contamination.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Clean throttle body (throttle valve) (Refer to

P.13B-358

).

STEP 6. M.U.T.-III actuator test

• Item 07: Fuel pump relay

OK: There should be fuel pump operating
sound.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Check fuel pump system (Refer to
Inspection Procedure 22

P.13B-290

).

STEP 7. Check air intake from intake hose and
intake manifold.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair.

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-255

STEP 8. Check injector for operating sound.

• While cranking the engine, check each injector

for operating sound (Refer to

P.13B-367

).

Q: Is there injector operating sound?

YES :

Go to Step 9 .

NO :

Check the injector system of the effective

cylinder.

 (Refer to Code No. P0201: No. 1 injector

system

P.13B-92

).

 (Refer to Code No. P0202: No. 2 injector

system

P.13B-97

).

 (Refer to Code No. P0203: No. 3 injector

system

P.13B-102

).

 (Refer to Code No. P0204: No. 4 injector

system

P.13B-107

).

STEP 9. Check timing marks of the timing belt.

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Align timing marks.

STEP 10. Visual check of ignition spark.

• Remove the spark plug and install it to the ignition

coil.

• Connect the ignition coil connector.

• Remove all injector connector.

• At the engine start, check each spark plug pro-

duces a spark.

Q: Is the check result normal?

YES :

Go to Step 12

NO :

Go to Step 11

STEP 11. Check spark plug.

• Check spark plug (Refer to GROUP 16 − Ignition

System

− On-vehicle Service

P.16-35

).

Q: Is the check result normal?

YES :

Check ignition circuit system (Refer to

Inspection Procedure 26

P.13B-327

).

NO :

Replace spark plug.

STEP 12. Check injector spray condition.

• Check every injector for correct spray condition

(Refer to

P.13B-367

).

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Replace injector.

STEP 13. Fuel pressure measurement

• Perform fuel pressure measurement (Refer to

Fuel Pressure Test

P.13B-358

).

Q: Is the check result normal?

YES :

Go to Step 14 .

NO :

Repair.

STEP 14. Check compression pressure.

• Check compression pressure (Refer to GROUP

11C

− On-vehicle Service − Compression Pres-

sure Check

P.11C-13

).

Q: Is the check result normal?

YES :

Go to Step 15 .

NO :

Repair.

STEP 15. Replace engine-ECU

• After replacing the engine-ECU, re-check the

trouble symptoms.

Q: Does trouble symptom recur?

YES :

Check if there is foreign material (water,

kerosene, etc.) in fuel. Replace as required.

NO :

Check end.

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-256

Inspection Procedure 7: Unstable Idling (Rough Idling, Hunting), Improper Idling Speed (Too High or
too Low), Engine Stalls during Idling (Die Out)

COMMENT ON TROUBLE SYMPTOM

• Probable causes range widely from ignition sys-

tem, air-fuel ratio, and electronically controlled
throttle valve, to fuel system. A sudden engine
stall is possibly caused by poor connector con-
tact.

PROBABLE CAUSES

• Failed ignition system

• Failed fuel system

• Failed air-fuel ratio control system

• Failed intake/exhaust system

• Failed exhaust emission control system

• Throttle valve body fouled

• Incorrectly installed timing belt

• Incorrect compression pressure

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check battery condition.

Q: Have the battery terminals been disconnected

recently?
YES :

Perform idle learning (Refer to GROUP 00

−

Precautions Before Service Learning
Procedure for Idling in MPI Engine

P.00-21

).

NO :

Go to Step 2 .

STEP 2. M.U.T.-III diagnosis code

Q: Is the diagnosis code output?

YES :

Inspection chart for diagnosis codes (Refer

to

P.13B-18

).

NO :

Go to Step 3 .

STEP 3. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 12: Air flow sensor
b. Item 13: Intake air temperature sensor

c. Item 14: Throttle position sensor (sub)

d. Item 21: Engine coolant temperature sensor
e. Item 25: Barometric pressure sensor

f. Item 77: Accelerator pedal position sensor

(sub)

g. Item 78: Accelerator pedal position sensor

(main)

h. Item 79: Throttle position sensor (main)

Q: Are the check results normal?

YES :

Go to Step 4 .

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Code

P.13B-18

).

STEP 4. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 67: Stop lamp switch

Q: Are the check results normal?

YES :

Go to Step 5 .

NO :

Perform the diagnosis code classified check
procedure for the switch that has shown an
abnormal data value (Refer to

P.13B-20

).

STEP 5. Check air intake from intake hose and
intake manifold.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair.

STEP 6. Check timing marks of the timing belt.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Align timing marks.

STEP 7. Check throttle body (throttle valve) for
contamination.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Clean throttle body (throttle valve) (Refer to

P.13B-358

).

STEP 8. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 11: oxygen sensor (front)
b. Item 59: oxygen sensor (rear)

Q: Is the check results normal?

YES :

Go to Step 9 .

NO :

Perform the diagnosis code classified check
procedure for the switch that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Code

P.13B-18

).
