TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-225

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 77: Accelerator pedal position sensor

(sub)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

NO :

Go to Step 2 .

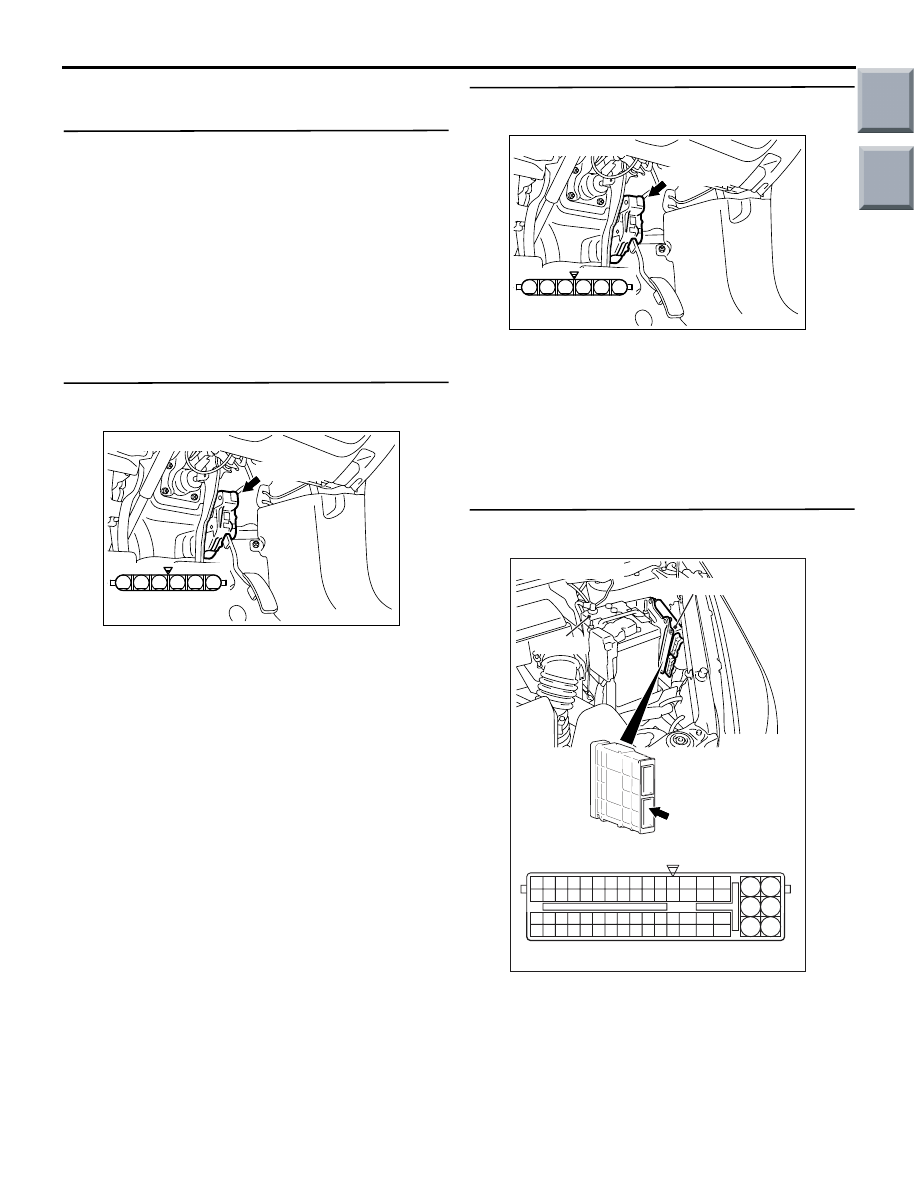

STEP 2. Connector check: B-26 accelerator pedal
position sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace.

STEP 3. Perform resistance measurement at B-26
accelerator pedal position sensor connector.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 5 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 4 .

STEP 4. Connector check: A-08 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace.

AK402092

1

6 5 4 3 2

B-26(B)

AC

Connector: B-26

Harness side
connector

AK402092

1

6 5 4 3 2

B-26(B)

AC

Connector: B-26

Harness side
connector

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-226

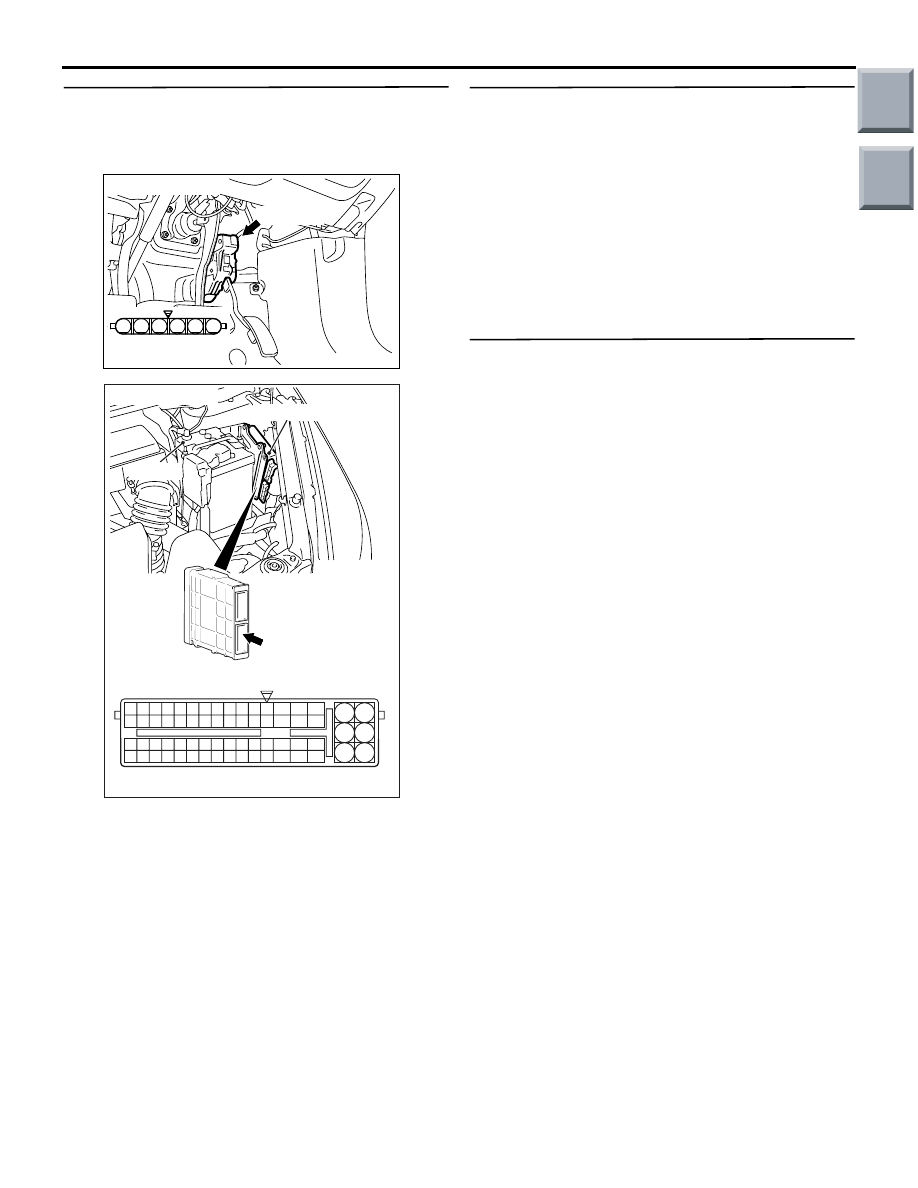

STEP 5. Check harness between B-26 (terminal
No. 5) accelerator pedal position sensor
connector and A-08 (terminal No. 87) engine-ECU
connector.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair.

STEP 6. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 77: Accelerator pedal position sensor

(sub)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

NO :

Replace engine-ECU.

STEP 7. Replace the accelerator pedal assembly

• After replacing the accelerator pedal assembly,

re-check the trouble symptoms.

Q: Is the check result normal?

YES :

Check end.

NO :

Replace engine-ECU.

AK402092

1

6 5 4 3 2

B-26(B)

AC

Connector: B-26

Harness side
connector

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-227

Code No. P2135: Throttle Position Sensor (Main and Sub) Range/Performance Problem

OPERATION

• Refer to Code No. P0122: Throttle Position Sen-

sor (main) Circuit Low Input

P.13B-53

.

• Refer to Code No. P0222: Throttle Position Sen-

sor (sub) Circuit Low Input

P.13B-112

.

FUNCTION

• Engine-ECU checks the throttle position sensor

output signal characteristics for abnormal condi-
tions.

TROUBLE JUDGMENT

Check Condition

• Ignition switch is in "ON" position.

• Throttle position sensor (main) output voltage is

more than 0.2 V and is less than 4.8 V.

• Throttle position sensor (sub) output voltage is

more than 0.2 V and is less than 4.8 V.

Judgment Criterion

• Total output voltage of main and sub throttle posi-

tion sensors is less than 4.5 V or is more than 5.5
V.

PROBABLE CAUSE

• Failed throttle position sensor

• Open/short circuit in throttle position sensor cir-

cuit or loose connector contact

DIAGNOSIS PROCEDURE

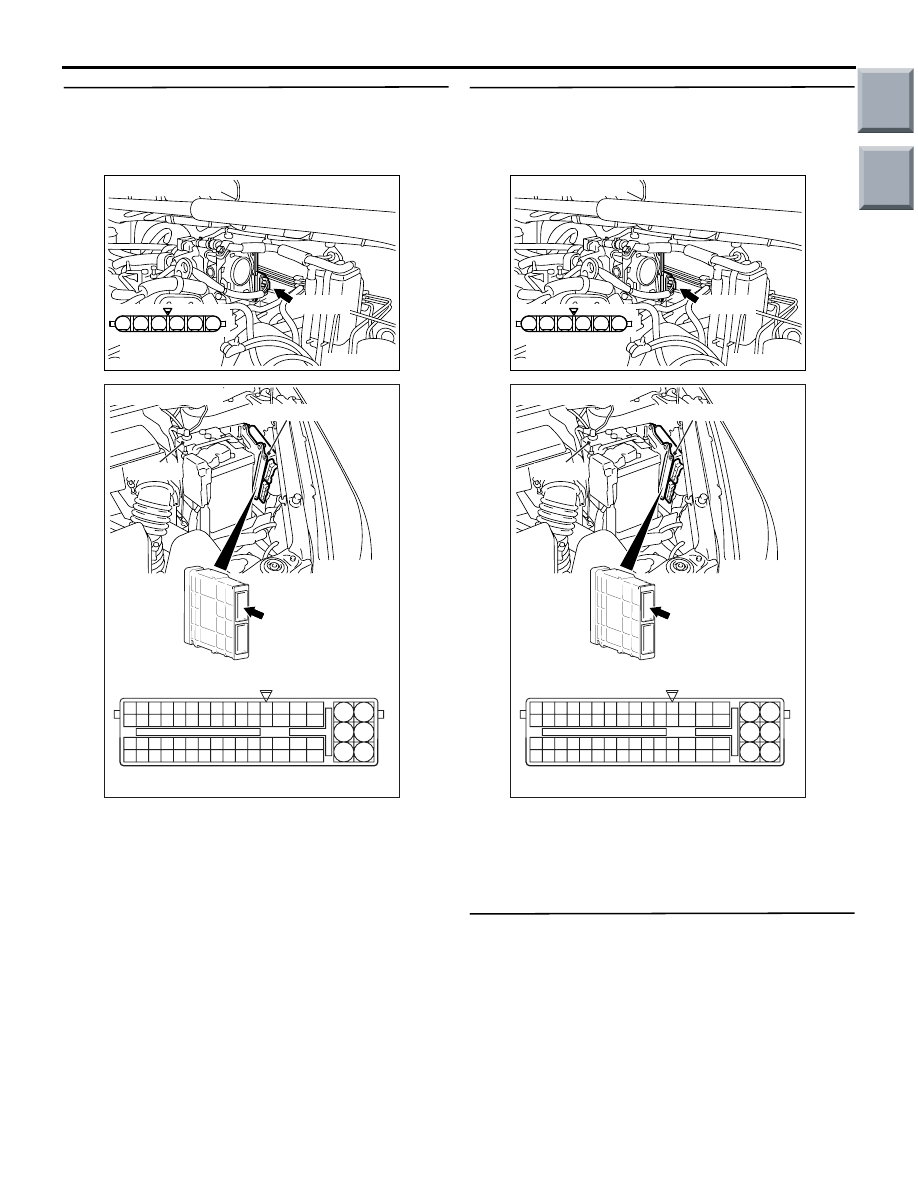

STEP 1. Connector check: A-114 engine-ECU
connector and A-107 electronic-controlled
throttle valve connector

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace.

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402086

1

6 5 4 3 2

A-107(B)

AC

Connector: A-107

Harness side

connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-228

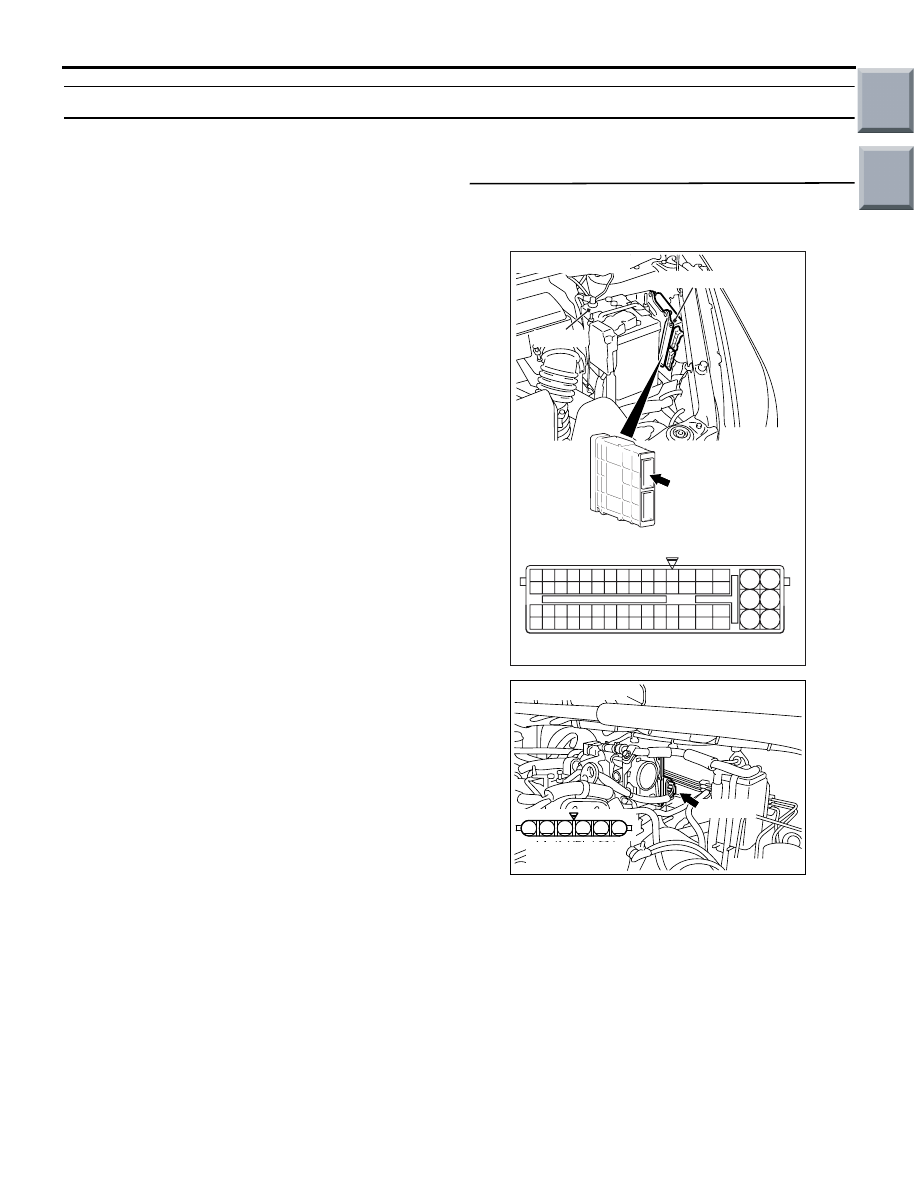

STEP 2. Check harness between A-107 (terminal
