Mitsubishi Colt Ralliart. Manual - part 720

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-205

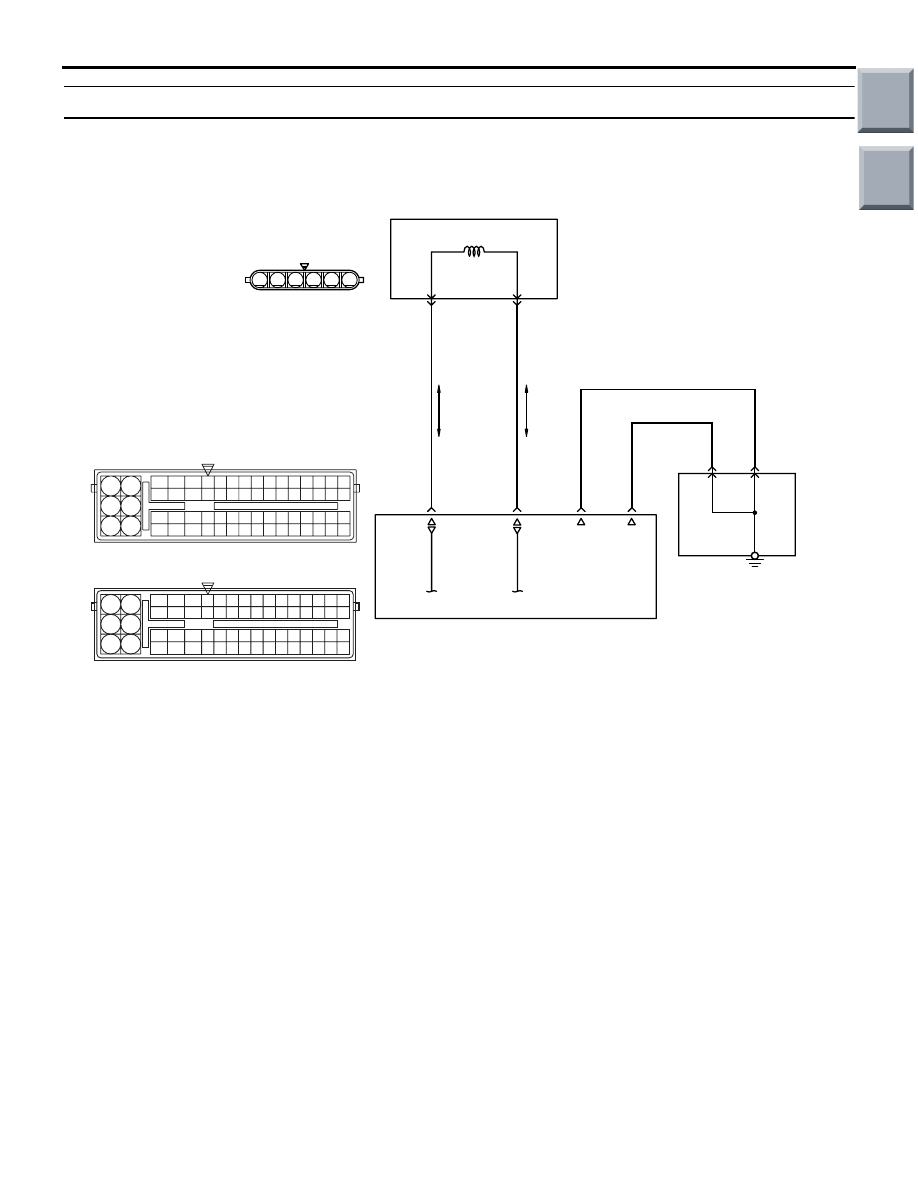

Code No. P2100: Throttle Valve Control Servo Circuit (open)

OPERATION

• Controls the current that is applied from the

engine-ECU (terminals No. 7, No. 22) to the elec-
tronic-controlled throttle valve (terminals No. 5,
No. 6).

FUNCTION

• Engine-ECU varies the direction and the amper-

age of the current that is applied to the throttle
valve control servo in order to control the opening
of the throttle valve.

TROUBLE JUDGMENT

Check Conditions

• Ignition switch is in "ON" position.

• Throttle valve control servo supply voltage is

more than 6.0 V.

• Battery voltage is more than 8.3 V.

Judgement Criterion

• There is deviation between throttle valve actual

opening angle and target opening angle.

PROBABLE CAUSE

• Failed throttle valve control servo.

• Open/short circuit in throttle valve control servo

circuit or lose connector contact.

• Failed engine-ECU

AK402849

6

1 2 3 4 5

R

92 93 94 95969798

77 78 79 808182838485868788899091

99

100

107 108 109 110 111112113114115116117118119120121
122 123 124 125126127128129130131132133134135136

101102103104105106

71 72

73 74

75 76

19

21

20

18

17

16

15

14

1213

11

8 9

L

10

37
52 53 54 555657585960616263646566

38 39 404142434445464748495051

22 23 24 252627282930313233343536

7

5

3

1

6

4

2

7

6

6

3

BR

G-W

Engine-ECU

Earth J/C

22

93

108

5

A-107

A-30

Throttle Valve Control Servo Circuit

A-114

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  PU: Purple

Electronic-controlled
throttle valve

A-08

AC

B

B

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-206

DIAGNOSIS PROCEDURE

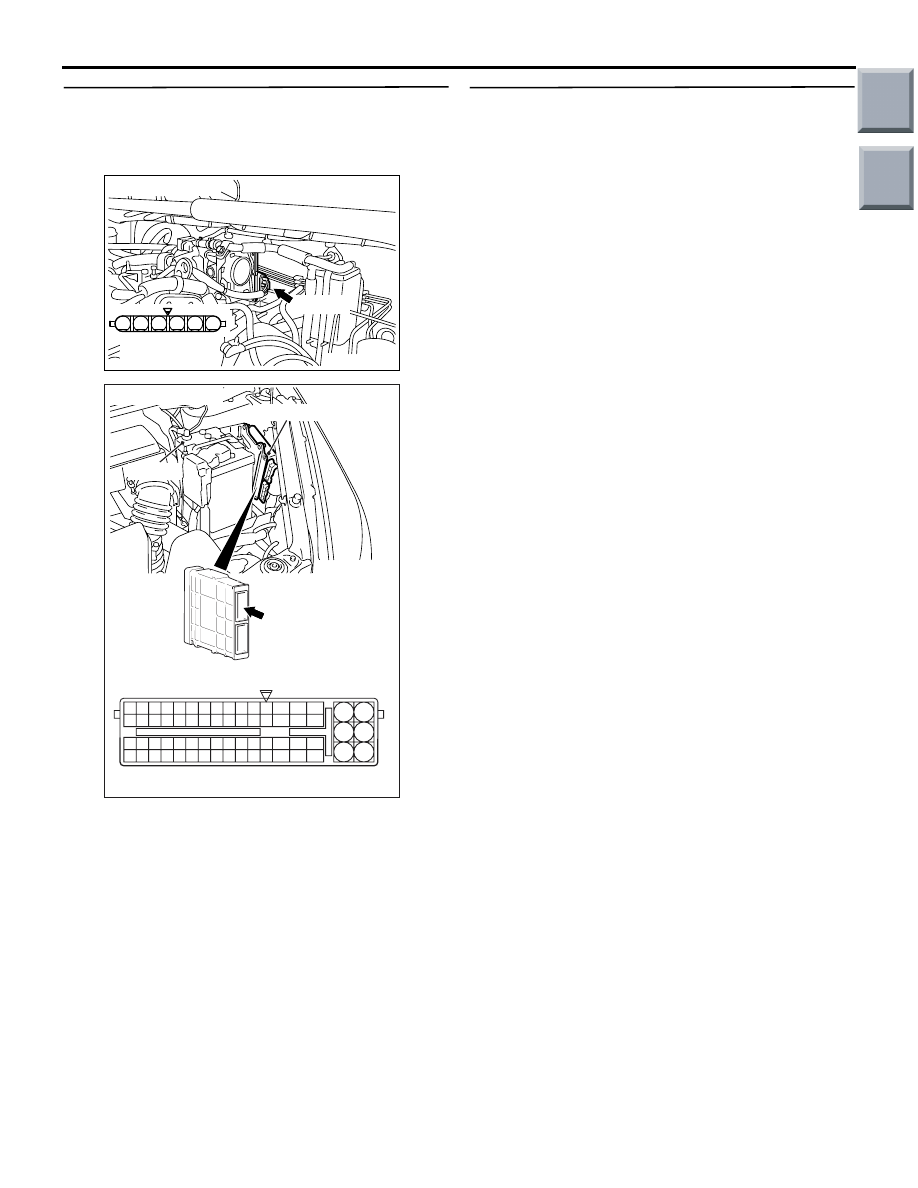

STEP 1. Connector check: A-107
electronic-controlled throttle valve connector

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace.

STEP 2. Perform resistance measurement at
A-107 electronic-controlled throttle valve
connector.

• Disconnect connector, and measure at elec-

tronic-controlled throttle valve side.

• Resistance between terminal No. 6 and No. 5.

OK: 0.3

− 100 kΩ (at 20°C)

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Replace throttle body assembly.

STEP 3. Connector check: A-08 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair or replace.

AK402086

1

6 5 4 3 2

A-107(B)

AC

Connector: A-107

Harness side

connector

AK402086

1

6 5 4 3 2

A-107(B)

AC

Connector: A-107

Harness side

connector

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-207

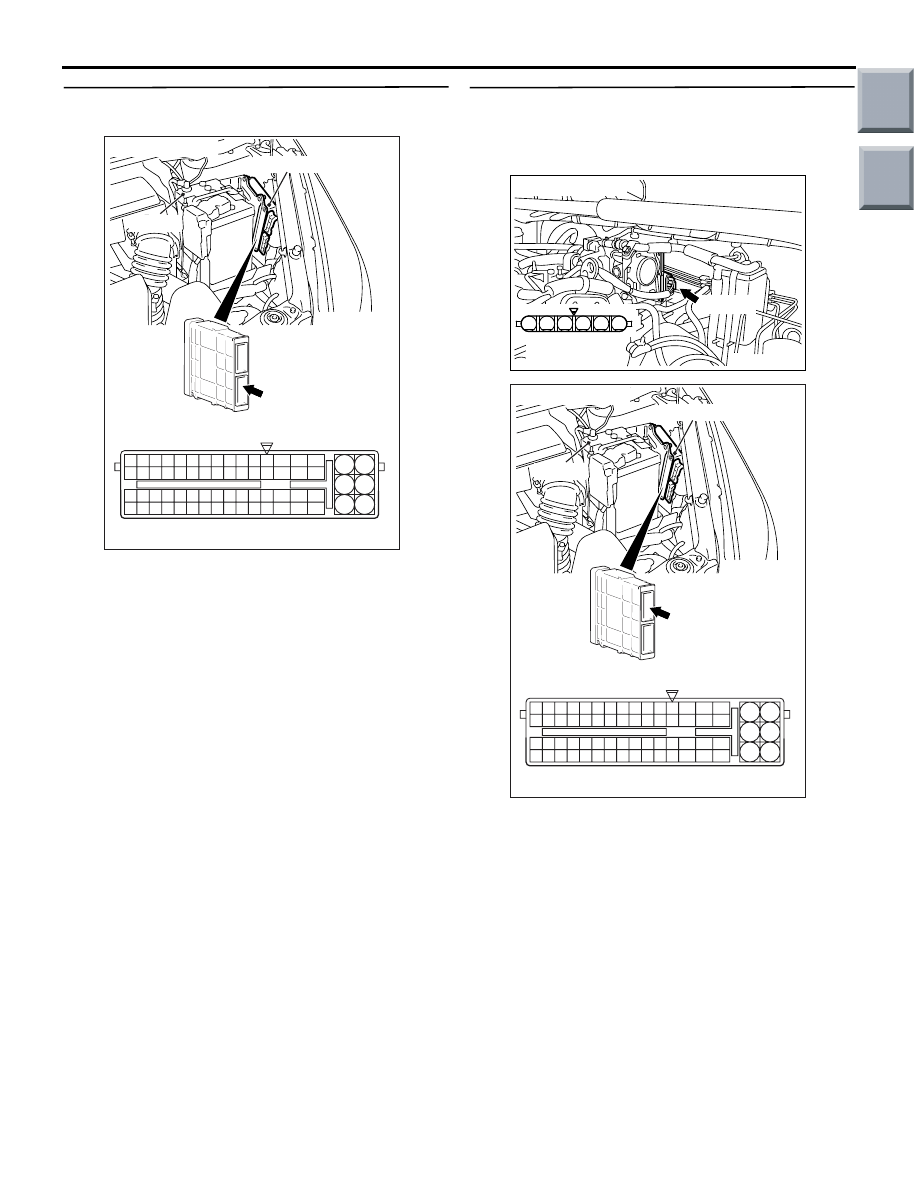

STEP 4. Perform resistance measurement at A-08
engine-ECU connector.

• Disconnect connector and measure at harness

side.

• Resistance between terminal No. 93, No. 108

and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

• Check intermediate connector A-30, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between engine-ECU connector
and earth.

a. Check and repair harness between

A-08 (terminal No. 93) engine-ECU
connector and earth.

b. Check and repair harness between

A-08 (terminal No. 108) engine-ECU
connector and earth.

STEP 5. Check harness between A-107 (terminal
No. 6) electronic-controlled throttle valve
connector and A-114 (terminal No. 7) engine-ECU
connector.

• Check output line for short circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair.

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

AK402086

1

6 5 4 3 2

A-107(B)

AC

Connector: A-107

Harness side

connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-208

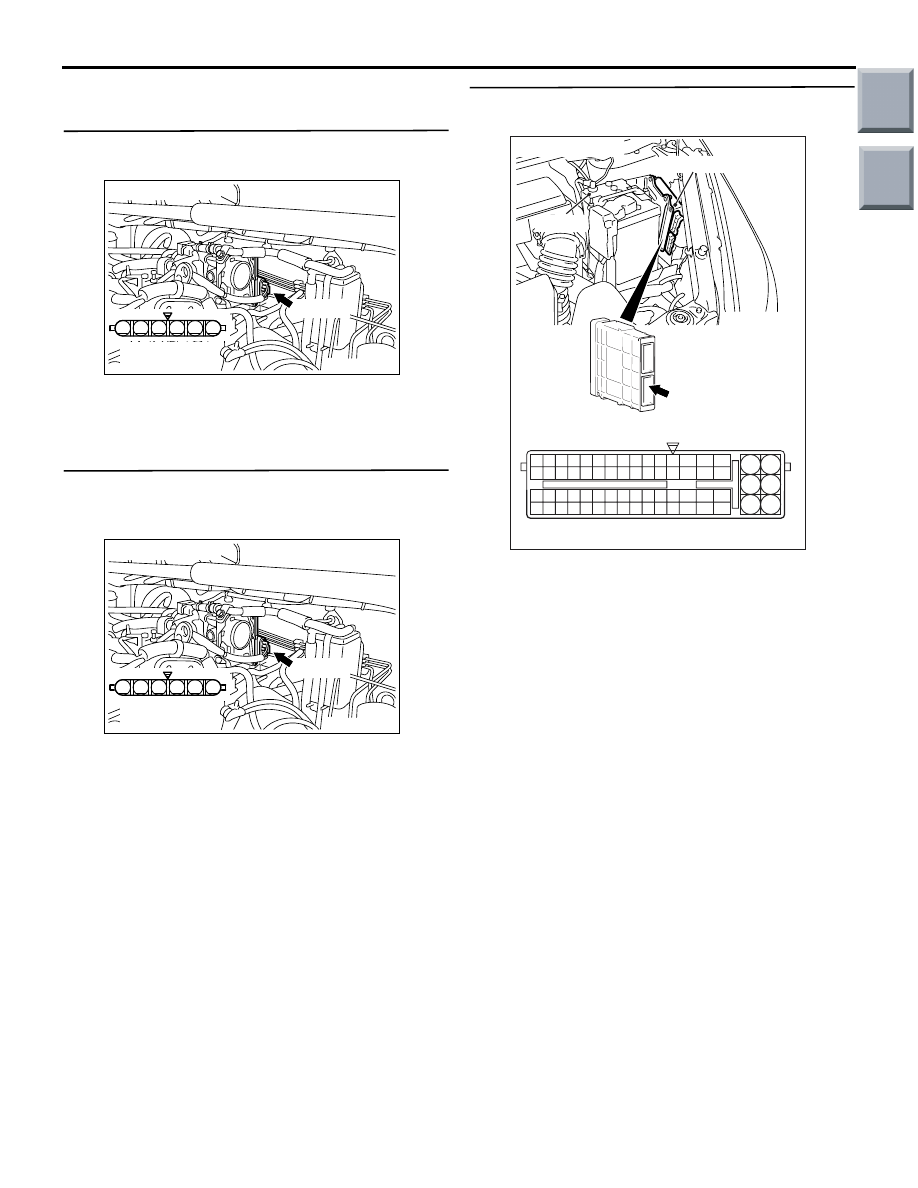

STEP 6. Check harness between A-107 (terminal
No. 5) electronic-controlled throttle valve
connector and A-114 (terminal No. 22)
engine-ECU connector.

• Check output line for short circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair.

STEP 7. Check the trouble symptoms.

Q: Is the check result normal?

YES :

Replace engine-ECU.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

AK402086

1

6 5 4 3 2

A-107(B)

AC

Connector: A-107

Harness side

connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC
