TROUBLESHOOTING
MULTIPORT FUEL INJECTION (MPI) <4G1>
13B-41

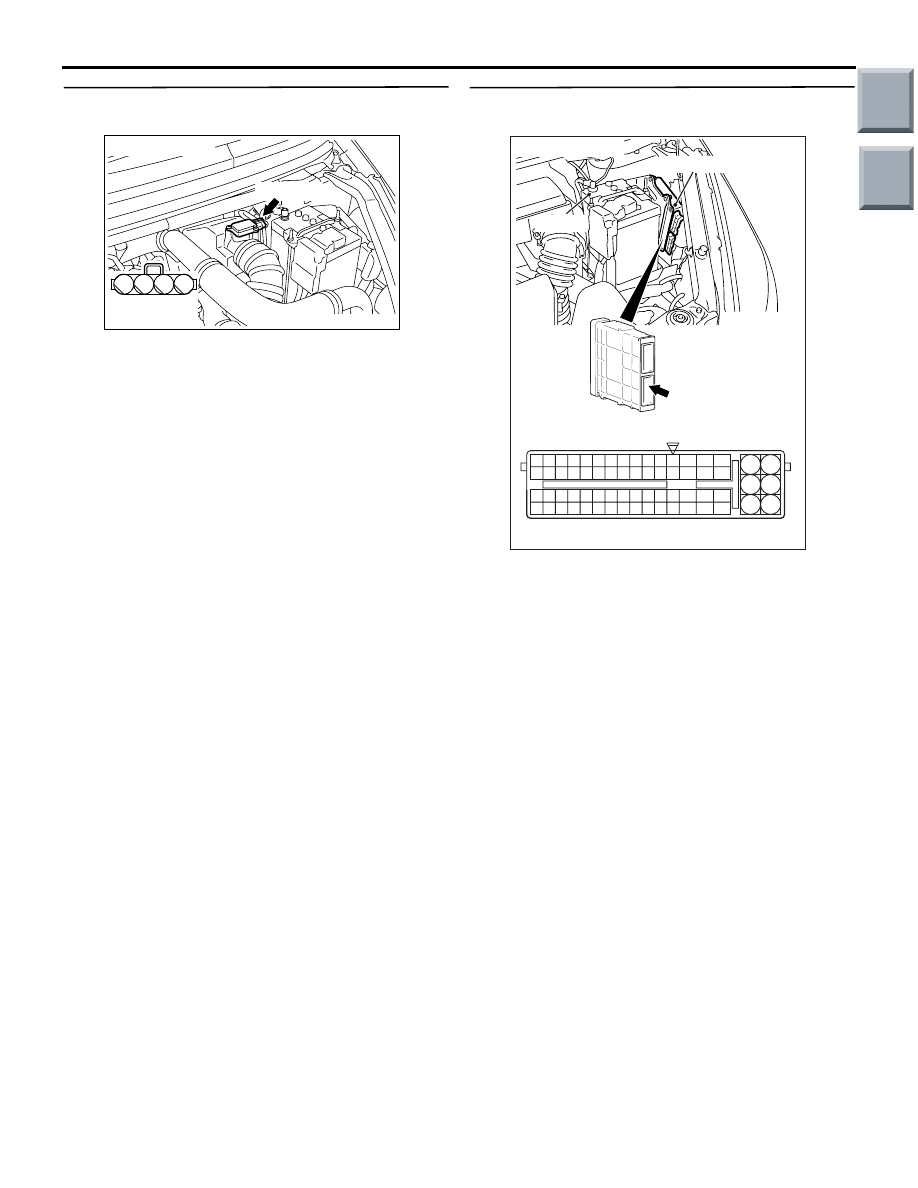

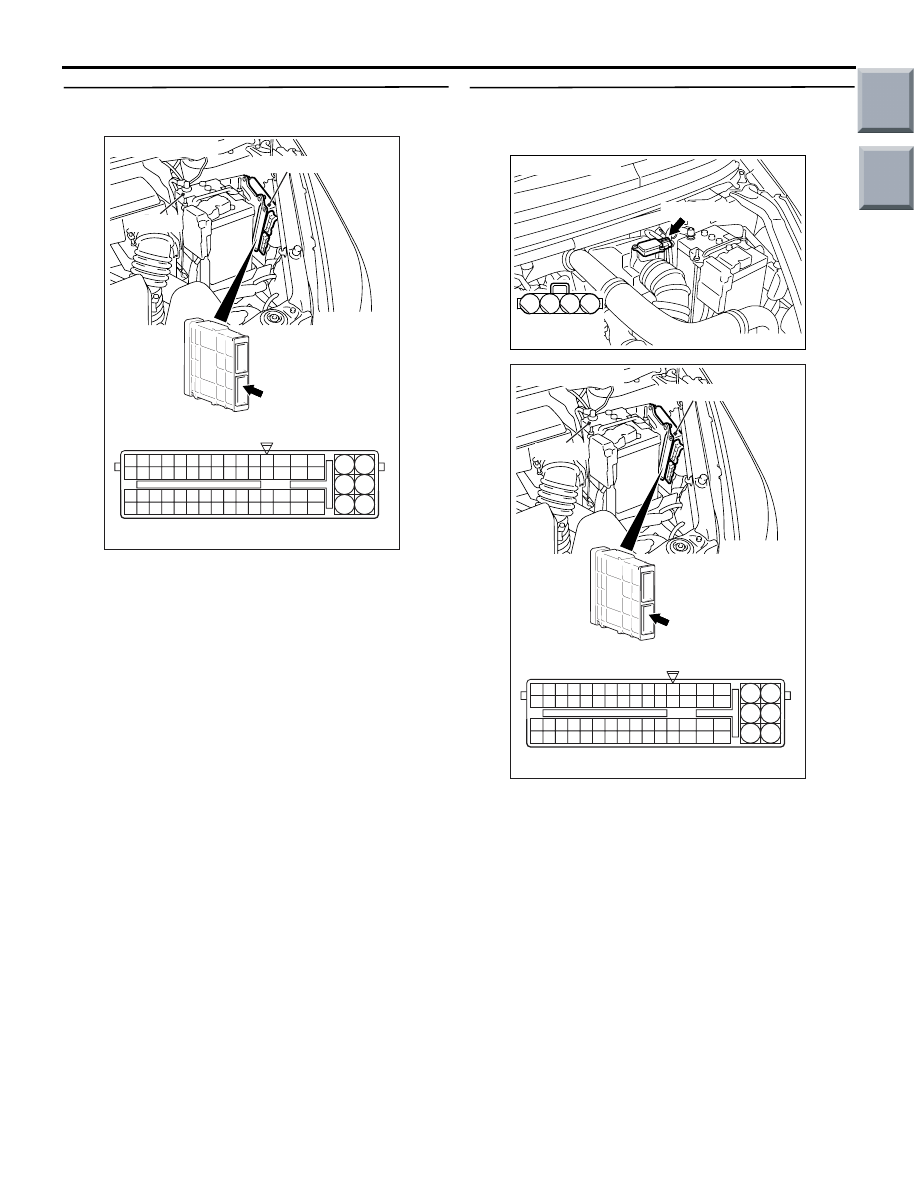

STEP 9. Perform voltage measurement at A-08
engine-ECU connector.
• Disconnect engine-ECU connector, and connect
special tool power plant ECU check harness
(MB991987) and measure the voltage on the
check connector.
• Disconnect A-34 air flow sensor connector.
• Ignition switch: ON
• Voltage between terminal No. 129 and earth.
OK: 4.5
− 4.9 V
Q: Is the check result normal?
YES :
Go to Step 10 .
NO :
Go to Step 11 .
STEP 10. Connector check: A-08 engine-ECU
connector
Q: Is the check result normal?
YES :
Check and repair harness between A-34
(terminal No. 1) air flow sensor connector
and A-08 (terminal No. 129) engine-ECU
connector.
• Check output line for open circuit.
NO :
Repair or replace.

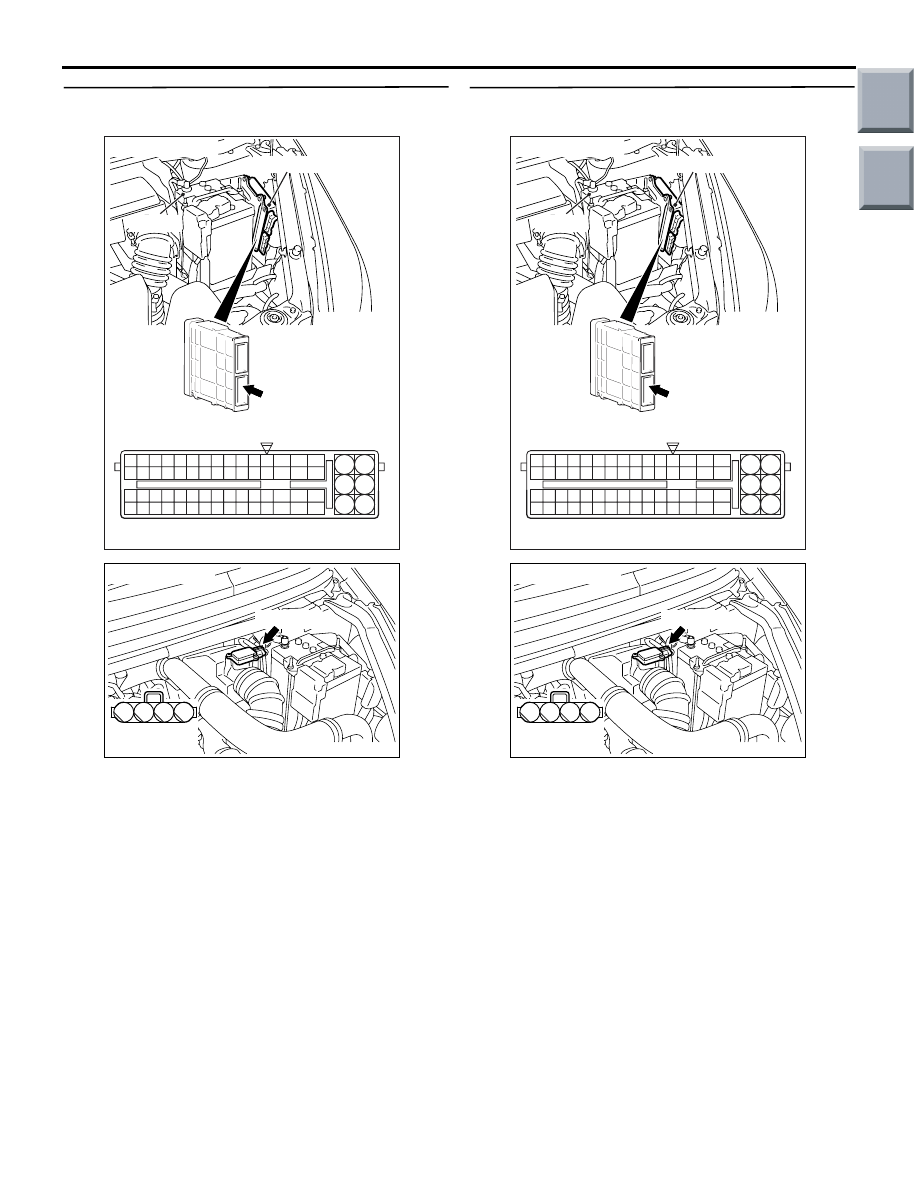

AK402725
77
78
79
80
81
82
83
84
92
93
94
95
96
97
98
99
85
86
87
88
89
90
91
100
101
102
103
104
105
106
115
116
117
118
119
120
121
107
108
109
110
111
112
113
114
130
131
132
133
134
135
136
122
123
124
125
126
127
128
129
72 71
74 73
76 75
R
AI
A-08
Connector:
A-08
A-08 Special tool power plant ECU check
harness
Engine-ECU
Battery
AK402083
2
1
3
4
Connector: A-34
Harness side
connector
A-34 (GR)
AC

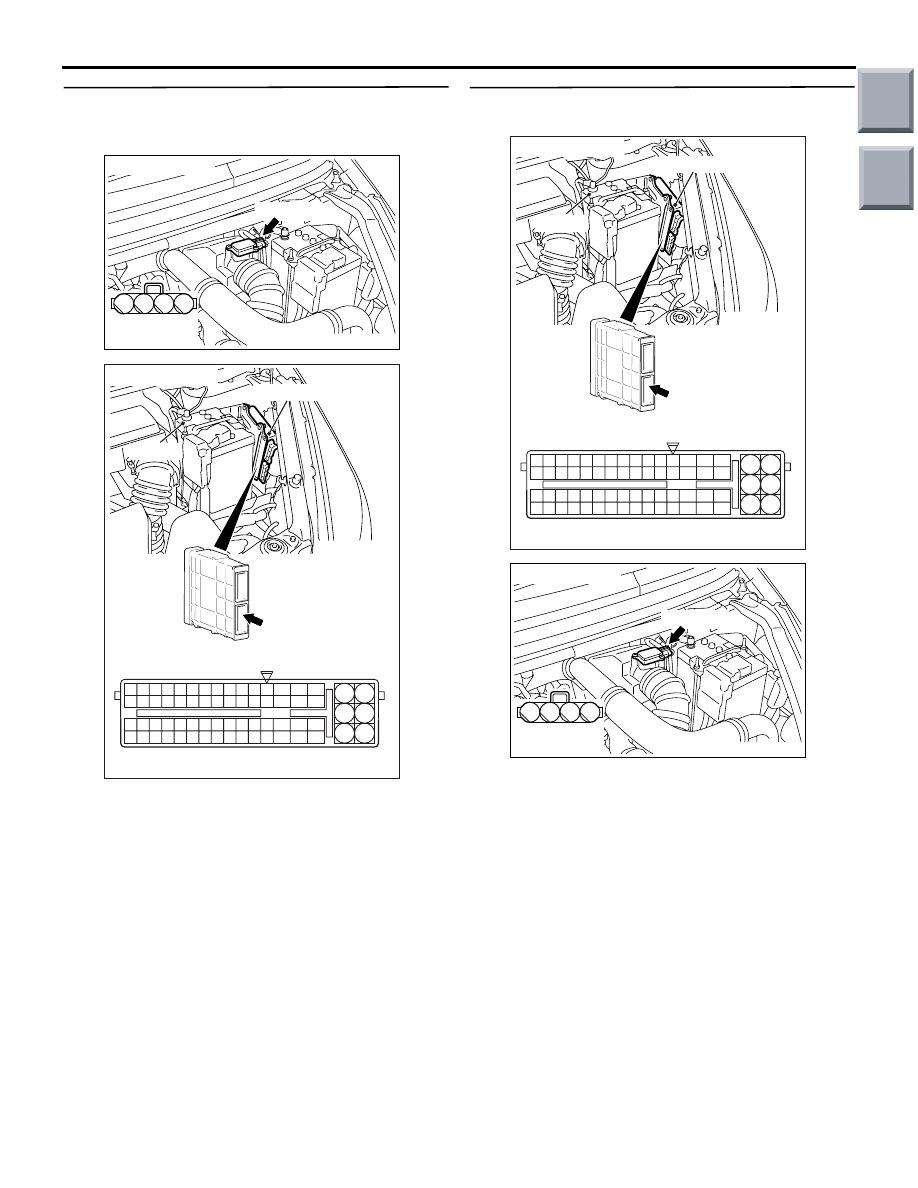

AK402725
77
78
79
80
81
82
83
84
92
93
94
95
96
97
98
99
85
86
87
88
89
90
91
100
101
102
103
104
105
106
115
116
117
118
119
120
121
107
108
109
110
111
112
113
114
130
131
132
133
134
135
136
122
123
124
125
126
127
128
129
72 71
74 73
76 75
R
AI
A-08
Connector:
A-08
A-08 Special tool power plant ECU check
harness
Engine-ECU
Battery
AK402083
2
1
3
4
Connector: A-34
Harness side
connector
A-34 (GR)
AC
