TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-5

INSPECTION OF ASC INDICATOR LAMP,
ASC OFF INDICATOR LAMP, ABS
WARNING LAMP AND BRAKE WARNING
LAMP

M1357000600012

Check that the ASC indicator lamp, ASC OFF indica-
tor lamp, ABS warning lamp, and brake warning
lamp illuminate as follows.
NOTE: The EBD warning lamp is also used as the
brake warning lamp.

1. When the ignition switch is turned ON, the ASC

indicator lamp, ASC OFF indicator lamp, ABS
warning lamp, and brake warning lamp illuminate.

2. The ASC indicator lamp, ASC OFF indicator lamp,

ABS warning lamp, and brake warning lamp
illuminate for three seconds

*1

 and then

extinguishes

*2

.

3. Otherwise, check the diagnosis code.
NOTE:

.

•

*1

: The ABS warning lamp may illuminate until the

vehicle speed reaches 10 km/h. As far as
ASC-ECU stores any diagnosis code related to
the wheel speed sensor malfunction or the motor
malfunction as past trouble, ASC-ECU continues
illuminating the ABS warning lamp until it verifies
that the malfunction for that code is resolved
(start-up check).

•

*2

: The lamp does not turn OFF when the parking

brake is applied or the brake fluid level is low-
ered.

DIAGNOSTIC FUNCTION

M1357000700019

HOW TO READ DIAGNOSIS CODE

Refer to GROUP 00

− How to Use Troubleshoot-

ing/Inspection Service Points

P.00-7

.

HOW TO ERASE DIAGNOSIS CODE

Refer to GROUP 00

− How to Use Troubleshoot-

ing/Inspection Service Points

P.00-7

.

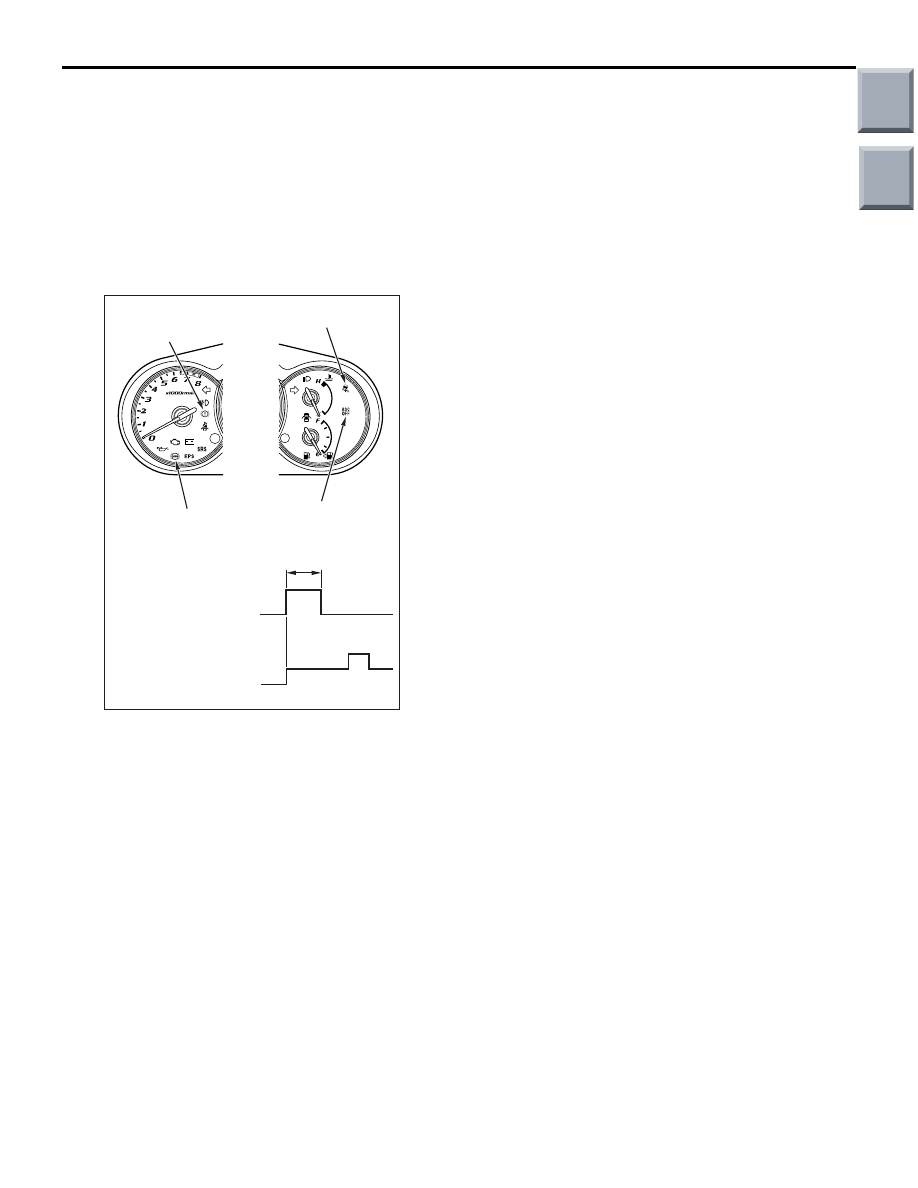

AC601002AB

ABS warning lamp

Warning lamps
and indicator
lamps

Ignition
switch

ON

OFF

Approx.3s

ON
ACC,
LOCK

START

Brake warning
lamp

ASC OFF indicator
lamp

ASC indicator lamp

Main

Index

Group

TOC

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-6

DIAGNOSIS CODE CHART

M1357000800016

CAUTION

During diagnosis, a diagnosis code associated with other system may be set when the ignition switch
is turned on with connector(s) disconnected. On completion, confirm all systems for diagnosis
code(s). If diagnosis code(s) are set, erase them all.

Diagnosis code
No.

Item

Reference page

C1200

Wheel speed sensor (FR) system (open circuit or short to earth
or power supply)

P.35C-8

C1205

Wheel speed sensor (FL) system (open circuit or short to earth
or power supply)

C1210

Wheel speed sensor (RR) system (open circuit or short to
earth or power supply)

C1215

Wheel speed sensor (RL) system (open circuit or short to earth
or power supply)

C1201

Wheel speed sensor (FR) system (sensor output error)

P.35C-19

C1206

Wheel speed sensor (FL) system (sensor output error)

C1211

Wheel speed sensor (RR) system (sensor output error)

C1216

Wheel speed sensor (RL) system (sensor output error)

C1222

Wheel speed sensor system (abnormal power supply voltage)

P.35C-30

C1225

Wheel speed sensor system (sensor output error)

P.35C-35

C1226

Control solenoid valve (FR) pressure holding system

P.35C-45

C1231

Control solenoid valve (FR) decompressing system

C1236

Control solenoid valve (FL) pressure holding system

C1241

Control solenoid valve (FL) pressure reducing system

C1246

Control solenoid valve (RR) pressure holding system

C1251

Control solenoid valve (RR) pressure reducing system

C1256

Control solenoid valve (RL) pressure holding system

C1261

Control solenoid valve (RL) decompressing system

C1266

Motor system (seizure)

P.35C-46

C1273

Motor relay stuck OFF

C1274

Motor relay stuck ON

C1276

Valve relay system

P.35C-50

C1278

Valve relay system stuck off

P.35C-53

C1279

Valve relay system stuck on

P.35C-55

C1300

Cut valve (FR/RL) <primary> system

P.35C-45

C1305

Suction valve (FR/RL) <primary> system

C1310

Cut valve (FL/RR) <secondary> system

C1315

Suction valve (FL/RR) <secondary> system

C1340

Stop lamp switch signal error

P.35C-57

C1345

Low brake fluid level

P.35C-60

C1364

Internal malfunction of pressure sensor

P.35C-62

Main

Index

Group

TOC

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-7

C1366

Lateral G-sensor signal error

P.35C-62

C1371

Yaw rate sensor signal error

P.35C-63

C1385

Yaw rate sensor error

P.35C-64

C1387

Lateral G-sensor error

P.35C-65

C1388

Yaw rate sensor active check error

P.35C-66

C1394

Steering wheel sensor neutral point not learned

P.35C-67

C1396

Engine torque intervention rejection

P.35C-67

C1505

Steering wheel sensor error

P.35C-68

C1555

Range exceeding of steering wheel sensor

P.35C-69

C1607

Malfunction of ASC-ECU

P.35C-69

C1621

G and yaw rate sensor improper installation

P.35C-70

C1860

Abnormal rise of ASC-ECU power supply voltage

P.35C-71

C1861

Abnormal drop of ASC-ECU power supply voltage

P.35C-72

C1862

Abnormal power supply voltage of G and yaw rate sensor (high
voltage)

P.35C-75

C1863

Abnormal power supply voltage of G and yaw rate sensor (low
voltage)

P.35C-76

U1073

Bus-off

P.35C-79

U1100

Engine-related CAN time-out error

P.35C-79

U1104

Steering wheel sensor CAN time-out error

P.35C-80

U1105

G and yaw rate sensor CAN time-out error

P.35C-81

U1406

Accelerator pedal position signal error

P.35C-82

U1426

Engine speed signal error

P.35C-83

U1427

Engine torque signal error

P.35C-84

U1428

Engine's maximum torque signal error

U1429

Engine's minimum torque signal error

U1430

Engine torque request signal error

Diagnosis code
No.

Item

Reference page

Main

Index

Group

TOC

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-8

DIAGNOSTIC TROUBLE CODE
PROCEDURES

Code No. C1200: Wheel speed sensor (FR) system (open circuit or short to earth or power supply)



Code No. C1205: Wheel speed sensor (FL) system (open circuit or short to earth or power supply)



Code No. C1210: Wheel speed sensor (RR) system (open circuit or short to earth or power supply)



Code No. C1215 Wheel speed sensor (RL) system (open circuit or short to earth or power supply)

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnosis code may be set. Prior to this
diagnosis, always diagnose the CAN bus lines.

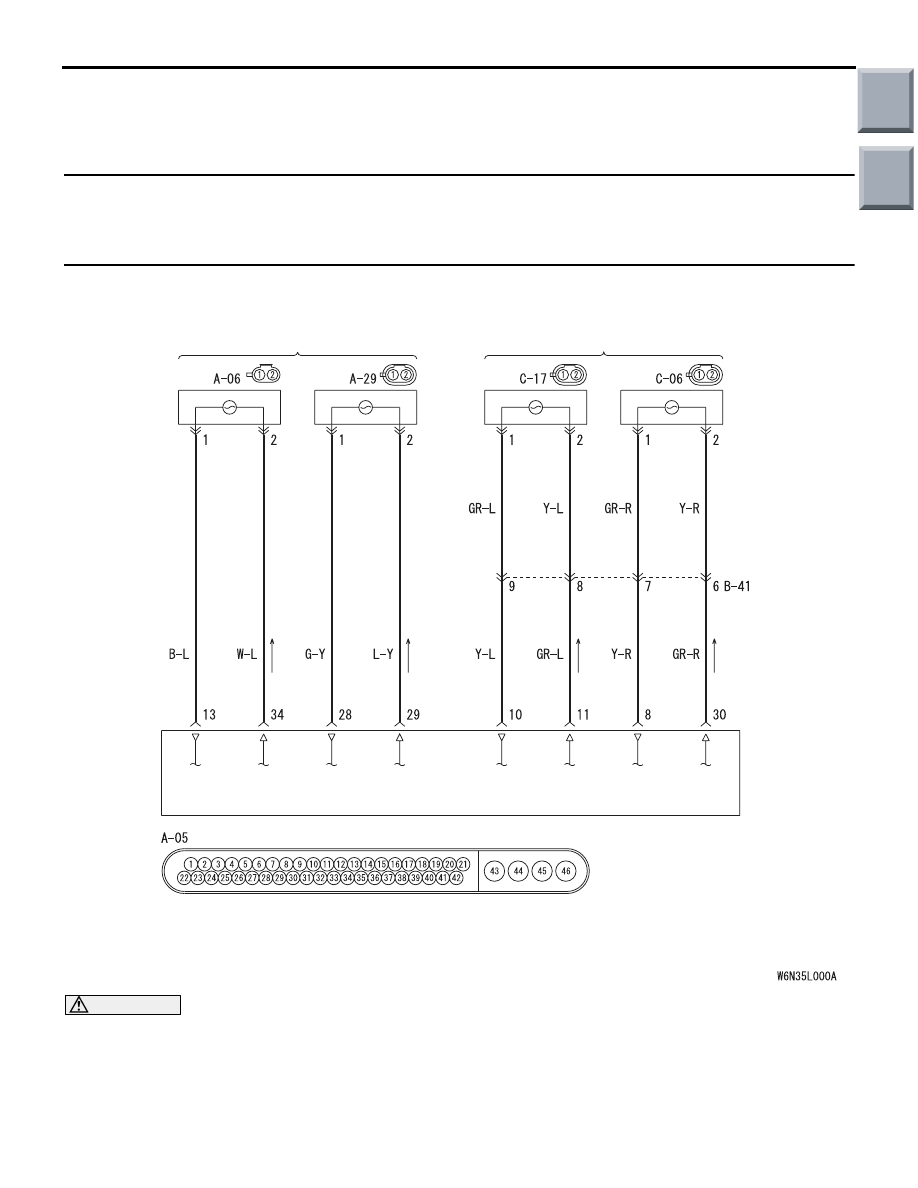

Wheel Speed Sensor Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT WHEEL SPEED SENSOR

REAR WHEEL SPEED SENSOR

(LH)

(LH)

(RH)

(RH)

ASC-ECU
