DOOR

BODY

42-46

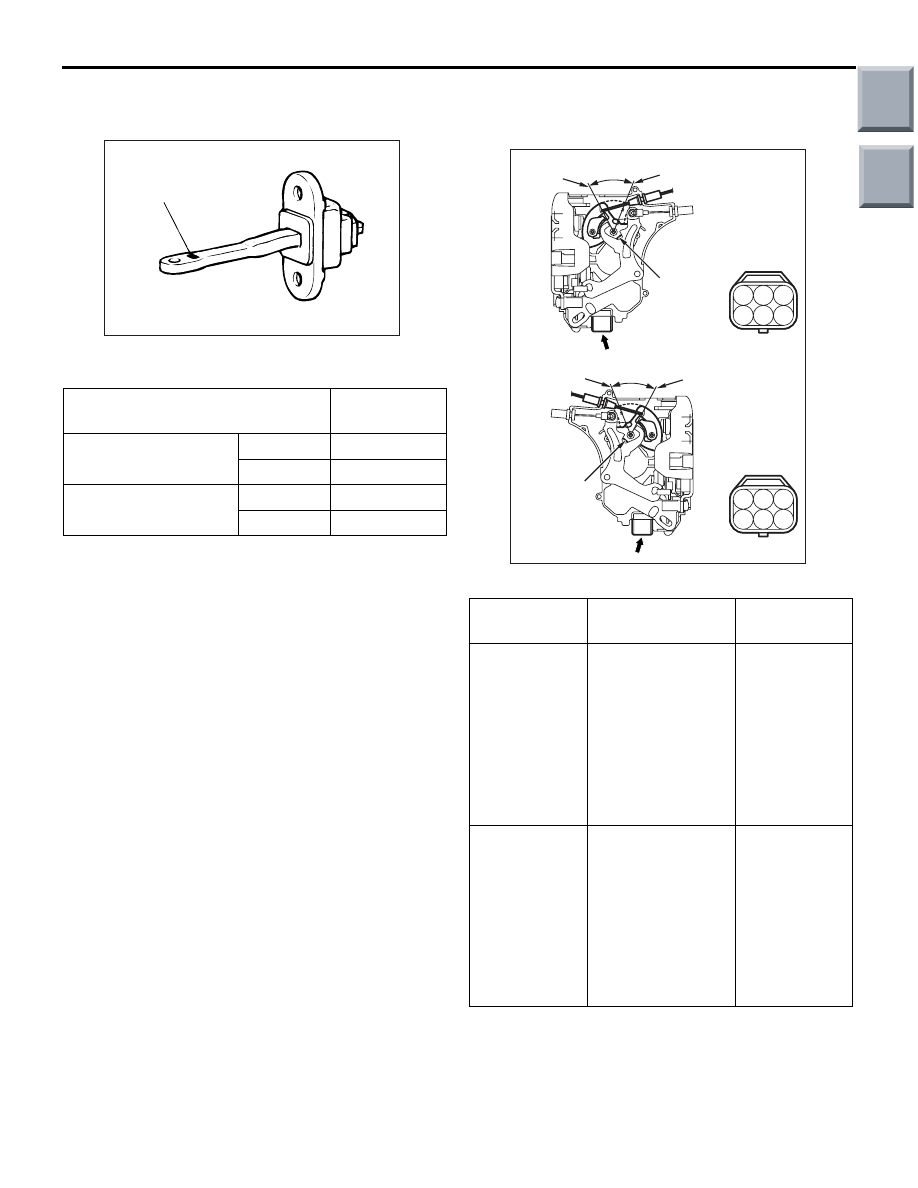

INSTALLATION SERVICE POINT
>>A<< DOOR CHECK INSTALLATION

ACX00541AC

Identification mark

Install the door check with the following identification
marks facing upward.

Application locations

Identification
mark

Front door

Left side

21L

Right side

21R

Rear door

Left side

45L

Right side

45R

>>B<< REAR LOWER SASH
INSTALLATION

Engage the rear lower sash into the window rear
sash(door) securely.

>>C<< DOOR INSIDE HANDLE
INSTALLATION

When connecting the inside cable to the door inside
handle, ensure that the door latch and the inside
handle are unlocked.

INSPECTION

M1423004700853

FRONT DOOR LOCK ACTUATOR CHECK

4

2
5

3
6

1

4

2
5

3
6

1

AC208145

B

A

AB

Lever

UNLOCK

<Front left side>

<Front right side>

LOCK

View A

Lever

UNLOCK

LOCK

View B

ACTUATOR OPERATION CHECK

Lever
position

Battery
connection

Lever
operation

At the "LOCK"
position

• Connect

terminal No.4
and the
negative battery
terminal.

• Connect

terminal No.6
and the positive
battery terminal.

The lever
moves from
the "LOCK"
position to the
"UNLOCK"
position.

At the
"UNLOCK"
position

• Connect

terminal No.6
and the
negative battery
terminal.

• Connect

terminal No.4
and the positive
battery terminal.

The lever
moves from
the "UNLOCK"
position to the
"LOCK"
position.

Main

Index

Group

TOC

DOOR

BODY

42-47

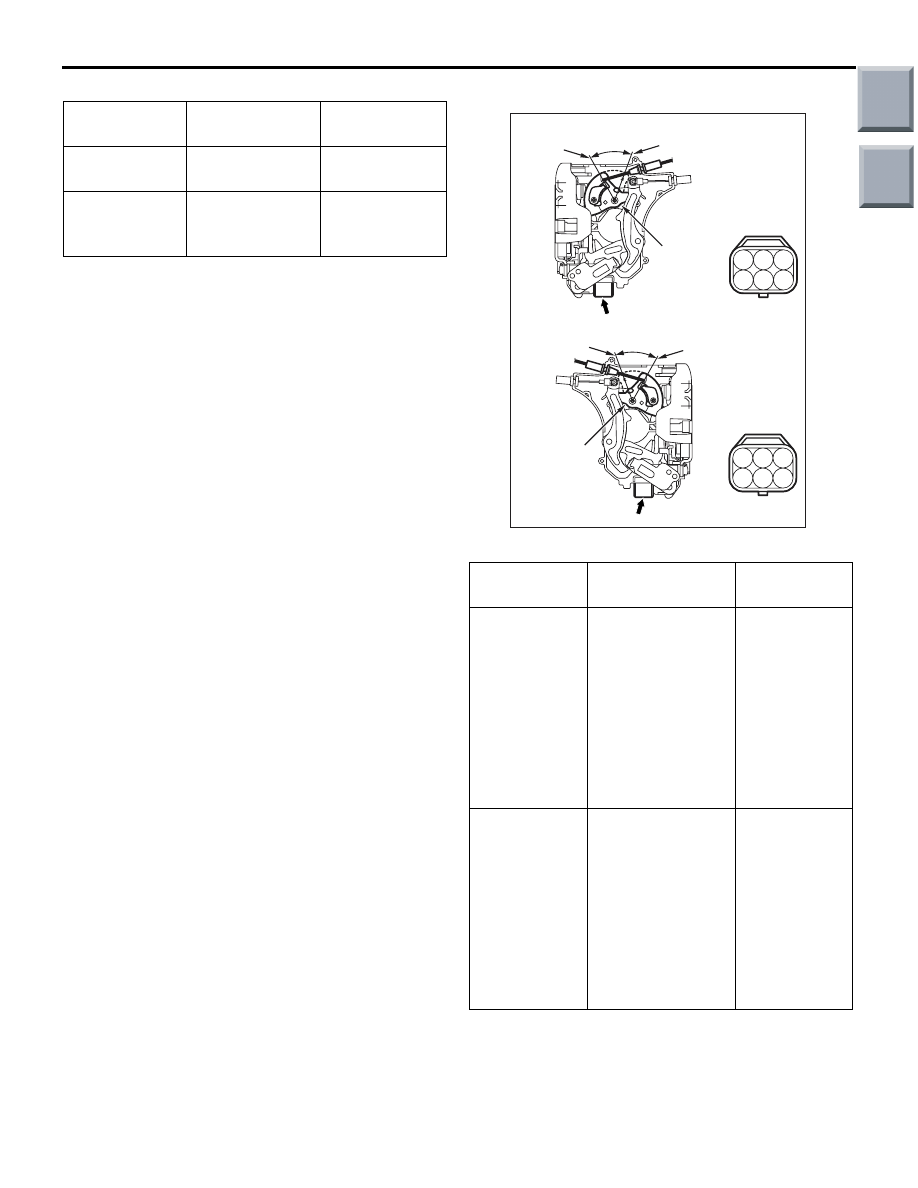

ACTUATOR SWITCH CHECK <DRIVER’S SIDE>

Lever position Tester

connection

Specified
condition

At the "LOCK"
position

2

− 3

Continuity
(Less than 2

Ω)

At the
"UNLOCK"
position

1

− 3

Continuity
(Less than 2

Ω)

REAR DOOR LOCK ACTUATOR CHECK

4

2
5

3
6

1

AC208587

4

2
5

3
6

1

B

A

AB

Lever

UNLOCK

LOCK

Lever

UNLOCK

LOCK

<Rear left side>

<Rear right side>

View A

View B

ACTUATOR OPERATION CHECK

Lever
position

Battery
connection

Lever
operation

At the "LOCK"
position

• Connect

terminal No.4
and the
negative battery
terminal.

• Connect

terminal No.6
and the positive
battery
terminal.

The lever
moves from
the "LOCK"
position to the
"UNLOCK"
position.

At the
"UNLOCK"
position

• Connect

terminal No.6
and the
negative battery
terminal.

• Connect

terminal No.4
and the positive
battery
terminal.

The lever
moves from
the "UNLOCK"
position to the
"LOCK"
position.

Main

Index

Group

TOC

DOOR

BODY

42-48

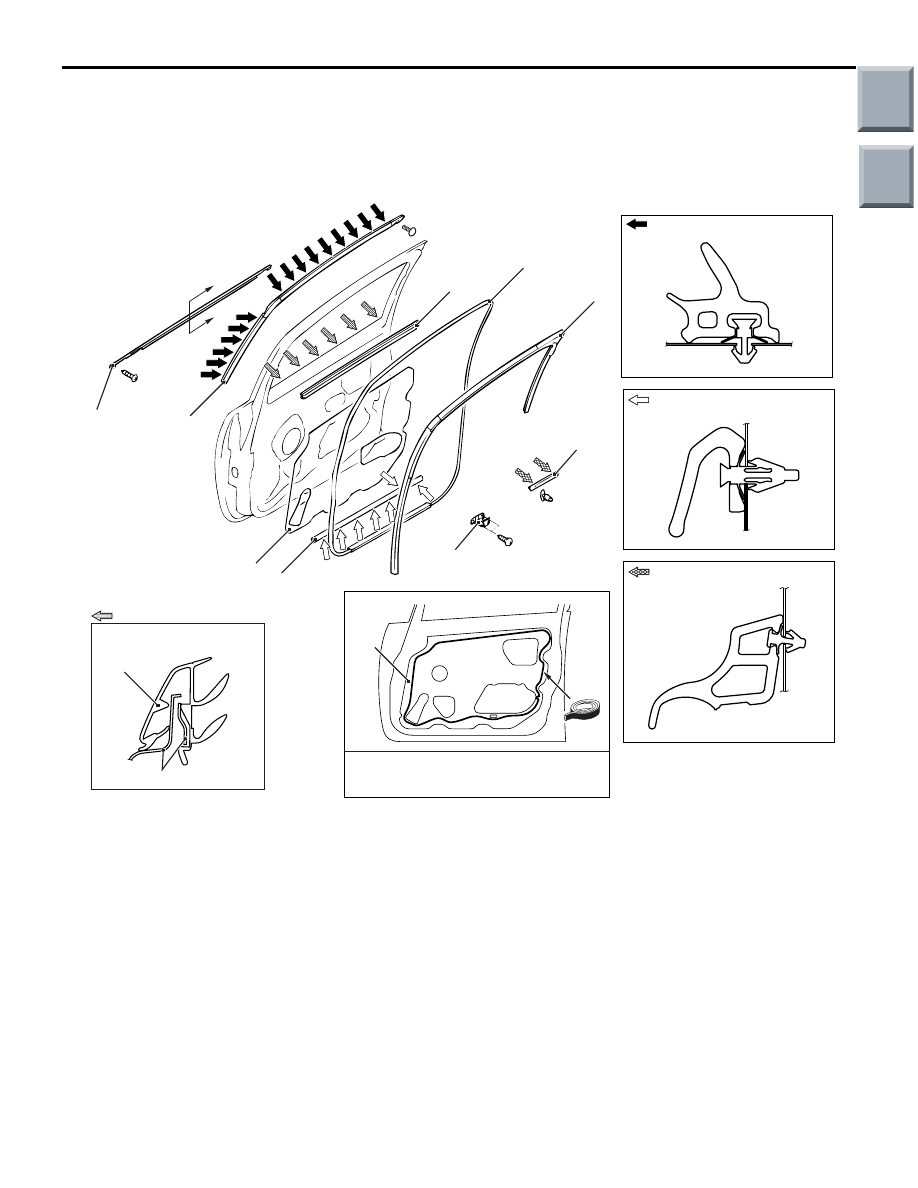

WINDOW GLASS RUNCHANNEL AND
DOOR OPENING WEATHERSTRIP

REMOVAL AND INSTALLATION

M1423003100557

AC309885 AB

1

2

2

3

4

5

6

7

8

8

9

A

A



<Front door>

NOTE

Section A - A

:Sectional view of clip
 position

:Sectional view of clip
 position

:Sectional view of clip
 position

Sealant: 3M ATD Part No. 8633
or equivalent

Door

 : Convex area on door

Waterproof film removal steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-13

).

1.

Pull handle bracket

•

Speaker (Refer to GROUP 54A,
Speaker

P.54A-120

).

>>

B

<<

2.

Waterproof film
Door opening weatherstrip inner
removal steps

•

Cowl side trim and scuff plate
(Refer to GROUP 52A, Interior Trim

P.52A-11

).

3.

Door opening weatherstrip inner
Door opening weatherstrip outer
removal

<<

A

>>

4.

Door opening weatherstrip outer

Door opening weatherstrip lower
removal steps

<<

A

>>

5.

Door opening weatherstrip lower
Door beltline weatherstrip inner
removal steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-13

).

6.

Door beltline weatherstrip inner
Door window glass runchannel
removal

7.

Door window glass runchannel
Door beltline moulding removal
steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-13

).

>>

B

<<

2.

Waterproof film

8.

Door beltline moulding

Main

Index

Group

TOC

Centre pillar weatherstrip lower
removal

<<

A

>>

9.

Centre pillar Weather pillar strip
lower

DOOR

BODY

42-49

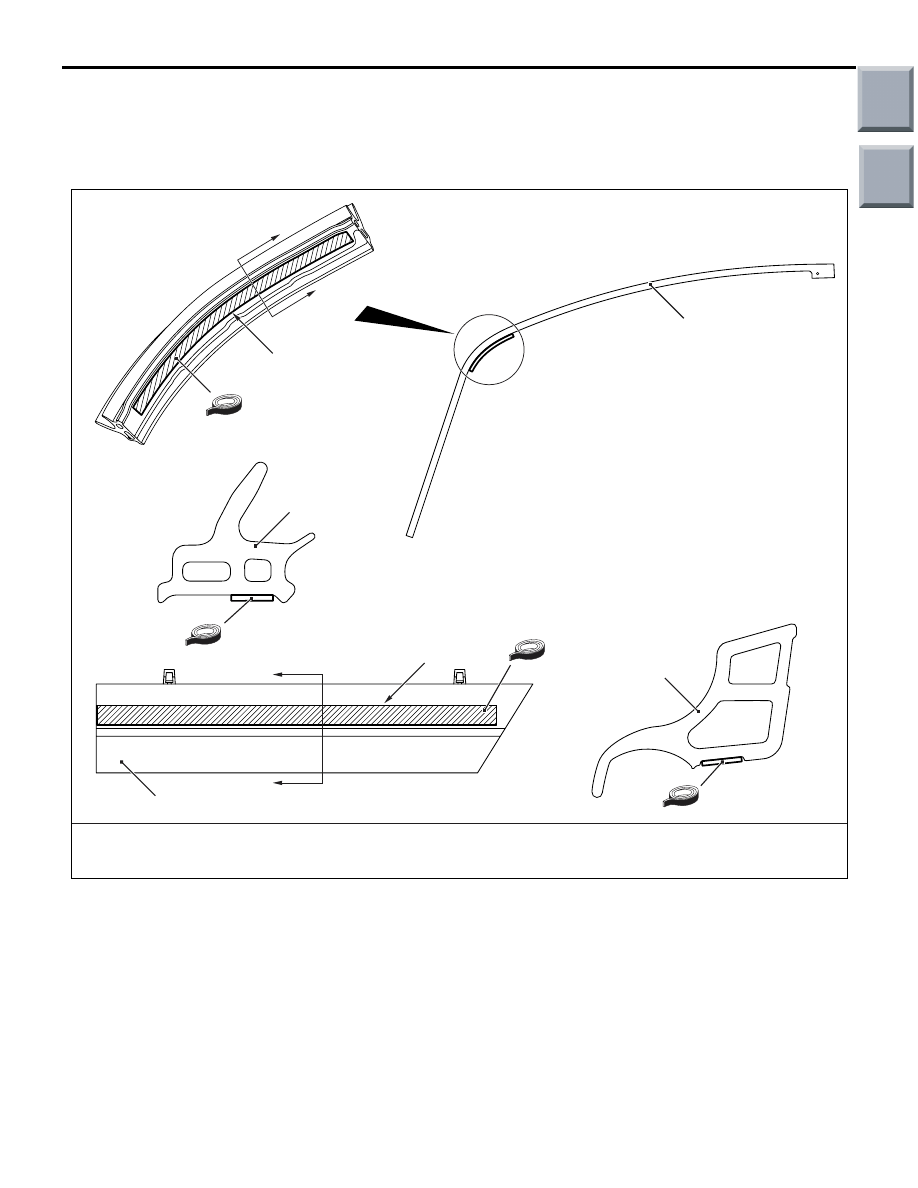

Double-sided tape application location

AC208226

a

A

A

b

B

B

AB

Section A - A

Door opening weatherstrip outer

Door opening
weatherstrip outer

Section B - B

Centre pillar
weatherstrip lower

Centre pillar
weatherstrip lower

Adhesive tape: Double-sided tape  5 mm width, 45 mm length and 0.5 mm thickness
