Battery type

Capacity (5-hour rate)

Normal charging current Rapid charging current

75D23L

52 A

5.2 A

52 A

BATTERY

CHASSIS ELECTRICAL

54A-5

The judgment method of a charge end

When the specific gravity of the battery electrolyte is
constantly within 1.250

− 1.290 for a continuous

period of one hour or more.

BATTERY TEST

M1541001200755

TEST STEPS

STEP 1. Battery no-load voltage check
(1) Illuminate the headlamp for 15 seconds.
(2) Turn off the headlamp and then leave it for about

2 minutes to stabilise the battery voltage.

(3) Remove the battery cable.
(4) Measure the battery no-load voltage.

OK: 12.4 V or more (Specific gravity
1.240)

Q: Does the measured voltage correspond with this

range?
YES :

Go to Step 3.

NO :

Go to Step 2.

STEP 2. Battery charging

Q: Does the battery recharge?

YES :

Recharge the battery at 5A

(constant-current charging) and then go to
Step 1 (Refer to Table 1).

NO :

Go to Step 3.

STEP 3. Load test check
(1) Connect the battery tester to battery.
(2) Feed a load current through the battery (Refer to

Table 1).

(3) Measure the battery voltage after 15 seconds and

then eliminate a load current.

(4) Compare the measured voltage to the specified

lowest voltage (Refer to Table 2).

Q: Is the measured voltage higher than the lowest

voltage?
YES :

The battery is normal.

NO :

Replace the battery.

(TABLE 1)

Battery type

75D23L

Charging time when fully discharged [5A constant current charging] (H)

11

Load current (A)

260

(TABLE 2)

Outside air
temperature
(

°C)

21 or
more

16  to 20 10 to 15

4  to 9

-1 to -3

-7 to -2

-12 to -8 -18 to -13

Minimum voltage
(V)

9.6

9.5

9.4

9.3

9.1

8.9

8.7

8.5

Main

Index

Group

TOC

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-6

IGNITION SWITCH

SPECIAL TOOLS

M1543000603250

Tool

Number

Name

Use

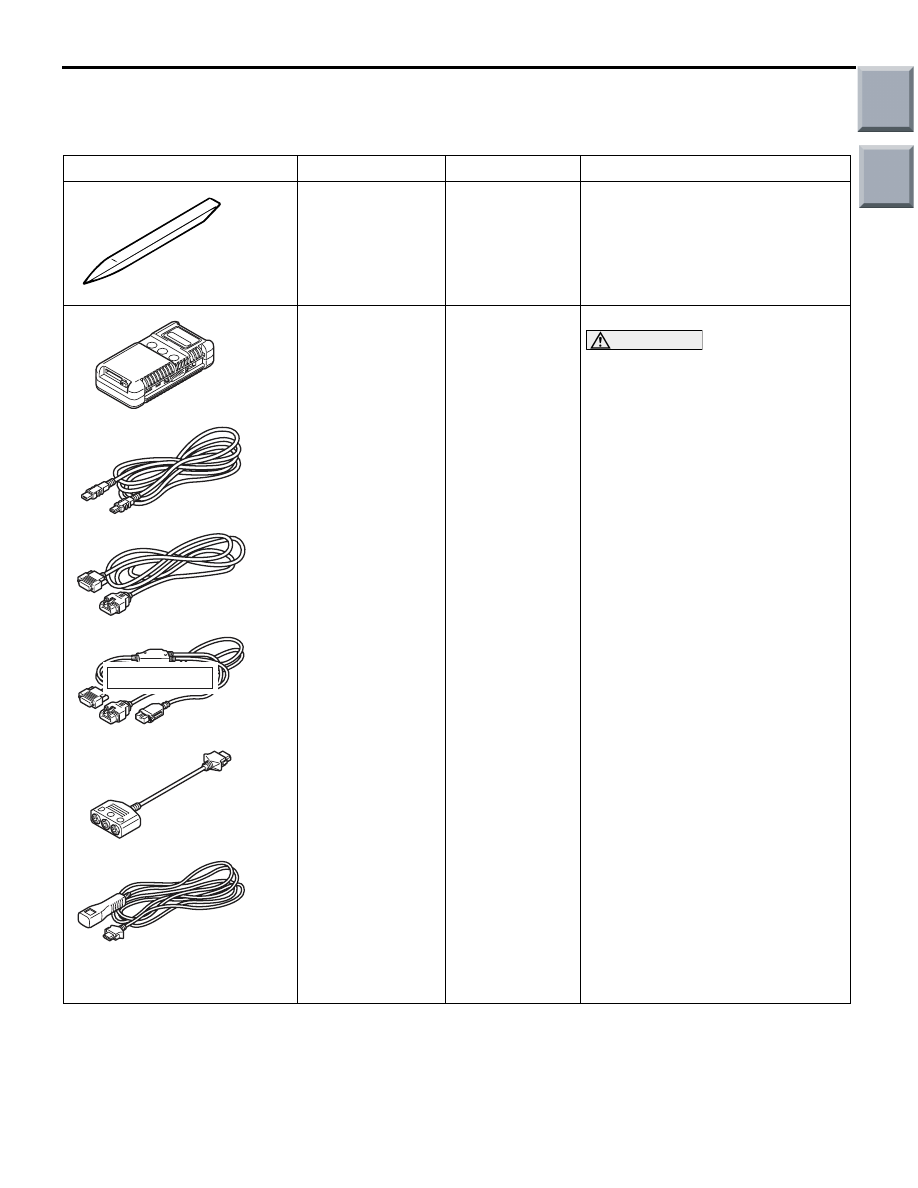

MB990784

MB990784

Ornament
remover

Lower panel and Steering column
cover removal

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USE

MB991955
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

M.U.T.-III
sub-assembly

A: Vehicle

communicatio
n interface (V.
C. I.)

B: M.U.T.-III

USB cable

C: M.U.T.-III

Main harness
A (Vehicles
with CAN
communicatio
n system)

D: M.U.T.-III

Main harness
B (Vehicles
without CAN
communicatio
n system)

E: M.U.T.-III

Measurement
adapter

F: M.U.T.-III

Trigger
harness

Diagnosis code check

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness B
instead, the CAN communication
does not function correctly.

Main

Index

Group

TOC

MB991223

A

D

C

B

AZ

DO NOT USE

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-7

TROUBLESHOOTING

IGNITION SWITCH

M1543000701303

The ignition switch is controlled by the Smart Wiring
System (SWS). For troubleshooting, refer to respec-
tive Groups below.

• Not using SWS monitor: GROUP 54B, Trouble-

shooting

P.54B-35

.

• Using SWS monitor: GROUP 54C, Troubleshoot-

ing

P.54C-29

.

IMMOBILISER
STANDARD FLOW OF DIAGNOSIS TROU-
BLESHOOTING

Refer to GROUP 00, How to Use Troubleshoot-
ing/Inspection Service Points

P.00-8

.

DIAGNOSTIC FUNCTION

M1543007000766

HOW TO READ DIAGNOSIS CODE

Refer to GROUP 00, How to Use Troubleshoot-
ing/Inspection Service Points

P.00-7

.

HOW TO ERASE DIAGNOSIS CODE

Refer to GROUP 00, How to Use Troubleshoot-
ing/Inspection Service Points

P.00-7

.

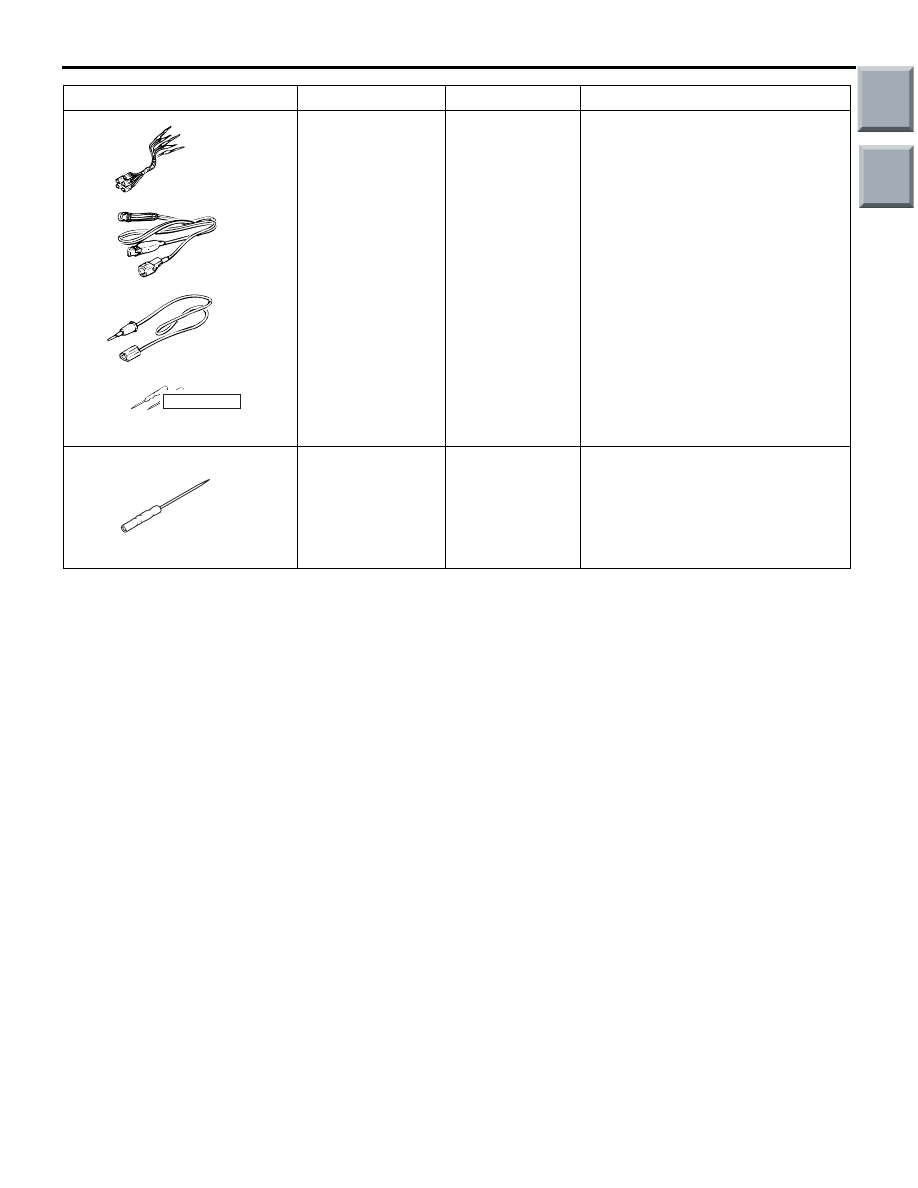

MB991223

A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Test harness
B: LED harness
C: LED harness

adapter

D: Probe

Making voltage and resistance
measurements during
troubleshooting

A: Connect pin contact pressure

inspection

B: Power circuit inspection
C: Power circuit inspection
D: Commercial tester connection

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

Main

Index

Group

TOC

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-8

ENCRYPTED CODE REGISTRATION CRITERIA TABLE

M1543026000260

The ignition key contains a transponder (small trans-
mitter), which retains an unique encrypted code.
Under any of the conditions below, the encrypted
code must be registered in the immobiliser-ECU
again. The immobiliser-ECU can retain maximum
eight different encrypted codes. This means that
maximum eight ignition keys can be registered.

Component to be replaced

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Immobilizer-ECU

Ignition key

When Engine-ECU <M/T> or
engine-CVT-ECU <CVT> is
replaced

−

Must be replaced

Must be replaced
All ignition keys must be
registered again

When immobilizer-ECU is
replace

Must not be replaced

−

Must not be replaced
All ignition keys must be
registered again

When ignition key is added

Must not be replaced

Must not be
replaced

• Additional ignition key

must be registered

• All ignition keys must

be registered again

When ignition key is lost

Must not be replaced

Must not be
replaced

All the ignition keys other
than the lost one must be
registered again

CHART CLASSIFIED BY DIAGNOSIS
CODES

M1543007100729

CAUTION

During diagnosis, a diagnosis code associated
with other system may be set when the ignition
switch is turned on with connector(s) discon-
nected. On completion, confirm all systems for
diagnosis code(s). If diagnosis code(s) are set,
erase them all.

Code No.

Diagnosis contents

Reference page

11

Transponder communication system or radio interference
of encrypted code.

P.54A-9

12

Encrypted codes are not the same or are not registered.

P.54A-12
