TRANSMISSION MOUNTING

POWER PLANT MOUNT

32-9

<4G1>

AC600385

43 ± 4 N·m

43 ± 4 N·m

45 ± 10 N·m

11 ± 1 N·m

24 ± 4 N·m

1

2

3

4

N

AB

N

24 ± 3 N·m

23 ± 2 N·m

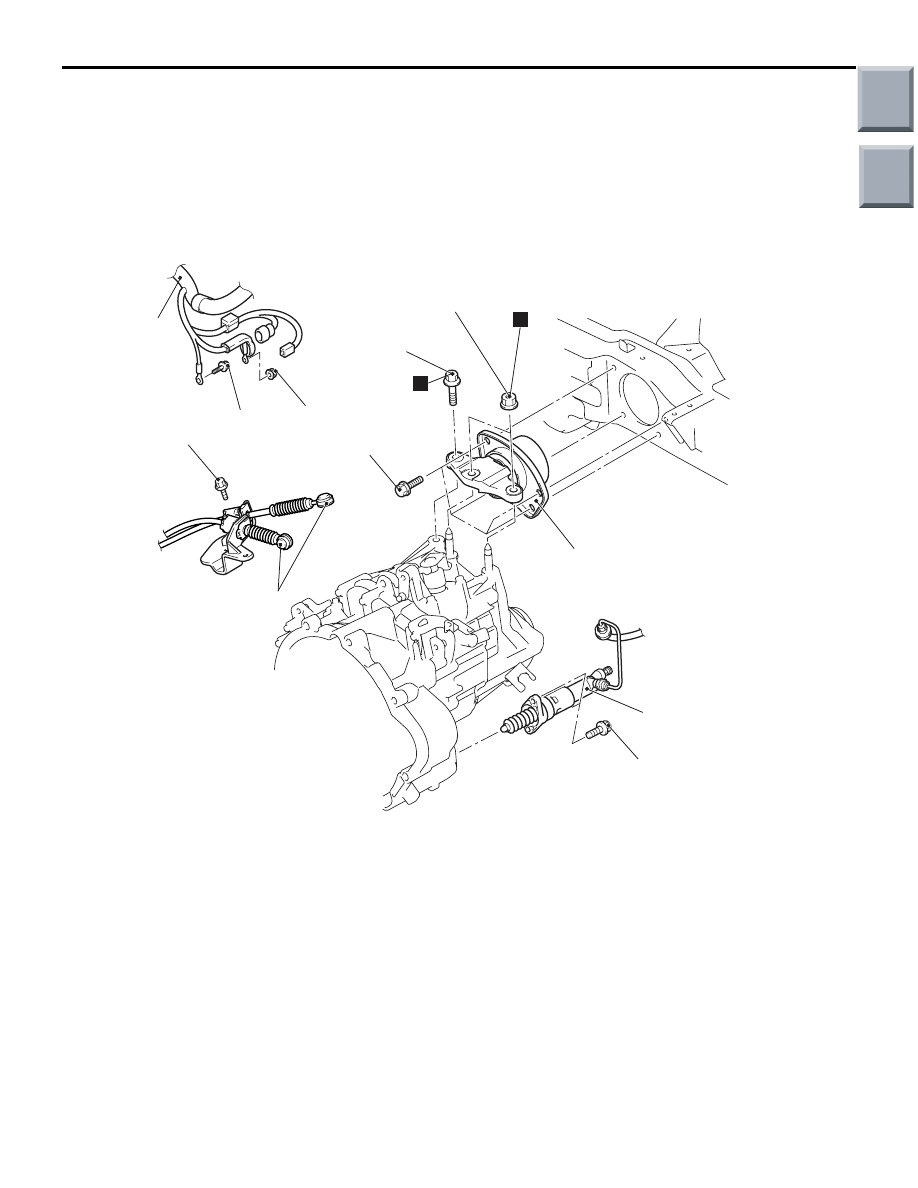

Removal steps

<<

A

>>

1.

Gearshift cable and select cable
connection

2.

Control wiring harness connection

<<

B

>>

3.

Clutch release cylinder assembly

•

Raise the engine and transmission
assembly until its weight is not
applied to the transmission
mounting insulator, and support it
securely.

4.

Transmission mounting insulator

•

Raise the engine and transmission
assembly until its weight is not
applied to the transmission
mounting insulator, and support it
securely.

9.

Transmission mounting insulator

Removal steps (Continued)

Removal steps (Continued)

Main

Index

Group

TOC

TRANSMISSION MOUNTING

POWER PLANT MOUNT

32-10

REMOVAL SERVICE POINTS

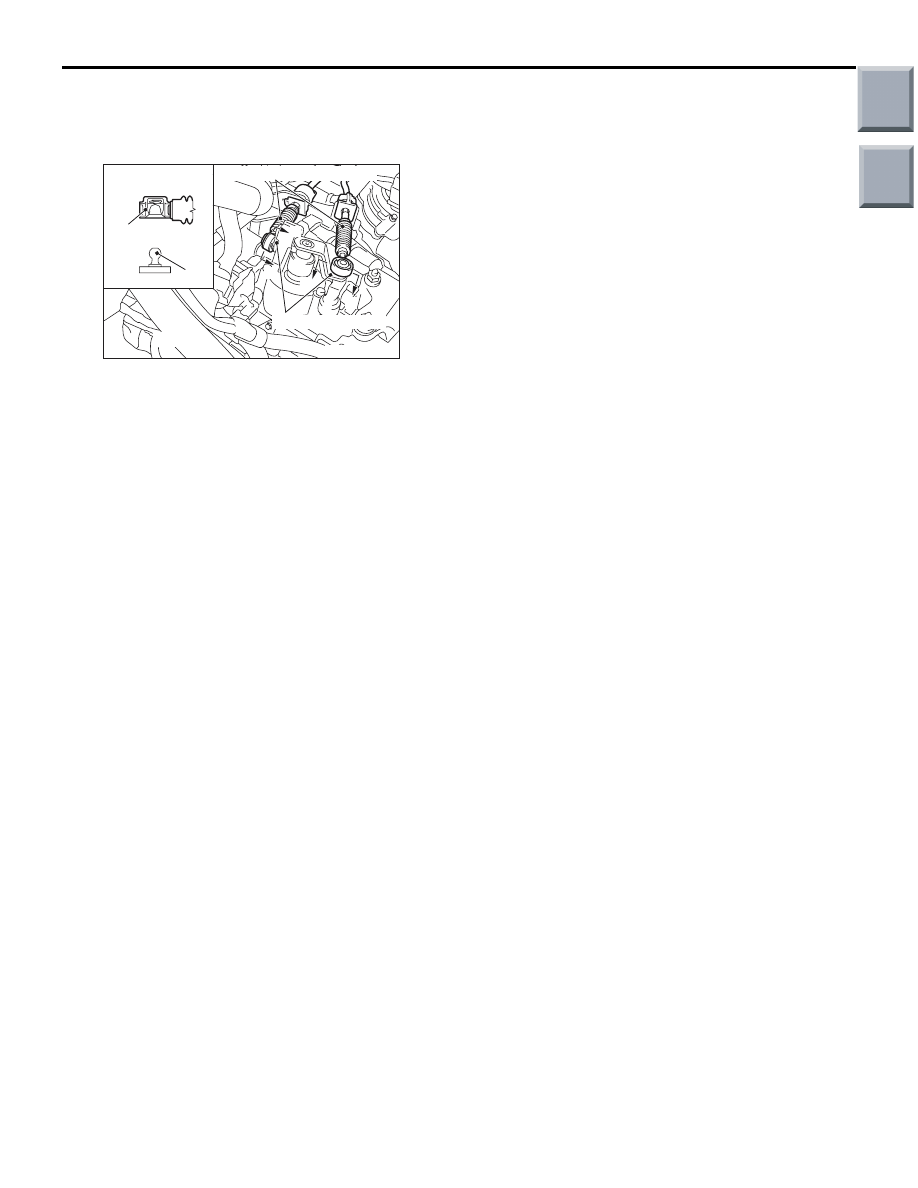

<<A>> GEARSHIFT AND SELECT CABLE
DISCONNECTION

AC311252AB

Transmission lever

Cable

Section A - A

Lever

Gearshift and select cables

A

A

A

A

1. Disconnect the transmission

assembly-transmission lever from the ends of the
gearshift and select cables.

2. With the bracket installed, remove the gearshift

and select cables from the transmission
assembly.

3. After removing the gearshift and the select cables,

tie them with a string in a place where it will not be
a hindrance when jacking up the engine and
transmission assembly.

<<B>> CLUTCH RELEASE CYLINDER
ASSEMBLY REMOVAL

1. With the hose installed, remove the clutch release

cylinder assembly from the transmission
assembly.

2. After removing the clutch release cylinder

assembly, tie it with a string in a place where it will
not be a hindrance when jacking up the engine
and transmission assembly.

Main

Index

Group

TOC

ENGINE ROLL STOPPER ROD

POWER PLANT MOUNT

32-11

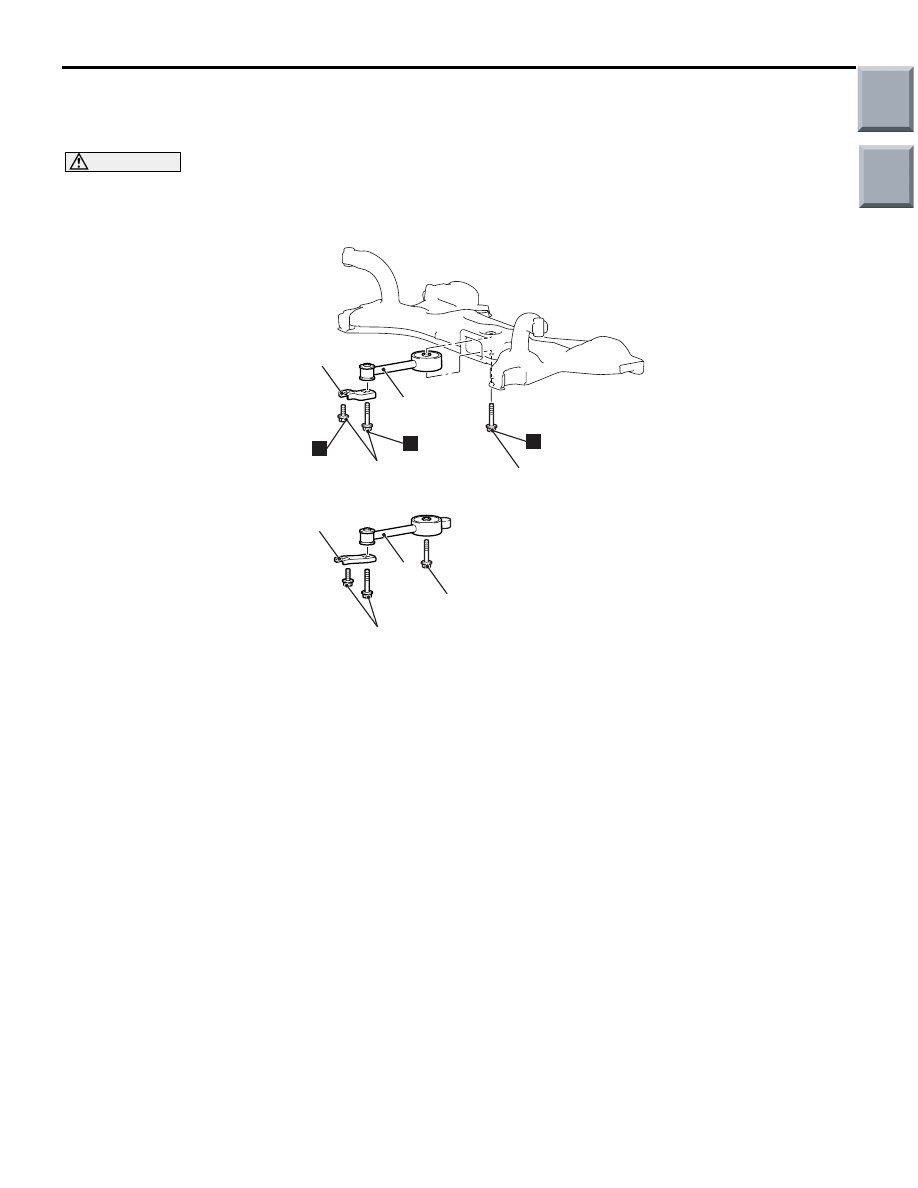

ENGINE ROLL STOPPER ROD

REMOVAL AND INSTALLATION

M1321004900133

CAUTION

*: Indicates parts which should be temporarily tightened, and then fully tightened after placing the
vehicle horizontally and loading the full weight of the engine on the vehicle body.

AC601656

58 ± 6 N·m*

AB

N

90 ± 10 N·m*

90 ± 10 N·m*

2

1

58 ± 6 N·m*

<M/T>

<CVT>

2

1

N

N

Removal steps

1.

Engine mounting stay

2.

Engine roll stopper rod assembly

Main

Index

Group

TOC

FRONT AXLE CROSSMEMBER

POWER PLANT MOUNT

32-12

FRONT AXLE CROSSMEMBER

REMOVAL AND INSTALLATION <4A9>

M1321005000490

CAUTION

• Before removing the steering wheel and air bag module assembly, always refer to GROUP 52B −

Service Precautions

P.52B-5

, Driver’s, Front Passenger’s Air Bag Modules and Clock Spring

P.52B-145

. Also, set the front wheels so that they are facing straight forward, and remove the igni-

tion key. If you fail to do this, the SRS clock spring will be damaged, causing the SRS air bag to be
inoperative and serious injury.

•

Pre-removal Operation
• Air Bag Module and Steering Wheel Removal (Refer to

GROUP 52B, Driver’s Front Passenger’s Air Bag Mod-

ules and Clock Spring

P.52B-145

).

• Front Under Cover Panel Assembly Removal (Refer to

GROUP 51, Front Bumper Assembly and Radiator Grille

P.51-2

).

• Engine Room Side Under Cover (RH) Removal
• Front Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Muffler

P.15-19

).

• Engine Roll Stopper Rod Assembly Removal (Refer to

P.32-11

).

Post-installation Operation
• Engine Roll Stopper Rod Assembly Installation (Refer to

P.32-11

).

• Front Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Muffler

P.15-19

).

• Engine Room Side Under Cover (RH) Installation

• Front Under Cover Panel Assembly Installation (Refer to

GROUP 51, Front Bumper Assembly and Radiator Grille

P.51-2

).

• Air Bag Module and Steering Wheel Installation (Refer to

GROUP 52B, Driver’s Front Passenger’s Air Bag Mod-

ules and Clock Spring

P.52B-145

).

• Checking Steering Wheel Position with Wheels Straight

Ahead.

• Wheel Alignment Check and Adjustment (Refer to

GROUP 33, On-vehicle Service - Front Wheel Alignment

Check and Adjustment

P.33-5

).

*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle
on the earth in the unladen condition.
