Mitsubishi Colt Ralliart. Manual - part 356





SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-168

Step 5. Pulse check
Check the input signals below, which are related to
the turn-signal lamp illumination.

OK: The M.U.T.-III sounds or the voltmeter
needle fluctuates.

Q: Are the check result normal?

All the signals are received normally. :

Go to Step

6.

The turn-signal lamp switch (RH) signal is not
received. :

Refer to Inspection Procedure N-4

"The column switch (lighting and turn-signal
lamp switch) signal is not received

P.54B-206

."

The turn-signal lamp switch (LH) signal is not
received. :

Refer to Inspection Procedure N-4

"The column switch (lighting and turn-signal
lamp switch) signal is not received

P.54B-206

."

Step 6. Retest the system.
Check that the turn-signal lamps illuminate.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

System switch

Check condition

Turn-signal lamp switch
(RH)

When the turn-signal
lamp switch (RH) is
turned from off to on

Turn-signal lamp switch
(LH)

When the turn-signal
lamp switch (LH) is
turned from off to on

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-169

INSPECTION PROCEDURE L-2: The hazard warning lamps do not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the hazard warning lamps do not illuminate, the
hazard warning lamp input signal circuit or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the hazard warning lamp switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check that the turn-signal lamps operate.
Check that the turn-signal lamps illuminate normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure L-1 "The turn
signal lamps do not illuminat

P.54B-166

."

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-ECU

HAZARD
WARNING
LAMP SWITCH

TURN-SIGNAL
LAMP RELAY: LH

TURN-SIGNAL
LAMP RELAY: RH

INPUT SIGNAL

· FRONT COMBINATION
  LAMP (TURN: LH)

· SIDE TURN-SIGNAL
  LAMP (LH)

· REAR COMBINATION
  LAMP (TURN: LH)

· FRONT COMBINATION
  LAMP (TURN: RH)

· SIDE TURN-SIGNAL
  LAMP (RH)

· REAR COMBINATION
  LAMP (TURN: RH)

FUSIBLE
LINK

1

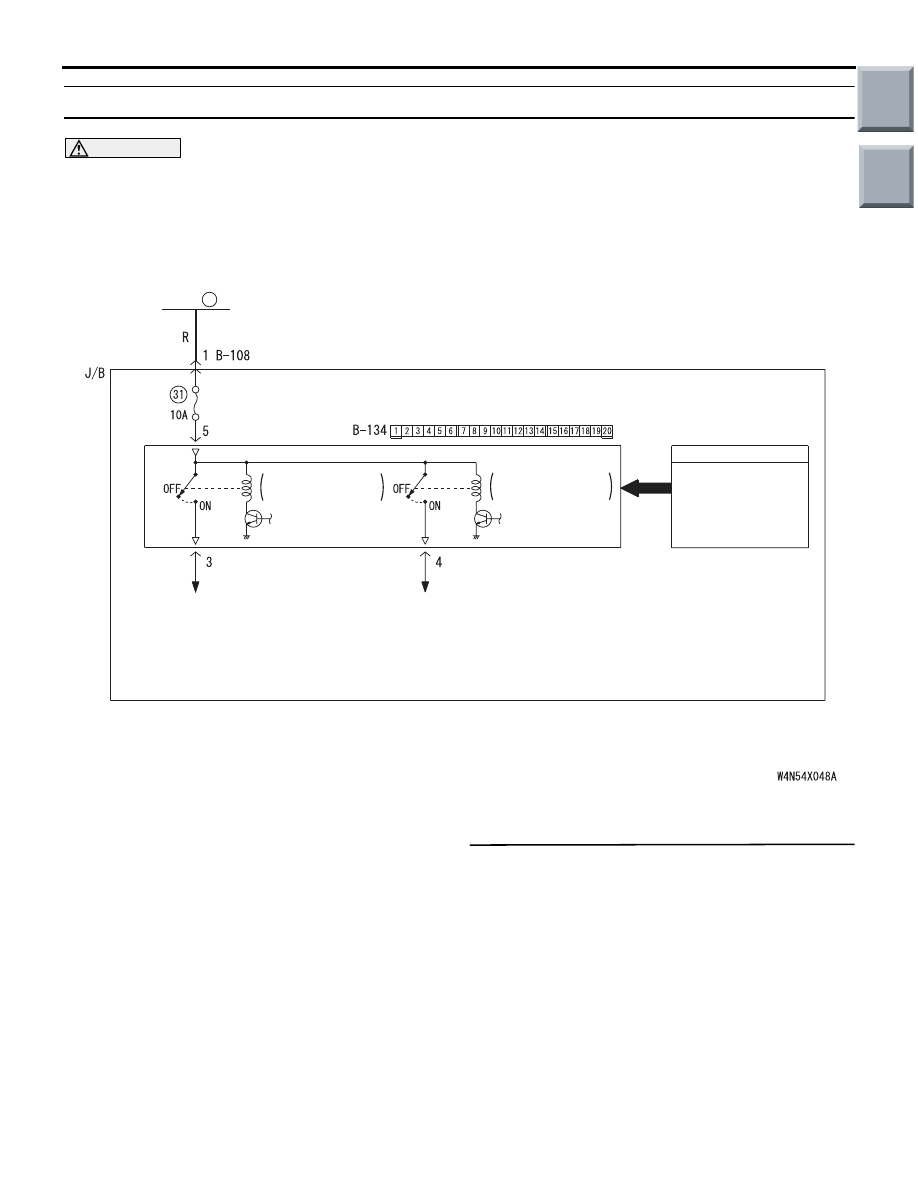

Hazard Warning Lamp Circuit

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-170

Step 2. Check the power supply circuit.
When the ignition switch is at the LOCK (OFF) posi-
tion, check that the functions below work normally.

• Lamp reminder function

• Central door locking system

• Room lamp (excluding interior lamp auto-

matic-shutdown function)

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to Inspection Procedure A-2 "When
the ignition switch is at the LOCK (OFF)
position, the functions do not work normally.
Check the battery power supply circuit to
the ETACS-ECU

P.54B-43

."

Step 3. Pulse check
Check the input signal from the hazard warning lamp
switch.

OK: The M.U.T.-III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Refer to Inspection Procedure N-9 "The
hazard warning lamp switch signal is not
received

P.54B-216

."

Step 4. Retest the system.
Check that the hazard warning lamps illuminate.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

System switch

Check condition

Hazard warning lamp
switch

When the hazard
warning lamp switch is
turned from off to on

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-171

INSPECTION PROCEDURE L-3: Any of the turn-signal lamps does not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

ETACS-ECU

REAR
COMBINATION
LAMP
(TURN: RH)

FRONT
COMBINATION
LAMP
(TURN: RH)

SIDE TURN
SIGNAL LAMP
(RH)

J/B SIDE

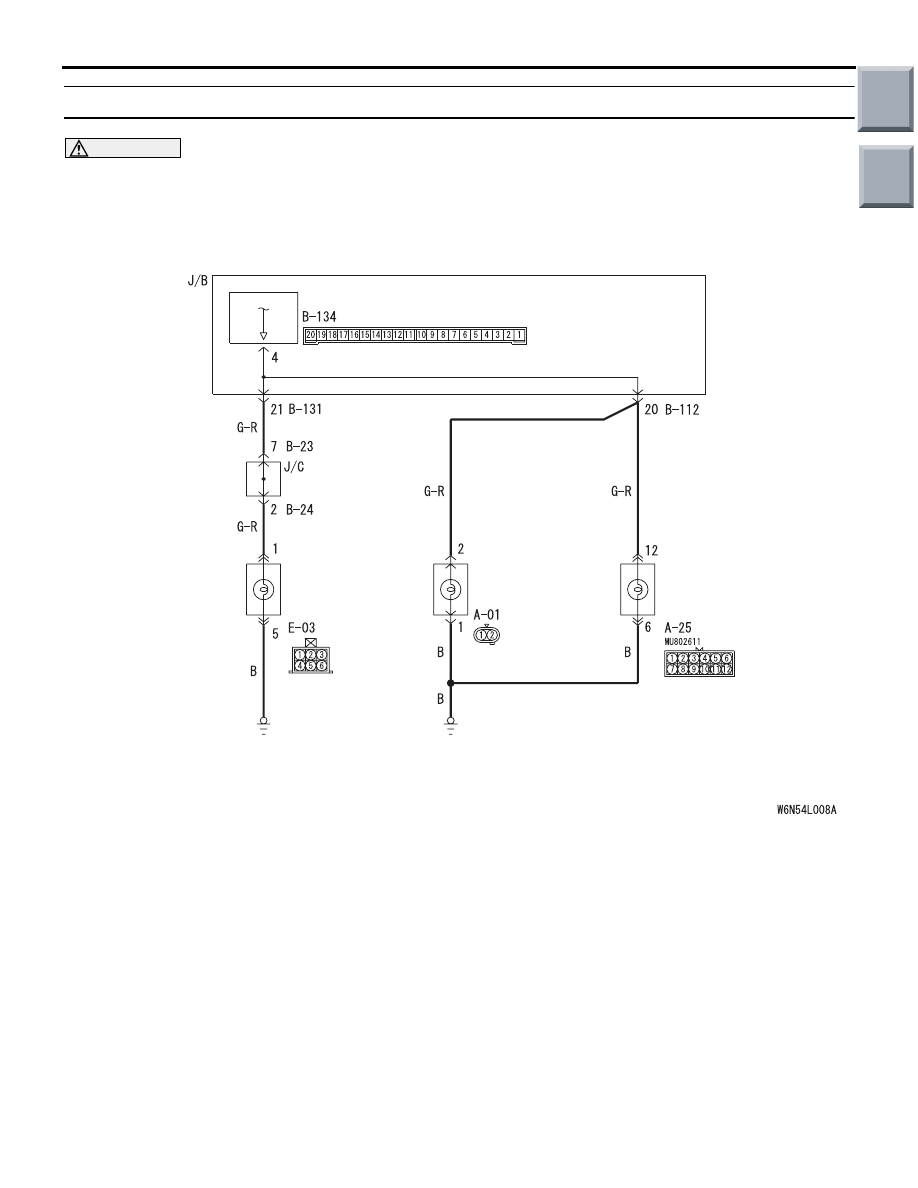

Turn-Signal Lamps Circuit (RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

Main

Index

Group

TOC
