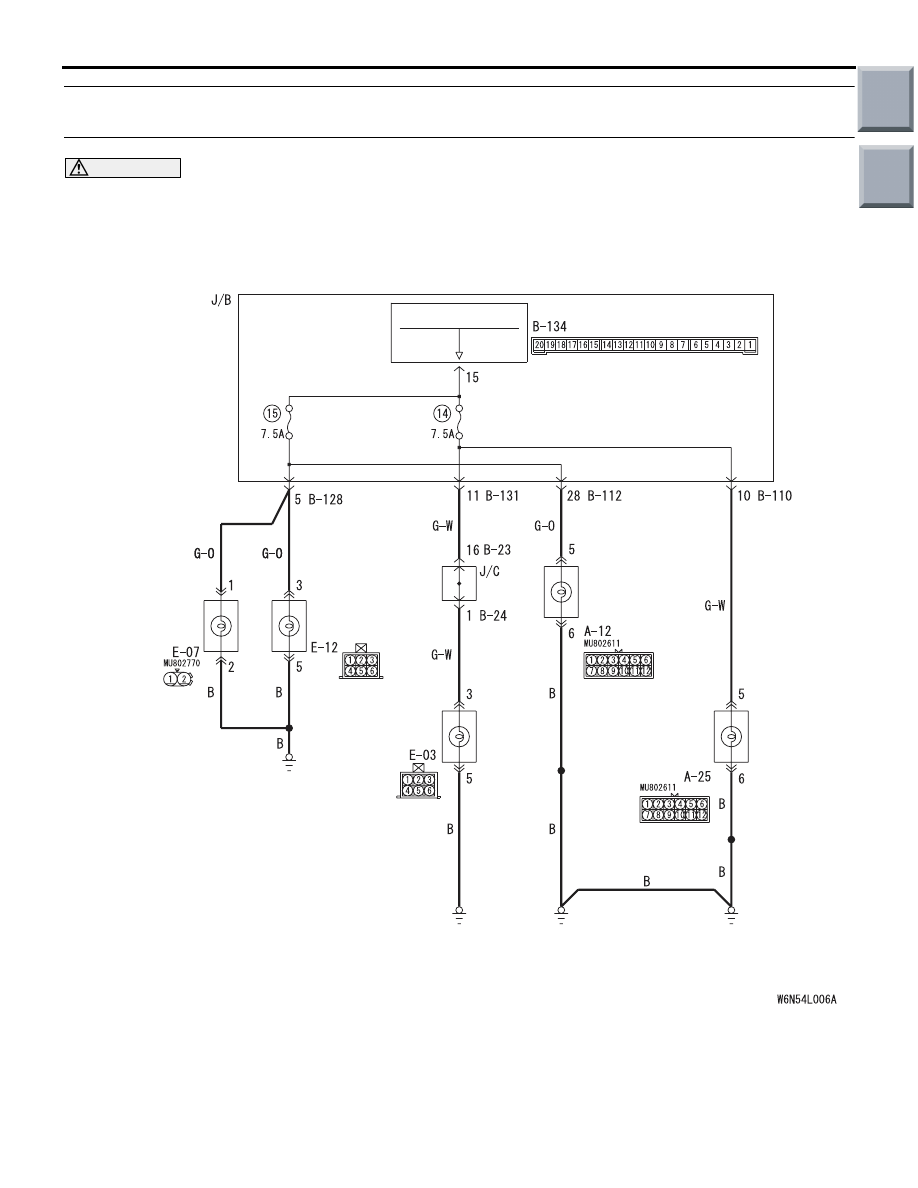

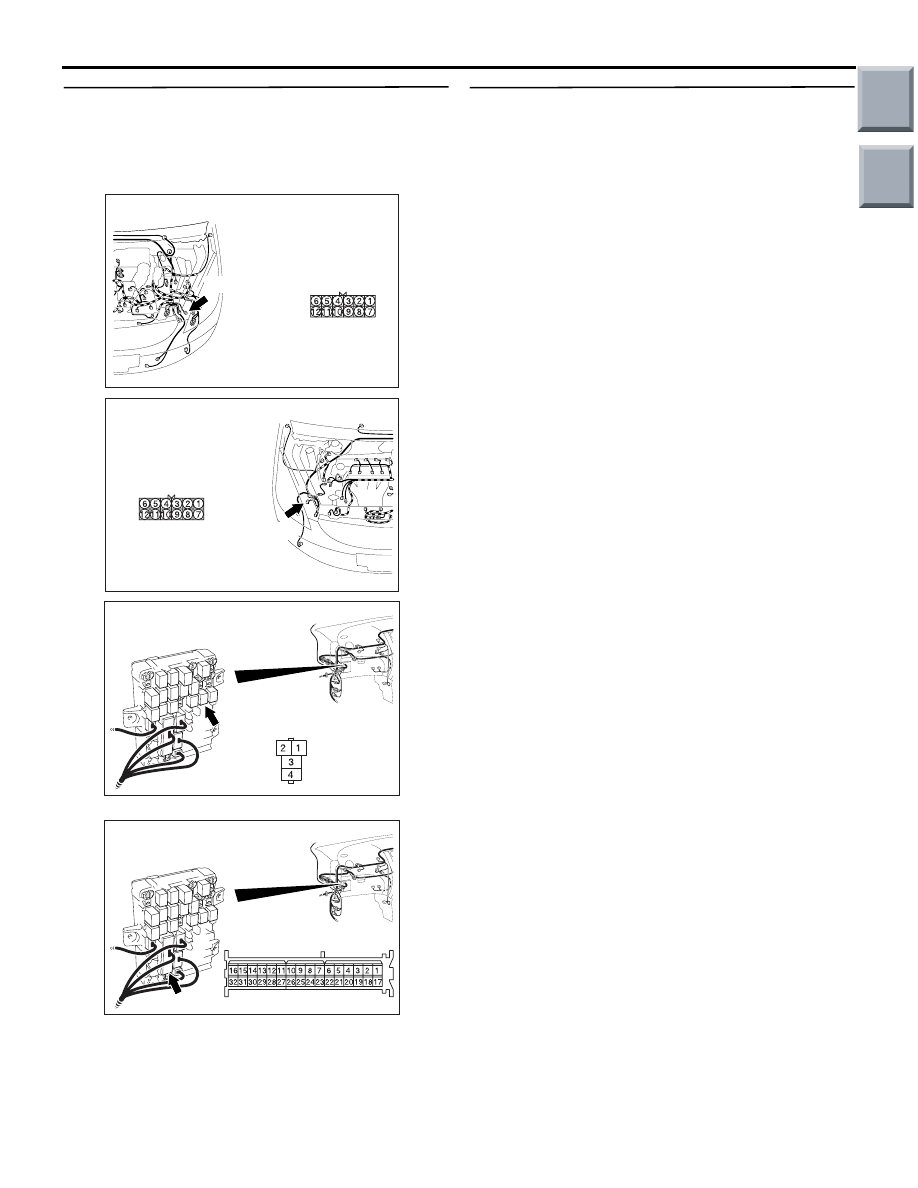

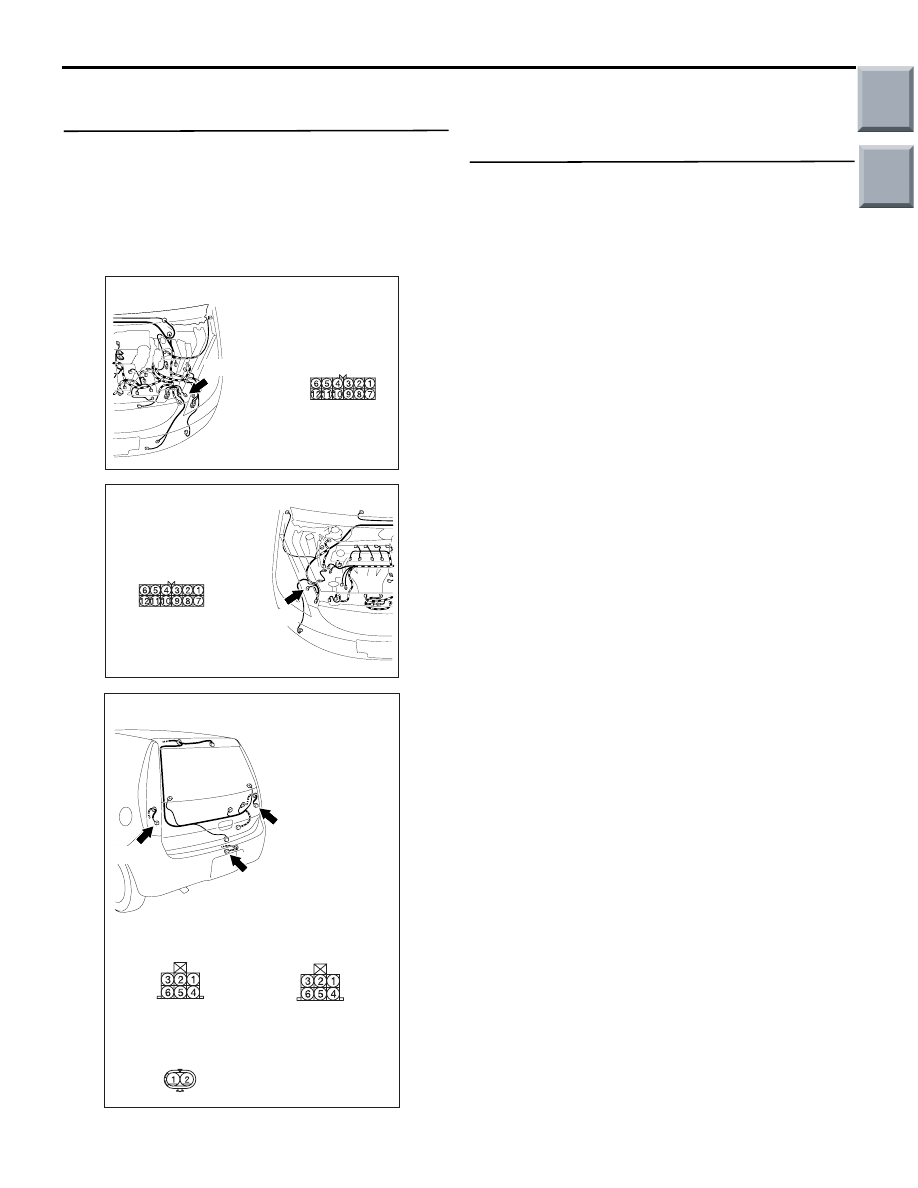

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR 54B-148 Step 11. Check the wiring harness from A-12 NOTE: Prior to the wiring harness inspection, check junction • Check the output lines for open circuit. Q: Is the check result normal? YES : Go to Step 12. NO : Repair the wiring harness. Step 12. Retest the system. Q: Is the check result normal? YES : The trouble can be an intermittent malfunction (Refer to GROUP 00 − How to use Troubleshooting/inspection Service − How to Cope with Intermittent ). NO : Replace the front combination lamp. AC509191 Connector: A-12 Harness side AB A-12 (B) AC509176 Connector: A-25 Harness side AC A-25(B) AC313870AE Connector: B-122 Junction Block (Front view) Harness side AC313870 Connector: B-112 BE Junction block (Front view) Harness side Main Index Group TOC |
