SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-128

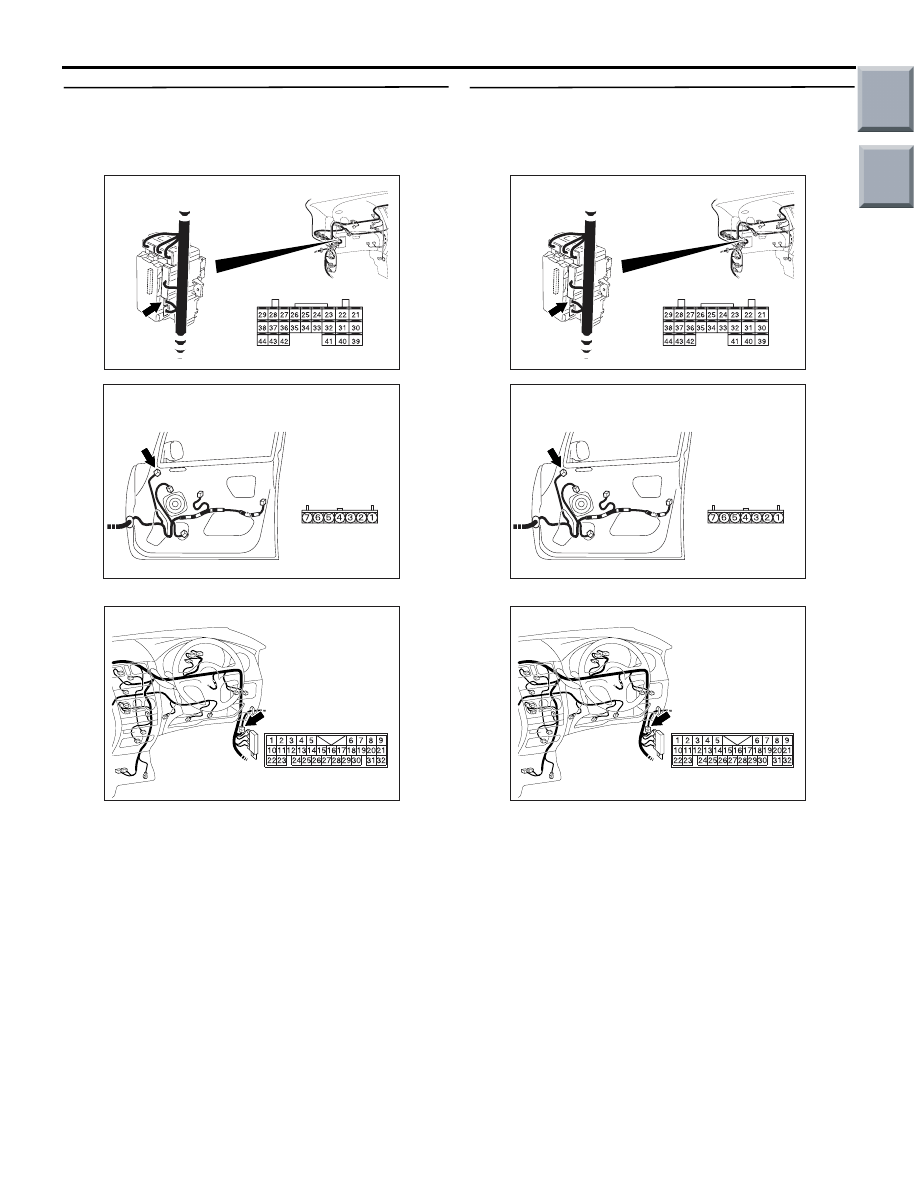

Step 5. Check the wiring harness between D-01
door mirror assembly (RH) connector terminal
No.6 to B-132 ETACS-ECU connector terminal
No.21

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector B-21, and repair if necessary.

• Check the input and output signal line for open

circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Step 6. Check the wiring harness between D-01
door mirror assembly (RH) connector terminal
No.7 to B-132 ETACS-ECU connector terminal
No.39

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector B-21, and repair if necessary.

• Check the input and output signal line for open

circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313880

Connector: D-01

Harness side

AC

AC401055

Connector: B-21

AB

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313880

Connector: D-01

Harness side

AC

AC401055

Connector: B-21

AB

Main

Index

Group

TOC

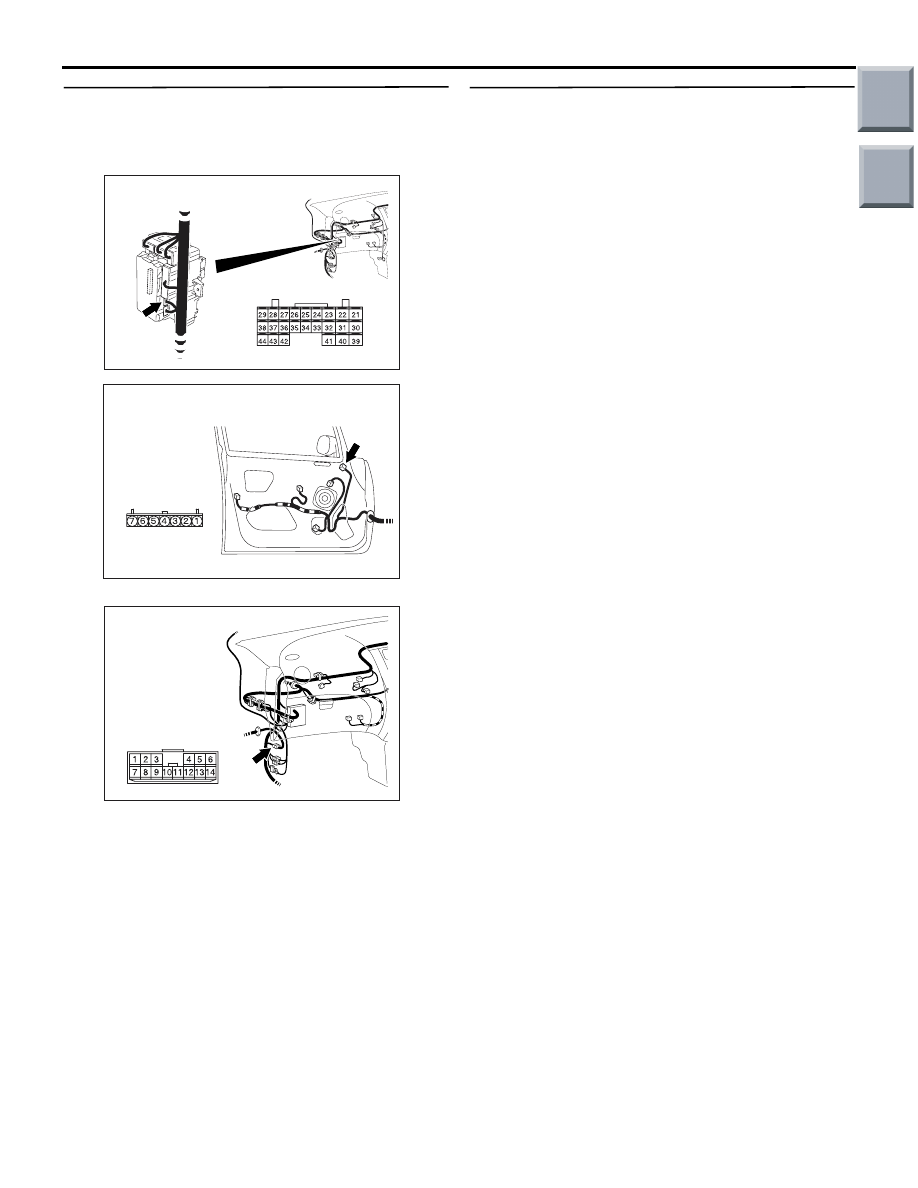

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-129

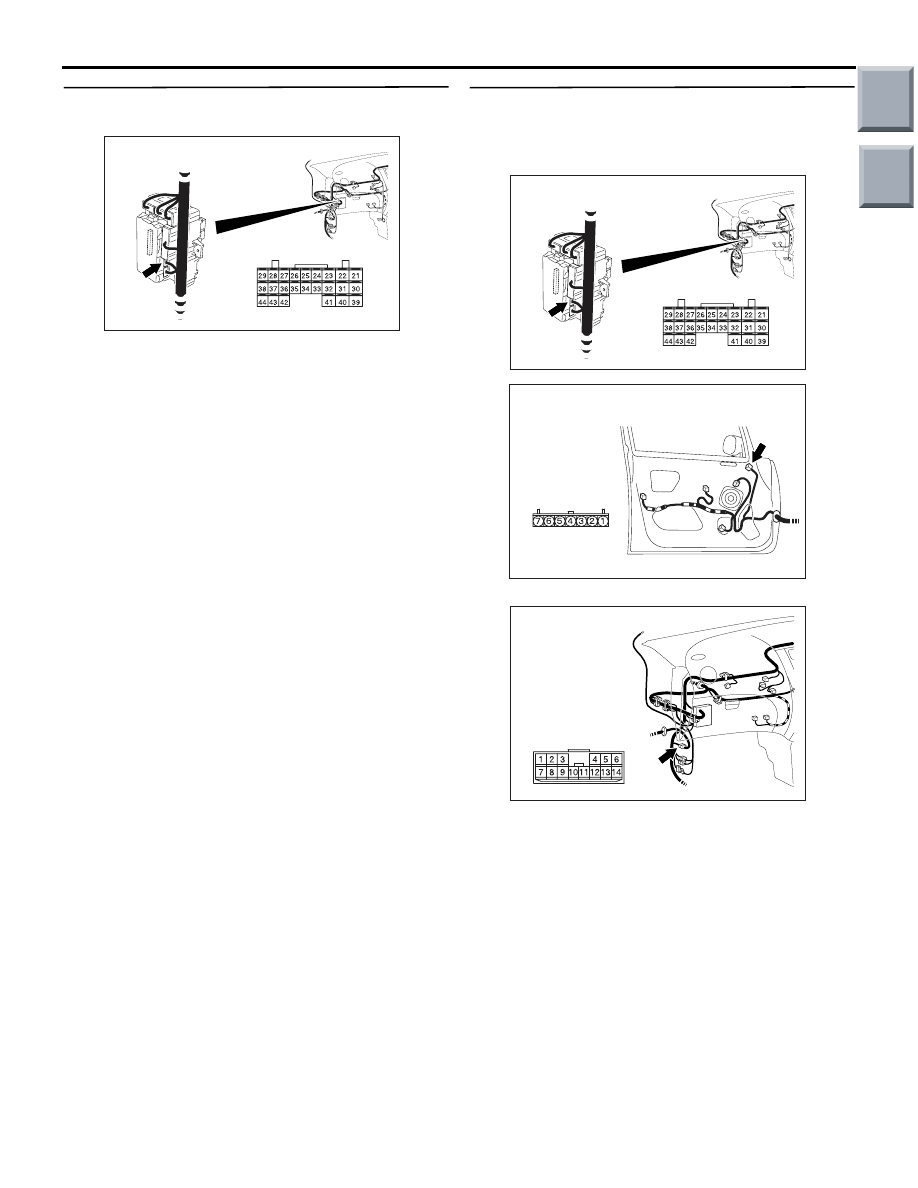

Step 7. Connector check: B-132 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the connector.

Step 8. Check the wiring harness between D-15
door mirror assembly (LH) connector terminal
No.6 to B-132 ETACS-ECU connector terminal
No.30

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector B-42, and repair if necessary.

• Check the input and output signal line for open

circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313886

Connector: D-15

Harness side

AC

AC401053

Connector: B-42

AB

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-130

Step 9. Check the wiring harness between D-15
door mirror assembly (LH) connector terminal
No.7 to B-132 ETACS-ECU connector terminal
No.40

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector B-42, and repair if necessary.

• Check the input and output signal line for open

circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

Step 10. Retest the system
Check that the electric retractable remote controlled
mirror works normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313886

Connector: D-15

Harness side

AC

AC401053

Connector: B-42

AB

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-131

IGNITION KEY CYLINDER
ILLUMINATION LAMP

INSPECTION PROCEDURE I-1: The ignition key cylinder illumination lamp does not
illuminate/extinguish normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

The ETACS-ECU operates this function in accord-
ance with the input signals below.

• Ignition switch (IG1)

• Key reminder switch

• Driver's door switch

If this function does not work normally, these input
signal circuit(s), the ignition key cylinder illumination
lamp or the ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the key reminder switch

• Malfunction of the driver's door switch

• Malfunction of the ignition key cylinder illumina-

tion lamp

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the operation of the interior lamp.
Check that the interior lamps illuminate and extin-
guish normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure M-1 "The
interior lamps (room ramp, luggage
compartment lamp) does not illuminate or
extinguish normally

P.54B-183

."

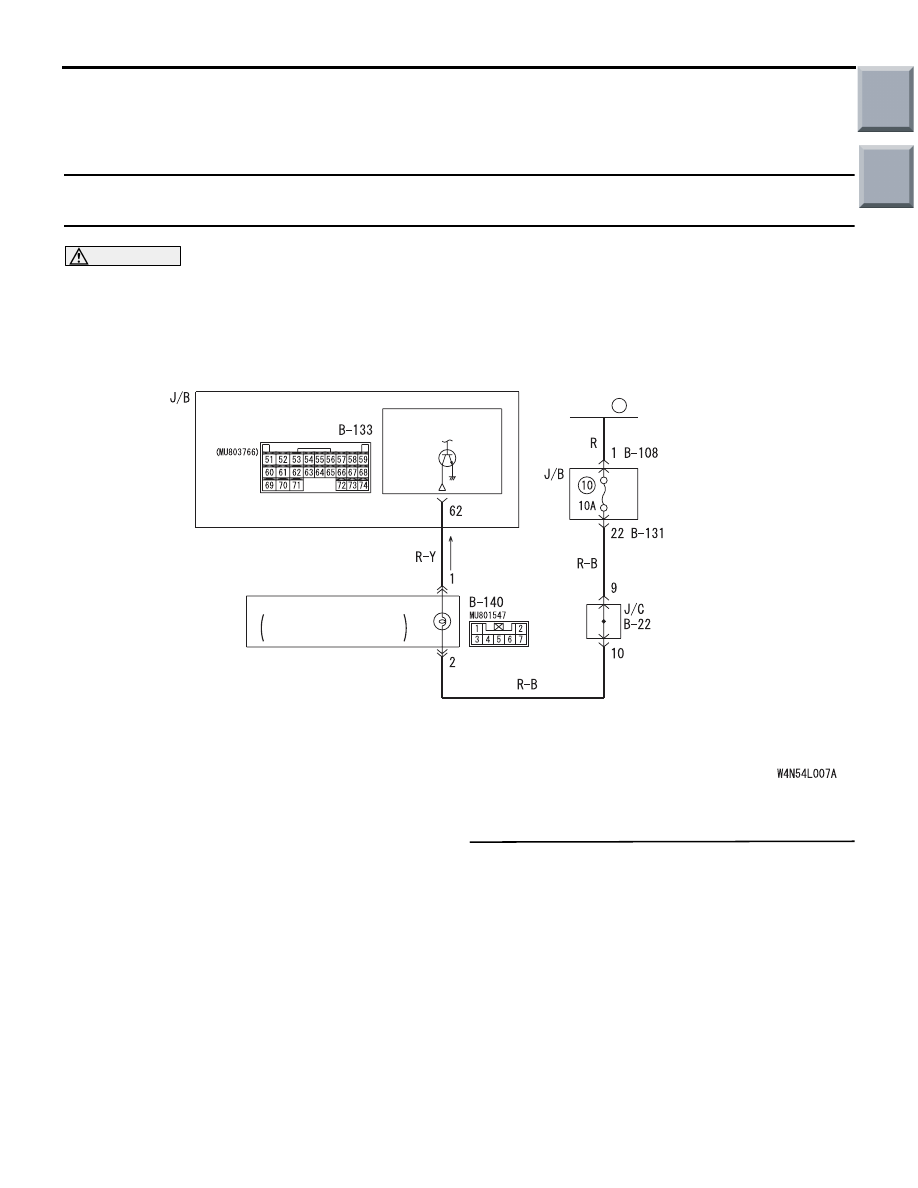

Ignition Key Cylinder Illumination Lamp Circuit

KEY REMINDER SWITCH

ETACS-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

KEY CYLINDER
ILLUMINATION LAMP

FUSIBLE
LINK

1
