SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-80

Inspection Procedure D-4: Passenger's and/or rear power window(s) do not work by means of the
power window main switch.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

POWER WINDOW
SUB SWITCH
(FRONT: LH)

POWER WINDOW
MOTOR
(FRONT: LH)

POWER
WINDOW
RELAY

POWER
WINDOW
MAIN SWITCH

(FRONT: LH)

LOCK SWITCH

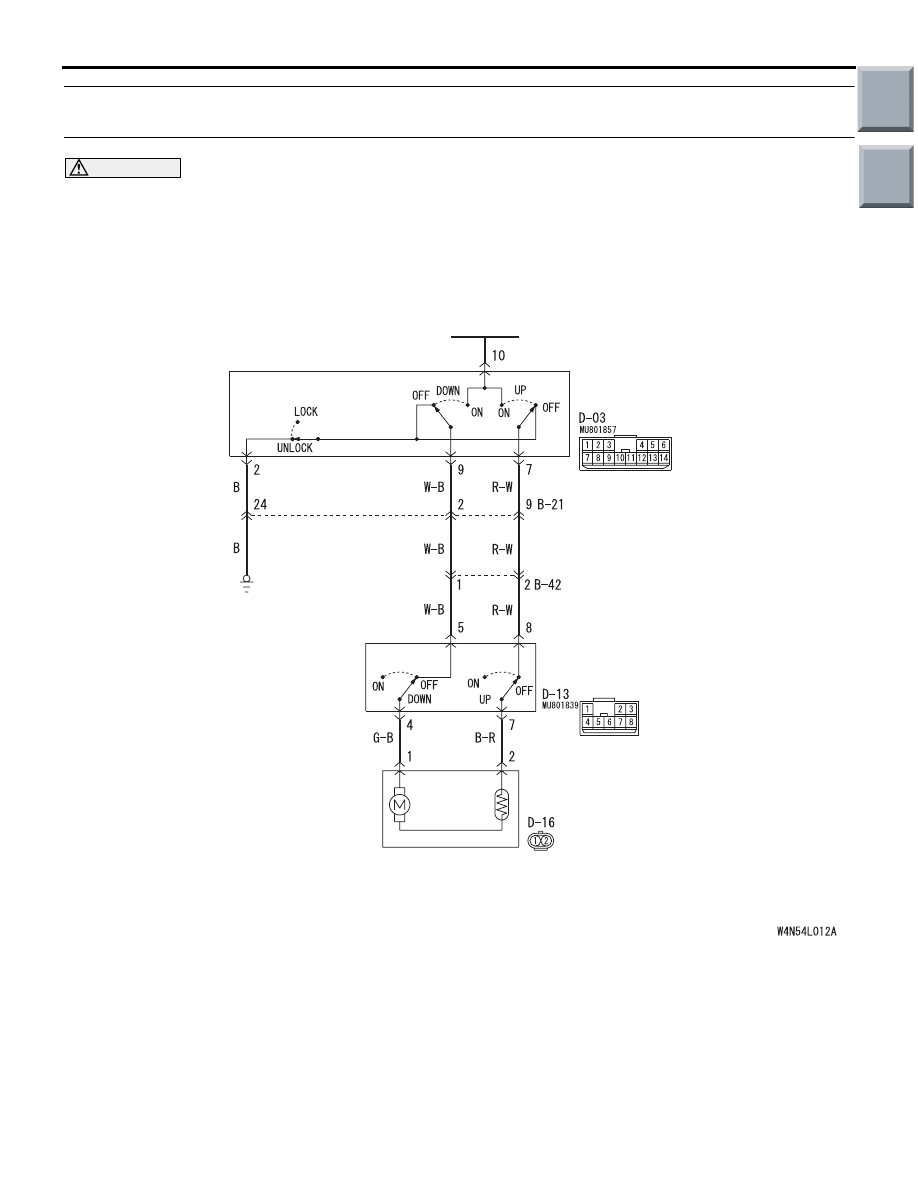

Power Window (Front: LH) Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-81

COMMENTS ON TROUBLE SYMPTOM

If the passenger's and/or rear power window does
not work by means of the power window main switch,
the power window main switch or the respective
power window sub switch(es) may be defective.

POSSIBLE CAUSES

• Malfunction of the power window main switch

• Malfunction of the power window sub switch

(front: LH), power window sub switch (rear: RH)
or power window sub switch (rear: LH)

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the power window main switch.
Check that the driver's power window works by
means of the power window main switch.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure D-2 "Driver's
power window does not work by means of
the power window main switch

P.54B-68

."

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

POWER WINDOW
SUB SWITCH
(REAR: LH)

REAR
POWER WINDOW
SUB SWITCH
(REAR: RH)

POWER
WINDOW
RELAY

POWER WINDOW MAIN SWITCH

LOCK
SWITCH

(REAR: LH)

(REAR: RH)

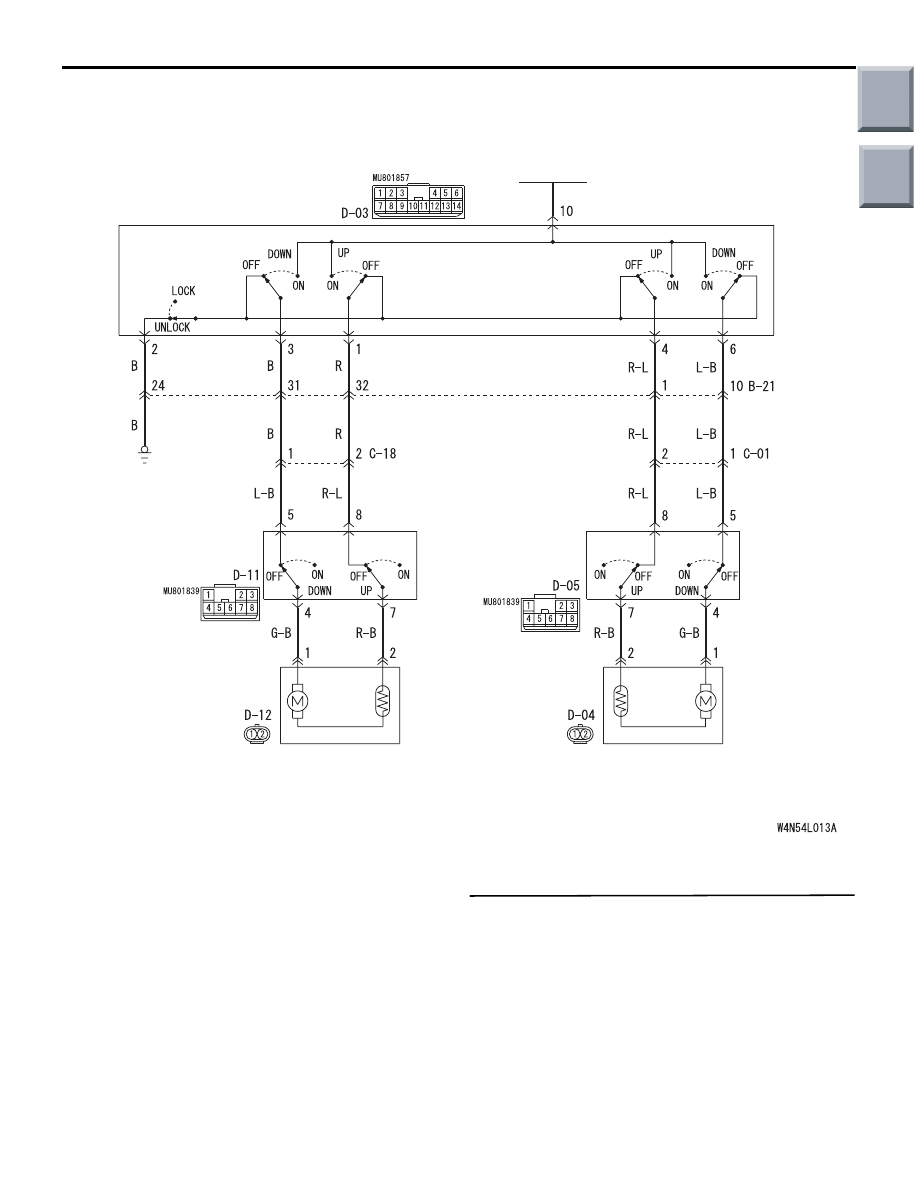

Power Window (Rear) Circuit

POWER WINDOW
MOTOR
(REAR: RH)

POWER WINDOW
MOTOR
(REAR: LH)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-82

Step 2. Check the power window sub switch.
Check that each power window works by means of
the respective power window sub switch when the
power window lock switch is turned off.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to Inspection Procedure D-3
"Relevant power window(s) do not work by
means of the front and rear power window
sub switches

P.54B-71

."

Step 3. Retest the system.
Check that the rear left power window works by
means of the power window main switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the power window main switch.

Inspection Procedure D-5: The power window timer function does not work normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the power window timer function does not work
normally, these input signal circuit(s), the
ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the driver's door switch

• Malfunction of the passenger's door switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check the power supply circuit.
When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure A-2 "Check
the ETACS-ECU battery power supply
circuit"

P.54B-43

.

Step 2. Pulse check
Check the input signals below, which are related to
the power window timer function.

OK: The M.U.T.-III sounds or the voltmeter
needle fluctuates.

Q: Are the check results normal?

All the signals are received normally. :

Go to Step

3.

The ignition switch (IG1) signal is not received. :

Refer to inspection procedure N-2 "The
ignition switch (IG1) signal is not received

P.54B-202

."

The driver’s door switch signals is not received. :

Refer to inspection procedure N-3 "The
driver's door switch signal is not received

P.54B-204

."

The passenger’s door switch signals is not
received. :

Refer to inspection procedure N-14

"The passenger's door switch signal is not
received

P.54B-231

."

System switch

Check conditions

Ignition switch (IG1)

When turned from ACC
to ON

Driver's door switch

When the driver's door is
opened

Passenger’s door switch When the passenger's

door is opened

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-83

Step 3. Retest the system.
Check that the power window timer function works
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

Inspection Procedure D-6: The window glass lowers automatically while it is rising.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the sliding resistance is too great when the window
is being raised or the window glass encounters an
object, the window glass will lower by approximately
150 mm.

POSSIBLE CAUSES

• Improper adjusted door window glass

• Incorrectly installed or warped glass slider

• Malfunction of the power window motor

• Malfunction of the window regulator

DIAGNOSIS PROCEDURE

Step 1. Check the power window operating
current.
Check that the power window operating current is
normal (Refer to GROUP 42

− Door − On-vehicle

service

P.42-35

).

Q: Is the check result normal?

YES :

Adjust the door window glass (Refer to

GROUP 42

− Door − On-vehicle service

P.42-34

), and then go to Step 2.

NO :

Replace the defective power window motor
assembly which operating current are
abnormal.

Step 2. Check that the door window glasses are
installed correctly.
Check that the door window glasses are installed
correctly. Refer to GROUP 42

− Door − On-vehicle

Service

P.42-34

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Adjust the door window glass (Refer to
GROUP 42

− Door − On-vehicle service

P.42-34

).

Step 3. Retest the system.
Check that the power window does not lower auto-
matically while it is being raised.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the power window motor assembly
of the defective window.
