TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-13

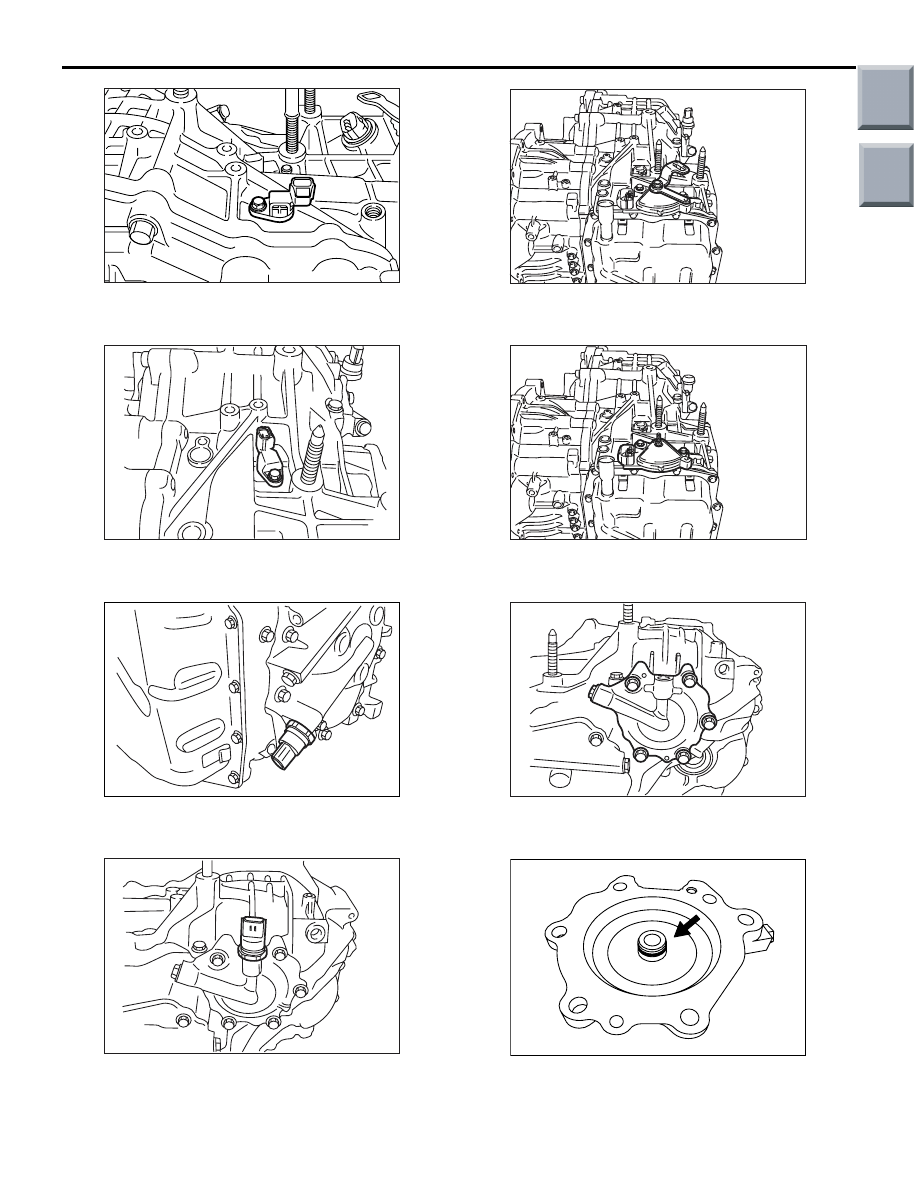

7. Remove the turbine speed sensor from the

transmission case.

AK102788

8. Remove the primary speed sensor from the

transmission case.

AK102787

9. Remove the primary pressure sensor from the

primary rear cover.

AK102786

10.Remove the secondary pressure sensor from the

secondary rear cover.

AK401958

11.Remove the manual control lever from the manual

control shaft.

AK401959

12.Remove the inhibitor switch from the transmission

case.

AK102783

13.Remove the secondary rear cover from the

transmission case.

AK103576

14.Remove the seal ring from the secondary rear

cover.

Main

Index

Group

TOC

AK102779

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-14

15.Remove the O-ring and stopper from the

transmission case.

AK102778

16.Remove the primary rear cover from the

transmission case.

AK103575

17.Remove the seal ring from the primary rear cover.

AK102776

18.Remove the O-rings (three pieces) from the

transmission case.

AK401960

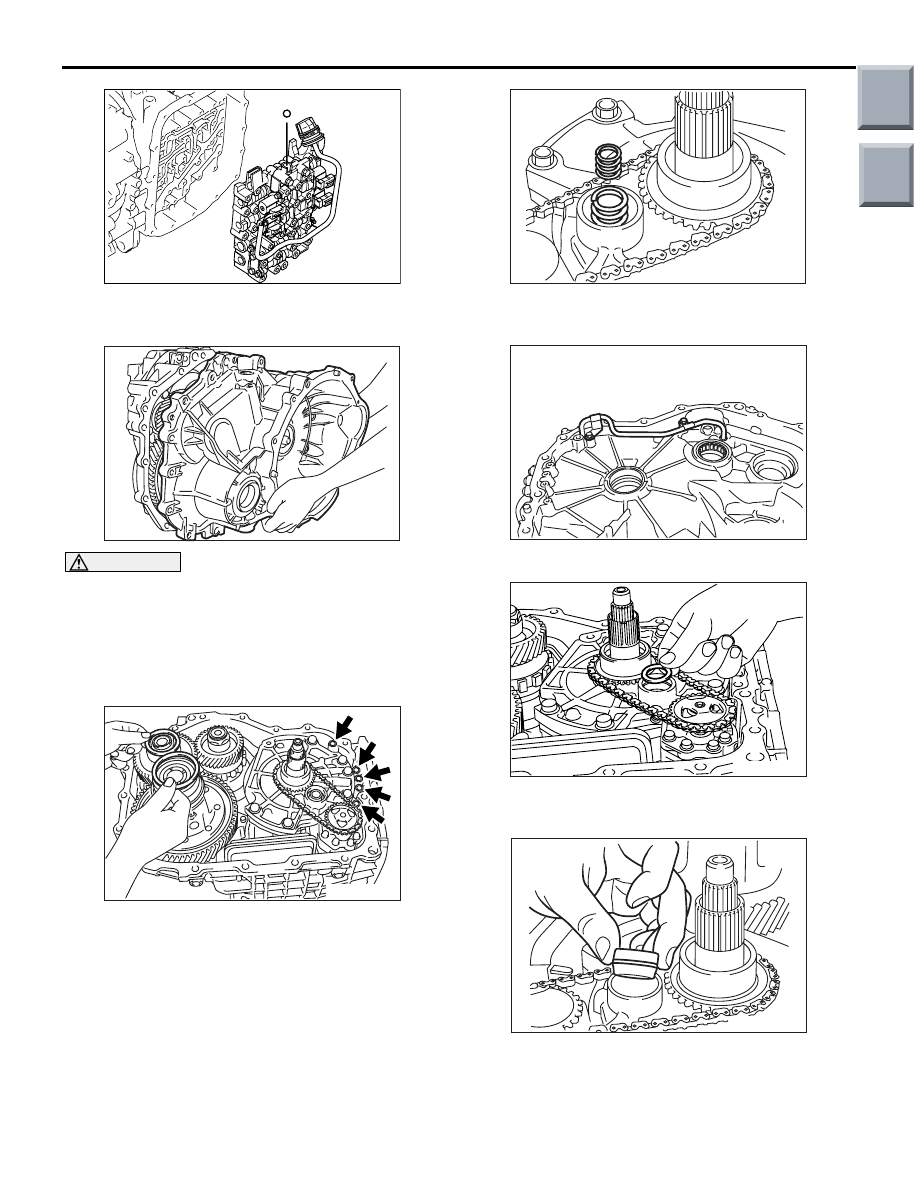

19.Remove the valve body cover from the

transmission case.

AK102773

20.Remove the clamp that holds the connector of

solenoid valve harness.

AK401961AC

CAUTION

Do not remove the bolts (two pieces) shown in
the illustration.
21.Remove the valve body mounting bolts (thirty four

bolts other than the two shown in the illustration),
then remove the valve body from the transmission
case.

Main

Index

Group

TOC

AK102823

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-15

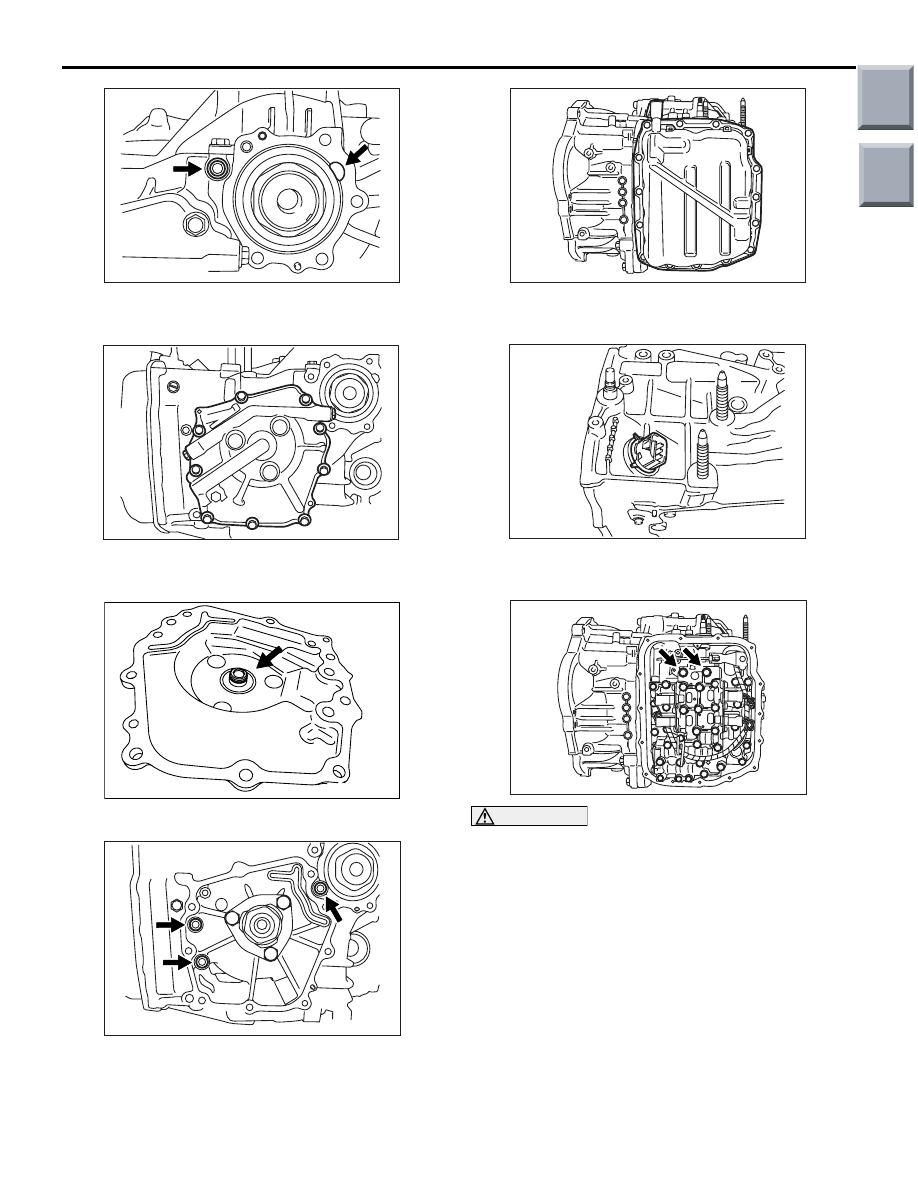

22.Remove the steel ball indicated in the illustration

from the valve body.

AK401962

CAUTION

The spacer (for adjusting the differential bearing
clearance), O-rings (five pieces), and accumula-
tor springs (two pieces) may come off together
with the converter housing.
23.Remove the converter housing from the

transmission case.

AK401963AD

24.Remove the O-rings (five pieces) and the spacer

for adjusting the differential bearing clearance
(see the illustration).
NOTE: The O-ring and spacer may attach to the
converter housing which was removed in the pre-
ceding step.

AK102760

25.Remove the accumulator springs (two pieces)

from the reaction shaft support.

AK401967

26.Remove the oil pipe from the converter housing.

AK401970

27.Remove the snap ring and stopper plate on the

reaction shaft support.

AK102759

28.Remove the accumulator piston from the reaction

shaft support.

Main

Index

Group

TOC

AK401971

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-16

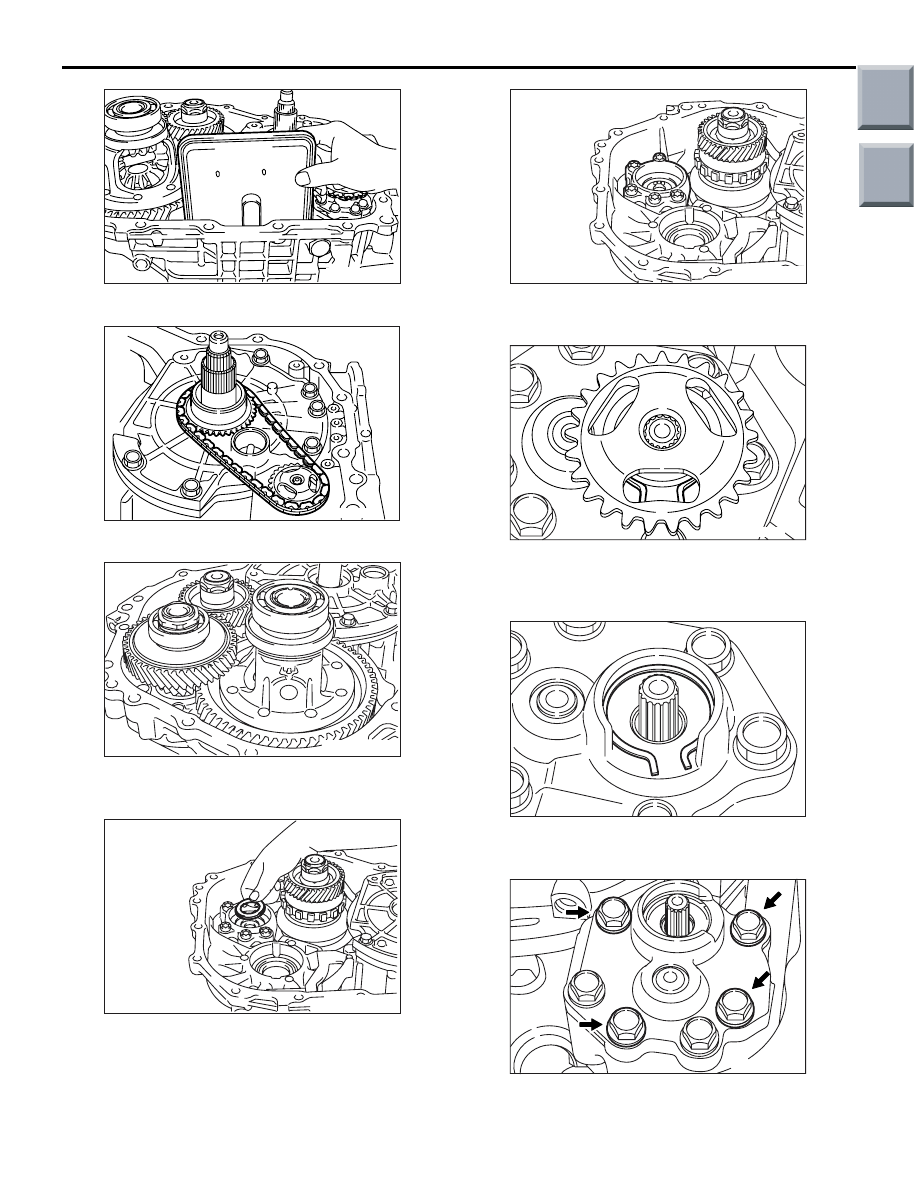

29.Remove the oil filter from the transmission case.

AK102756

30.Remove the chain and oil pump drive sprocket.

AK401975

31.Remove the output shaft and differential from the

transmission case.

AK401978

32.Remove the thrust bearing from the bearing

retainer.

AK401976

33.Remove the output shaft bearing outer race and

bearing retainer from the transmission case.

AK102754

34.Remove the oil pump driven sprocket from the oil

pump by opening the snap ring shown in the
illustration.

AK102753

35.Detach the snap ring that retains the oil pump

driven sprocket from the oil pump.

AK402304AC

36.Remove the bolts (four pieces) shown in the

illustration, then remove the oil pump from the
transmission case.
