SUPPORT LOCATIONS FOR LIFTING AND JACKING

GENERAL

00-29

SUPPORT LOCATIONS FOR LIFTING AND JACKING

M1001000700190

SUPPORT POSITIONS FOR A GARAGE JACK, AXLE STANDS, SINGLE-POST LIFT OR
DOUBLE-POST LIFT AND PLATE TYPE LIFT

CAUTION

Do not support the vehicles at locations other than specified supporting points. Doing so will cause
damage, etc.

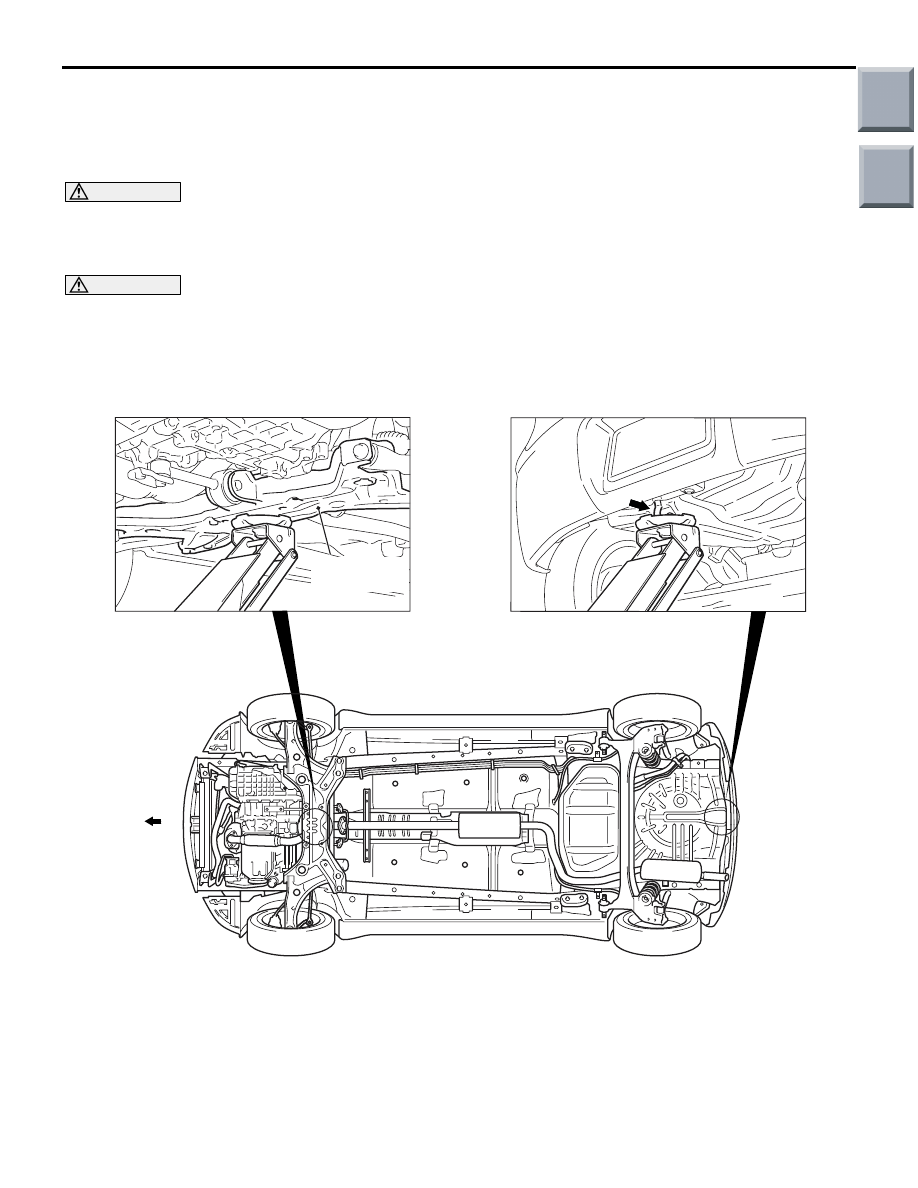

GARAGE JACK

CAUTION

• Use a low-profile type garage jack; otherwise use of conventional garage jack may cause interfer-

ence with bumper etc.

•

AC312331AB

Front axle No.1
crossmember

Front

Never support any point other than the specified one, or that point will be deformed.

Main

Index

Group

TOC

SUPPORT LOCATIONS FOR LIFTING AND JACKING

GENERAL

00-30

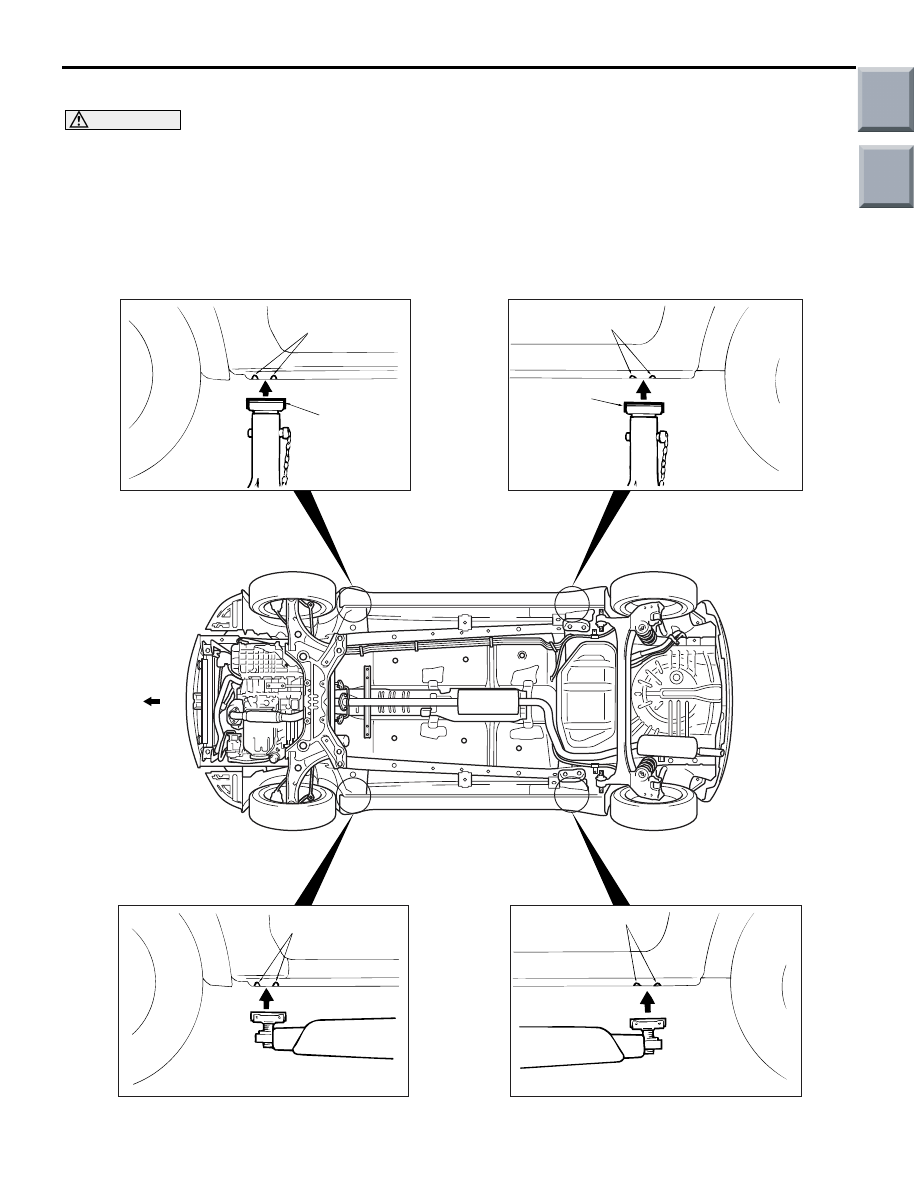

AXLE STANDS AND A SINGLE-POST LIFT OR DOUBLE-POST LIFT

CAUTION

• If rubber attachments with grooves that are too thick are used at the front support positions, the

front fender may become bent, so be sure to use rubber attachments with groove thickness of 18
mm or less.

• If attachments which are not high enough are used, they may damage areas such as the side step.

Be sure to use attachments which are high enough, or remove the side step if not using attach-
ments.

AC312300

AXLE STANDS

SINGLE-POST LIFT
OR DOUBLE-POST LIFT

Notch

Rubber

Rubber

AB

Front

Notch

Notch

Notch

Main

Index

Group

TOC

TOWING AND HOISTING

GENERAL

00-31

PLATE TYPE LIFT

CAUTION

To avoid damaging the side sill garnish, put a wooden block between the side sill and a lift.
Support the side sill flange with a lift.

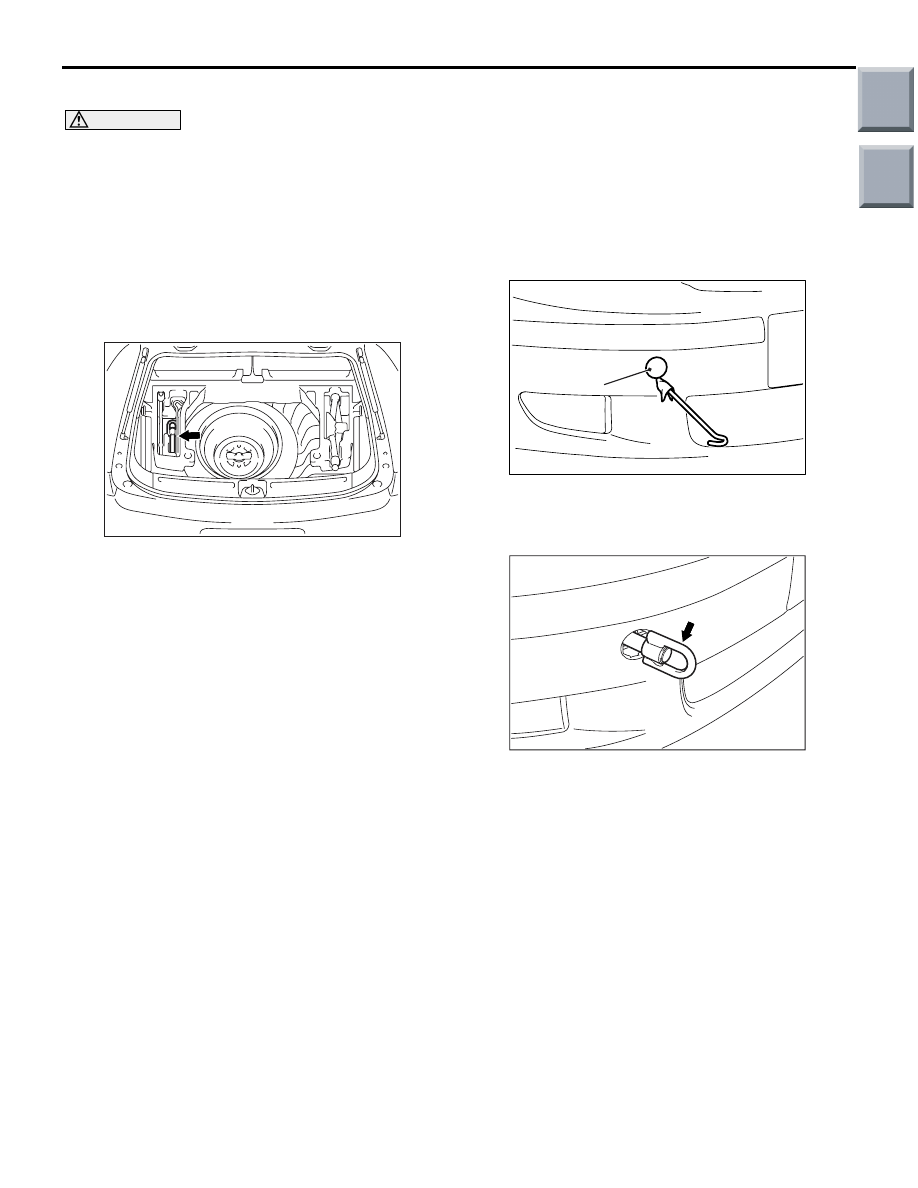

TOWING AND HOISTING

M1001000800443

HOW TO ATTACH THE TOWING HOOK

When towing this vehicle, attach the towing hook
according to the procedure below.

AC207643AB

1. Withdraw the towing hook under the luggage floor

board in the luggage compartment.

AC209208

AB

Cap

2. Remove the cap on the right side of front bumper

by using a wheel nut socket wrench or a
flat-tipped screwdriver.

AC205837AB

3. Secure the towing hook.

Main

Index

Group

TOC

STANDARD PART/TIGHTENING-TORQUE TABLE

GENERAL

00-32

STANDARD PART/TIGHTENING-TORQUE TABLE

M1001001100500

Each torque value in the table is a standard value for
tightening under the following conditions.

1. Bolts, nuts and washers are all made of steel and

plated with zinc.

2. The threads and bearing surface of bolts and

nuts are all in dry condition.

The values in the table are not applicable:

1. If toothed washers are inserted.
2. If plastic parts are fastened.
3. If bolts are tightened to plastic or die-cast

inserted nuts.

4. If self-tapping screws or self-locking nuts are

used.

STANDARD BOLT AND NUT TIGHTENING TORQUE

Thread size

Torque   N

⋅m

Bolt nominal
diameter mm

Pitch mm Head mark "4"

Head mark "7"

Head mark "8"

M5

0.8

2.5

± 0.5

5.0

± 1.0

6.0

± 1.0

M6

1.0

5.0

± 1.0

8.5

± 1.5

10

± 2

M8

1.25

11

± 2

20

± 4

24

± 4

M10

1.25

23

± 4

42

± 8

53

± 7

M12

1.25

42

± 8

80

± 10

93

± 12

M14

1.5

70

± 10

130

± 20

150

± 20

M16

1.5

105

± 15

195

± 25

230

± 30

M18

1.5

150

± 20

290

± 40

335

± 45

M20

1.5

210

± 30

400

± 60

465

± 65

M22

1.5

290

± 40

540

± 80

630

± 90

M24

1.5

375

± 55

705

± 105

820

± 120

FLANGE BOLT AND NUT TIGHTENING TORQUE

Thread size

Torque   N

⋅m

Bolt nominal
diameter mm

Pitch mm Head mark "4"

Head mark "7"

Head mark "8"

M6

1.0

5.0

± 1.0

10

± 2

12

± 2

M8

1.25

13

± 2

24

± 4

28

± 5

M10

1.25

26

± 5

50

± 5

58

± 7

M10

1.5

25

± 4

46

± 8

55

± 5

M12

1.25

47

± 9

93

± 12

105

± 15

M12

1.75

43

± 8

83

± 12

98

± 12

NOTE:

.

•

Be sure to use only the specified bolts and nuts, and always tighten them to the specified torques.

•

Bolts marked with indications such as 4T or 7T are reinforced bolts. The larger the number, the greater the
bolt strength.
