HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

GENERAL

00-13

HOW TO COPE WITH INTERMITTENT
MALFUNCTIONS

M1001013900020

AC300901

Intermittent malfunctions often occur under certain
conditions, and if these conditions can be ascer-
tained, determining the cause becomes simple. In
order to ascertain the conditions under which an
intermittent malfunction occurs, first ask the cus-
tomer for details about the driving conditions,

weather conditions, frequency of occurrence and
trouble symptoms, and then try to recreate the trou-
ble symptoms. Next, ascertain whether the reason
why the trouble symptom occurred under these con-
ditions is due to vibration, temperature or some other
factor. If vibration is thought to be the cause, carry
out the following checks with the connectors and
components to confirm whether the trouble symptom
occurs. The objects to be checked are connectors
and components which are indicated by inspection
procedures or given as probable causes (which gen-
erates diagnosis codes or trouble symptoms).

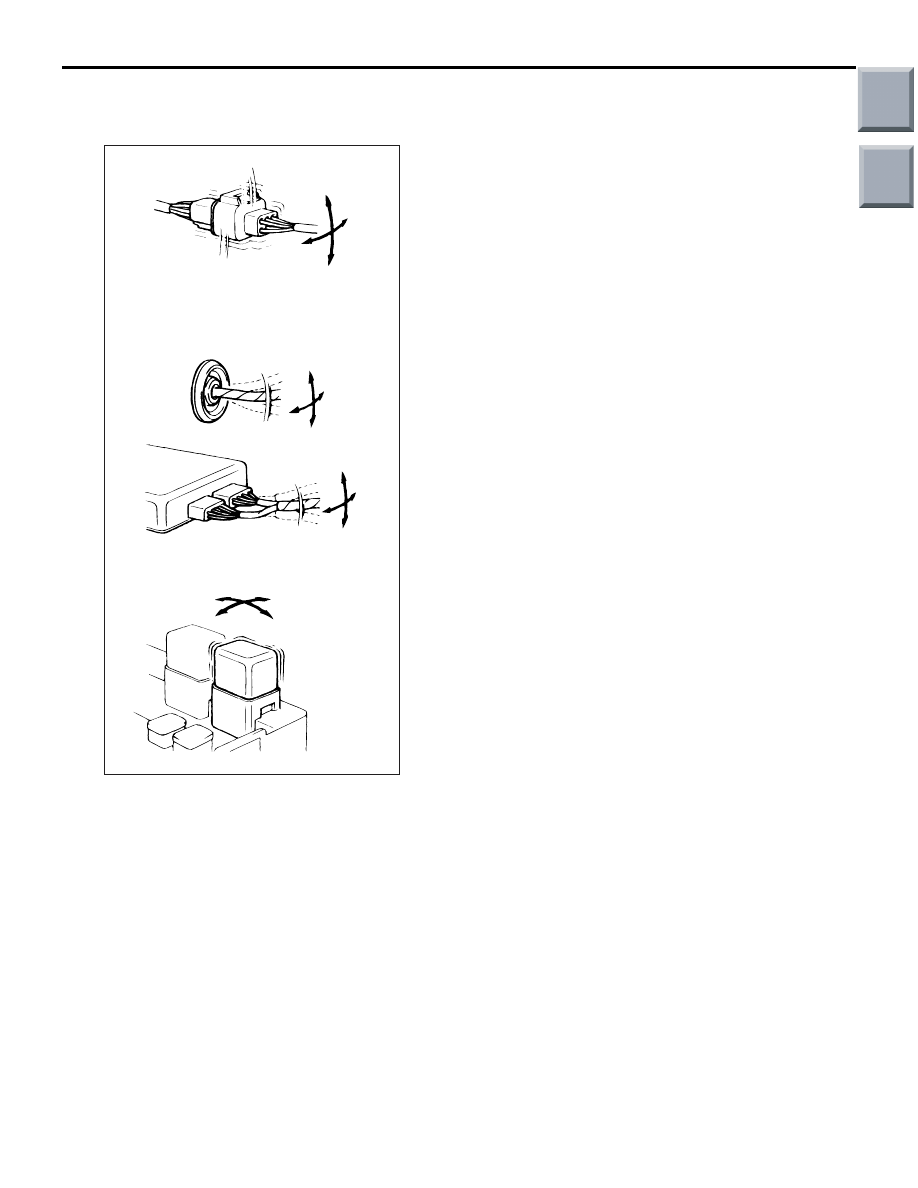

• Gently shake the connector up, down and to the

left and right.

• Gently shake the wiring harness up, down and to

the left and right.

• Gently rock each sensor and relay, etc. by hand.

• Gently shake the wiring harness at suspensions

and other moving parts.

NOTE: If determining the cause is difficult, the drive
recorder function of the M.U.T.-III can also be used.
(For details on how to use the M.U.T.-III, refer to the
"M.U.T.-III operation manual).

HOW TO TREAT PAST TROUBLE

M1001014100027

Since the trouble may still be present even the status
is "Stored", set the vehicle to the diagnosis code
detection condition and check that the status
changes to "Active". If the status does not change
from "Stored", carry out the following procedure.
1. Establish from the customer whether a fuse or

connector has been replaced or disconnected.

2. If yes, erase the diagnosis code, and then check

that no diagnostic code is reset. If no diagnosis
code is reset, the diagnosis is complete.

3. If no, follow the applicable Diagnostic Trouble

Code Chart. Then check the wiring harness and
connector, and refer to "How to Cope with
Intermittent Malfunction

P.00-13

 ."

Main

Index

Group

TOC

VEHICLE IDENTIFICATION

GENERAL

00-14

VEHICLE IDENTIFICATION

M1001000401727

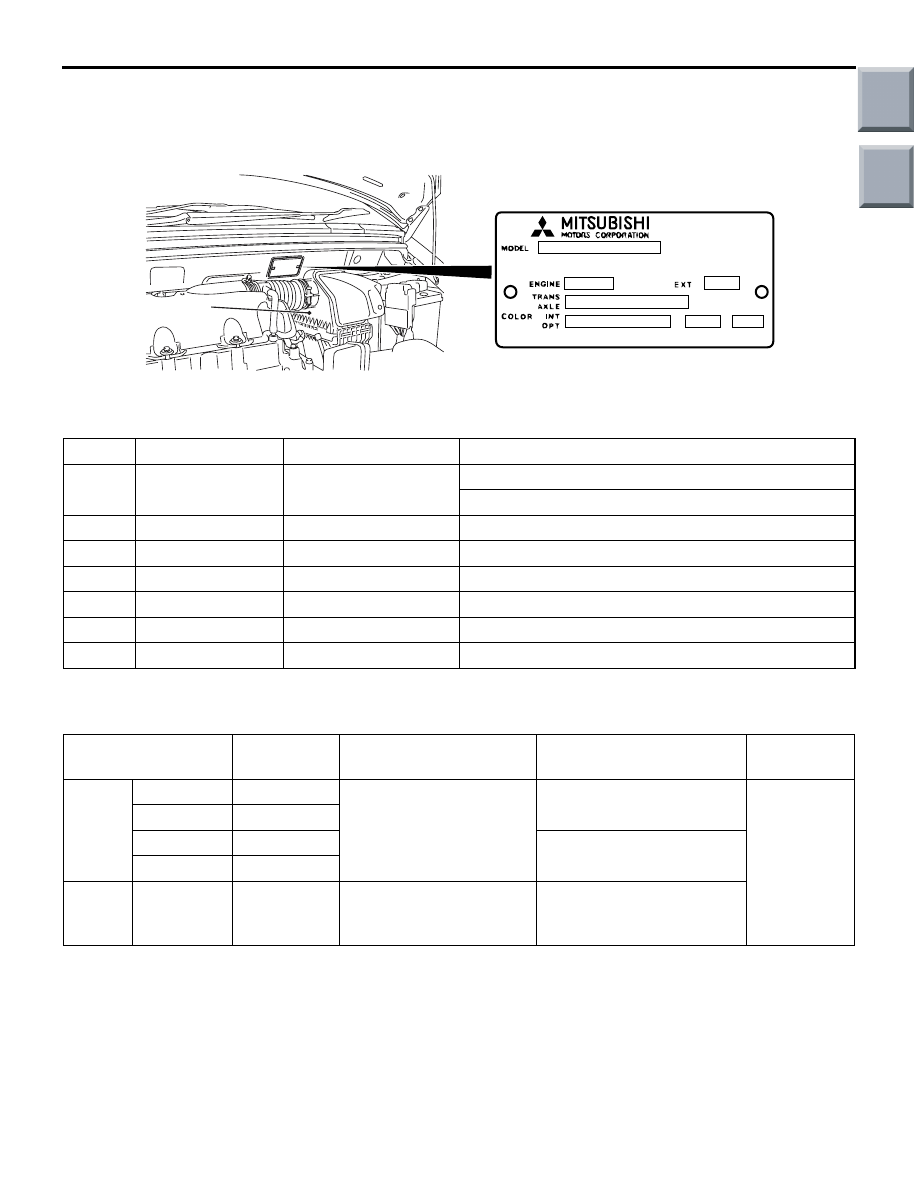

VEHICLE IDENTIFICATION CODE PLATE

AC313888

1

2

3

4

5

6

7

Air cleaner

AB

The vehicle identification code plate is riveted onto the cowl top panel in the engine compartment. The plate
shows model code, engine model, transmission model and body colour code.

No.

Item

Sample

Content

1

MODEL

Z23AXSMHR8

Z23A: Vehicle model
XSMHR8: Model series

2

ENGINE

4A91

Engine model

3

EXT

A19A

Exterior code

4

TRANS AXLE

F1C1A

Transmission model

5

COLOUR

A19

Body colour code

6

INT

240

Interior code

7

OPT

Y05

Equipment code

For monotone colour vehicles, the body colour code shall be indicated.

MODELS

Model code

Price class

Engine model

Transmission model

Fuel supply
system

Z23A

XNMHR8

ES,

LS

4A91 DOHC MIVEC
(1,499 mL)

F5MGA (5-speed M/T, floor
shift)

MPI

XNXHR8

VR-X

XSMHR8

LS

F1C1A (INVECS-III CVT,
smart shift)

XSXHR8

VR-X

Z27A

XNGFR8

RALLIART
Version-R

4G15 DOHC MIVEC with
Intercooler Turbocharger
(1,468 mL )

F5MGB (5-speed M/T, floor
shift)

Main

Index

Group

TOC

VEHICLE IDENTIFICATION

GENERAL

00-15

MODEL CODE

AC601074

1

2

3

4

5

6

7

8

9

AB

No. Item

Content

1

Development

Z2 MITSUBISHI COLT

2

Engine type

3

1,499 mL petrol engine
(4A91)

7

1,468 mL petrol engine
(4G15)

3

Sort

A

Passenger car

4

Body style

X

4-door hatchback

5

Transmission
type

N

Floor shift M/T

S

Smart shift CVT

6

Trim level

G RALLIART Version-R
M LS
X

VR-X

7

Specification
engine feature

F

DOHC-MPI-MIVEC with
Intercooler Turbocharger

H

DOHC-MPI-MIVEC

8

Steering wheel
location

R

Right hand drive

9

Destination

8

For Australia and New
Zealand

Main

Index

Group

TOC

VEHICLE IDENTIFICATION

GENERAL

00-16

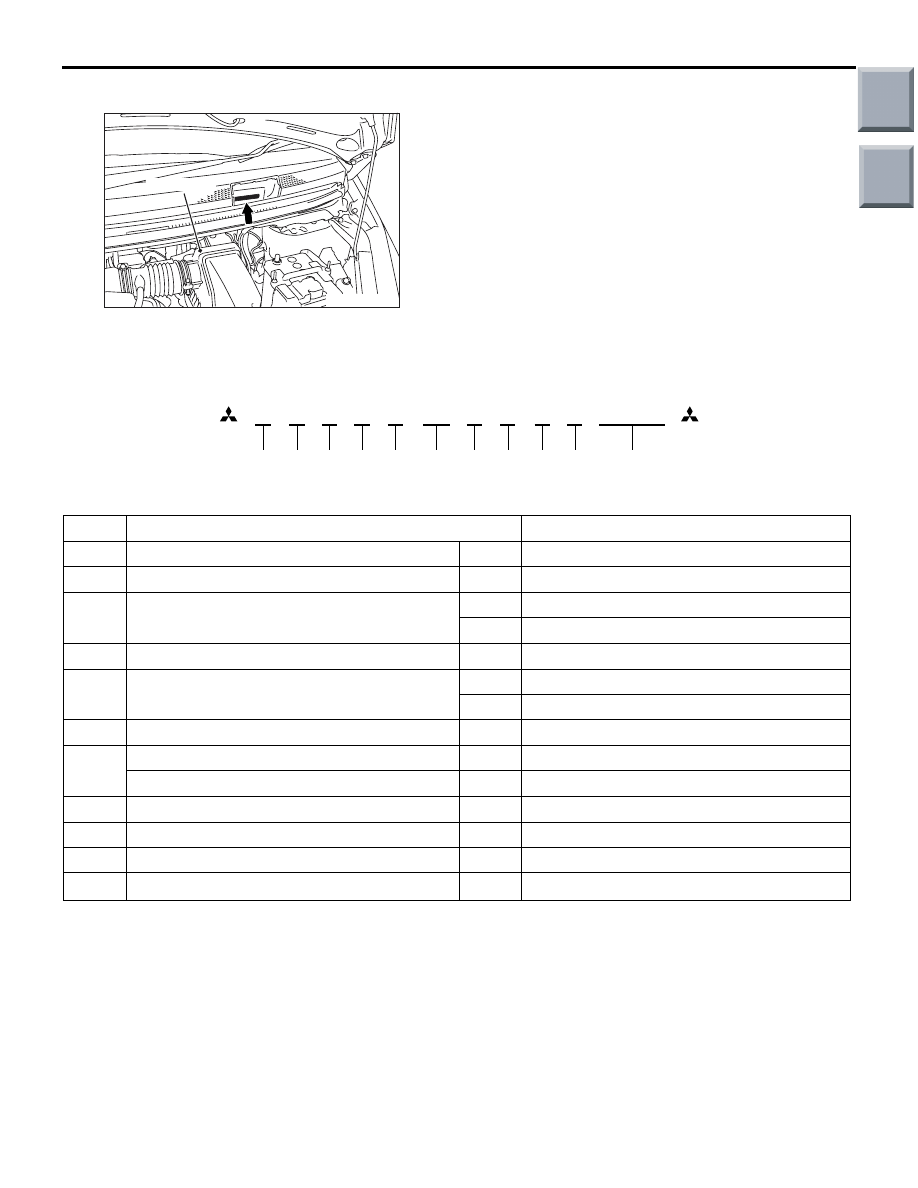

CHASSIS NUMBER

AC313890

Air cleaner

AB

The chassis number is stamped on the cowl top
panel side in the engine compartment.

AC507582

J

M

F

X

Z2

3

A

6

Z

000001

S

1

2

3

4

5

6

7

8

9

10

11

No.

Item

Content

1

Fixed figure

J

Asia

2

Distribution channel

M

Japan channel

3

Destination

A

For New Zealand

F

For Australia

4

Body style

X

4-door hatchback

5

Transmission type

N

Floor shift M/T

S

Smart shift CVT

6

Development order

Z2

MITSUBISHI COLT

7

Engine

3

1,499 mL petrol engine (4A91)

7

1,468 mL petrol engine (4G15)

8

Soft

A

Passenger car

9

Model year

6

2006

10

Plant

Z

Okazaki Motor Vehicle Works

11

Serial number

−

−
