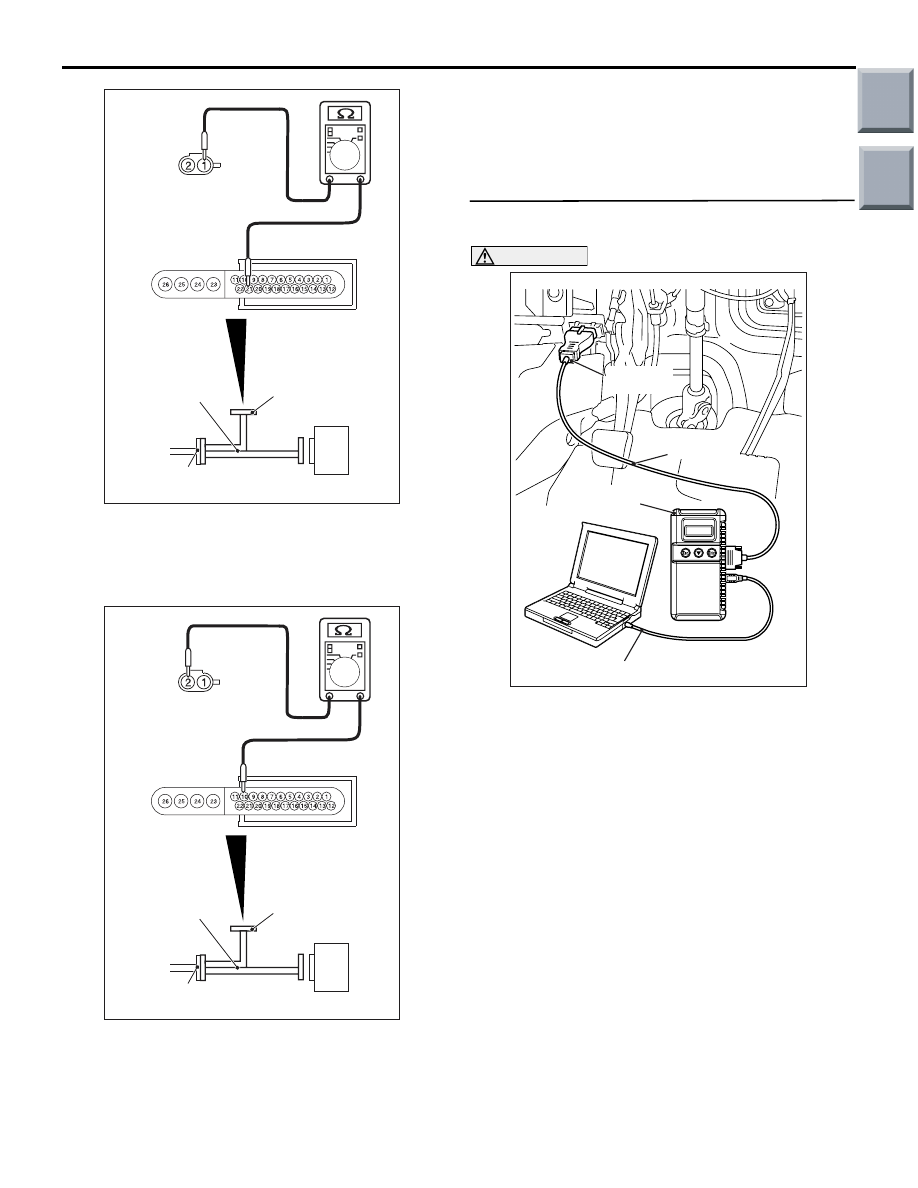

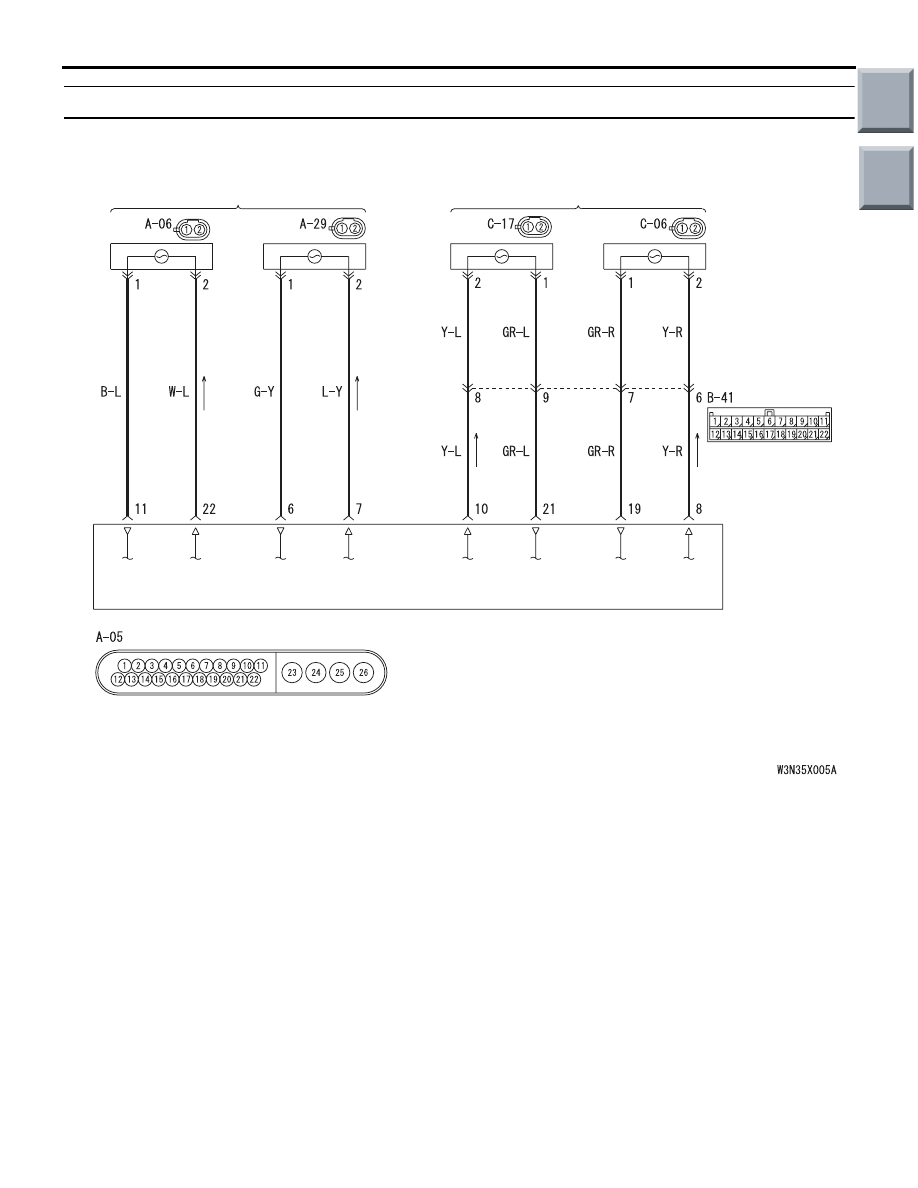

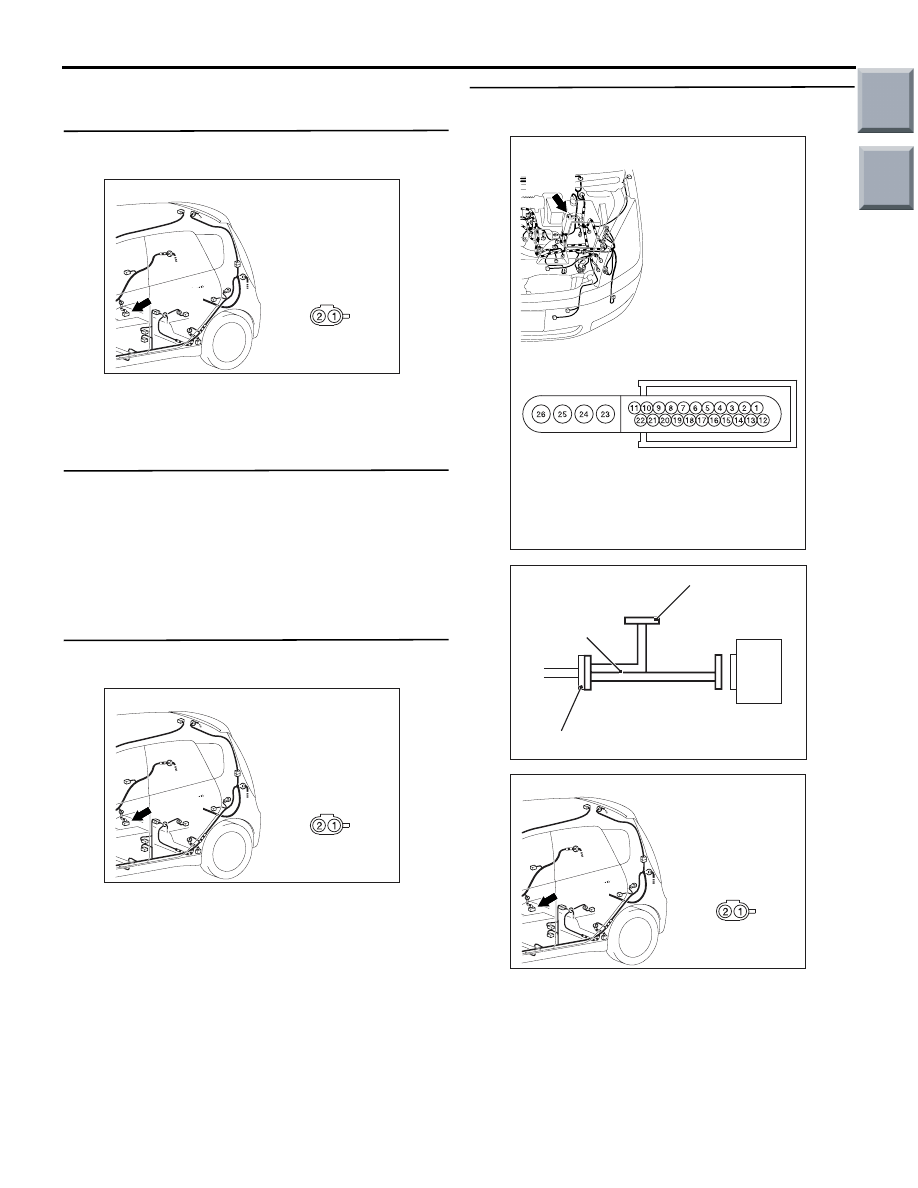

TROUBLESHOOTING ANTI-SKID BRAKING SYSTEM (ABS) 35B-28 DIAGNOSIS PROCEDURE STEP 1. Connector check: C-17 rear left wheel Q: Is the check result normal? YES : Go to Step 2. NO : Repair the defective connector. STEP 2. Remove the rear left wheel speed sensor Q: Is the check result normal? YES : Go to Step 3. NO : Replace the rear left wheel speed sensor STEP 3. Check the rear left wheel speed sensor Check the connectors, for loose, corroded or dam- Q: Is the check result normal? YES : Go to Step 4. NO : Repair or replace the damaged − Connector Inspection Service Points . STEP 4. Check the continuity (short to earth) at (1) Disconnect the rear left wheel speed sensor connector C-17 and ABS-ECU connector A-05, AC313878 Connector: C-17 AC Harness side C-17(B) AC313878 Connector: C-17 AC Harness side C-17(B) AC313863AB Connector: A-05 Harness side A-05(B) AC314249AB ABS-ECU MB991951 Check connector A-05 Harness connector AC313878 Connector: C-17 AC Harness side C-17(B) Main Index Group TOC |
