SERVICE SPECIFICATIONS

ANTI-SKID BRAKING SYSTEM (ABS)

35B-4

SERVICE SPECIFICATIONS

M1352000300715

ABS-ECU

Controls actuators (described above) based on the signals
coming from each sensor.
Controls the self-diagnosis and fail-safe functions.
Controls the diagnostic function (M.U.T.-III compatible).

Name of part

Number

Outline of function

Item

Standard value

Current applied to the wheel speed sensor (mA)

5.9

− 8.4

Insulation resistance of the wheel speed sensor (M

Ω)

− 100

Main

Index

Group

TOC

SPECIAL TOOLS

ANTI-SKID BRAKING SYSTEM (ABS)

35B-5

SPECIAL TOOLS

M1352000600846

Tool

Number

Name

Use

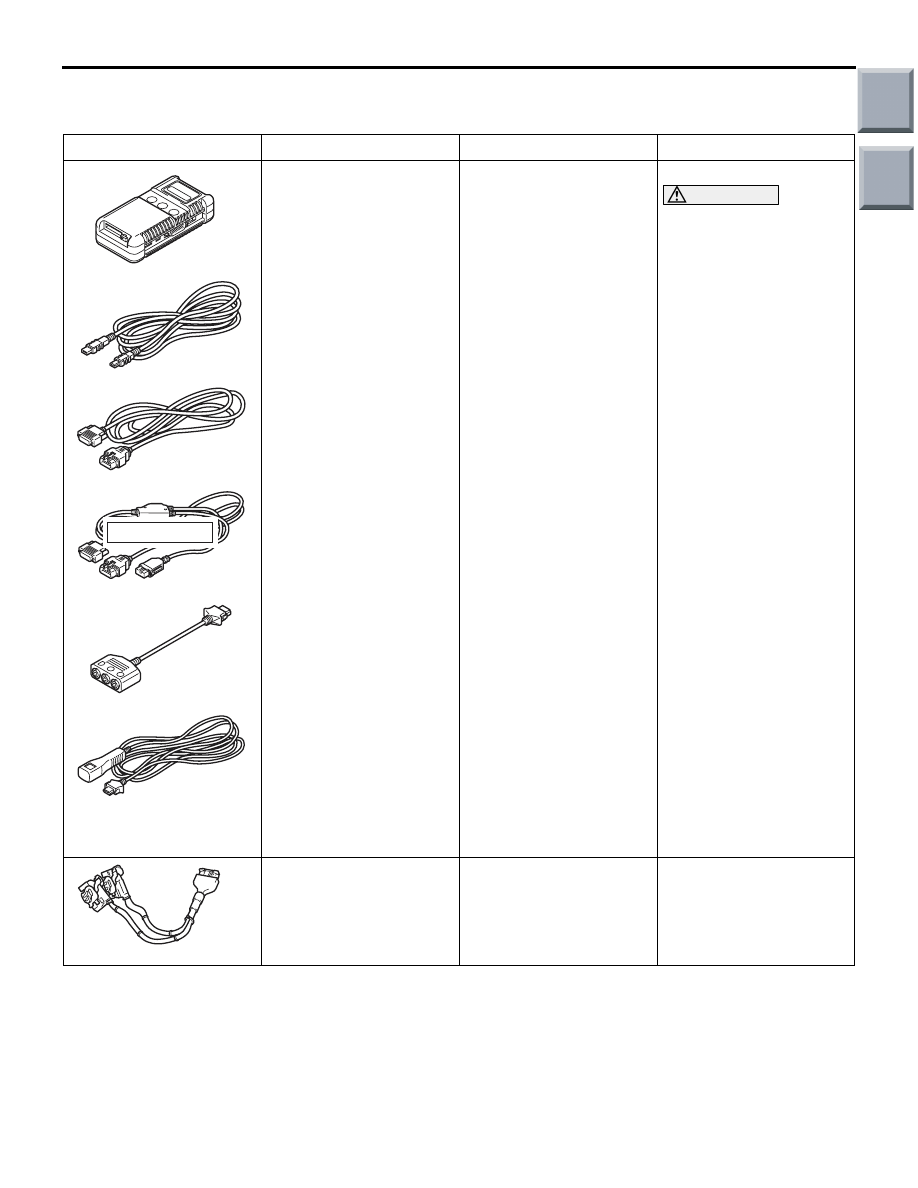

MB991955
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

M.U.T.-III sub-assembly
A: Vehicle
Communication Interface
(V.C.I.)
B: M.U.T.-III USB cable
C: M.U.T.-III main
harness A (Vehicles with
CAN communication
system)
D: M.U.T.-III main
harness B (Vehicles
without CAN
communication system)
E: M.U.T.-III measure
adapter
F: M.U.T.-III trigger
harness

CAN bus diagnosis

CAUTION

For vehicles with CAN
communication, use
M.U.T.-III main harness
A to send simulated
vehicle speed. If you
connect M.U.T.-III main
harness B instead, the
CAN communication
does not function
correctly.

MB991951

ABS check harness

Checking continuity and
measuring voltage at
ABS-ECU harness-side
connector

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

DO NOT USE

MB991951

Main

Index

Group

TOC

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-6

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1352011100696

Refer to GROUP 00, How to Use Troubleshoot-
ing/Inspection Service Points

− Contents of Trouble-

shooting

P.00-5

NOTES WITH REGARD TO DIAGNOSIS

M1352012600230

1. The ABS is a system which controls the brake

pressure by means of the operation of the ECU.
Accordingly, the following symptoms may occur at
times, but these are a sign of normal ABS
operation, and do not indicate a malfunction.

2. For road surfaces such as snow-covered roads

and gravel roads, the braking distance for
vehicles with ABS can sometimes be longer than
that for other vehicles. Accordingly, advise the
customer to drive safely on such roads by
lowering the vehicle speed and not being too
overconfident.

3. Diagnosis detection condition can vary depending

on the diagnosis code. Make sure that checking
requirements listed in the "Comment" are satisfied
when checking the trouble symptom again.

Phenomenon

Explanation of phenomenon

• Sounds come when the brake pedal is depressed gradually.

• When the ABS is operated, sounds come out of the chassis

component because of repeating the controlled and non
controlled states.

• After the ABS is operated (immediately after the vehicle is

parked), sounds come when the brake pedal is depressed
gradually.

• After parking the vehicle with EBD operation, sounds come

when the vehicle starts firstly.

This is the sound of normal system
operation, and is not a malfunction.

• Shocks are felt if the brake pedal is depressed when driving

at low speed.

• Slight noise appears from the engine compartment.

This is due to system operation checking
(starting-of check when the vehicle speed
reaches a certain number of km/h) and is
not a malfunction.

Main

Index

Group

TOC

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-7

ABS AND BRAKE WARNING LAMP
INSPECTION

M1352012000272

Check that the ABS and brake warning lamp illumi-
nates as follows.
NOTE: The brake warning lamp is used as EBD
warning lamp.
1. When the ignition switch is turned to the "ON"

position, the ABS and brake warning lamp
illuminates for approximately 3 seconds* and then
switches off.

NOTE: *: ABS warning lamp may stay ON until
the vehicle speed reaches a few km/h. As far as
the ABS-ECU stores any diagnosis code related
to the wheel speed sensor malfunction or the
motor malfunction as past trouble, the ABS-ECU
continues illuminating ABS warning lamp until it
verifies that the malfunction for that code is
resolved (Startup check).

2. If the illumination is other than the above, check

the diagnosis codes.

DIAGNOSIS FUNCTION

M1352011200853

READING DIAGNOSIS CODES

Refer to GROUP 00, How to Use Troubleshoot-
ing/Inspection Service Points

− Diagnosis Function

P.00-7

ERASING DIAGNOSIS CODES

Refer to GROUP 00, How to Use Troubleshoot-
ing/Inspection Service Points

− Diagnosis Function

P.00-7

INSPECTION CHART FOR DIAGNOSIS
CODE

M1352011300850

Follow the inspection chart that is appropriate for the
diagnosis code.

CAUTION

During diagnosis, a diagnosis code associated
with other system may be set when the ignition
switch is turned on with connector(s) discon-
nected. After the troubleshooting has been com-
pleted, check whether a diagnosis code is set. If
a diagnosis code is set, erase it.

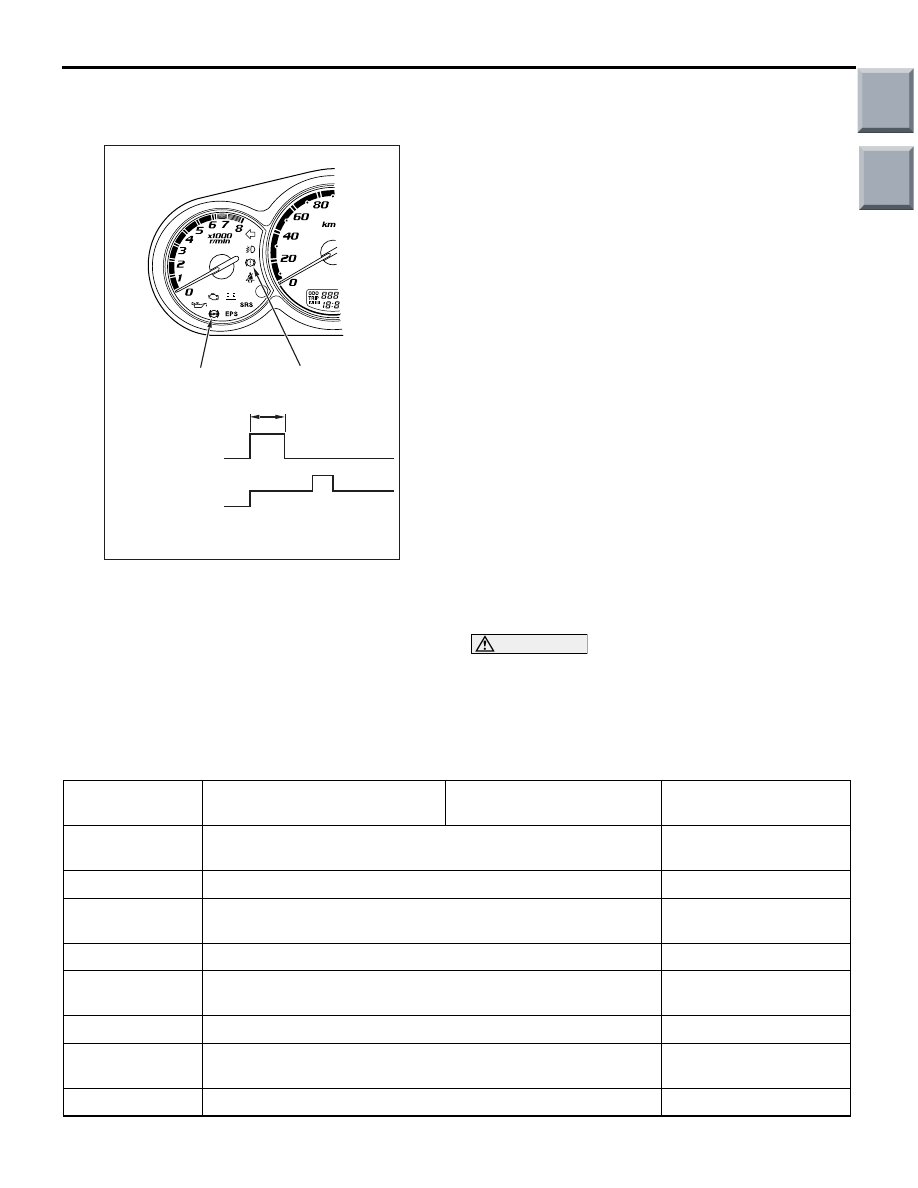

AC314235AB

Approx. 3 s

Warning
lamp

Ignition
switch

Illuminated

Not illuminated

START

ACC or LOCK

Brake warning lamp

ABS warning lamp

Diagnosis code
No.

Inspection item
