STARTING SYSTEM

ENGINE ELECTRICAL

16-22

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION <4A9>

M1162001001610

Pre-removal Operation
• Front Under Cover Panel Removal (Refer to GROUP 51,

Front Bumper Assembly and Radiator Grille

P.51-2

).

Post-installation Operation
• Front Under Cover Panel Installation (Refer to GROUP

51, Front Bumper Assembly and Radiator Grille

P.51-2

).

<M/T>

AC404001
AC404002
AC600049

AC601208

1

3

2

AB

11 ± 1 N·m

24 ± 3 N·m

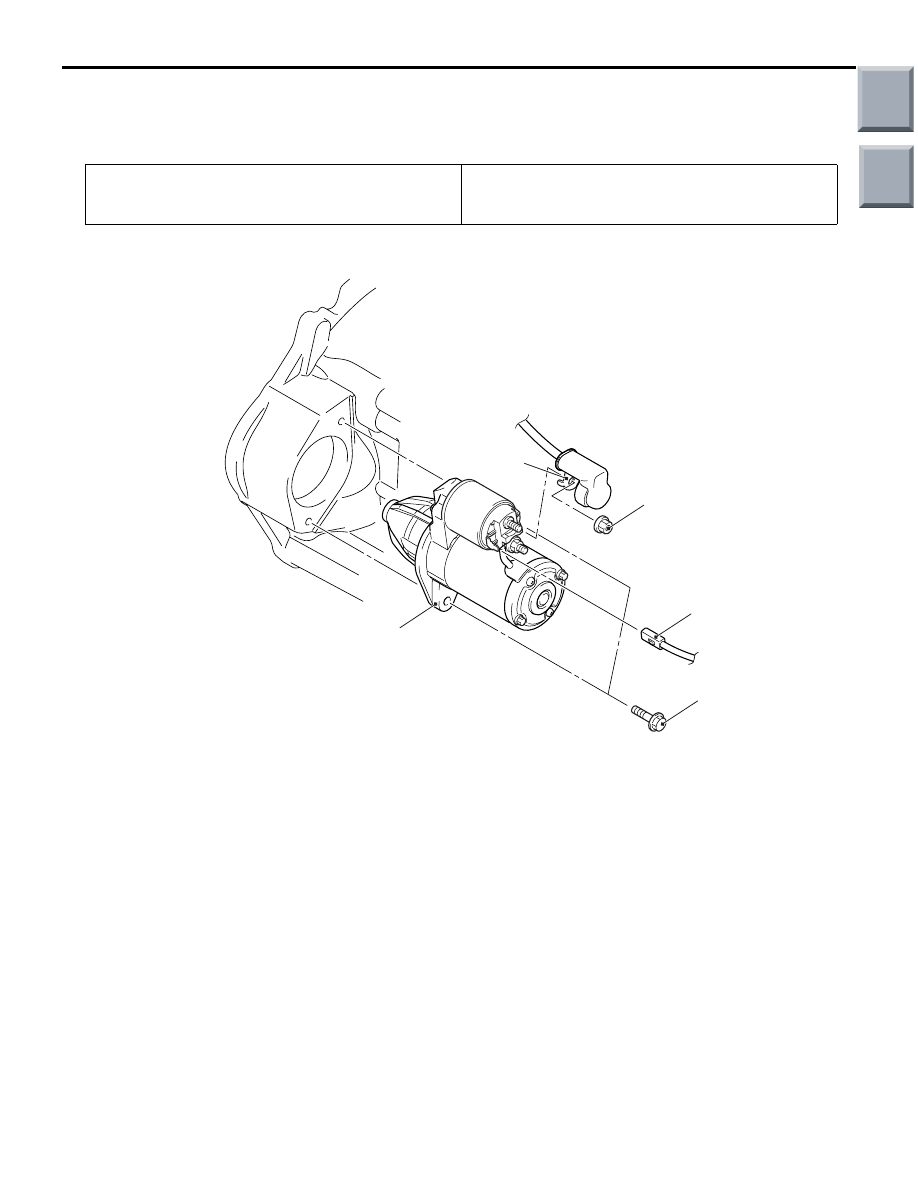

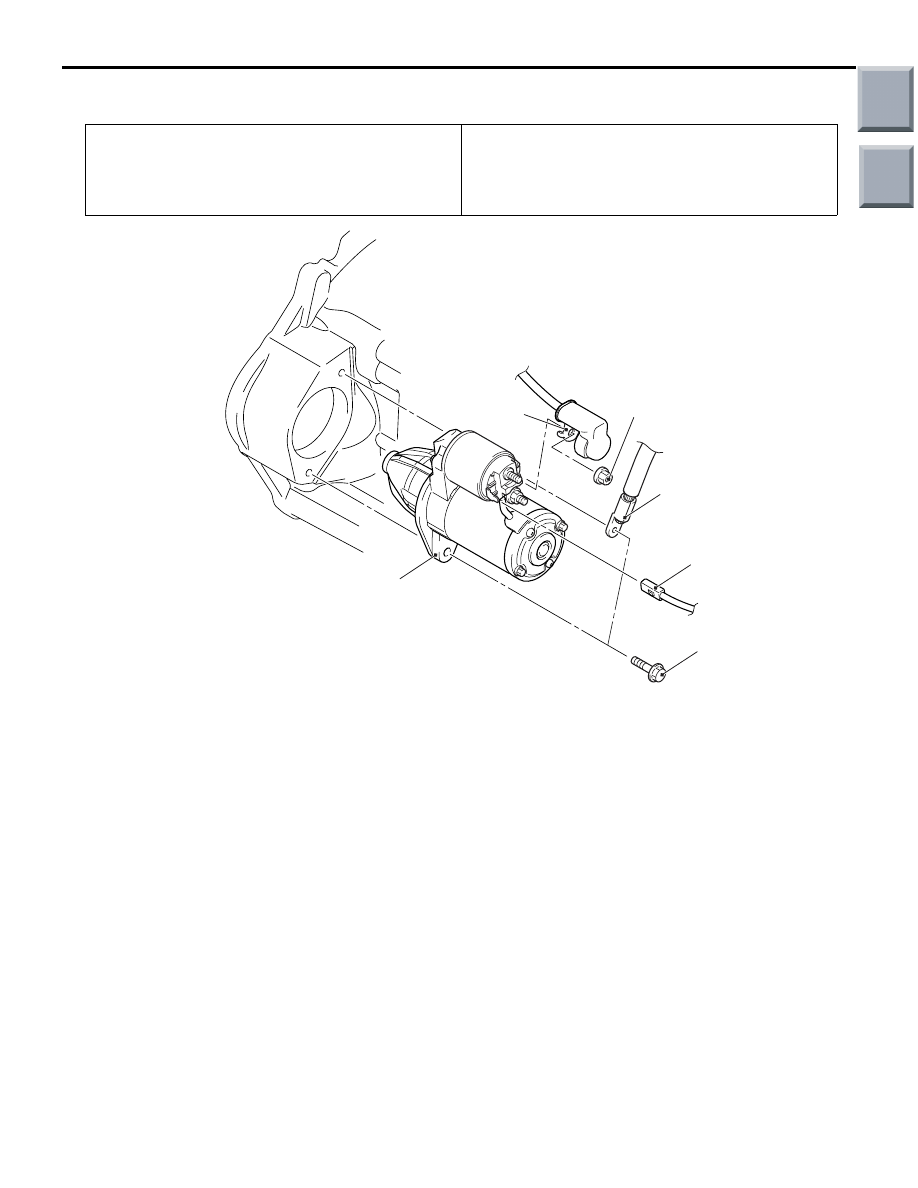

Removal steps

1.

Starter connector

2.

Starter terminal

<<

A

>>

3.

Starter assembly

Removal steps (Continued)

Main

Index

Group

TOC

STARTING SYSTEM

ENGINE ELECTRICAL

16-23

<CVT>

AC402690AC

3

1

24 ± 3 N·m

11 ± 1 N·m

2

Removal steps

1.

Starter connector

2.

Starter terminal

<<

A

>>

3.

Starter assembly

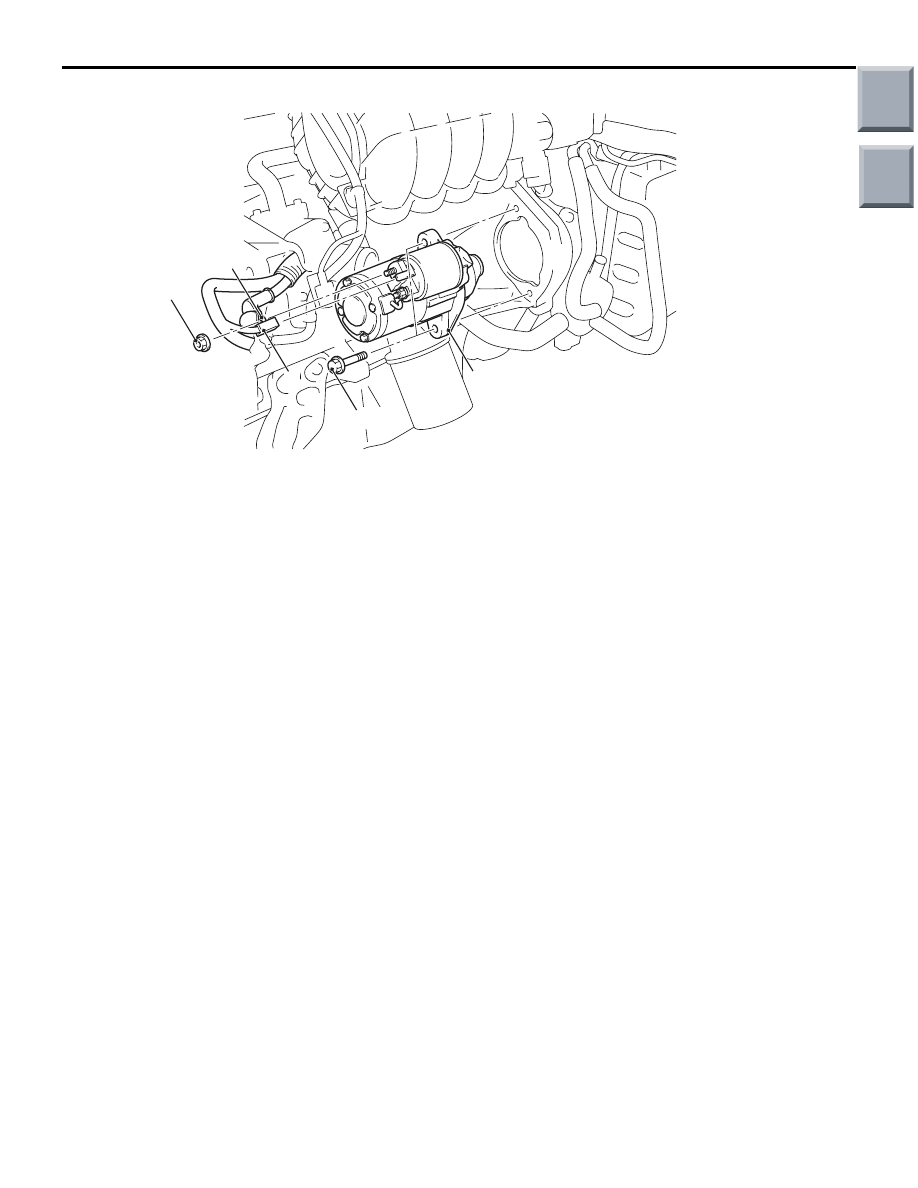

REMOVAL SERVICE POINT
<<A>>STARTER ASSEMBLY REMOVAL

Remove each starter mounting bolt and remove the
starter assembly from underneath the vehicle.

Main

Index

Group

TOC

STARTING SYSTEM

ENGINE ELECTRICAL

16-24

REMOVAL AND INSTALLATION <4G1>

M1162001001643

Pre-removal Operation
• Front Under Cover Panel Removal (Refer to GROUP 51,

Front Bumper Assembly and Radiator Grille

P.51-2

).

• Air Hose A Removal (Refer to GROUP 15, Intercooler

P.15-8

).

Post-installation Operation
• Air Hose A Installation (Refer to GROUP 15, Intercooler

P.15-8

).

• Front Under Cover Panel Installation (Refer to GROUP

51, Front Bumper Assembly and Radiator Grille

P.51-2

).

AC600049

1

4

2

AB

11 ± 1 N·m

24 ± 3 N·m

3

Removal steps

1.

Starter connector

2.

Starter terminal

3.

Earth connection

<<

A

>>

4.

Starter assembly

REMOVAL SERVICE POINT
<<A>>STARTER ASSEMBLY REMOVAL

Remove each starter mounting bolt and remove the
starter assembly from underneath the vehicle.

Main

Index

Group

TOC

STARTING SYSTEM

ENGINE ELECTRICAL

16-25

STARTER MOTOR ASSEMBLY INSPECTION <4A9>

M1162001100476

<M/T>

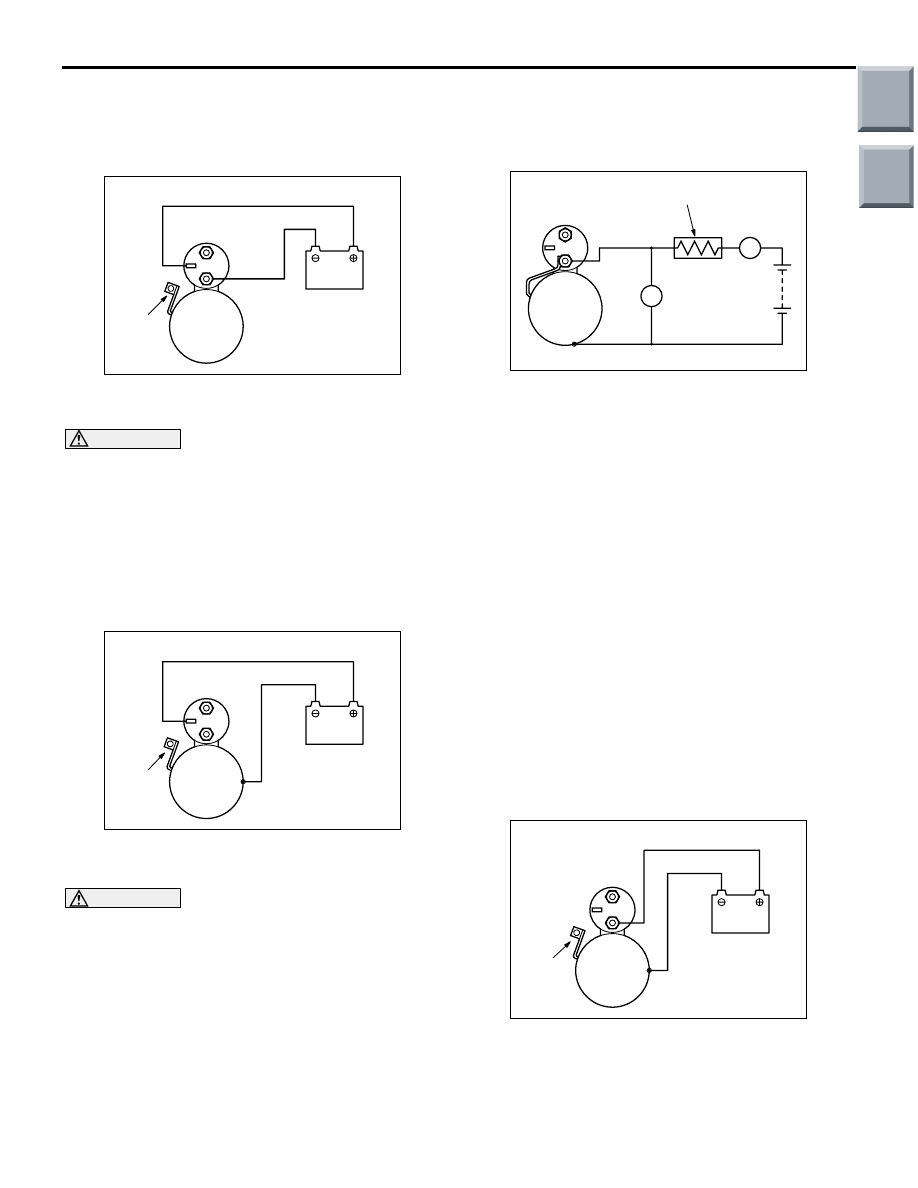

MAGNETIC SWITCH PULL-IN TEST

AK305703

B

M

S

Battery

Starter
motor

AC

Wire

1. Disconnect the field coil wire from the M-terminal

of the magnetic switch.

CAUTION

This test must be performed quickly (in less than
10 seconds) to prevent the coil from burning.
2. Connect a 12-volt battery between the S-terminal

and M-terminal.

3. If the pinion moves out, the pull-in coil is good. If it

doesn't, replace the starter motor.

MAGNETIC SWITCH HOLD-IN TEST

AK305704

B

M

S

Battery

Starter
motor

AD

Wire

1. Disconnect the field coil wire from the M-terminal

of the magnetic switch.

CAUTION

This test must be performed quickly (in less than
10 seconds) to prevent the coil from burning.
2. Connect a 12-volt battery between the S-terminal

and body.

3. Manually pull out the pinion as far as the pinion

stopper position.

4. If the pinion remains out, everything is in order. If

the pinion moves in, the hold-in circuit is open.
Replace the starter motor.

FREE RUNNING TEST

AK305705

S

M

B

Ammeter

Carbon-pile
rheostat

Battery

Starter
motor

Voltmeter

AB

A

V

1. Place the starter motor in a vise equipped with

soft jaws and connect a fully-charged 12-volt
battery to the starter motor as follows:

2. Connect a test ammeter (100-ampere scale) and

carbon pile rheostat in series between the battery
(+) terminal and starter motor terminal.

3. Connect a voltmeter (15-volt scale) across the

starter motor.

4. Rotate the rheostat to full-resistance position.
5. Connect the battery cable from the battery (-)

terminal to the starter motor body.

6. Adjust the rheostat until the battery voltage shown

on the voltmeter is 11.5 V.

7. Confirm that the maximum amperage is within the

specifications and that the starter motor turns
smoothly and freely.

Current:

maximum 40 Amps

MAGNETIC SWITCH RETURN TEST

AK305706

B

M

S

Battery

Starter
motor

AC

Wire

1. Disconnect the field coil wire from the M-terminal

of the magnetic switch.
