Mitsubishi Canter (FE, FG). Manual - part 66

9 Technical  data

9.16 Electrical wiring diagram

264

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

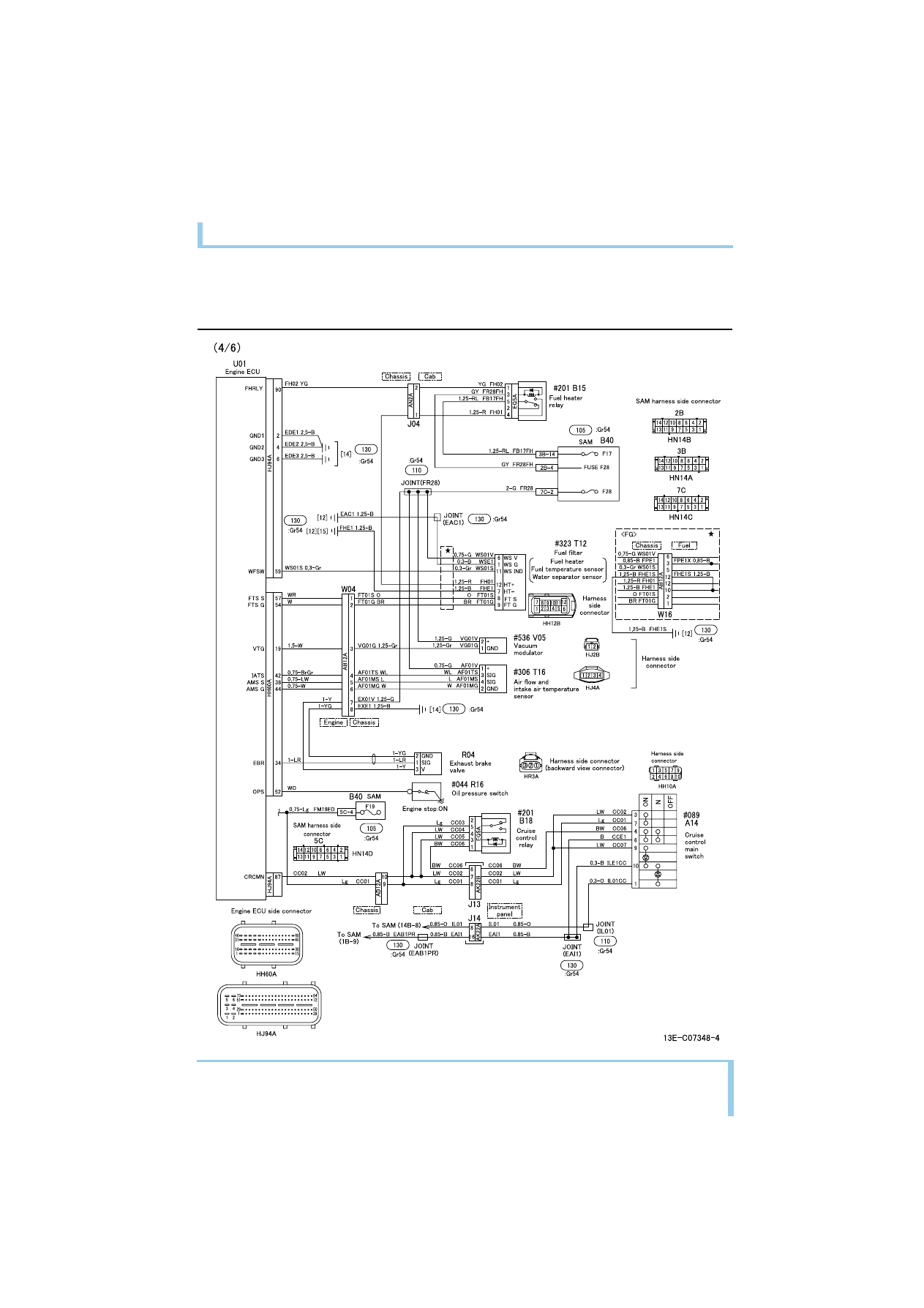

ENGINE ELECTRIC CIRCUIT (4/6)

9 Technical  data

9.16 Electrical wiring diagram

265

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

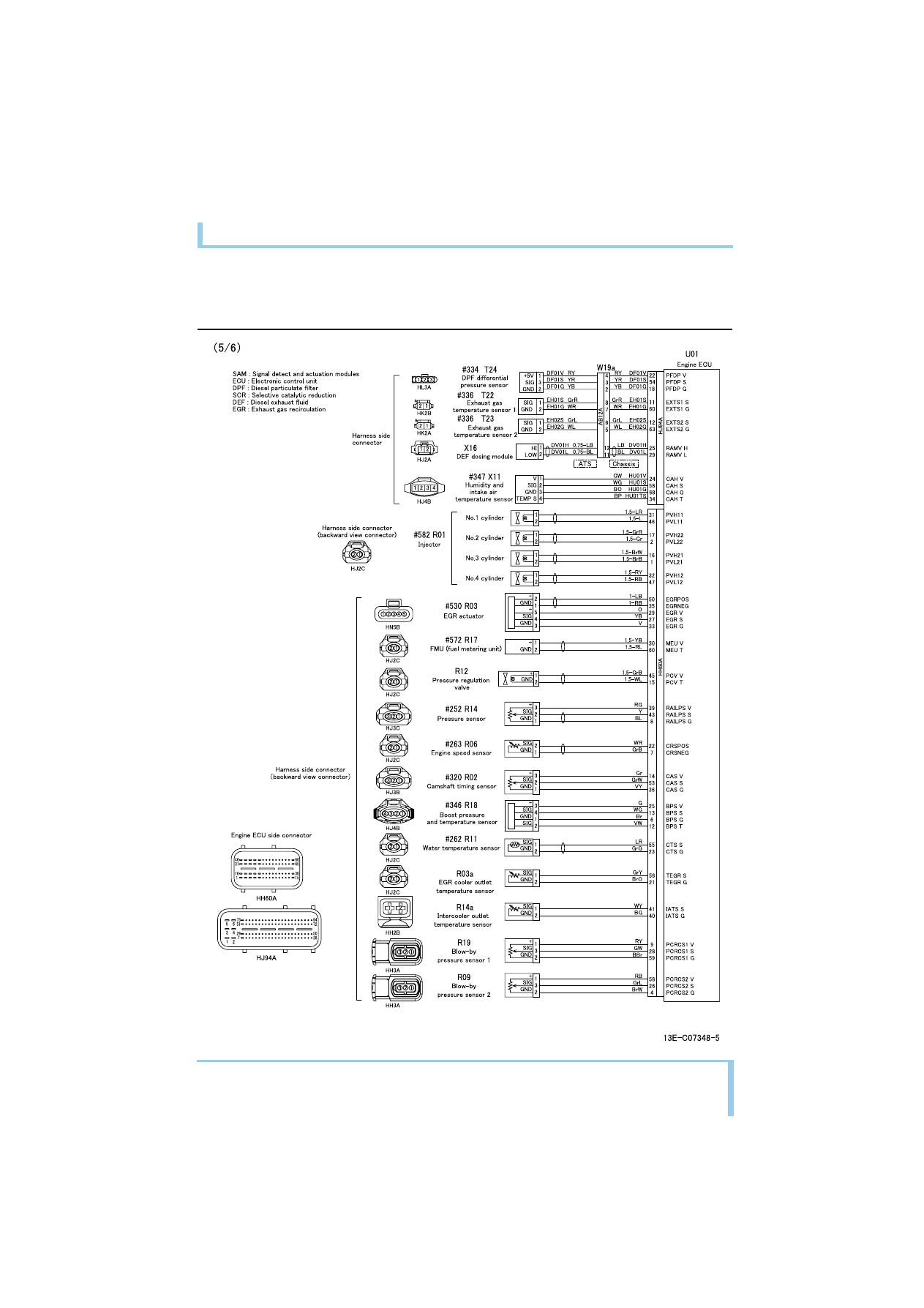

ENGINE ELECTRIC CIRCUIT (5/6)

9 Technical  data

9.16 Electrical wiring diagram

266

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

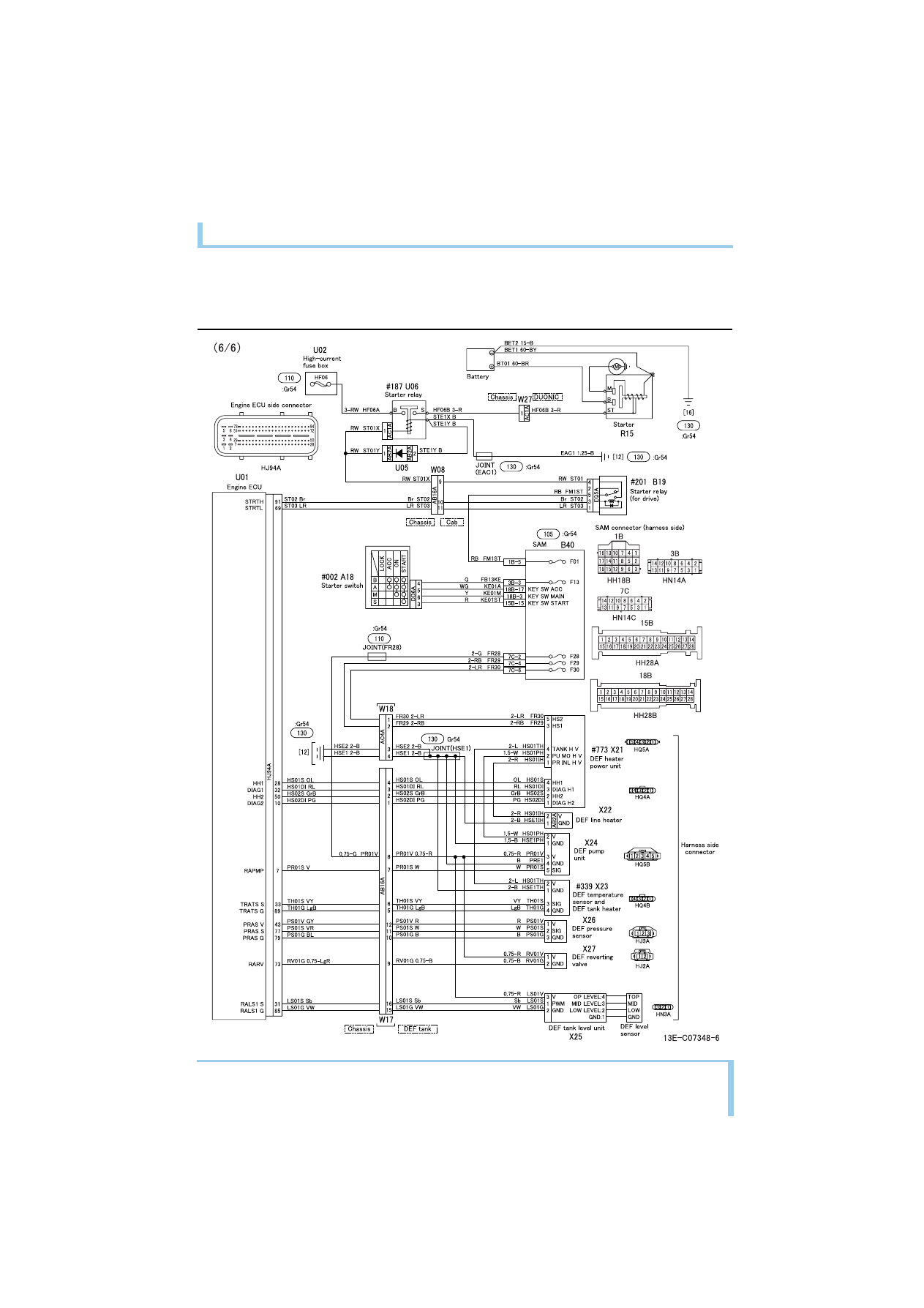

ENGINE ELECTRIC CIRCUIT (6/6)

9 Technical  data

9.16 Electrical wiring diagram

267

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

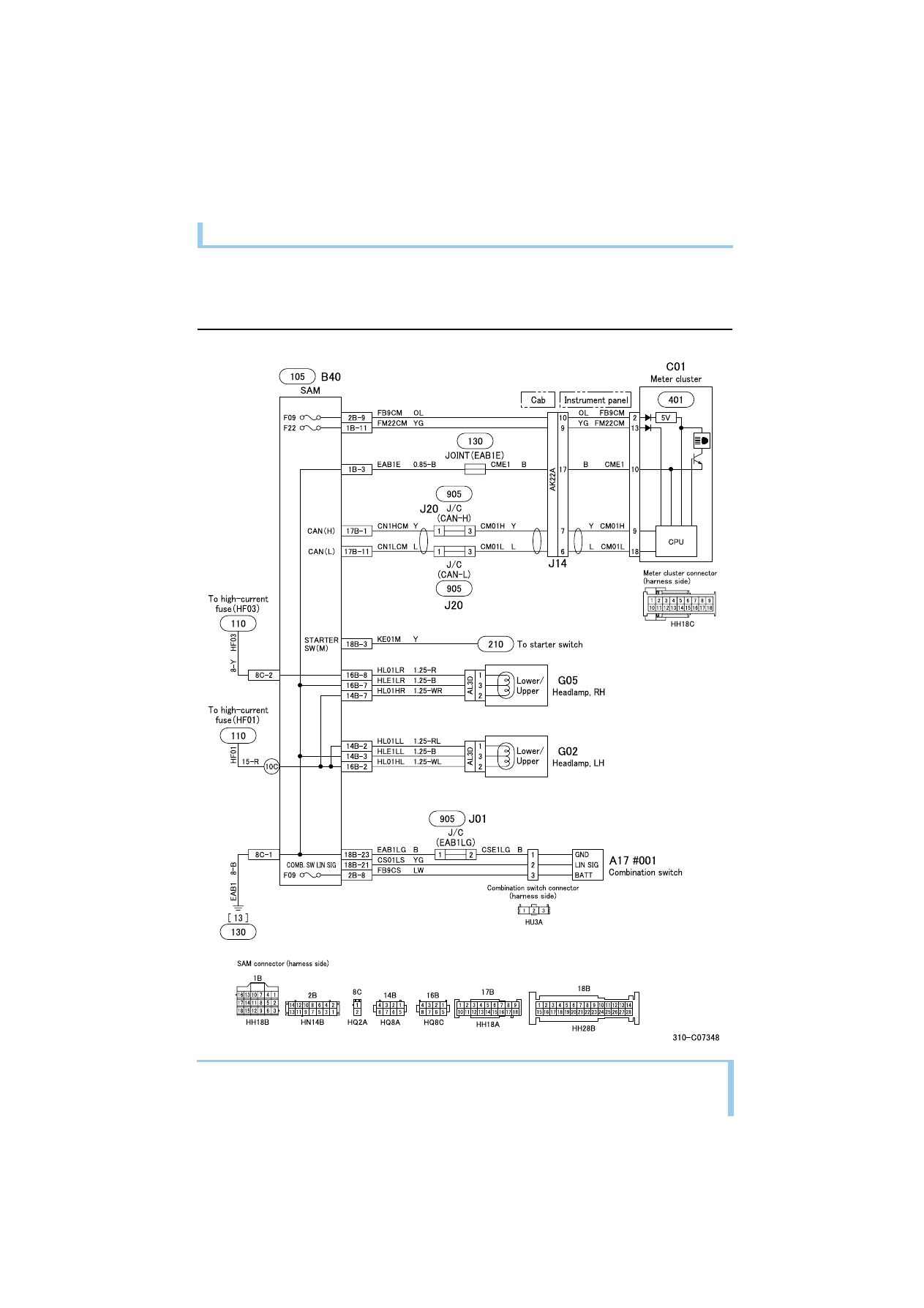

HEADLAMP CIRCUIT
