9 Technical  data

9.13 Fuel tank mounting layout

212

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

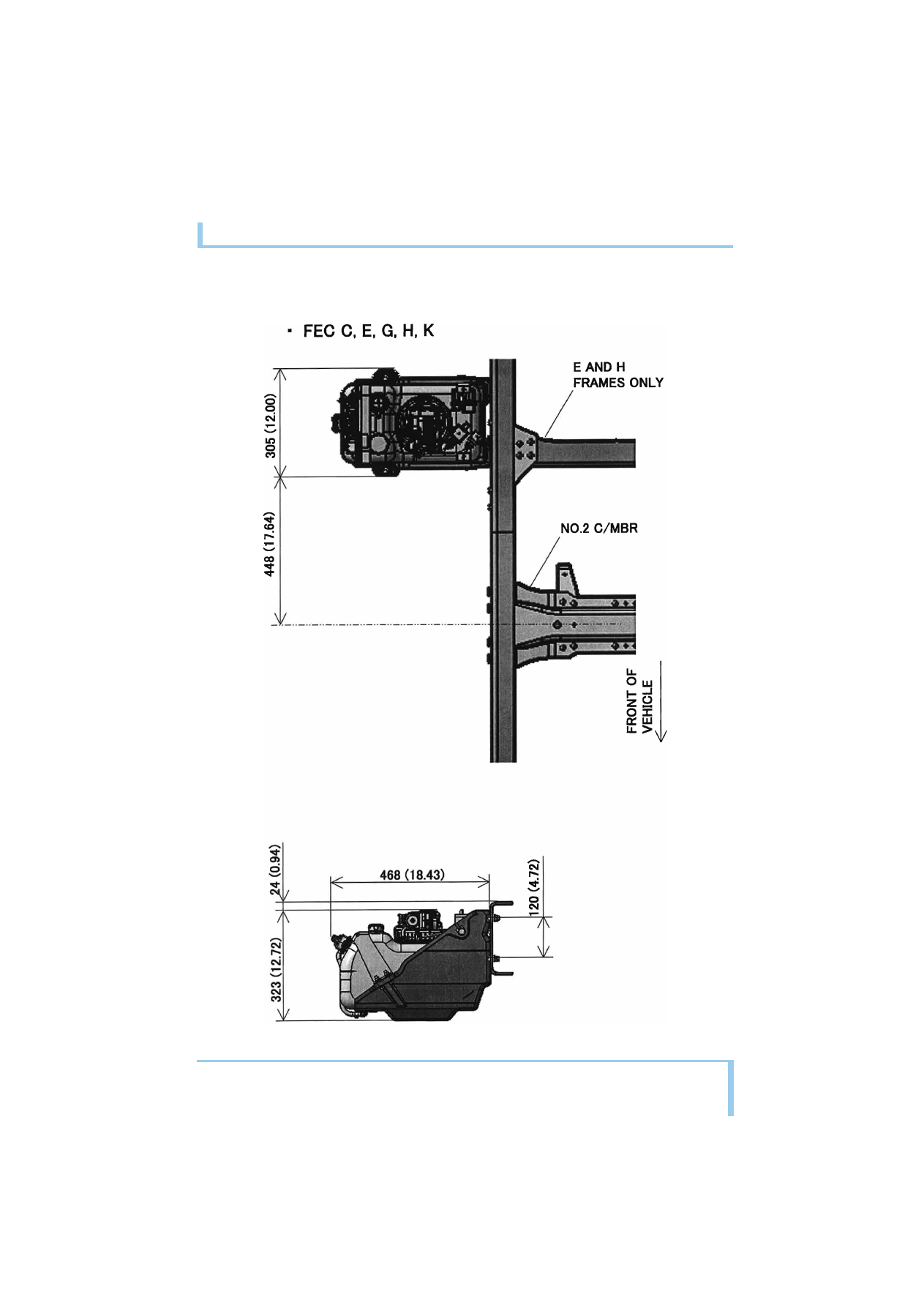

9.13.2 Fuel tank bracket (option)

<FG>

A

9 Technical  data

9.13 Fuel tank mounting layout

213

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

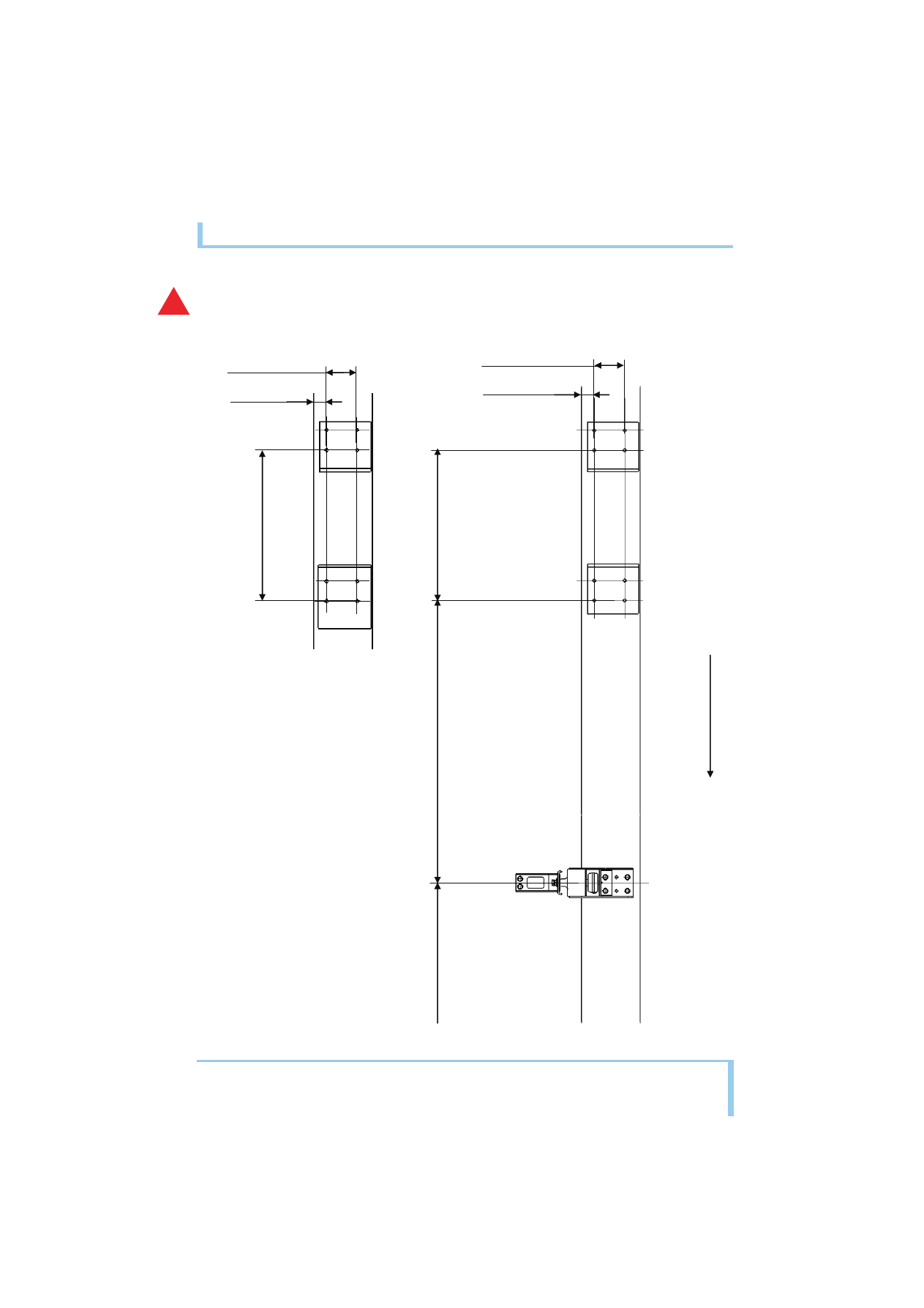

<Option 125L Fuel tank>

E

1117 (44.0)

544 (21.4)

Unit : mm (in)

110 (4.33)

46 (1.81) T6

FRONT O

F

VEHICLE

SINGLE CAB   WB : E,G,H,K

F/A C

TR

~

41

0 (16.1

)

9 Technical  data

9.13 Fuel tank mounting layout

214

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

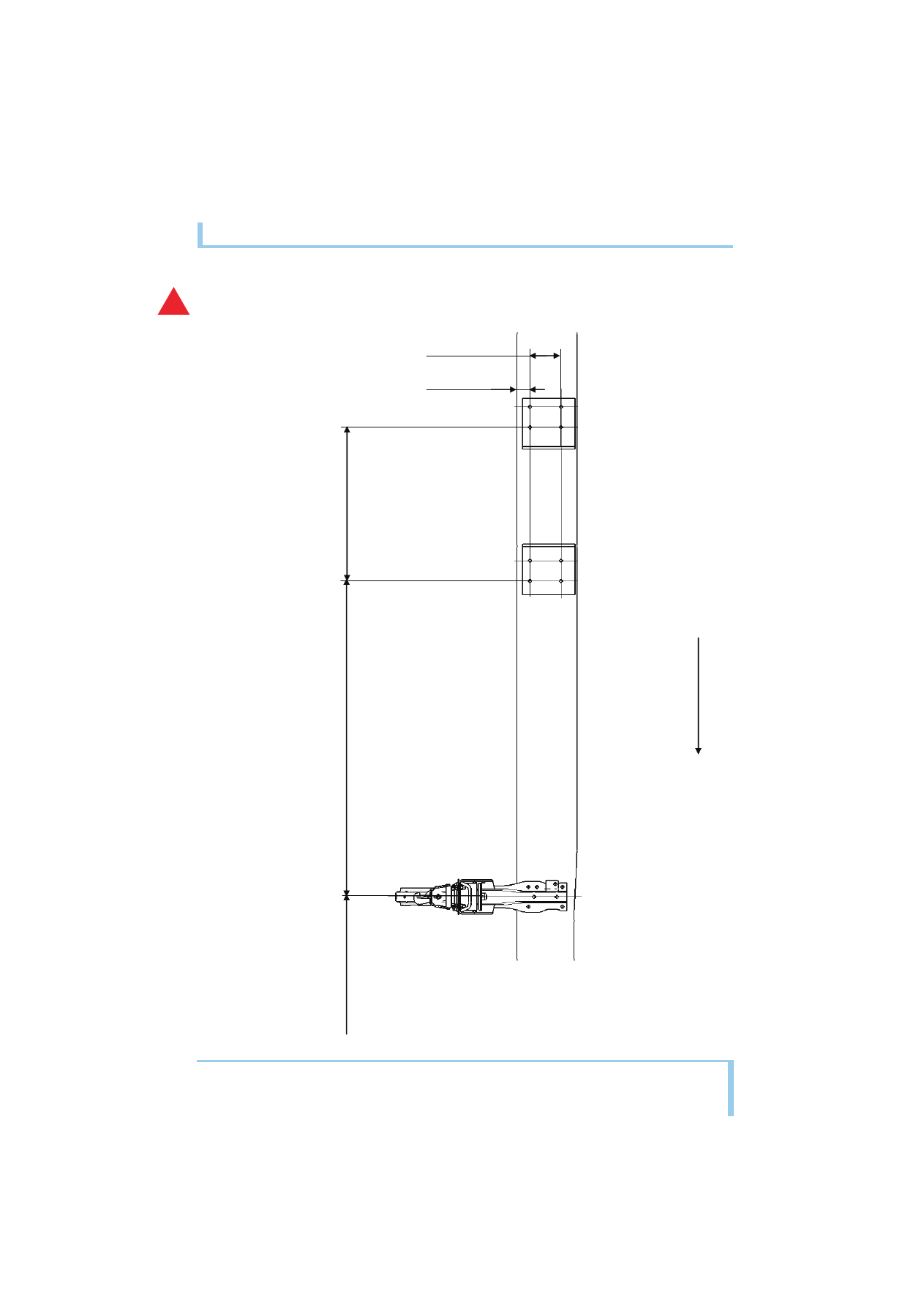

<Option 125L Fuel tank>

E

1022 (40.2)

Unit : mm (in)

544

 (2

1.4)

110 (4.33)

46 (1.81) T6

FRONT O

F

VEHICLE

CREW CAB   WB : H,K

F/A CTR

~

1405 (5

5.3)

544 (21.4)

110 (4.33)

46 (1.81) T6

WB : K

9 Technical  data

9.14 BlueTec

®

 exhaust gas aftertreatment

215

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9.14 BlueTec

®

exhaust gas aftertreatment
