Mitsubishi Canter (FE, FG). Manual - part 11





44

4 Technical threshold values for planning

4.2 Weight distribution, CoG height, anti-roll bars

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

4.2 Weight distribution, CoG height, anti-roll bars

4.2.1

Weight distribution

Avoid one-sided or laterally asymmetric weight
distribution.

The wheel load (1/2 the axle load) may be exceeded
by no more than 4%. Observe the tire load capacity.

Example:

• Permissible axle load 5,000 kg {11020 lb}
• Permissible wheel load distribution 2,600 kg to

2,400 kg {5730 lb to 5290 lb }

4.2.2

CoG height

Body/equipment manufacturer must calculate the
vertical center of gravity, as measured from ground,
for the completed and loaded vehicle. The provided
maximum vertical center of gravity for the relevant
chassis model cannot be exceeded under any
operating condition.

MITSUBISHI FUSO cannot vouch for the handling,
braking and steering characteristics of vehicles with
attachments, installations or modifications for
payloads with centers of gravity that violate
prescribed limits (e.g. rear-mounted. overheight and
side-mounted loads). The vehicle body/equipment
manufacturer/converter is responsible for the safety
of the vehicle in the all cases.

4.2.3

Stabilizers roll control

Make sure that the vehicle you are building is correctly
equipped. NAFTA provides stabilizers as factory
equipment for different model series, and does not
offer optional stabilizers for any model.

a

Risk of accident

The body must be designed in such a way that
placement of excessive load weight at the rear is
prevented. It is important to comply with the points
listed below, otherwise the necessary steering and
braking forces for safe vehicle operation cannot be
transferred to the road.

45

4 Technical threshold values for planning

4.3 Steerability

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

4.3 Steerability

To ensure sufficient vehicle steerability, the minimum
front axle load (25% of gross vehicle weight) must be
maintained under all load conditions. Consult the
department responsible in the event of any deviations
컄 page 15.

Observe the notes on product liability

컄 page 17.

a

Risk of accident

The body must be designed in such a way that a
placement of excessive load weight at the rear is
prevented. The following points must be complied
with otherwise the steering and braking forces
necessary for safe driving cannot be transmitted.

!

The permissible front axle load must not be
exceeded.

46

4 Technical threshold values for planning

4.4 Clearance for assemblies and cab

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

4.4 Clearance for assemblies and cab

Certain clearances must be maintained in order to
ensure the function and operational safety of
assemblies.

Dimensional data in the body builder's drawings must
be observed.

4.4.1

Attachment above cab

• Observe the permissible center of gravity location

and the front axle load.

• Make sure that there is sufficient space for tilting.

컄 page 173.

i

Read and comply with the relevant sections of the
Body Builder's Manual.

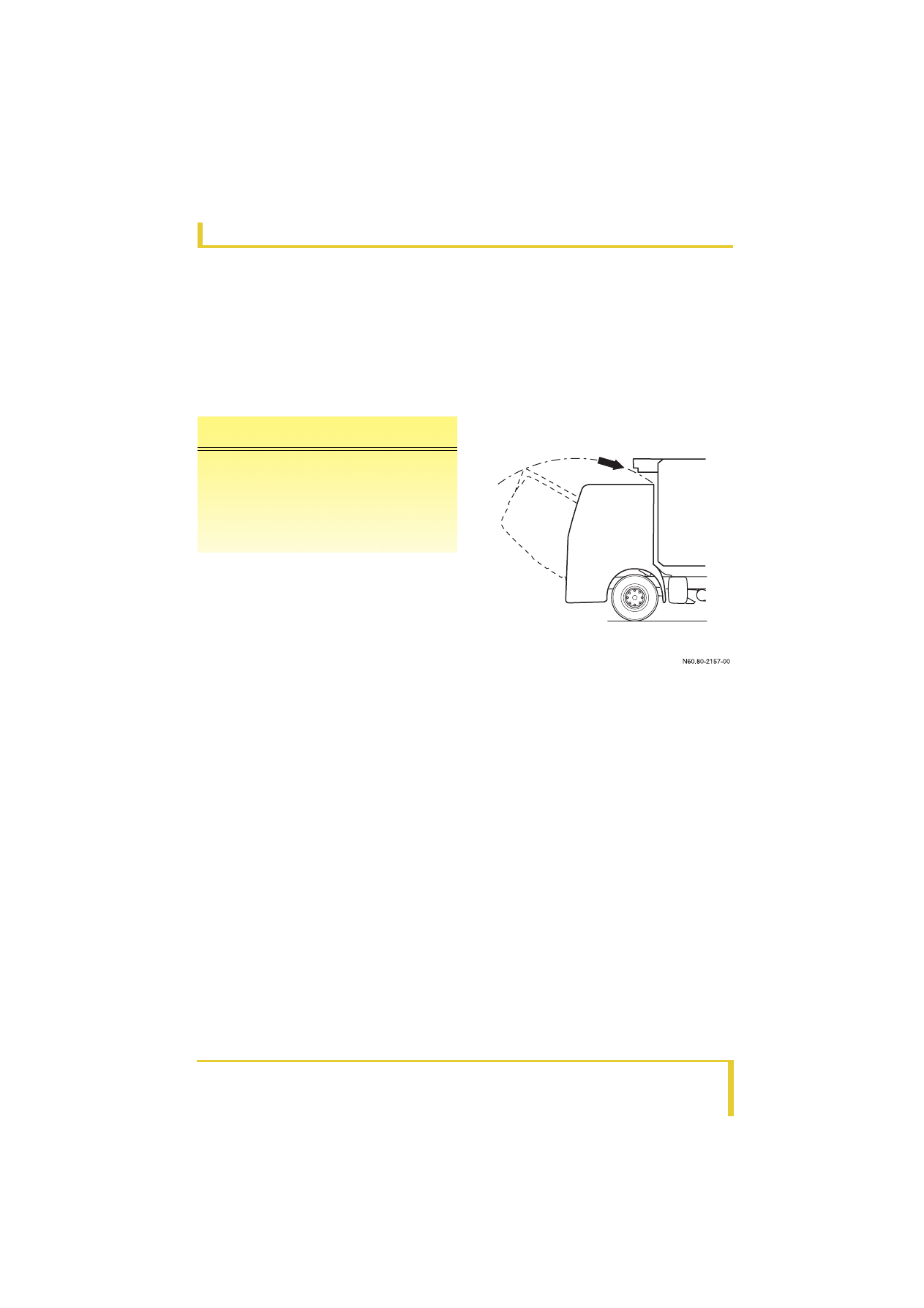

Cab tilting range clearance

47

4 Technical threshold values for planning

4.4 Clearance for assemblies and cab

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

4.4.2

Cab

• The distance between the cab and the body must

be keeped per layout drawings.

i

Reference body builder's drawings and technical
data.

컄 page 173.
