ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-49

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set.
Prior to this diagnosis, diagnose the CAN bus
lines.

NOTE: If the ABS-8 ECU or the active wheel
speed sensor are disconnected, or if the wiring is
an open/ short circuit, the ABS 8 ECU will shut
off power supply to the respective wheel speed
sensor. All other wheel speed sensors will oper-
ate normally. To restore the power supply, the
ignition switch must be turned to the "OFF" posi-
tion then to the "ON" position again.

.

CIRCUIT OPERATION

• The ABS-ECU contains the power supply circuit

(terminal 2) for the pump motor. The pump motor
is energized by a MOSFET driver, which is inte-
grated in the ABS-ECU.

• A MOSFET driver, which is integrated in the

ABS-ECU, is always off unless the motor sole-
noid valve check is activated when the vehicle is
started.

• The ABS-ECU activates the pump motor by turn-

ing on the ECU built-in MOSFET driver when the
ABS is working.

.

ABS DTC SET CONDITIONS

These diagnostic trouble codes will be set under the
cases below.

DTC C1266: Motor system (seizure)

• This DTC is set when the ECU determines the

pump motor is not running smoothly (i.e. motor
seizure) by the motor relay ON/OFF.

DTC C1273: Motor relay problem (stuck off)

• If the ABS-ECU determines that the motor is not

running after the MOSFET driver is turned on, the
ECU determines that the motor relay is stuck off,
and sets this DTC.

DTC C1274: Motor relay problem (stuck on)

• If the ABS-ECU determines that the motor is run-

ning after the MOSFET driver is turned off, the
ECU determines that the motor relay is stuck on,
and sets this DTC.

.

TROUBLESHOOTING HINTS (The most
likely causes for these DTCs are to set
are:)

Current trouble

• Damaged wiring harness or connector

• Malfunction of the hydraulic unit (integrated with

ABS-ECU)

.

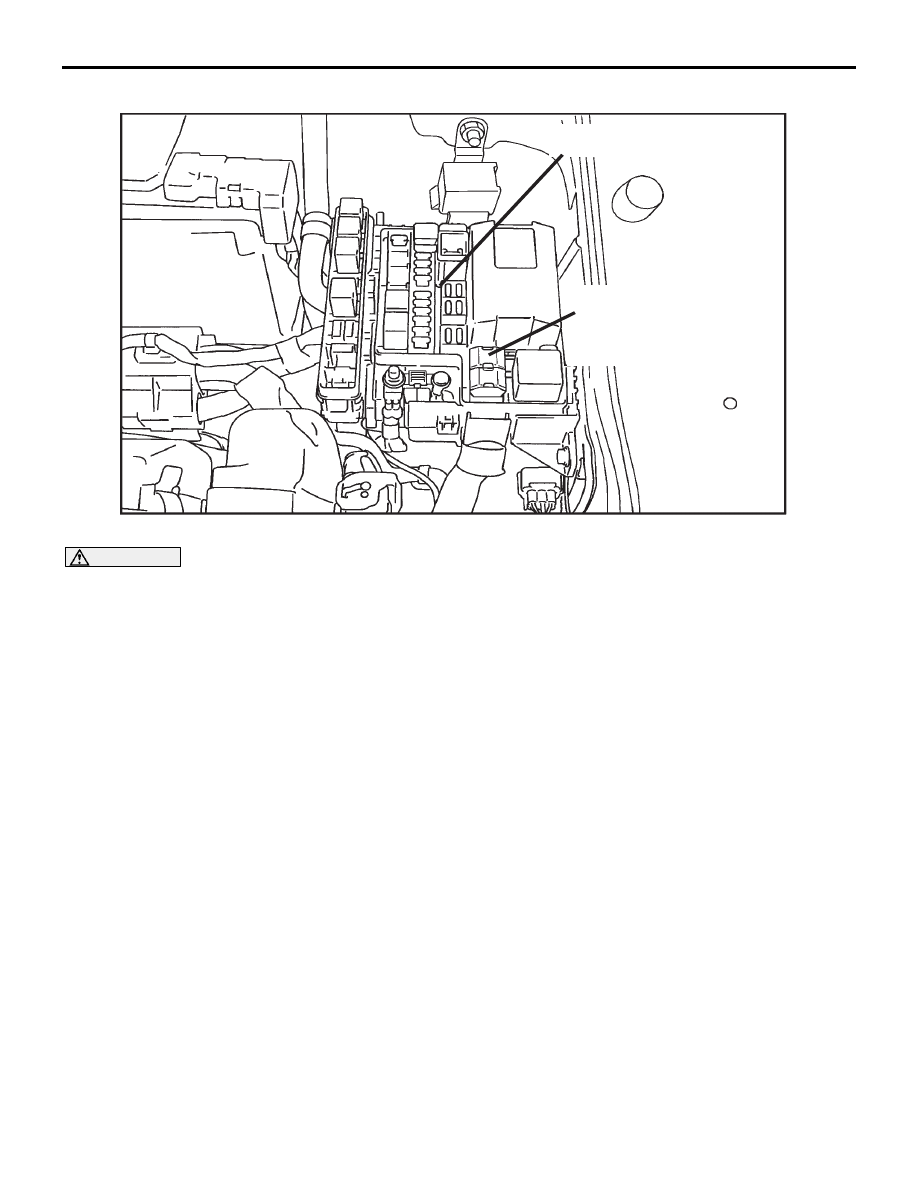

FUSIBLE LINK
ABS (motor supply)
No. 3  (30 A)

RELAY BOX

35DB095A

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-50

Past trouble

• Carry out diagnosis with particular emphasis on

connector(s) or wiring harness between the
power supply circuit (terminal 2) to the ABS-ECU
motor or ground circuit (terminal 4). For diagnosis
procedures, refer to "How to cope with past trou-
ble" (Refer to GROUP 00, How to Use Trouble-
shooting/Inspection Service Points

P.00-16

).

Circuit drawings

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

.

DIAGNOSIS

Required Special Tools:

• MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991219: Inspection Test Harness

STEP 1. Using diagnostic tool MB991958, diagnose the
CAN bus line.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.

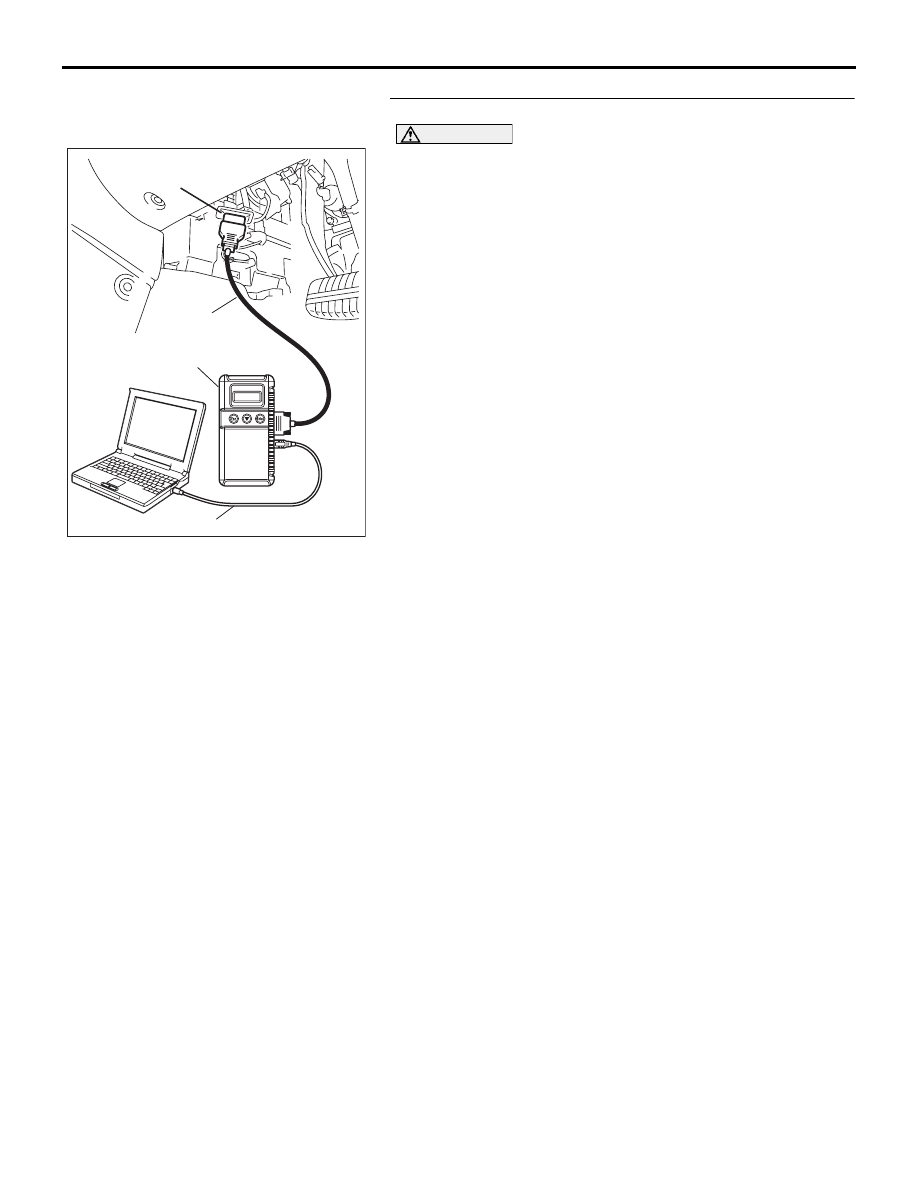

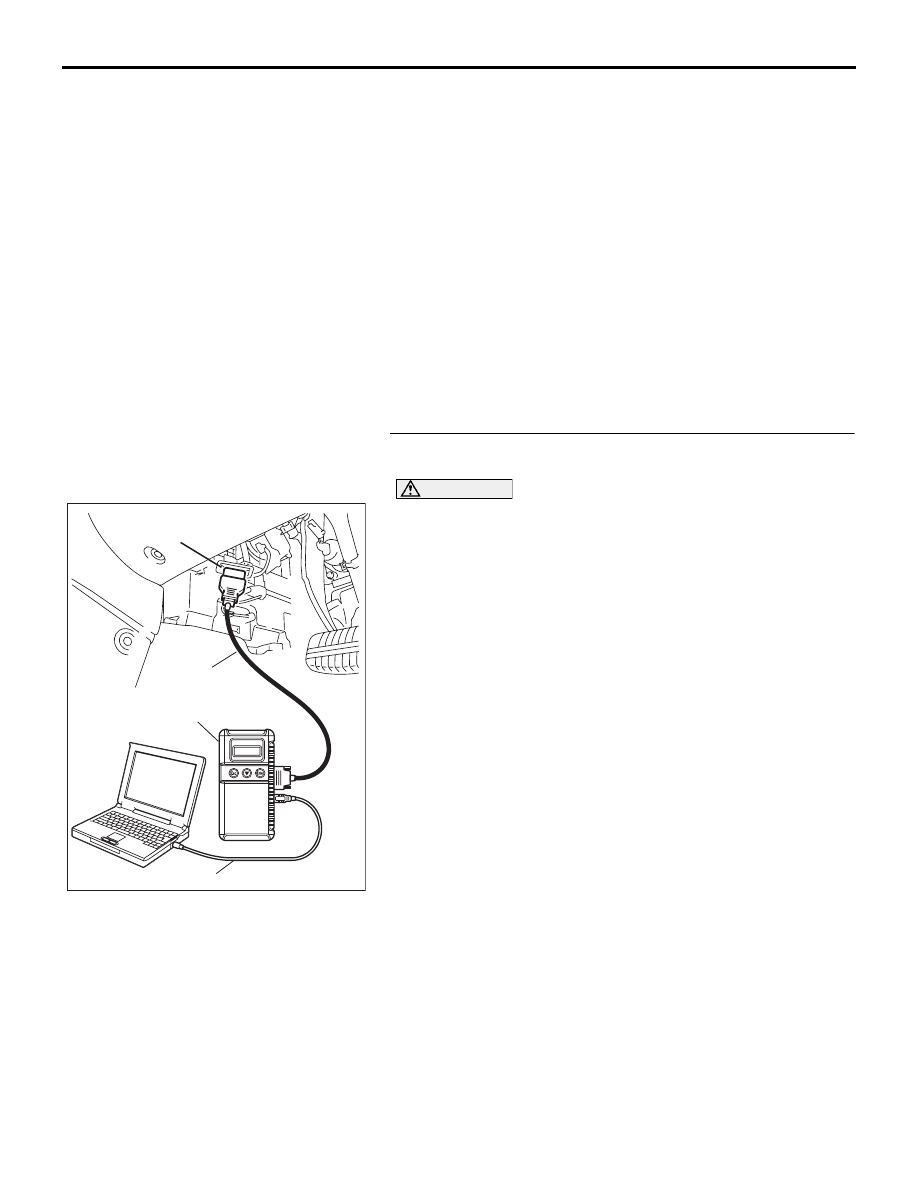

(1) Connect diagnostic tool MB991958 to the data link

connector.

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 3.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-15

). Then go to Step 2.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-51

STEP 2. Recheck for diagnostic trouble code.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the DTC.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
(4) Turn the ignition switch to the "ON" position.
(5) Check if the DTC is set.
(6) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC C1266, C1273 or C1274 set?

YES : Go to Step 3.
NO :  The procedure is complete.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-52

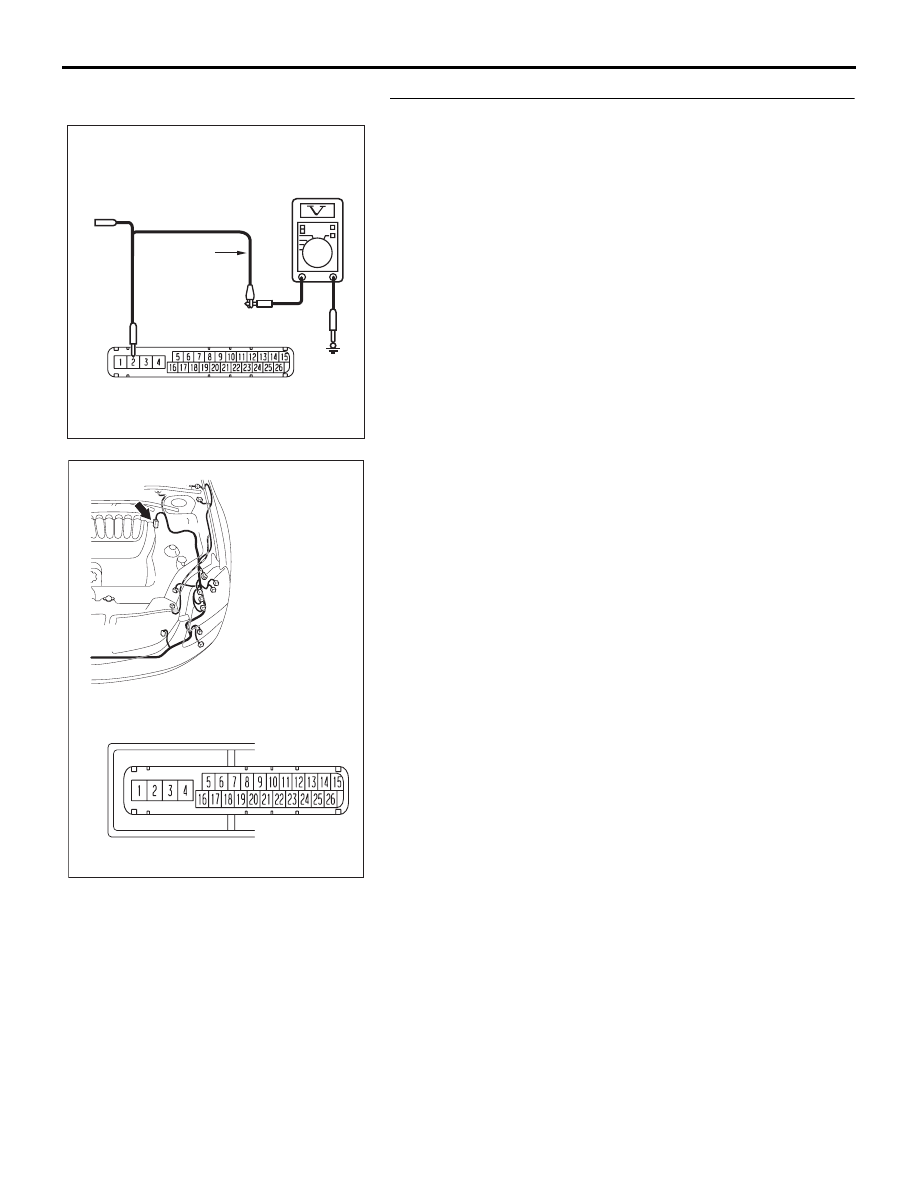

STEP 3. Measure the voltage at ABS-ECU connector A-02.
(1) Disconnect the connector A-02, and use special tool

Inspection Check Harness (MB991219) to probe the wiring
harness-side connector.

NOTE: The special tool (Inspection test harness)
MB991219 for connector pin contact pressure should be
used. The test probe should never be forcibly inserted, as it
may cause a defective contact.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 2 and ground. It

should be approximately 12 volts (battery positive voltage).

Q: Is the voltage approximately 12 volts (battery positive

voltage)?
YES :
Go to Step 5.
NO :  Go to Step 4.

35DB096A

CONNECTOR: A-02

HYDRAULIC UNIT

(WITH BUILT-IN ABS-ECU)

TEST

HARNESS

(MB991219)

16DB402A

A-02 (GR)

CONNECTOR: A-02

A-02 HARNESS CONNECTOR:
