MULTI-CENTER DISPLAY

CHASSIS ELECTRICAL

54A-306

MULTI-CENTER DISPLAY

REMOVAL AND INSTALLATION

M1543013600121

16DB561A

1

4

3

4

2

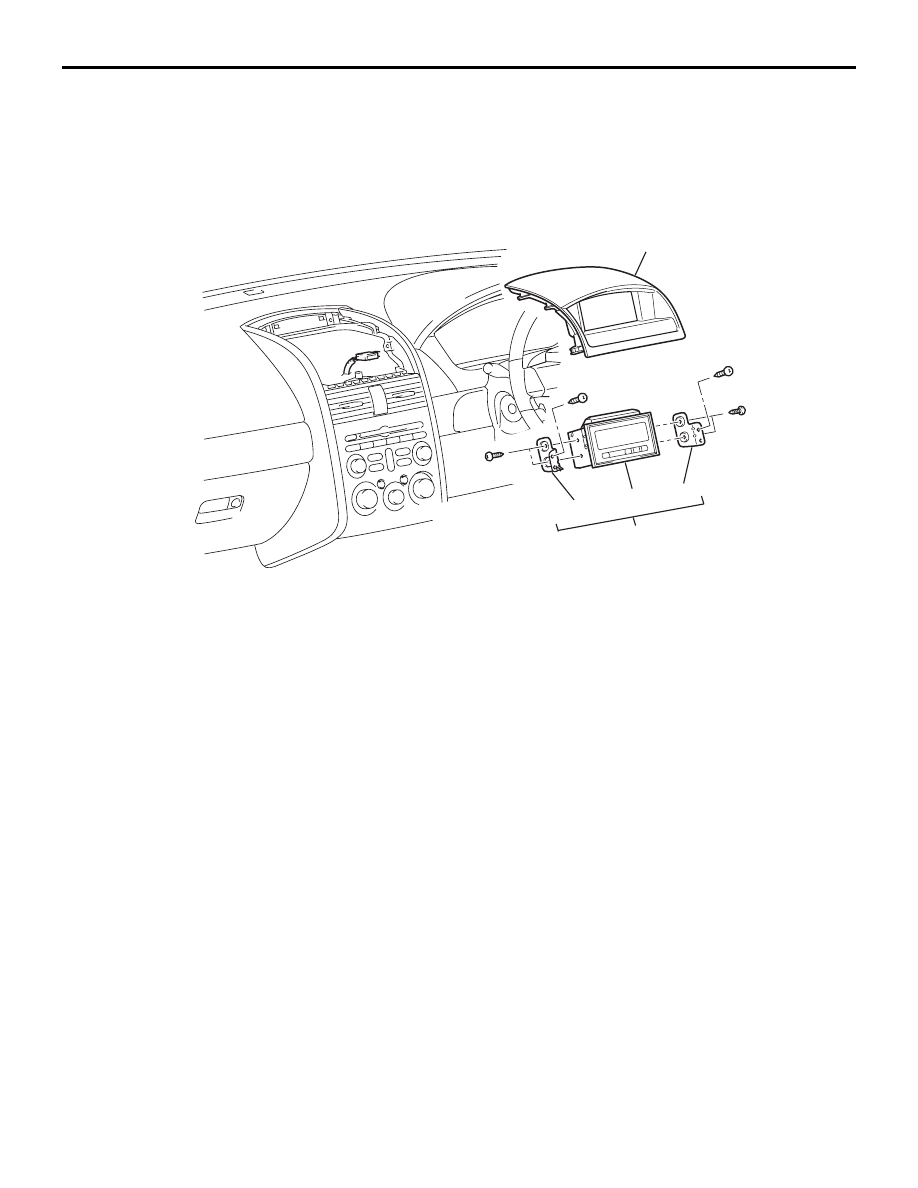

REMOVAL STEPS

1.

CONSOLE METER HOOD (REFER TO
GROUP 52A, INSTRUMENT PANEL
ASSEMBLY

P.52A-4

.)

2.

MULTI-CENTER DISPLAY ASSEMBLY

3.

MULTI-CENTER DISPLAY

4.

MULTI-CENTER DISPLAY BRACKET

REMOVAL STEPS (Continued)

AMBIENT TEMPERATURE SENSOR

CHASSIS ELECTRICAL

54A-307

AMBIENT TEMPERATURE SENSOR

INSPECTION

M1543019502623

.

AMBIENT AIR TEMPERATURE SENSOR CHECK

The ambient air temperature sensor should be checked in situ.
Once the sensor is removed, it is rendered unserviceable.
Measure the resistance between the sensor terminals under at
least two temperatures. The resistance values should meet the
values shown.

NOTE: The temperature should be within the shown range.

PANIC ALARM

REMOVAL AND INSTALLATION

M1547002600011

Panic alarm system component parts

• Head light assembly (refer to

P.54A-153

).

• Horn (refer to

P.54A-172

).

AC306643AB

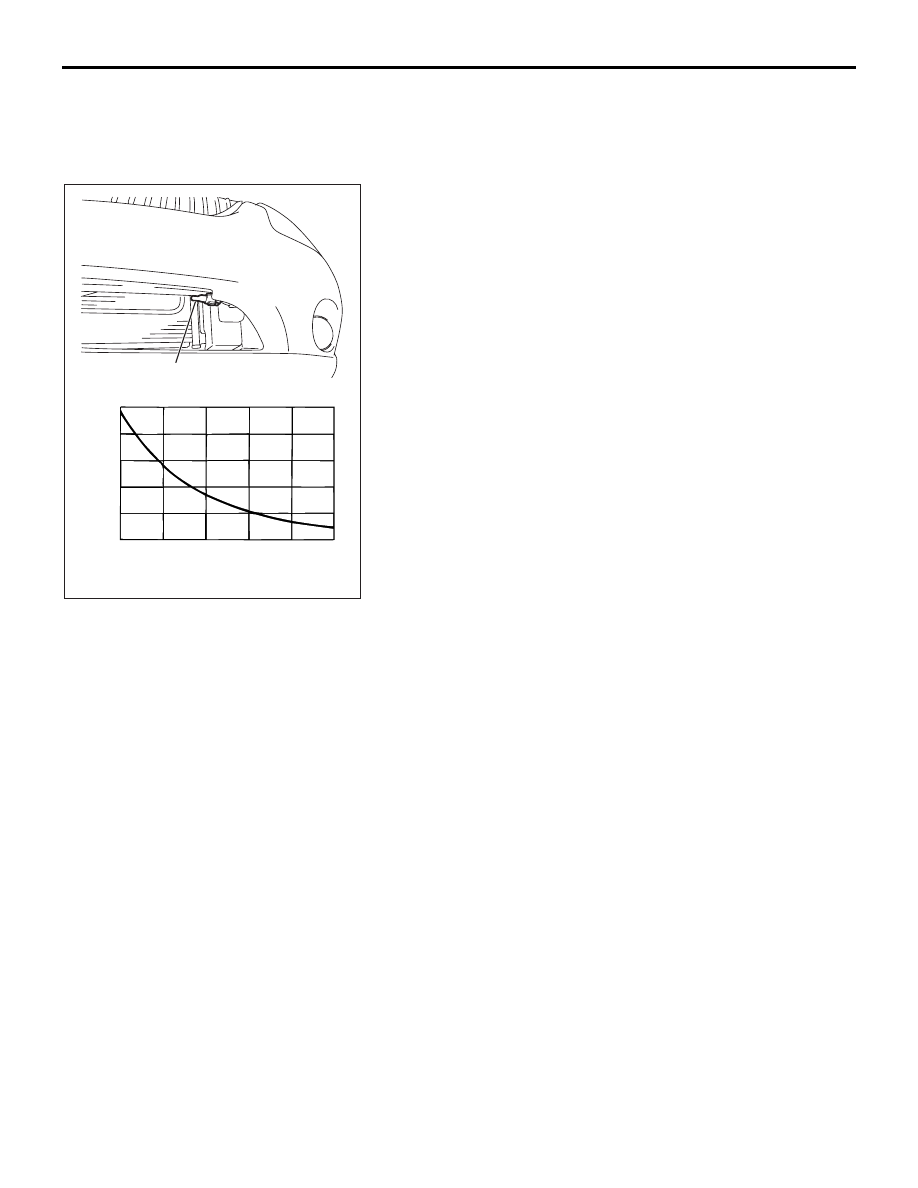

AMBIENT AIR TEMPERATURE SENSOR

REGISTANCE kΩ

10

8

6

4

2

0

-10

0

10

20

30

40

(14) (32)

(50)

(68)

(86) (104)

TEMPERATURE ˚C (˚F)

SPECIFICATIONS

CHASSIS ELECTRICAL

54A-308

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1541001600076

SERVICE SPECIFICATIONS

M1541000300210

<BATTERY>

ITEM

SPECIFICATION

Air bag module torx screw

9.0

± 2.0N⋅m (80 ± 17 in-lb)

Antenna amplifier mounting bolts

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Choke coil mounting bolts

9.0

± 2.0 N⋅m (80 ± 17 in-lb)

Clock spring and column swith assembly mounting screw

2.5

± 0.5 N⋅m (23 ± 4 in-lb)

Fog light assembly mounting screw

2.5

± 0.3 N⋅m (22 ± 3 ft-lb)

Headlamp assembly mounting bolts

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

Headlamp assembly mounting screw

1.5

± 0.2 N⋅m (14 ± 1 in-lb)

High-mounted stoplight mounting bolts or nuts

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

Hole cover mounting screw

1.5

± 0.5 N⋅m (14 ± 0.5 in-lb)

Horn monting bolts

21

± 4 N⋅m (16 ± 2 in-lb)

ETACS-ECU mounting nut

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Key ring antenna mounting screw

2.0

± 1.0 N⋅m (18 ± 9 in-lb)

Rear combination light mounting nut

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

Rear speaker mounting screw

1.5

± 0.5 N⋅m (14 ± 4 in-lb)

Steering wheel mounting nuts

41

± 8 N⋅m (30 ± 6 ft-lb)

ITEM

STANDARD VALUE

Specific gravity of battery electrolyte [at 20

°C (68°F)]

1.220

− 1.290

SPECIFICATIONS

CHASSIS ELECTRICAL

54A-309

<COMBINATION METER>

ITEM

TOLERANCE VALUE

Speedometer indication error (km/h)

0

±1°

20

0 to +4

40

0 to +4

80

+0.5 to +7.5

120

+1.5 to +7.5

160

+2.5 to +9.5

200

+3.5 to +11.5

Tachometer indication error r/min

0

± 1°

1,000

1,000

± 100

2,000

2,000

± 100

3,000

3,000

± 100

4,000

4,000

± 100

5,000

5,000

± 100

6,000

6,000

± 100

7,600

7,600

± 100

Fuel level sensor
resistance

Ω

Fuel level sensor
(main)

Point "F" (highest)

6.5

± 1.0

Point "E" (lowest)

45.1

± 1.0

Fuel level sensor (sub) Point "F" (highest)

6.5

± 1.0

Point "E" (lowest)

74.9

± 1.0

Fuel level sensor float
height mm (in)

Fuel level sensor
(main)

A at point "F"

132.8

± 3.0

B at point "E"

36

± 3.0

Fuel level sensor (sub) A at point "F"

24.9

± 3.0

B at point "E"

172.7

± 3.0
