RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

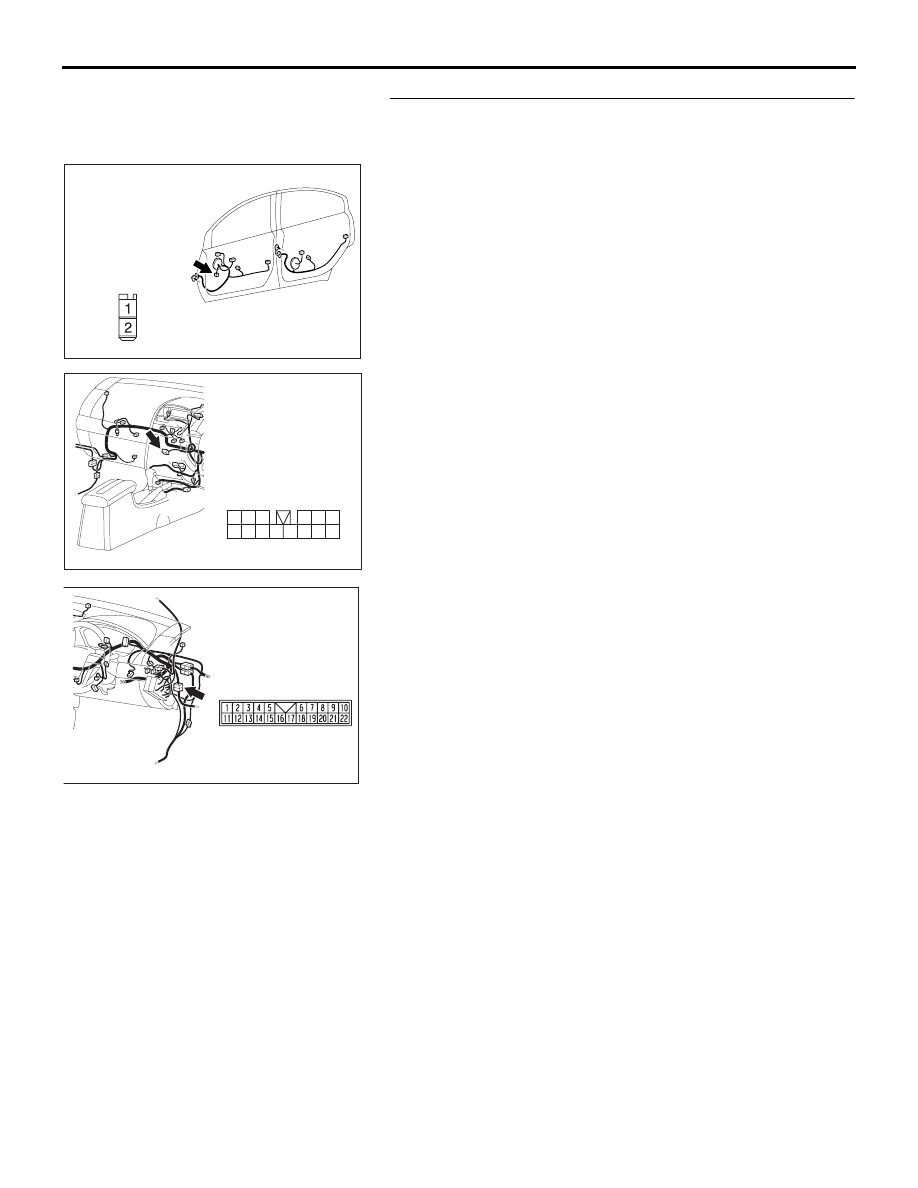

54A-202

STEP 13. Check the wiring harness between front door
speaker (RH) connector E-02 (terminals 1 and 2) and radio
and CD player connector C-111 (terminals 6 and 14).

NOTE: Also check intermediate connector C-12 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-12 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front door speaker (RH)

connector E-02 (terminals 1 and 2) and radio and CD
player connector C-111 (terminals 6 and 14) in good
condition?
YES : The procedure is complete.
NO :  Repair the wiring harness. The front door speaker

(RH) should sound.

AC305333

HARNESS SIDE

AL

CONNECTOR: E-02

54DB041A

HARNESS SIDE

3

9

4

12

14

6

13

5

1110

8

2

7

1

CONNECTOR: C-111

16DB310A

CONNECTOR: C-12

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

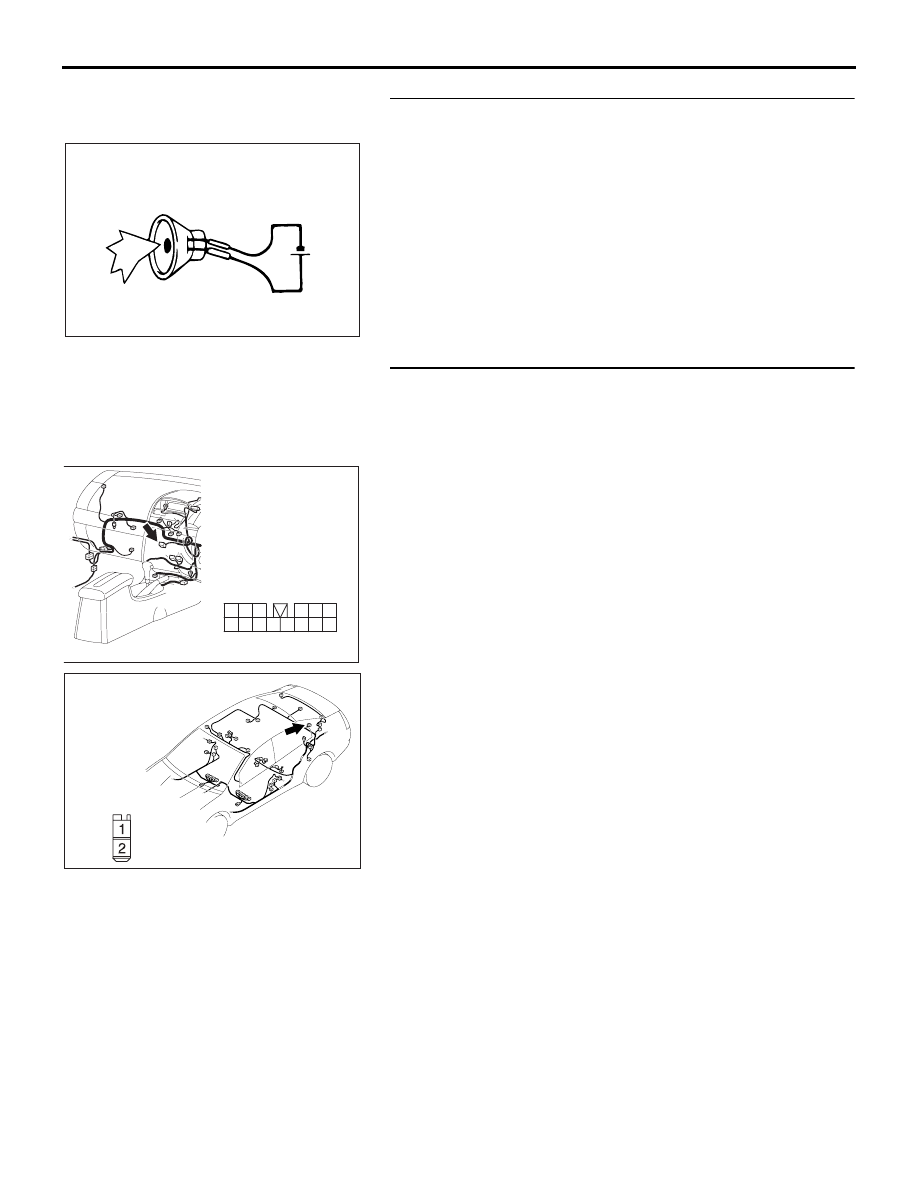

54A-203

STEP 14. Check the rear speaker (LH).
(1) Remove the rear speaker (LH). Refer to

P.54A-232

.

(2) Check that the rear speaker (LH) generates noise when a

five-volt voltage is applied on the rear speaker (LH)
terminal.

Q: Is the rear speaker (LH) generating noise?

YES : Go to Step 15.
NO :  Replace the rear speaker (LH). The rear speaker (LH)

should sound.

STEP 15. Check rear speaker (LH) connector D-12 and
radio and CD player connector C-111 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are harness connectors D-12 and C-111 in good

condition?
YES : Go to Step 16.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

rear speaker (LH) should sound.

ACX01868AB

5V

54DB041A

HARNESS SIDE

3

9

4

12

14

6

13

5

1110

8

2

7

1

CONNECTOR: C-111

AC305268

AU

CONNECTOR: D-12

HARNESS SIDE

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

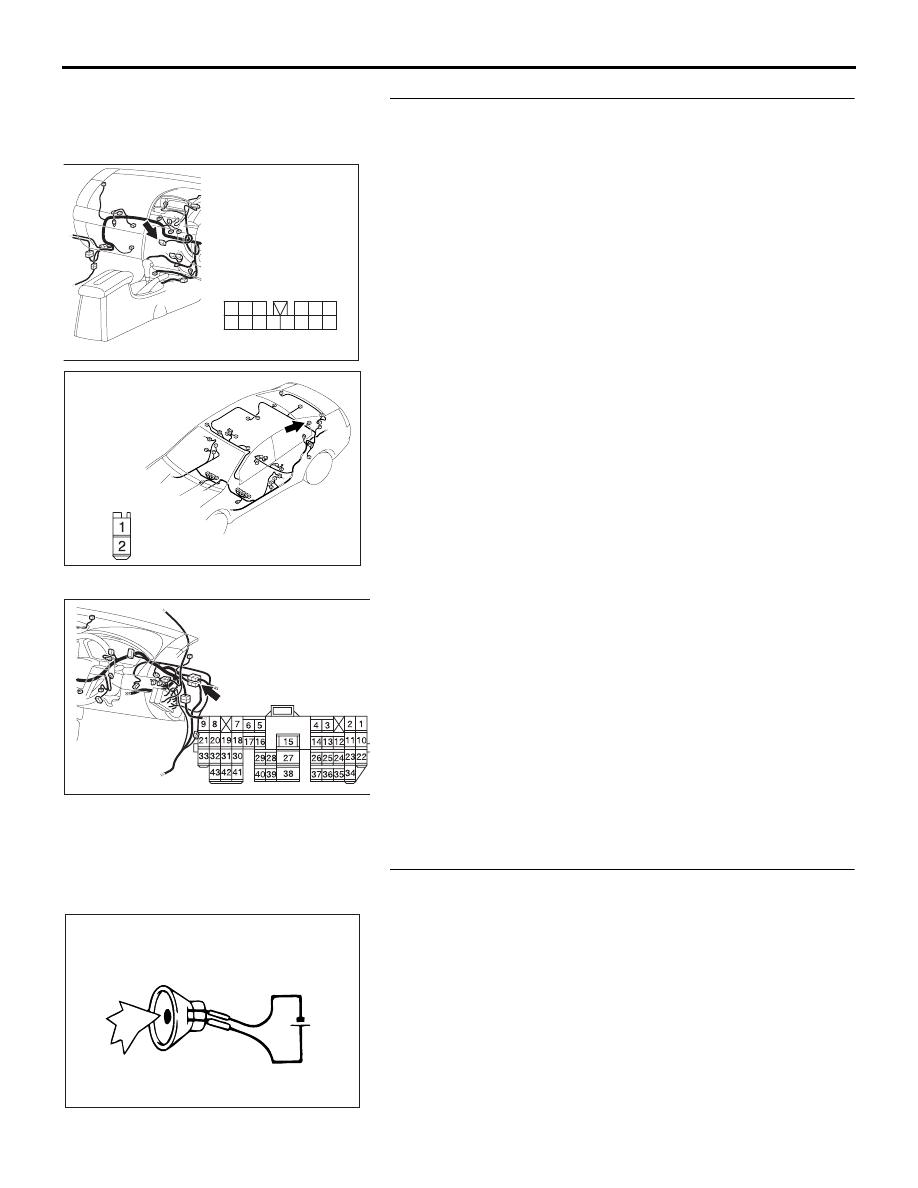

54A-204

STEP 16. Check the wiring harness between rear speaker
(LH) connector D-12 (terminals 1 and 2) and radio and CD
player connector C-111 (terminals 2 and 8).

NOTE: Also check intermediate connector C-28 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-28 is damaged, repair or
replace the connectors as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between the rear speaker (LH)

connector D-12 (terminals 1 and 2) and radio and CD
player connector C-111 (terminals 2 and 8) in good
condition?
YES : Replace the radio and CD player. The rear speaker

(LH) should sound.

NO :  Repair the wiring harness. The rear speaker (LH)

should sound.

STEP 17. Check the rear speaker (RH).
(1) Remove the rear speaker (RH). Refer to

P.54A-232

.

(2) Check that the rear speaker (RH) generates noise when a

five-volt voltage is applied on the rear speaker (RH)
terminal.

Q: Is the rear speaker (RH) generating noise?

YES : Go to Step 18.
NO :  Replace the rear speaker (RH). The rear speaker

(RH) should sound.

54DB041A

HARNESS SIDE

3

9

4

12

14

6

13

5

1110

8

2

7

1

CONNECTOR: C-111

AC305268

AU

CONNECTOR: D-12

HARNESS SIDE

16DB350A

CONNECTOR:C-28

ACX01868AB

5V

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

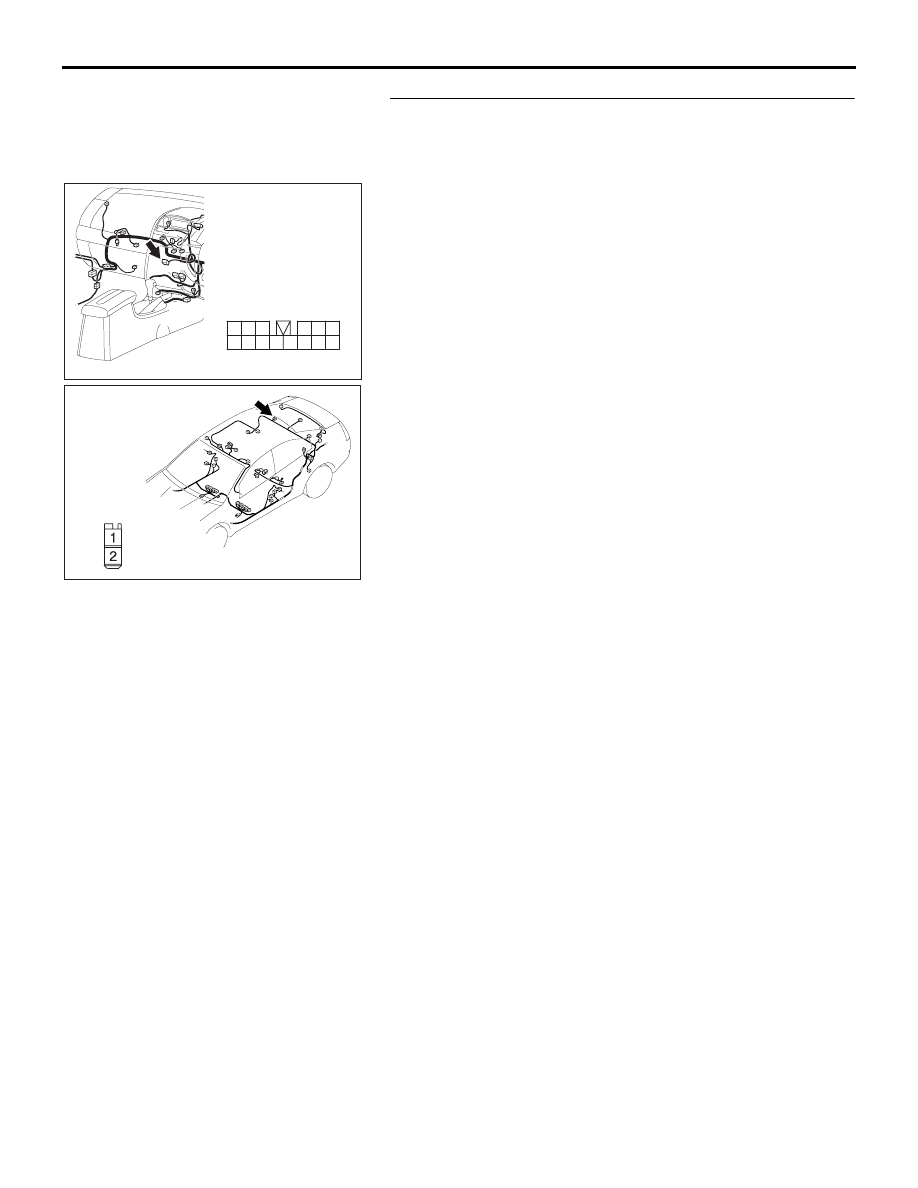

54A-205

STEP 18. Check rear speaker (RH) connector D-09 and
radio and CD player connector C-111 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are harness connectors D-09 and C-111 in good

condition?
YES : Go to Step 19.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

rear speaker (RH) should sound.

54DB041A

HARNESS SIDE

3

9

4

12

14

6

13

5

1110

8

2

7

1

CONNECTOR: C-111

AC305268

AS

CONNECTOR: D-09

HARNESS SIDE
