Mitsubishi 380. Manual - part 901





COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-138

STEP 11. Check the wiring harness and terminals between
combination meter connector C-101 (terminal 17) and the
mode switch connector C-32 (terminal 2)

Q: Is the wiring harness between combination meter

connector C-101 (terminal 17) and the mode switch
connector C-32 (terminal 2) in good condition?
YES :
Go to Step 12.
NO :  Repair the wiring harness. Check that the mode

switch functions normally.

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-139

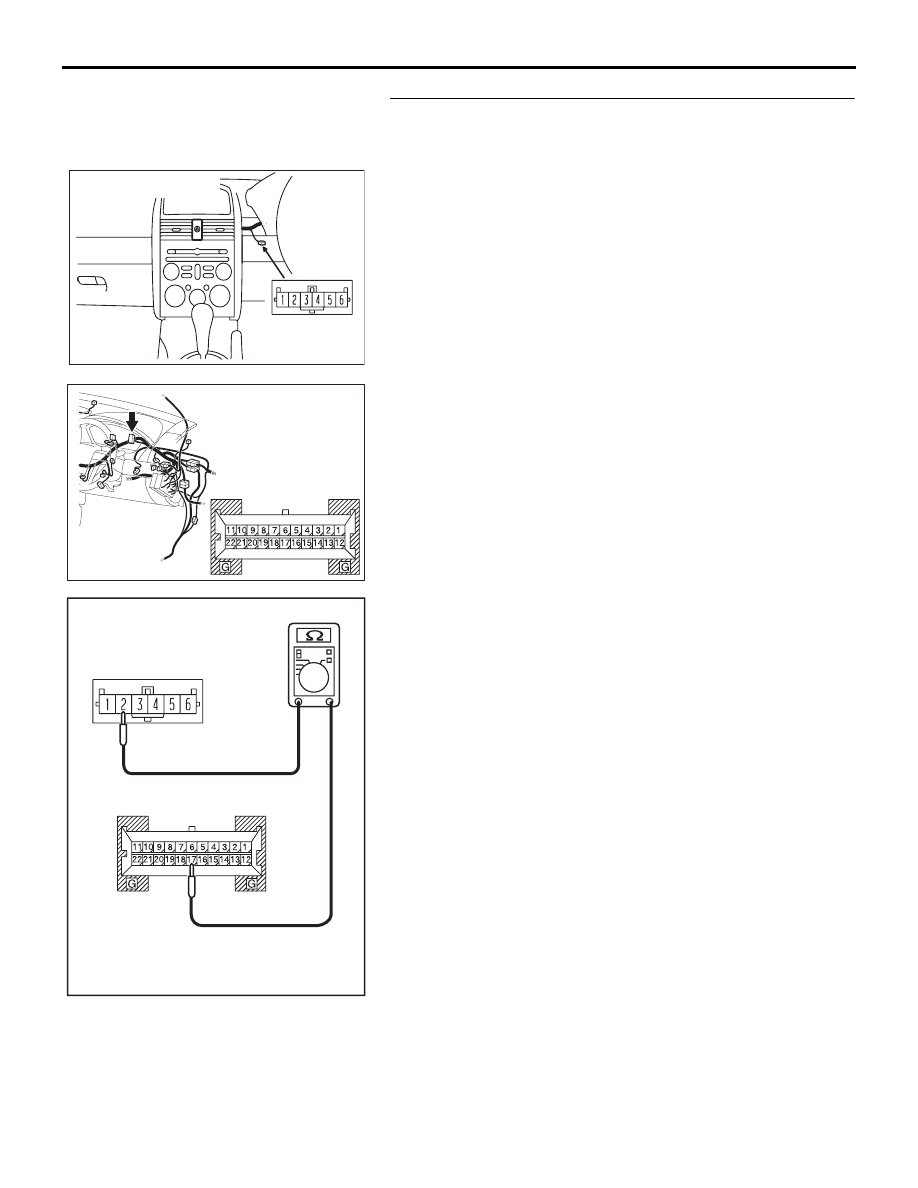

STEP 12. Measure the resistance between the combination
meter connector C-101 (terminal 17) and the mode switch
connector C-32 (terminal 2).
(1) Disconnect the combination meter connector C-101 and the

mode switch connector C-32.

(2) Measure resistance between combination meter C-101

(terminal 17) and mode switch connector C-32 (terminal 2).

• The measured value should be 2 ohm or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 13.
NO :  Repair the wiring circuit and check the mode switch

operation.

16DB587A

CONNECTOR:  C-32

54DB019A

CONNECTOR: C-101

HARNESS SIDE

16DB591A

CONNECTOR:   C-101,  C-32

C-101

C-32

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-140

STEP 13. Check the wiring harness and terminals between
combination meter connector C-101 (terminal 18) and the
mode switch connector C-32 (terminal 5)

Q: Is the wiring harness between combination meter

connector C-101 (terminal 18) and the mode switch
connector C-32 (terminal 5) in good condition?
YES :
Go to Step 14.
NO :  Repair the wiring harness. Check that the mode

switch functions normally.

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-141

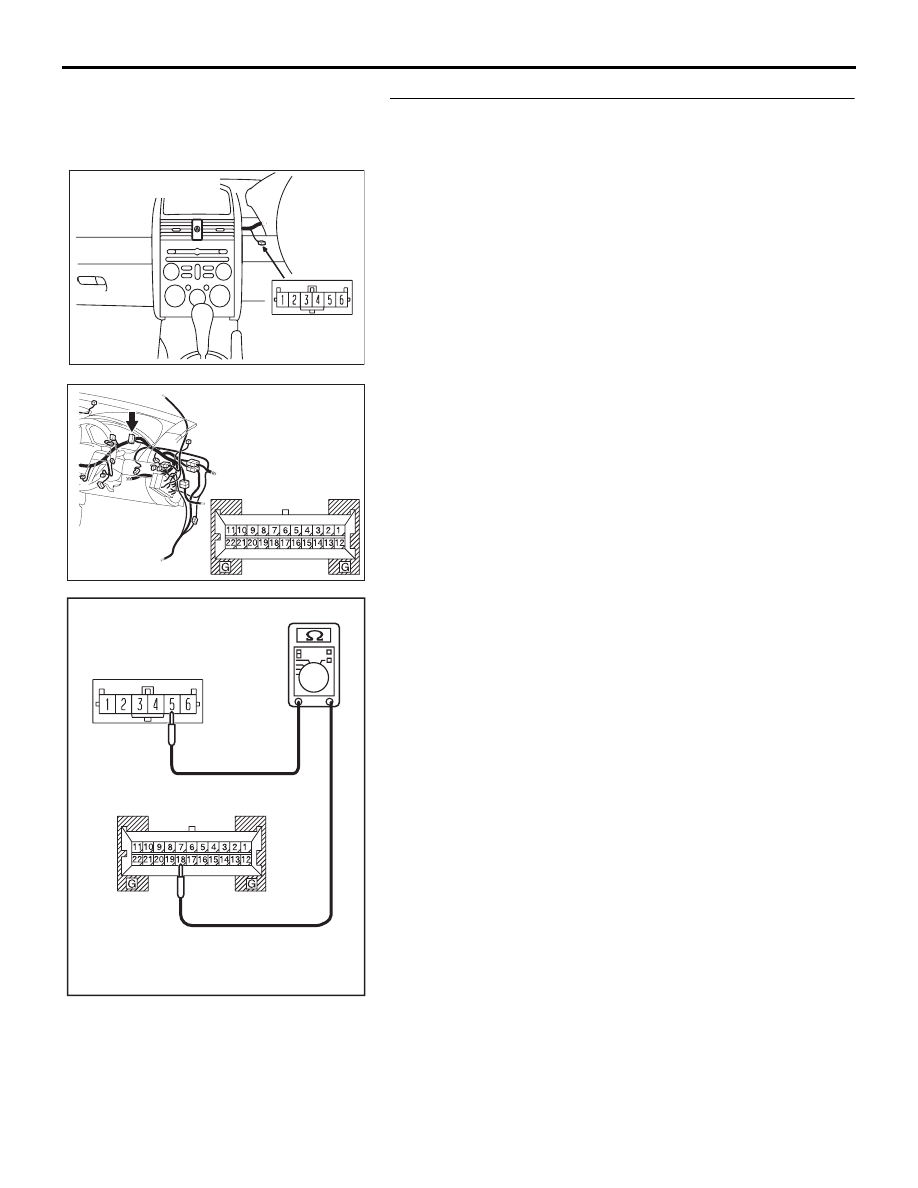

STEP 14. Measure the resistance between the combination
meter connector C-101 (terminal 18) and the mode switch
connector C-32 (terminal 5).
(1) Disconnect the combination meter connector C-101 and the

mode switch connector C-32.

(2) Measure resistance between combination meter C-101

(terminal 18) and mode switch connector C-32 (terminal 5).

• The measured value should be 2 ohm or less.

Q: Is the measured resistance 2 ohms or less?

YES : Replace combination meter and retest mode switch

function.

NO :  Repair the wiring circuit and check the mode switch

operation.

16DB587A

CONNECTOR:  C-32

54DB019A

CONNECTOR: C-101

HARNESS SIDE

16DB592A

CONNECTOR:   C-101,  C-32

C-101

C-32
