Mitsubishi 380. Manual - part 876





IGNITION SWITCH

CHASSIS ELECTRICAL

54A-38

POINTS TO NOTE DURING OPERATION

If none of the functions can be used, check the diagnostic trou-
ble codes, and after carrying out any necessary repairs, repeat
the operation. If an incorrect password is input five times in a
row, the ETACS-ECU judges that an unauthorized operation is
being attempted. Start-prevention mode will be set, and engine
operation will stop and all special functions will be disabled. If
the ignition switch is turned to "ON" position and left in that
position for approximately 16 minutes, "Unauthorized opera-
tion, start- prevention mode" will be cancelled.

KEY ID REGISTRATION

All ignition keys can be registered with diagnostic tool
MB991958. Additional ignition keys can be registered with
diagnostic tool MB991958.

.

REGISTRATION WITH THE DIAGNOSTIC TOOL

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to "LOCK" (OFF) position before
connecting or disconnecting diagnostic tool MB991958.

NOTE:

.

• Before registration, check that no DTC code is set. If a DTC

code is set, resolve the problem beforehand.

• Using the key ID register function will cause all key IDs that

have been previously registered in the ETACS-ECU to be
erased. All keys need to be registered. Those which have
been registered before should be on hand before using this
function.

• If registering more than one key, do not disconnect

diagnostic tool MB991958 halfway through the registration
process.

• After registering key IDs, check that the engine can be

started using all of the keys that have been registered. If the
engine will not start, refer to Immobilizer System Diagnosis

P.54A-10

.

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-39

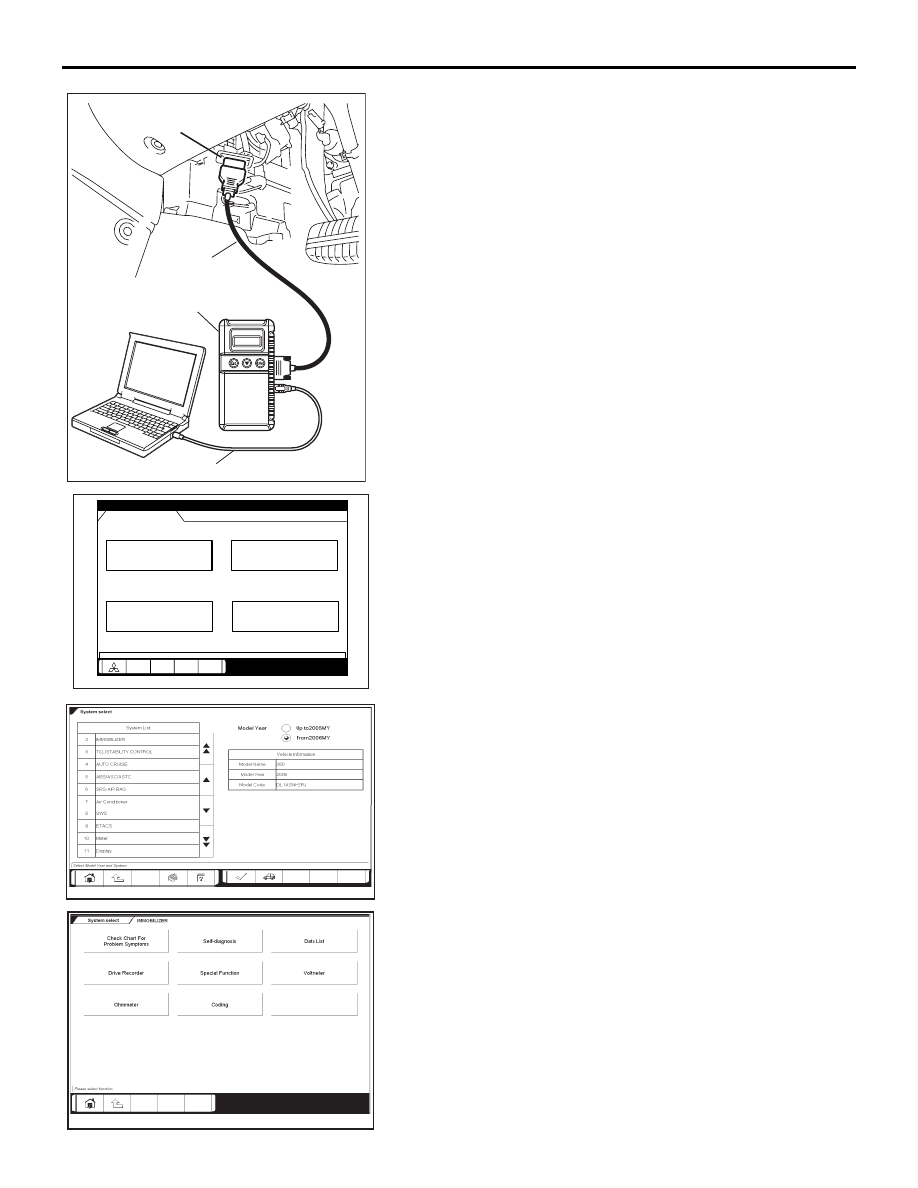

1. Connect the diagnostic tool MB991958 to the data link

connector.

2. Turn the ignition switch to "ON" position.

3. Select "Interactive Diagnosis" from the start-up screen.

4. Select "System select."

5. Choose "IMMOBILIZER" .

6. Choose "Special Function" from "IMMOBILIZER" screen.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

System select

Special function

CAN bus diagnosis

Function Select Menu

Menu

AC209666

Maintenance

AC

16DB603A

16DB604A

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-40

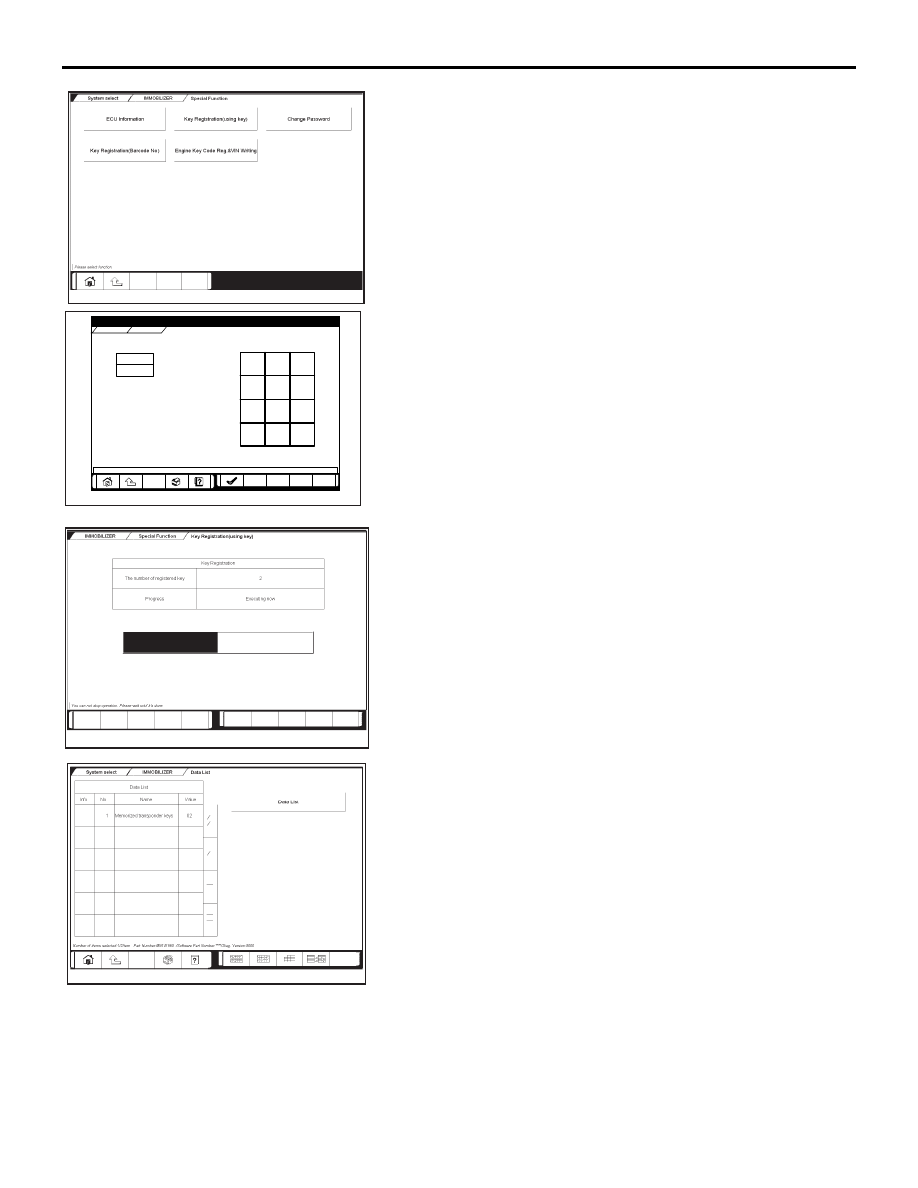

7. Choose "Key registration (using key)" from "Special

Function" screen.

8. Enter the vehicle’s password (secret code) on the "Key

registration" screen, and then click the check mark icon.
Follow the prompts on the screen to insert key(s) into the
ignition switch to begin key registration.

9. If the key ID was registered successfully, "Progress"

indication will turn active (grey). Then the registration
process completes. If the key ID failed to be registered,
"In-Complete" indication will turn active (grey).

10.The number of keys currently registered will be displayed.

To register an additional key, replace the ignition key with
the next key to be registered within five seconds. Key ID
registration screen will be displayed, then register another
key.

NOTE: A maximum of eight different keys can be registered.

11.The total number of keys registered and memorized can be

viewed in the ’IMMOBILIZER" data list.

12.This completes the registration operation. Turn the ignition

switch "LOCK" (OFF) and leave it off for approximately ten
seconds.

13.Check that the engine can be started with each of the

ignition keys.

14.Check that the IMMOBILIZER system DTC and MPI system

DTC did not set.

15.If not DTC is shown, terminate the diagnostic tool

MB991958.

16.Turn the ignition switch to "LOCK" (OFF) position.

17.Disconnect diagnostic tool MB991958.

16DB605A

POWERTRAIN

IMMOBILIZER

Special Function

7

8

9

4

5

6

1

2

3

0

Back

Space

Clear

Key registration

AC207300

AC

16DB606A

16DB607A

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-41

IGNITION SWITCH

REMOVAL AND INSTALLATION

M1543002100456

WARNING

Before removing the steering wheel, air bag module assembly and clock spring refer to
GROUP 52B, Service Precautions (

P.52B-16

) and Air Bag Module and Clock Spring

(

P.52B-237

).

When removing and installing the steering wheel, do not let it bump against the air bag
module.
