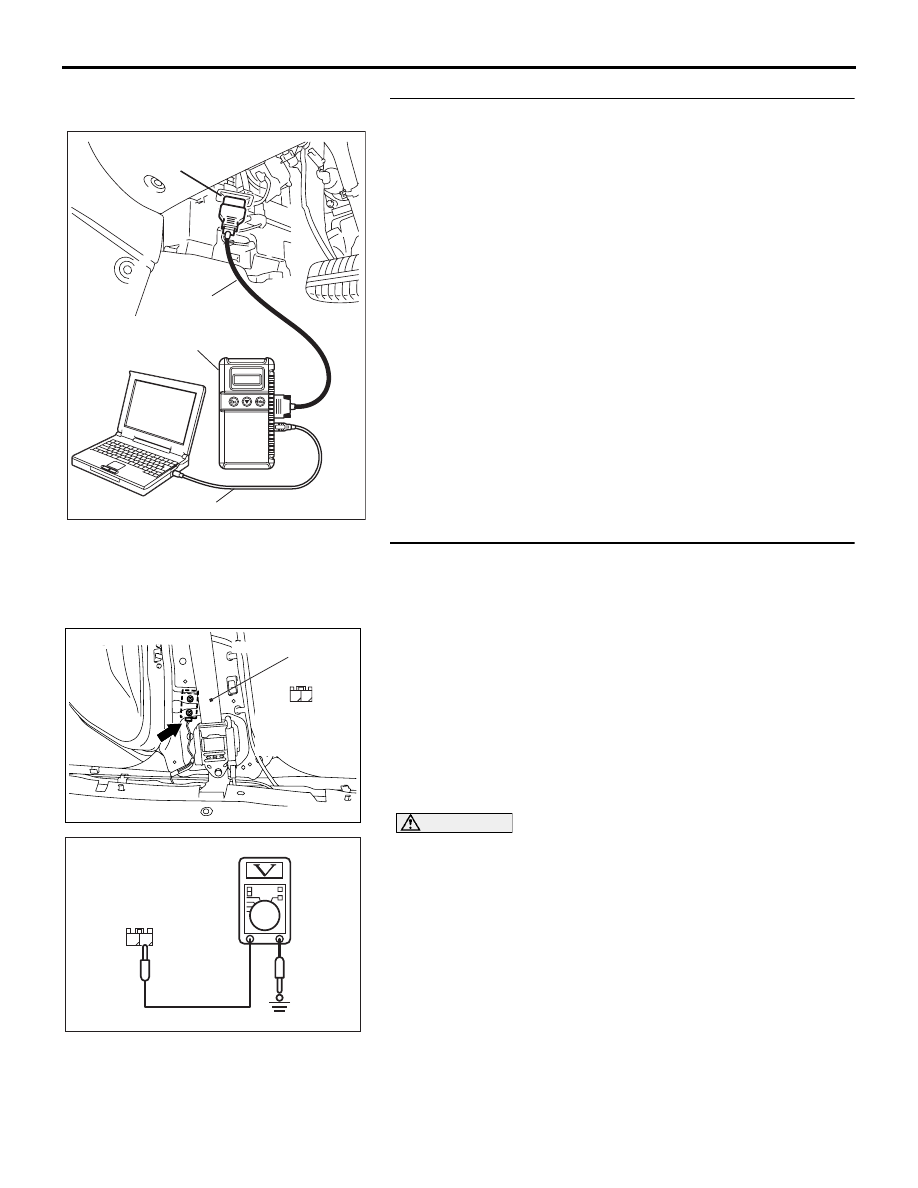

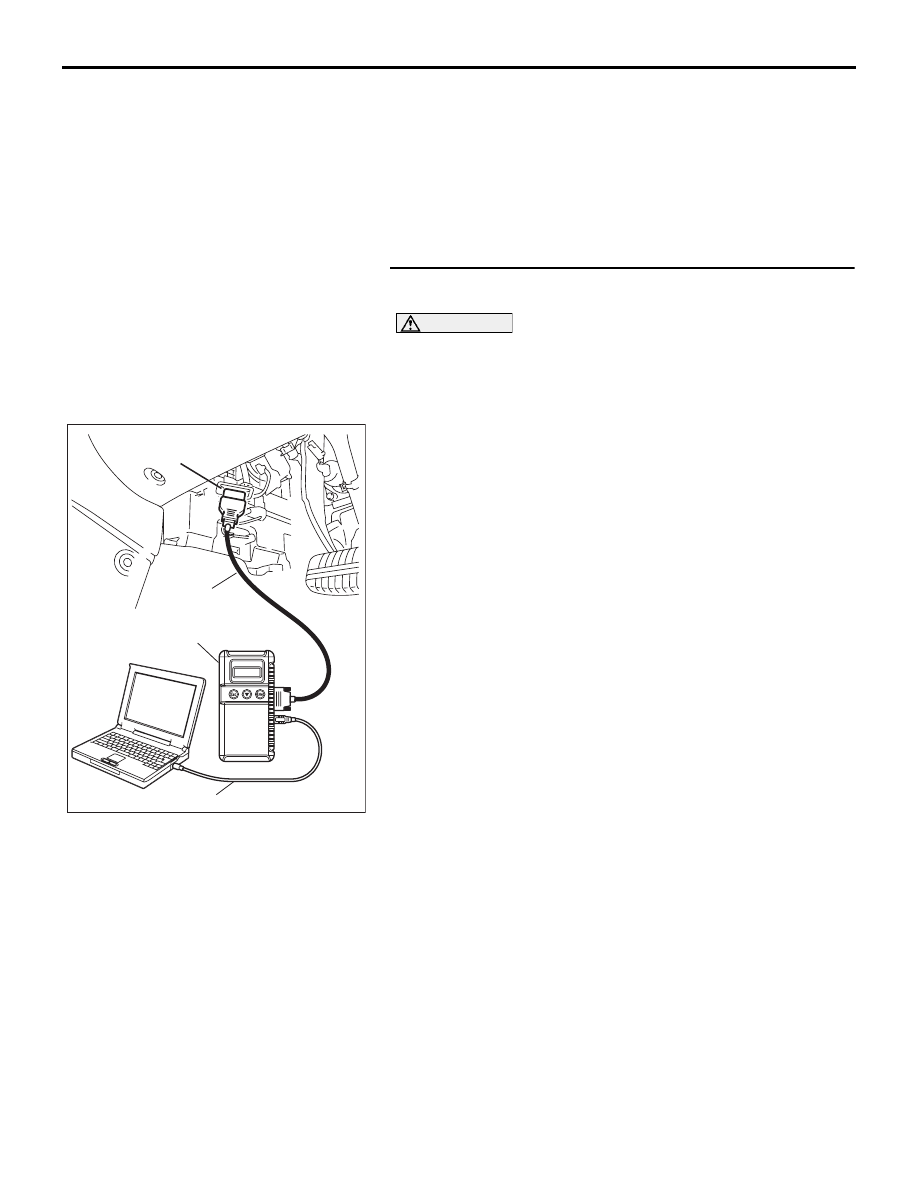

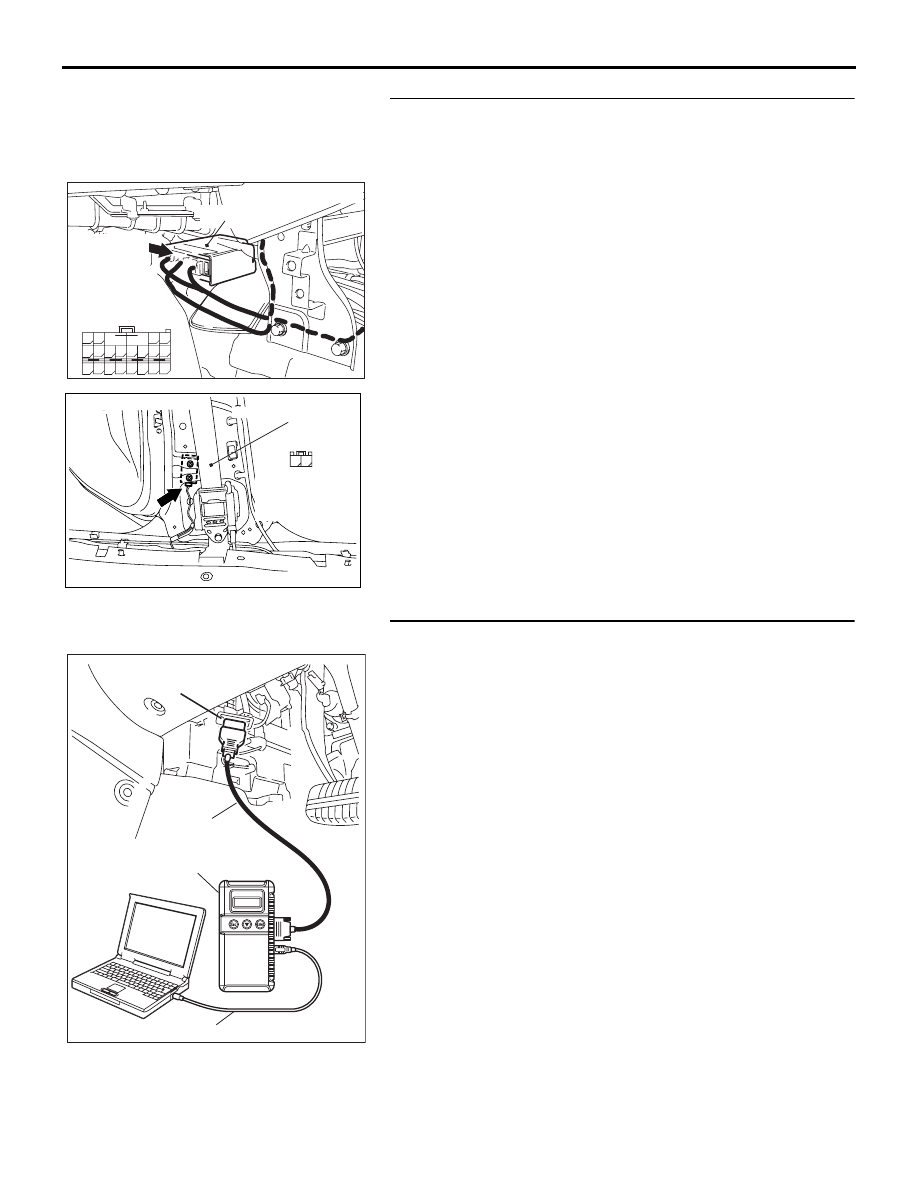

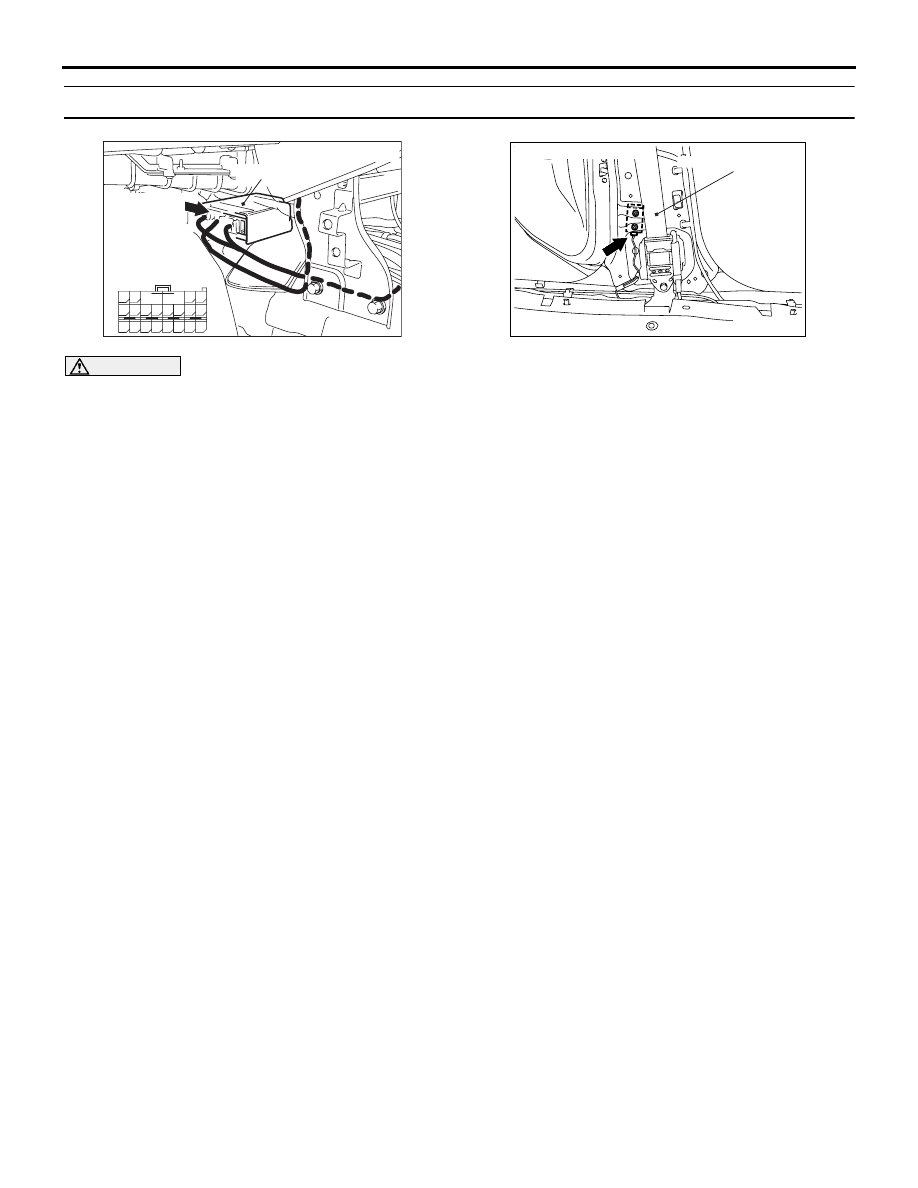

SRS AIR BAG DIAGNOSIS SUPPLEMENTAL RESTRAINT SYSTEM (SRS) 52B-144 DTC B1437: Side Impact Sensor (LH) Power Supply Circuit System CAUTION If DTC B1437 is set in the SRS-ECU, always diag- . CIRCUIT OPERATION The side impact sensor includes an analog G sensor . DTC SET CONDITIONS This DTC is set if the power supply voltage of the . TROUBLESHOOTING HINTS • Damaged wiring harnesses or connectors • Malfunction of the side impact sensor (LH) • Malfunction of the SRS-ECU • Refer to circuit diagrams GROUP- • Refer to configuration diagrams GROUP- . 24DB064A CONNECTOR: D-27 SRS-ECU D-27 (Y) A B 18 10 15 7 13 5 14 6 16 8 17 9 19 11 20 12 1 2 3 4 D-27 Floor harness connector (rear view) AC305250 CONNECTOR: D-20 AI FRONT SEAT BELT |
