FUEL TANK

FUEL SUPPLY

13B-8

FUEL TANK

REMOVAL AND INSTALLATION

M1135001900508

Pre-removal Operation
• Draining Fuel
• Fuel Pump Connector Disconnection (How to Reduce

Fuel Pressure) (Refer to GROUP 13A - On-vehicle Ser-
vice

P.13A-663

).

• Center Exhaust Pipe Removal (Refer to GROUP 15

P.15-14

).

Pre-installation Operation
• Center Exhaust Pipe Installation (Refer to GROUP 15

P.15-14

).

• Refilling Fuel
• Checking for Fuel Leaks

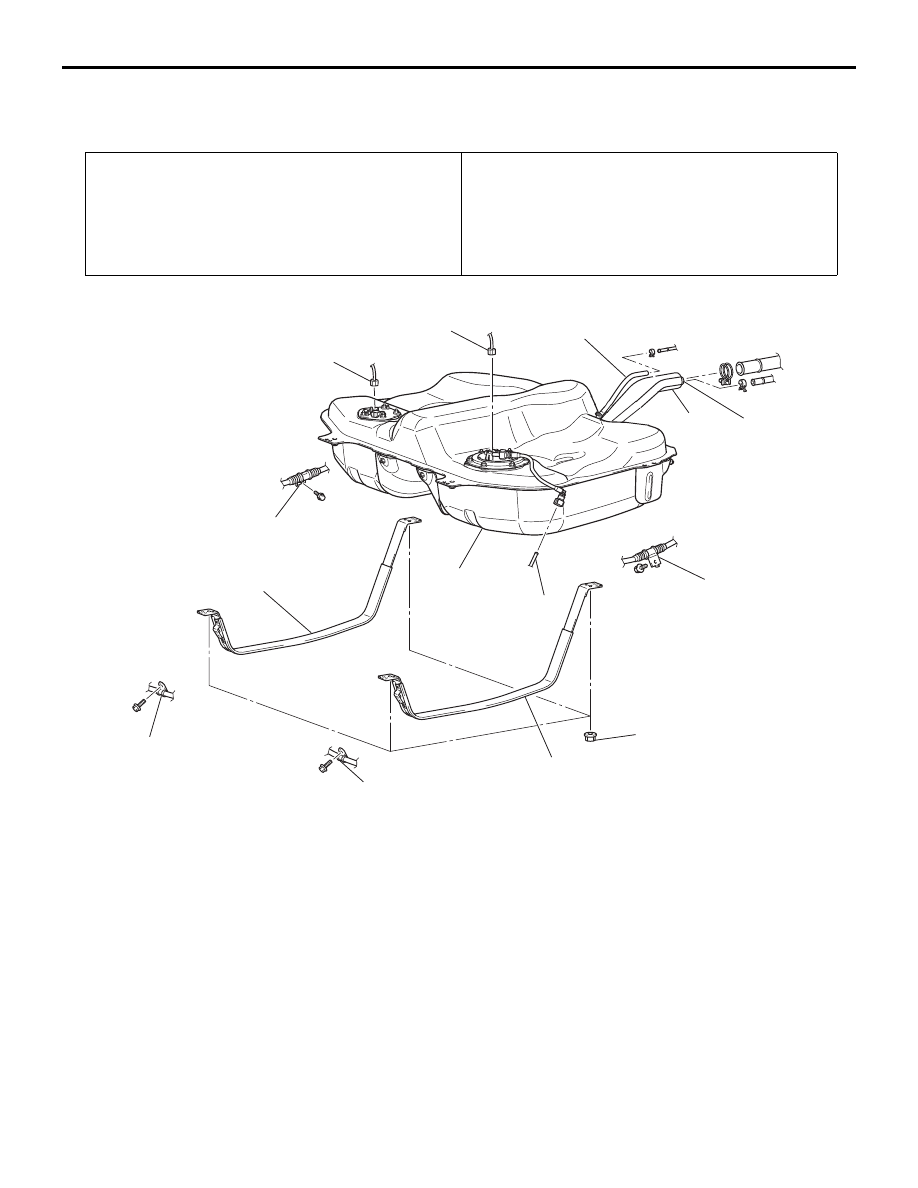

03DB147A

1

3

4

4

5

5

6

7

9

10

11

11

12

26 ± 5 N·m

19 ± 4 ft-lb

FUEL TANK REMOVAL STEPS

<<A>>

1.

FUEL PUMP MODULE
CONNECTOR CONNECTION

<<B>>

3.

FUEL LEVEL SENSOR (SUB)
CONNECTOR CONNECTION

4.

PARKING BRAKE CABLE CLAMP
CONNECTION

5.

PARKING BRAKE CABLE CLAMP
CONNECTION

<<C>>

>>C<<

6.

FUEL HIGH-PRESSURE HOSE
CONNECTION

7.

FUEL TANK VAPOR HOSE
CONNECTION

9.

FUEL FILLER HOSE
CONNECTION

10. FUEL LEVELING HOSE

CONNECTION

<<D>>

>>D<<

11. FUEL TANK ASSEMBLY

<<D>>

>>D<<

12. FUEL TANK BAND

FUEL TANK REMOVAL STEPS

FUEL TANK

FUEL SUPPLY

13B-9

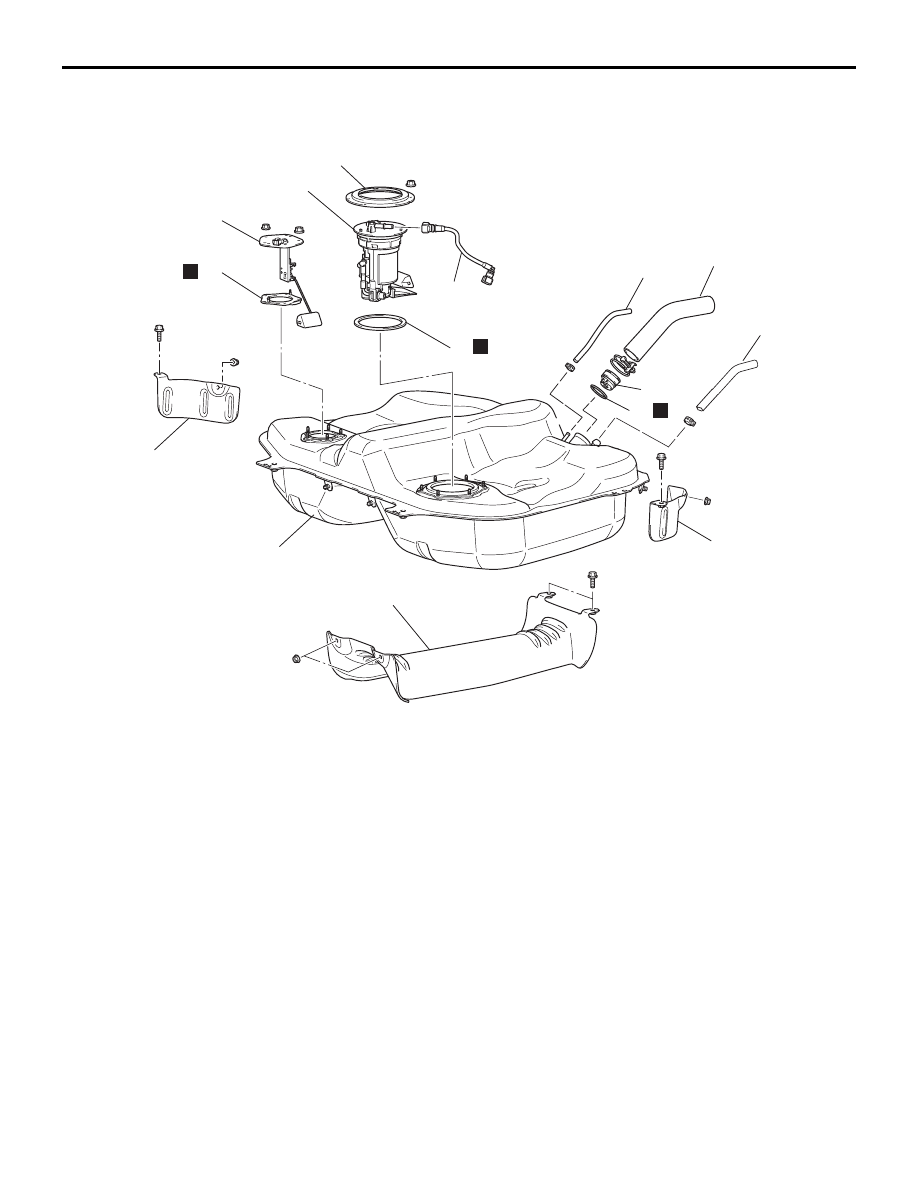

03DB146A

20

14

15

16

13

18

19

27

28

29

30

31

32

N

N

N

33

25

FUEL TANK REMOVAL STEPS

>>C<<

13. FUEL HIGH-PRESSURE HOSE
14. PLATE

<<E>>

>>B<<

15. FUEL PUMP MODULE
16. PACKING

<<F>>

>>A<<

18. FUEL LEVEL SENSOR (SUB)
19. PACKING
20. FUEL TANK LEVELING HOSE
25. FUEL TANK VAPOR HOSE

27. FUEL FILLER HOSE
28. FUEL SHUT-OFF VALVE
29. O-RING
30. FUEL TANK PROTECTOR (A)
31. FUEL TANK PROTECTOR (B)
32. FUEL TANK CENTER

PROTECTOR

33. FUEL TANK

FUEL TANK REMOVAL STEPS

FUEL TANK

FUEL SUPPLY

13B-10

REMOVAL SERVICE POINTS

.

<<A>> FUEL PUMP MODULE CONNECTOR CON-
NECTION REMOVAL

1. Remove the rear seat cushion assembly. (Refer to GROUP

52A, Rear Seat Assembly

P.52A-55

.)

2. Remove the hole cover (LH).

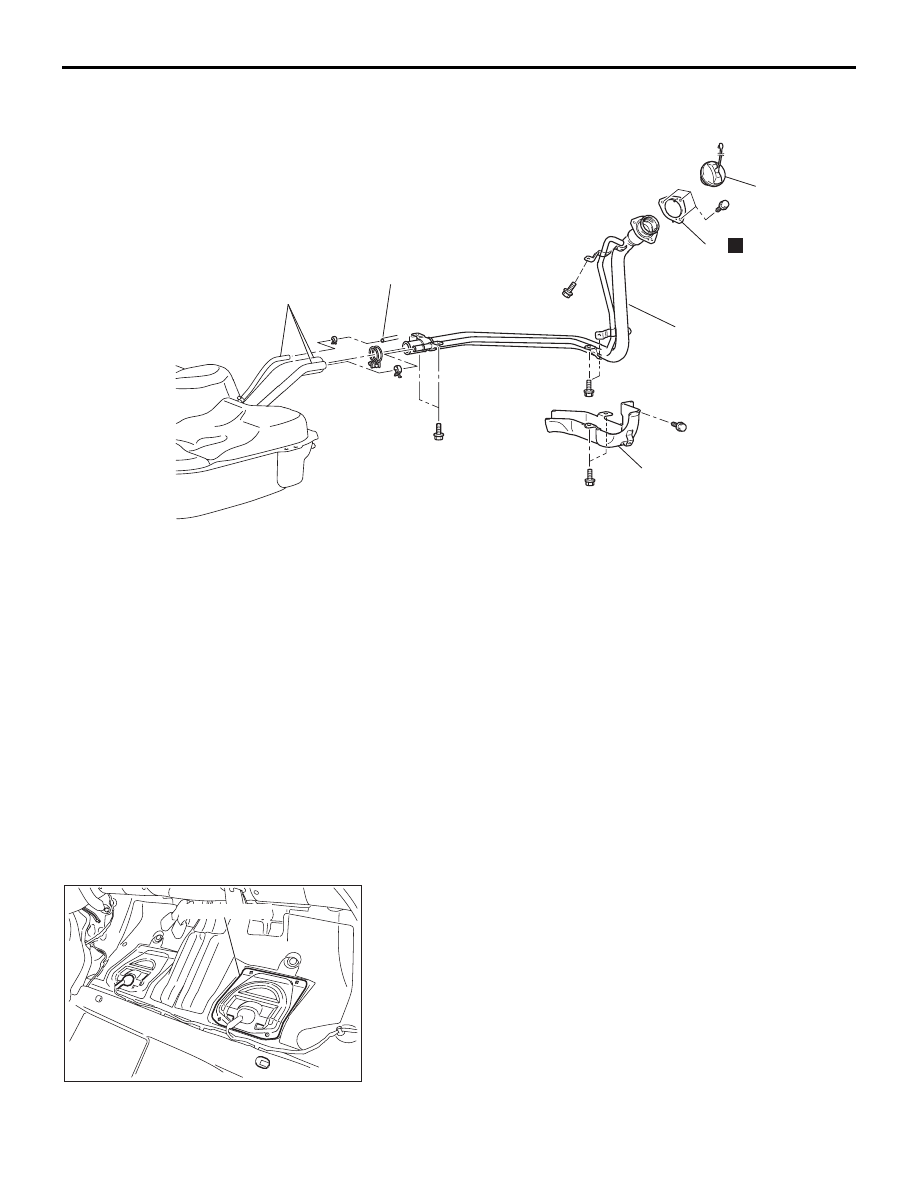

03DB143A

36

37

35

38

39

34

N

FUEL TANK FILLER TUBE
REMOVAL STEPS

34. FUEL CAP
35. VAPOR HOSE CONNECTION
36. FUEL FILLER HOSE AND FUEL

TANK LEVELING HOSE
CONNECTION

37. FUEL TANK FILLER TUBE

PROTECTOR

38. FUEL TANK FILLER TUBE
39. FUEL TANK FILLER TUBE

PACKING

FUEL TANK FILLER TUBE
REMOVAL STEPS (Continued)

03DB150A

HOLE COVER

FUEL TANK

FUEL SUPPLY

13B-11

3. Disconnect the fuel pump module connector.

.

<<B>> FUEL LEVEL SENSOR (SUB) CONNECTOR
CONNECTION REMOVAL

1. Remove the grommet and disconnect the fuel level sensor

(sub) connector.

.

<<C>> FUEL HIGH-PRESSURE HOSE
CONNECTION REMOVAL

CAUTION

As there will be some pressure remaining in the fuel pipe
line, cover it with a shop towel to prevent fuel from spray-
ing out.

.

<<D>> FUEL TANK ASSEMBLY/FUEL TANK BAND
REMOVAL

1. Support the fuel tank with a transaxle jack.

2. Remove the fuel tank band and fuel tank assembly as

follows.

(1) Remove the front securing nut of the fuel tank band.
(2) Tilt the fuel tank assembly forward and lower it gradually

to remove it.

(3) Remove the fuel tank band.

.

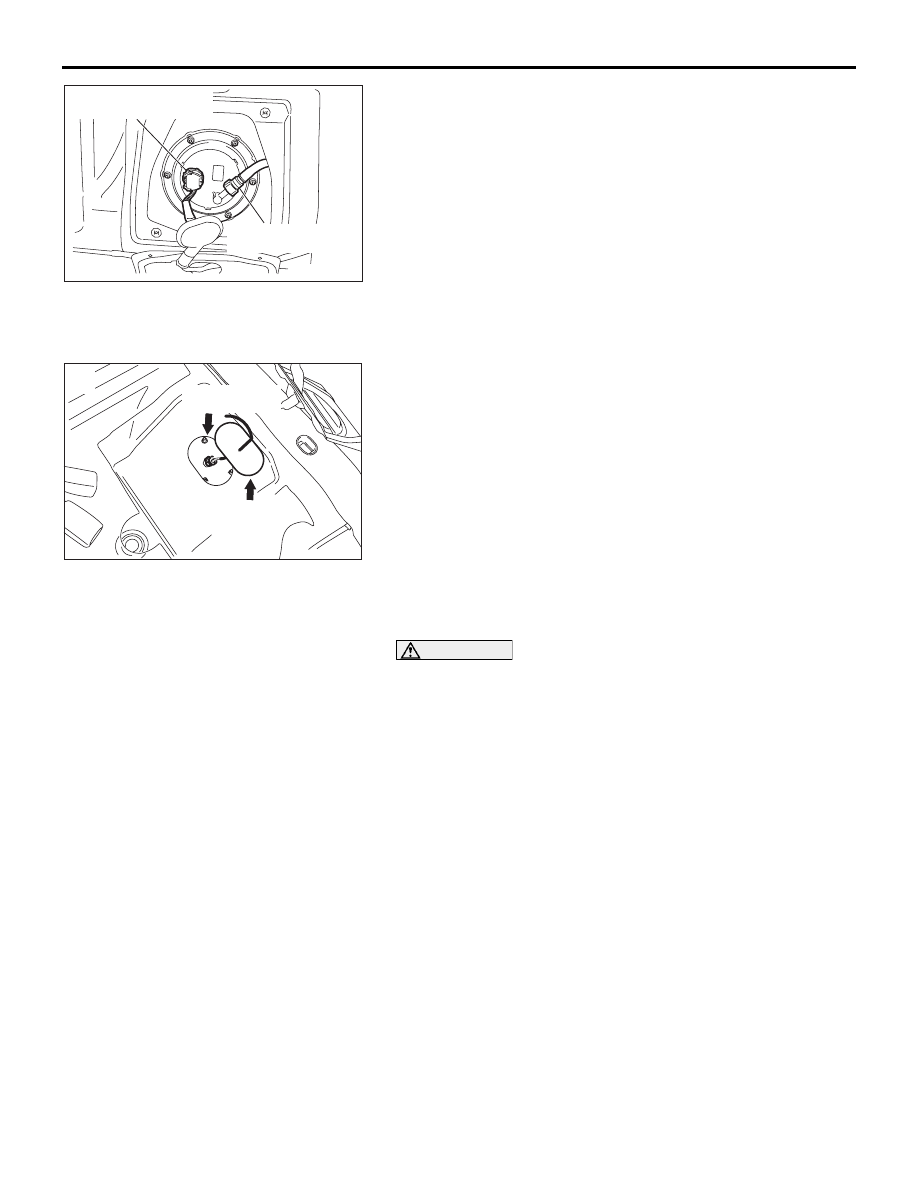

AC306090

FUEL PUMP MODULE
CONNECTOR

FUEL HIGH-
PRESSURE HOSE

AB

03DB149A

FUEL LEVEL

SENSOR (SUB)

GROMMET
