DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-190

(4) Measure the resistance between data link connector

terminal 14 and body ground.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, diagnose

CAN bus lines thoroughly by referring to

P.54C-323

.

NO :  If the resistance measures less than 1 k

Ω, go to Step

27.

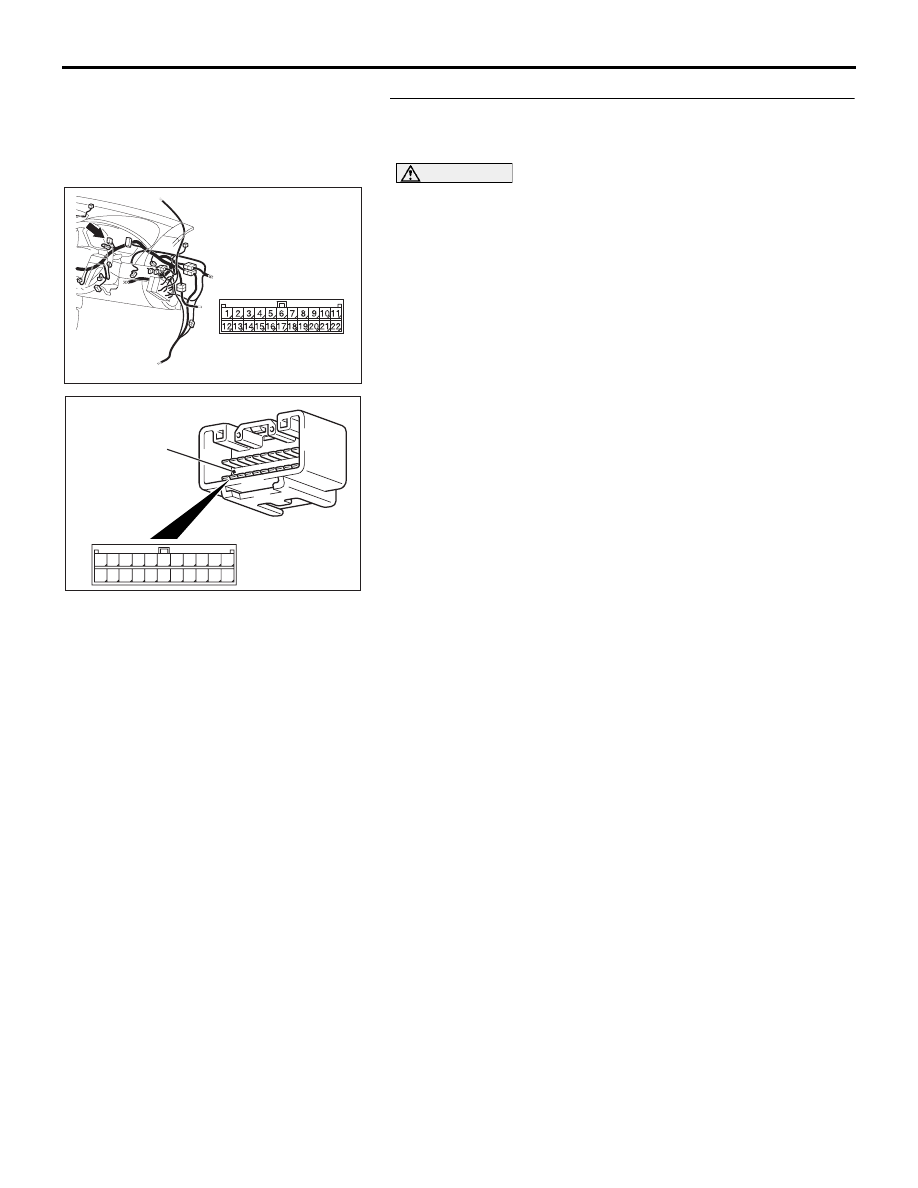

STEP 4. Check intermediate connector C-29 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Is intermediate connector C-29 in good condition?

YES : Go to Step 5.
NO :  Repair the damaged parts.

AC209364

Y

8

16

15

7

5

1314

6

12

4

2

1011

3

9

1

AC209364HU

HARNESS SIDE: C-125

TEST
HARNESS

52DB014A

CONNECTOR: C-29

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-191

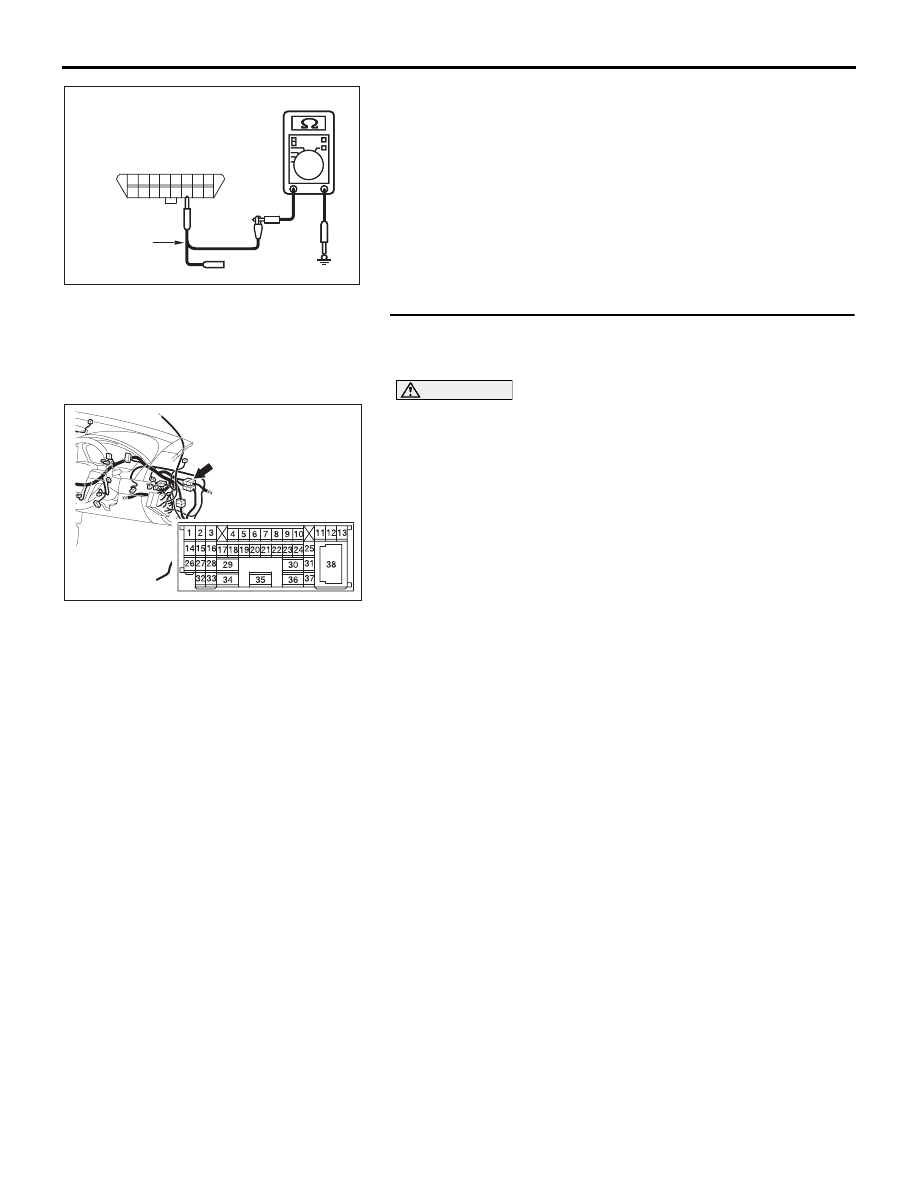

STEP 5. Check the CAN_H-side bus line (communication
line including ECUs) of the front wiring harness for short
to ground. Measure the resistance at intermediate
connector C-29.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-29, and measure the

resistance at the male side (at front wiring harness side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between intermediate connector

terminal 11 and body ground.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step 6

.

NO :  If the resistance measures less than 1 k

Ω, go to Step

23.

52DB014A

CONNECTOR: C-29

AC209364

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC209364

MALE SIDE: C-29

TEST
HARNESS

HV

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-192

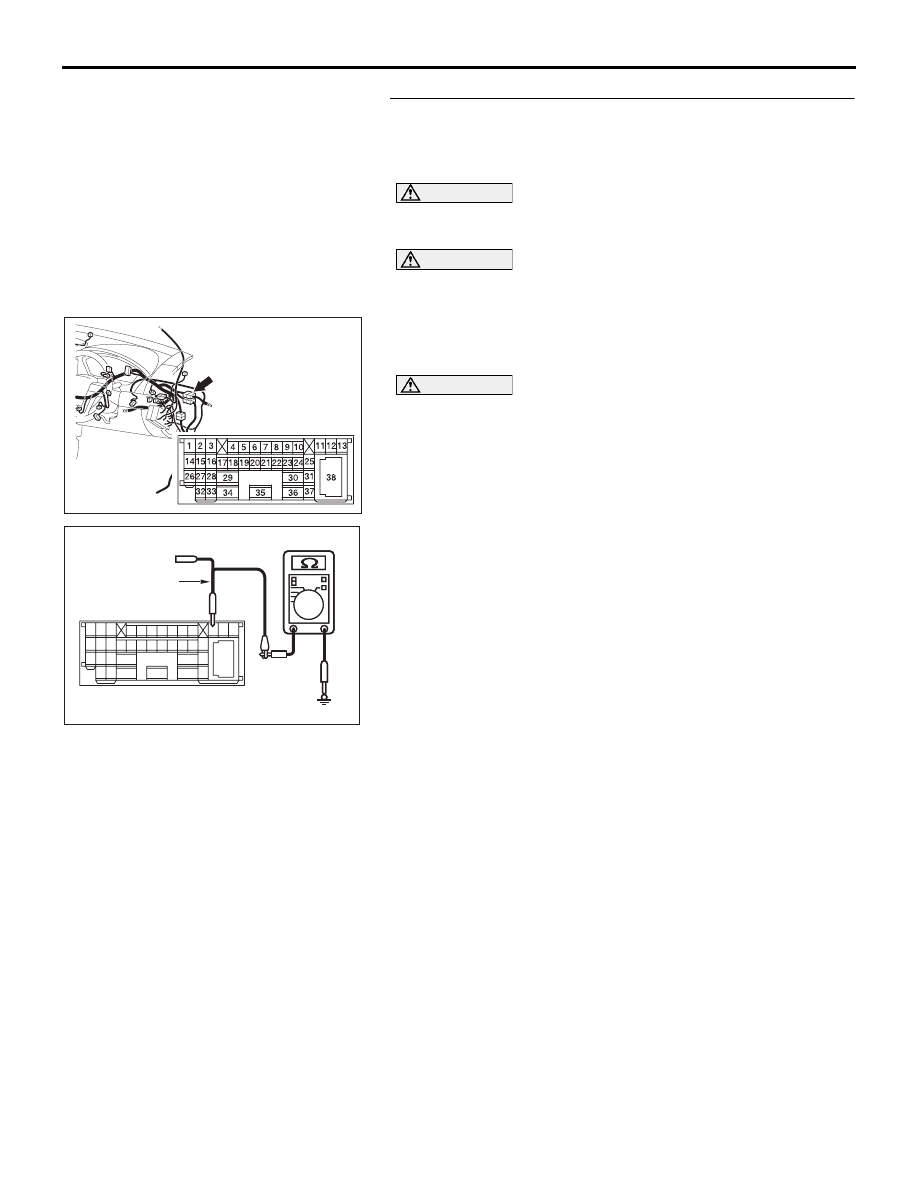

STEP 6. Check joint connector (3) C-02 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Check the joint connector at the wiring harness side for loose,
corroded or damaged terminals, or terminals pushed back in
the connector, and also check the short pin behind the connec-
tor for corrosion, deformation and delamination.

Q: Is joint connector (3) C-02 in good condition?

YES : Go to Step 7.
NO :  Repair the damaged parts. Replace the joint

connector as necessary.

16DB408A

CONNECTOR: C-02

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11
22

AB

SHORT PIN

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54C-193

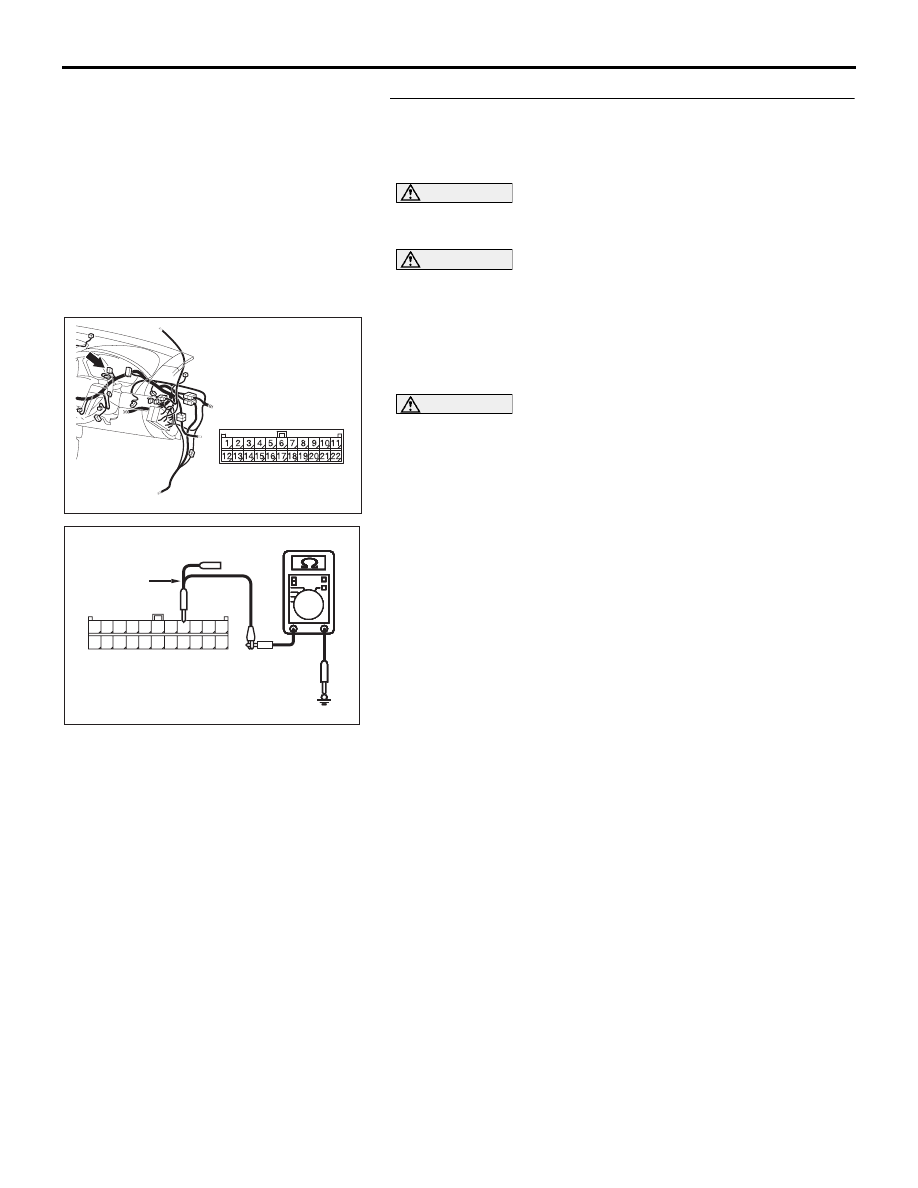

STEP 7. Check the CAN_H line (communication line
including the combination meter) between joint connector
(3) and the combination meter for short to ground.
Measure the resistance at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02, and measure the

resistance at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminal 4 and body ground.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step 9

.

NO :  If the resistance measures less than 1 k

Ω, go to Step

8.

16DB408A

CONNECTOR: C-02

AC209364

11
22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC209364

AC209364

AC209364

AC209364

AC209364

AC209364HW

HARNESS SIDE: C-02

TEST
HARNESS
