MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-628

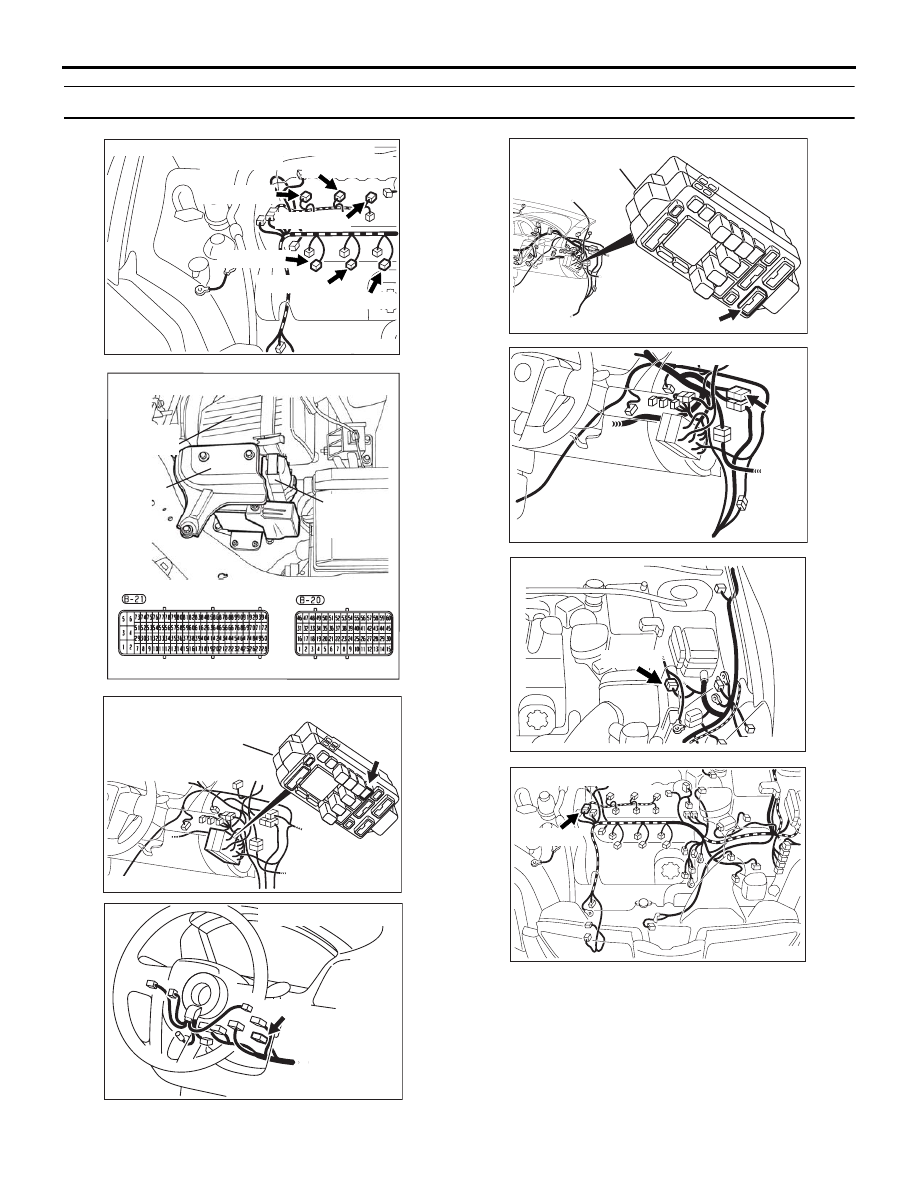

INSPECTION PROCEDURE 27: Ignition Circuit System.

AK303271AB

B-118 (GR)

B-102 (GR)

B-101 (GR)

B-117 (GR)

B-103 (GR)

B-114 (GR)

CONNECTOR: B-101, B-102, B-103, B-114,

                         B-117, B-118

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

03DB172A

CONNECTOR: C-211

C-211

JUNCTION

BLOCK

03DB170A

CONNECTOR: C-308

C-308

03DB173A

CONNECTOR: C-215

JUNCTION

BLOCK

C-215

03DB171A

CONNECTOR: C-29

C-29

AK303148

CONNECTOR: A-13

AB

A-13(GR)

AK303097

CONNECTOR: B-32

AB

B-32 (B)

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-629

.

CIRCUIT OPERATION

• The ignition coil is energized by battery positive

voltage from the ignition switch.

• When the ECU turns off its internal power transis-

tor, battery positive voltage is applied to the igni-
tion power transistor (terminal No. 3) inside the
ignition coil, causing the ignition power transistor
to be turned on.

• If the ignition power transistor is turned on, the

primary circuit of the ignition coil is energized by
grounding the ignition coil through terminal No. 2,
causing the primary current to flow to the ignition
coil.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the ignition coil.

• Malfunction of the ignition power transistor.

• Improper connector contact, open circuit or

short-circuit harness wire.

• Malfunction of the ECU.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

STEP 1. Check the ignition coil.
(1) Remove the intake manifold.
(2) Refer to GROUP 16, Ignition System

− On-vehicle service −

Ignition Coil Check

P.16-31

.

Q: Are there any abnormalities?

YES : Replace the ignition coil. Then confirm that the

malfunction symptom is eliminated.

NO :  Go to Step 2.

STEP 2. Check harness connectors B-114, B-117, B-118,
B-102, B-103, B-101 at ignition coil for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

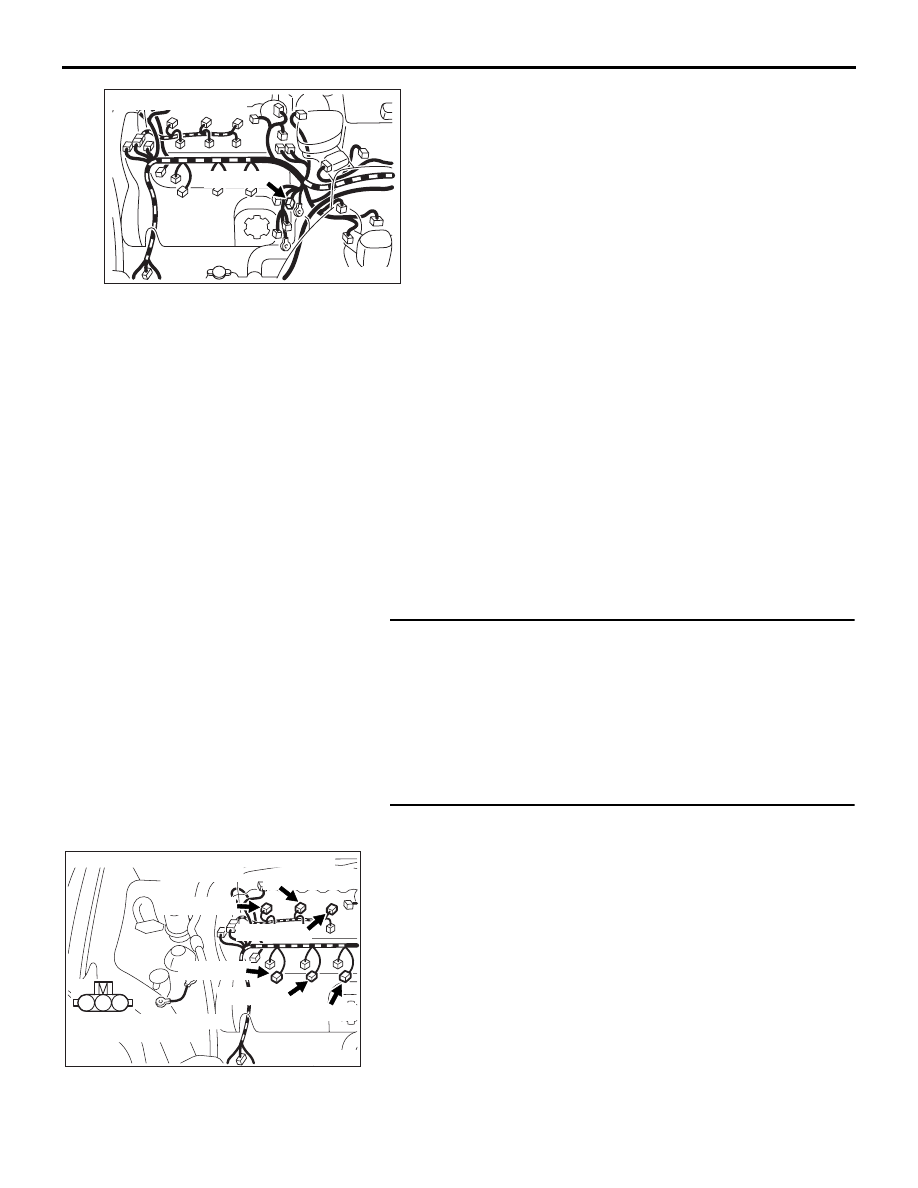

AK303272AB

B-111 (B)

CONNECTOR: B-111

AK303233

1

2

3

AB

B-118 (GR)

B-102 (GR)

B-101 (GR)

B-117 (GR)

B-103 (GR)

B-114 (GR)

CONNECTOR: B-101, B-102, B-103, B-114,

                         B-117, B-118

HARNESS CONNECTOR:

COMPONENT SIDE

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-630

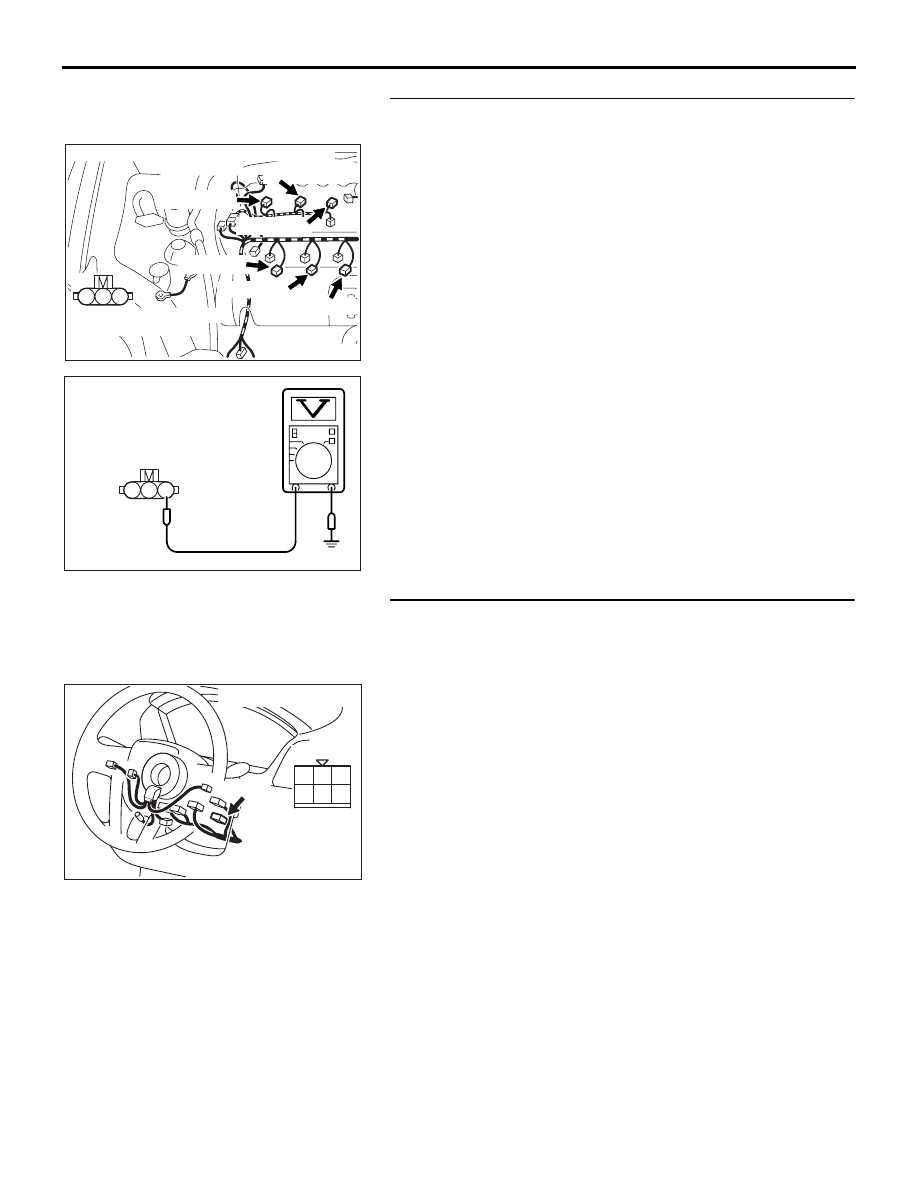

STEP 3. Measure the power supply voltage at ignition coil
connectors B-114, B-117, B-118, B-102, B-103, B-101.
(1) Disconnect the connector B-114, B-117, B-118, B-102,

B-103, B-101 and measure at the harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 5.
NO :  Go to Step 4.

STEP 4. Check for open circuit between ignition switch
connector C-308 (terminal No. 2) and ignition coil
connectors B-114, B-117, B-118, B-102, B-103, B-101
(terminal No. 1).
NOTE: Check harness after checking intermediate connectors
A-13, B-32, C-29, C-211, C-215 and C-308. If intermediate con-
nectors are damaged, repair or replace them. Refer to GROUP
00E, Harness Connector Inspection

P.00E-2

. Then confirm that

the malfunction symptom is eliminated.

Q: Is the harness wire in good condition?

YES : Repair harness wire between ignition switch

connector C-308 (terminal No. 2) and capacitor
connector B-111 (terminal No. 1) because of short
circuit to ground. Then confirm that the malfunction
symptom is eliminated.

NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

AK303233

1

2

3

AB

B-118 (GR)

B-102 (GR)

B-101 (GR)

B-117 (GR)

B-103 (GR)

B-114 (GR)

CONNECTOR: B-101, B-102, B-103, B-114,

                         B-117, B-118

HARNESS CONNECTOR:

COMPONENT SIDE

1

2

3

AK303273

B-101, B-102, B-103, B-114,

B-117, B-118 HARNESS

CONNECTOR:

COMPONENT SIDE

AB

03DB175A

CONNECTOR: C-308

C-308

1

2

3

4

5

6

HARNESS

CONNECTOR:

COMPONENT SIDE

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-631

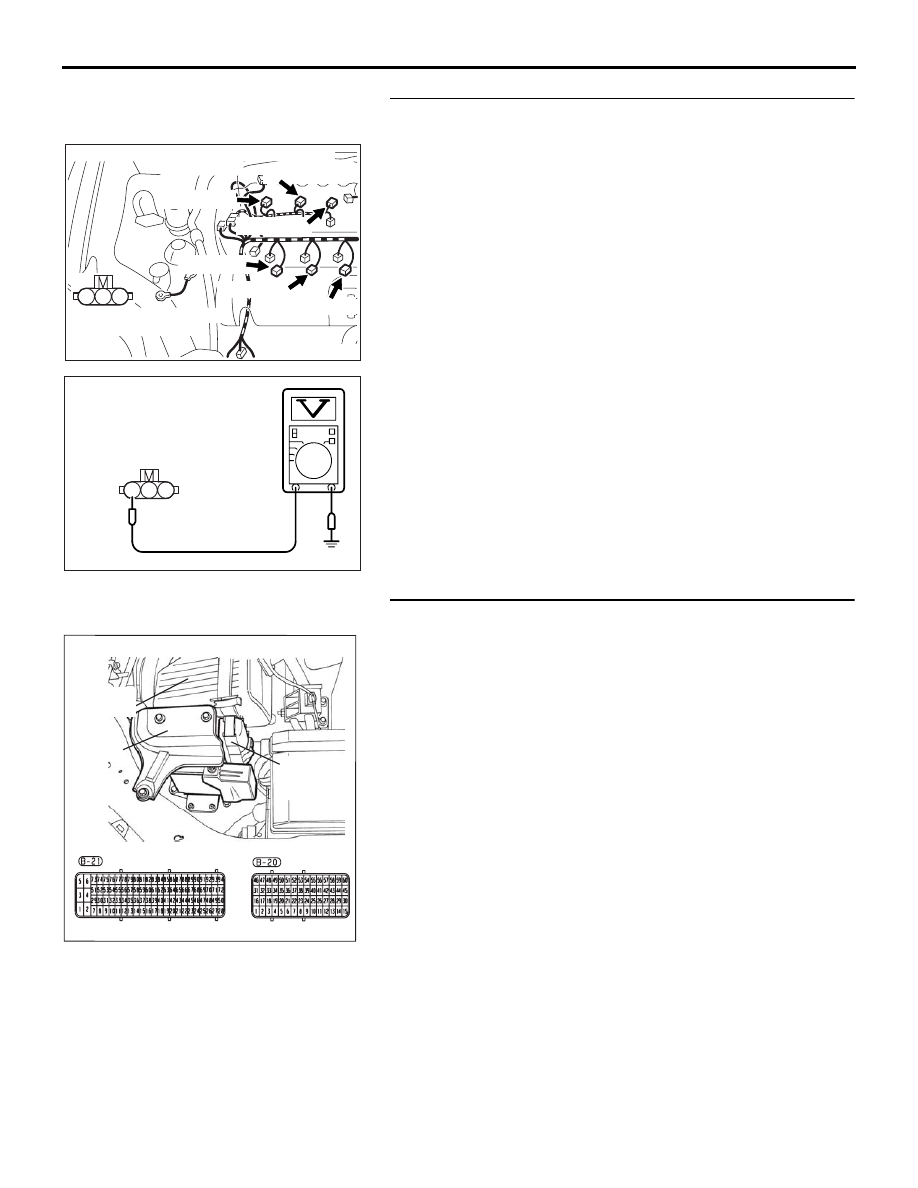

STEP 5. Check the circuit at ignition coil harness side
connectors B-114, B-117, B-118, B-102, B-103, B-101.
(1) Disconnect the connectors B-114, B-117, B-118, B-102,

B-103, B-101 and measure at the harness side.

(2) Crank the engine.

(3) Measure the voltage between terminal No. 3 and ground.

NOTE: The average voltage through an analog voltmeter is
described in this service manual (because the average volt-
age is too stable to be shown on a digital voltmeter).

• Voltage should be 0.3 and 3.0 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the measured voltage between 0.3 and 3.0 volts?

YES : Go to Step 8.
NO :  Go to Step 6.

STEP 6. Check connector B-20 at ECU for damage.
Q: Is the connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

AK303233

1

2

3

AB

B-118 (GR)

B-102 (GR)

B-101 (GR)

B-117 (GR)

B-103 (GR)

B-114 (GR)

CONNECTOR: B-101, B-102, B-103, B-114,

                         B-117, B-118

HARNESS CONNECTOR:

COMPONENT SIDE

1

2

3

AK303275

B-101, B-102, B-103, B-114,

B-117, B-118 HARNESS

CONNECTOR:

COMPONENT SIDE

AB

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER
