MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MFI)

13A-308

STEP 9. Check harness connector B-20 at ECU for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 10. Check for open circuit and short circuit to
ground and harness damage between intermediate
connector B-32 (terminal No. 4) and ECU connector B-20
(terminal No. 16).
Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair it. Then go to Step 12.

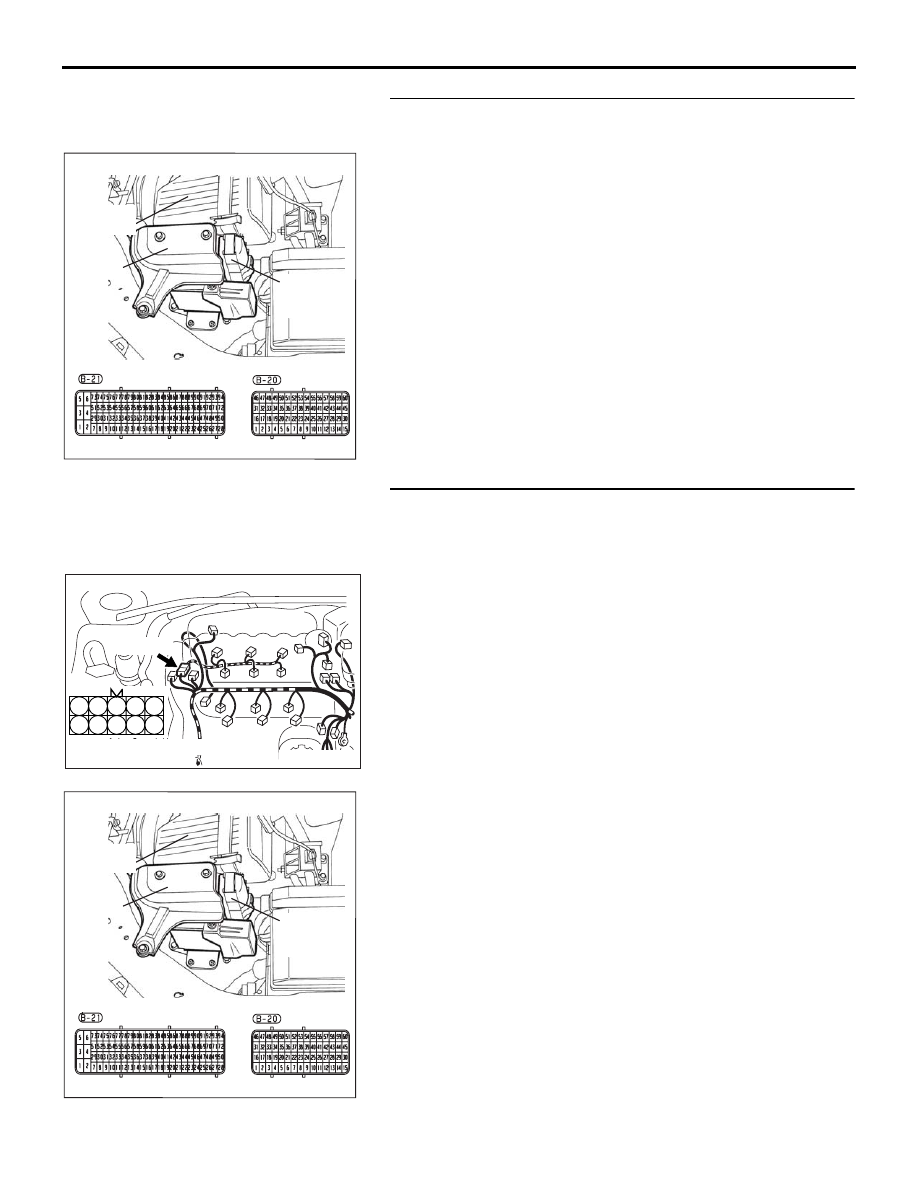

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

AK303053

3

4

5

8

9

1

2

6

7

10

CONNECTOR: B-32

HARNESS CONNECTOR:

COMPONENT SIDE

AB

B-32 (B)

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MFI)

13A-309

STEP 11. Using the oscilloscope, check the No. 5 cylinder
injector.
(1) Disconnect the intermediate connector B-32 and connect

the test harness MB991658 between the separated
connectors.

(2) Connect the oscilloscope probe to injector intermediate

connector terminal No. 4.

NOTE: When measuring with the ECU side connector, dis-
connect the all ECU connectors and connect check harness
special tool (MB992044) between the separated connec-
tors. Then connect an oscilloscope probe to the check har-
ness connector terminal No. 16.

(3) Start the engine and run at idle.

(4) Measure the waveform.

• The waveform should show a normal pattern similar to

the illustration.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the waveform normal?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Replace the ECU. Then go to Step 12.

STEP 12. Test the EOBD drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− EOBD Drive Cycle −

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).

Q: Is DTC P0205 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK303053

3

4

5

8

9

1

2

6

7

10

CONNECTOR: B-32

HARNESS CONNECTOR:

COMPONENT SIDE

AB

B-32 (B)

1 2 3
6 7 8

4 5
9 10

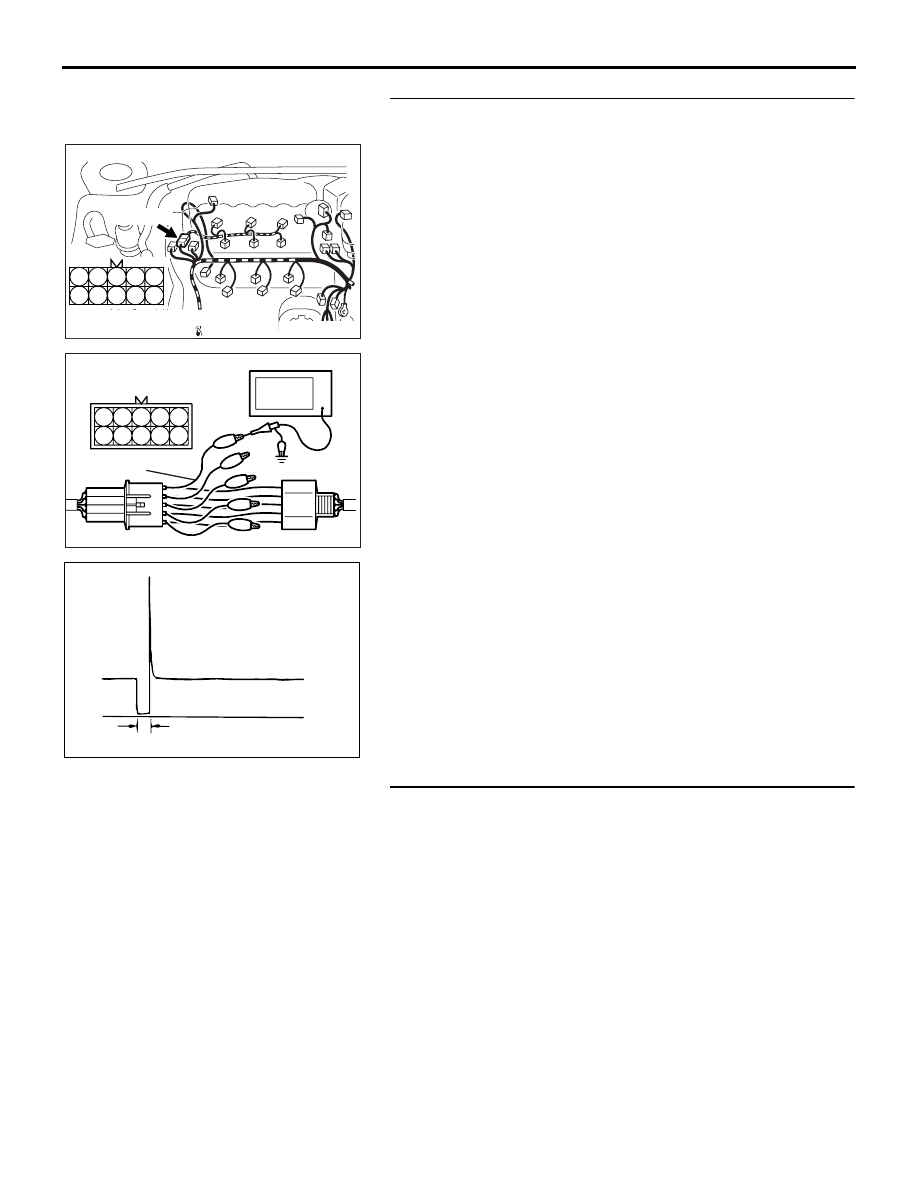

AK203300

OSCILLOSCOPE

MB991658

B-32 INTERMEDIATE

CONNECTOR

AB

AKX01557 AB

A

NORMAL  WAVEFORM

A:INJECTOR DRIVE TIME

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MFI)

13A-310

DTC P0206: Injector Circuit Malfunction - Cylinder 6.

.

CIRCUIT OPERATION

• Refer to DTC P0300 - Random/Multiple Misfire-

P.13A-330

 and Misfire Cylinder 6-

P.13A-344

.

• The injector power is supplied from the MPI relay

(terminal No. 4).

• The ECU controls the injector by turning the

power transistor in the ECU "ON" and "OFF".

.

TECHNICAL DESCRIPTION

• The amount of fuel injected by the injector is con-

trolled by the amount of continuity time the coil is
grounded by the ECU.

• A surge voltage is generated when the injectors

are switched on/off.

• The ECU monitors this surge voltage.

.

DTC SET CONDITIONS <Circuit continuity

− open circuit and shorted low>

Check Conditions

• Battery voltage is between 9.04 and 16.01vols.

• Engine speed is above 801 r/min.

Judgment Criteria

• IC internal test (open circuit, short to earth, short

to battery).

• MIL on after 2 drive cycles.

• Misfire present.

.

EOBD DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− EOBD Drive Cycle −

P.13A-11

.

.

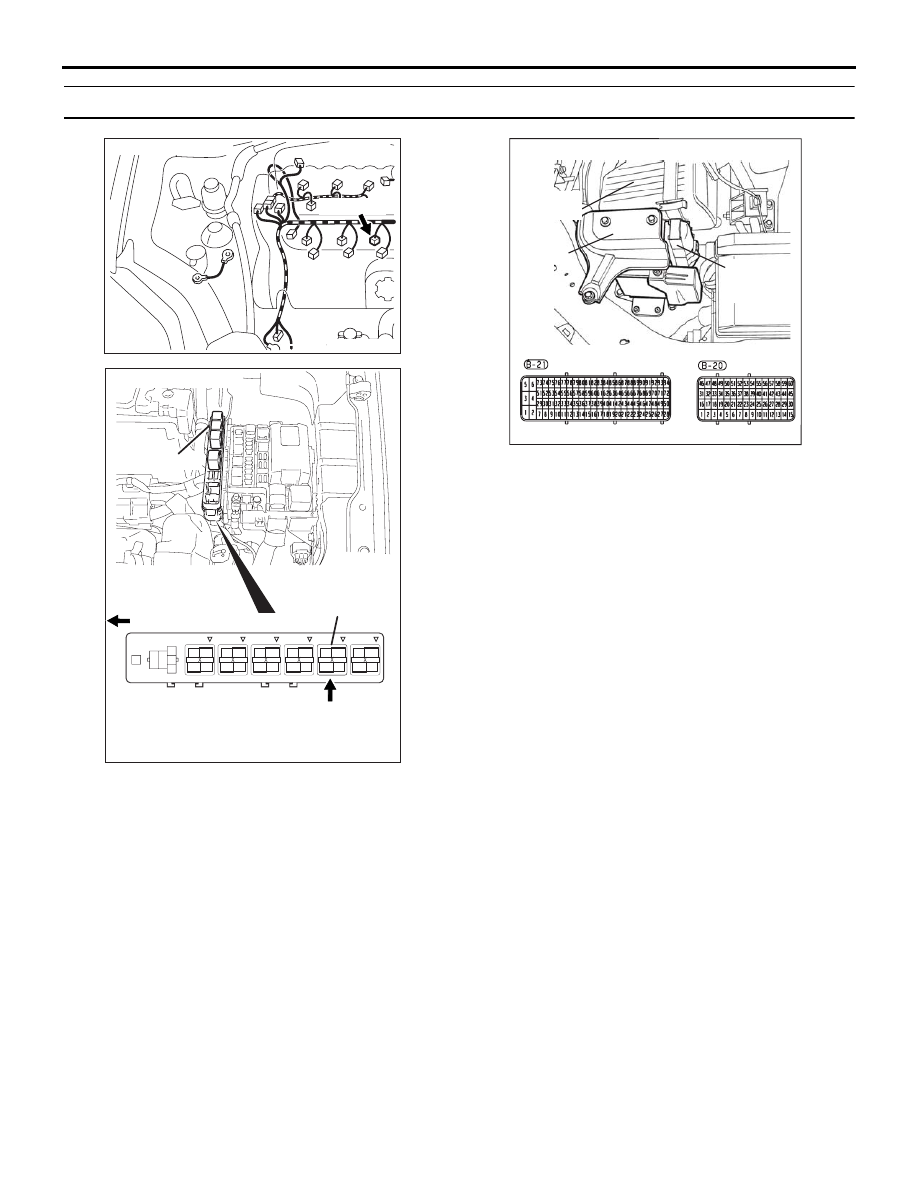

AK303115

CONNECTOR: B-26

B-26 (GR)

AB

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

AK303014

CONNECTOR: B-17X

MFI RELAY

MFI RELAY

FRONT OF VEHICLE

B-17X

AB

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MFI)

13A-311

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• No. 6 cylinder injector failed.

• Open or shorted to ground No.6 cylinder injector

circuit.

• Shorted to battery, No.6 cylinder injector circuit.

• Harness or connector damage.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MB991658: Test Harness
• MB992044: Power Plant ECU Check Harness

STEP 1. Using diagnostic tool , check actuator test item 02,
04, 06: No. 6 injector.

CAUTION

To prevent damage to diagnostic tool , always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting diagnostic tool .
(1) Connect diagnostic tool to the data link connector.
(2) Start the engine and run at idle.
(3) Set diagnostic tool to the actuator testing mode for item 06,

No. 6 Injector.

(4) Warm up the engine to normal operating temperature: 80

°C

to 95

°C (176°F to 203°F).

• The idle should become slightly rougher.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Does the idle vary or engine run "rough"?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Go to Step 2.

STEP 2. Check the harness connector B-26 at No. 6
cylinder injector for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

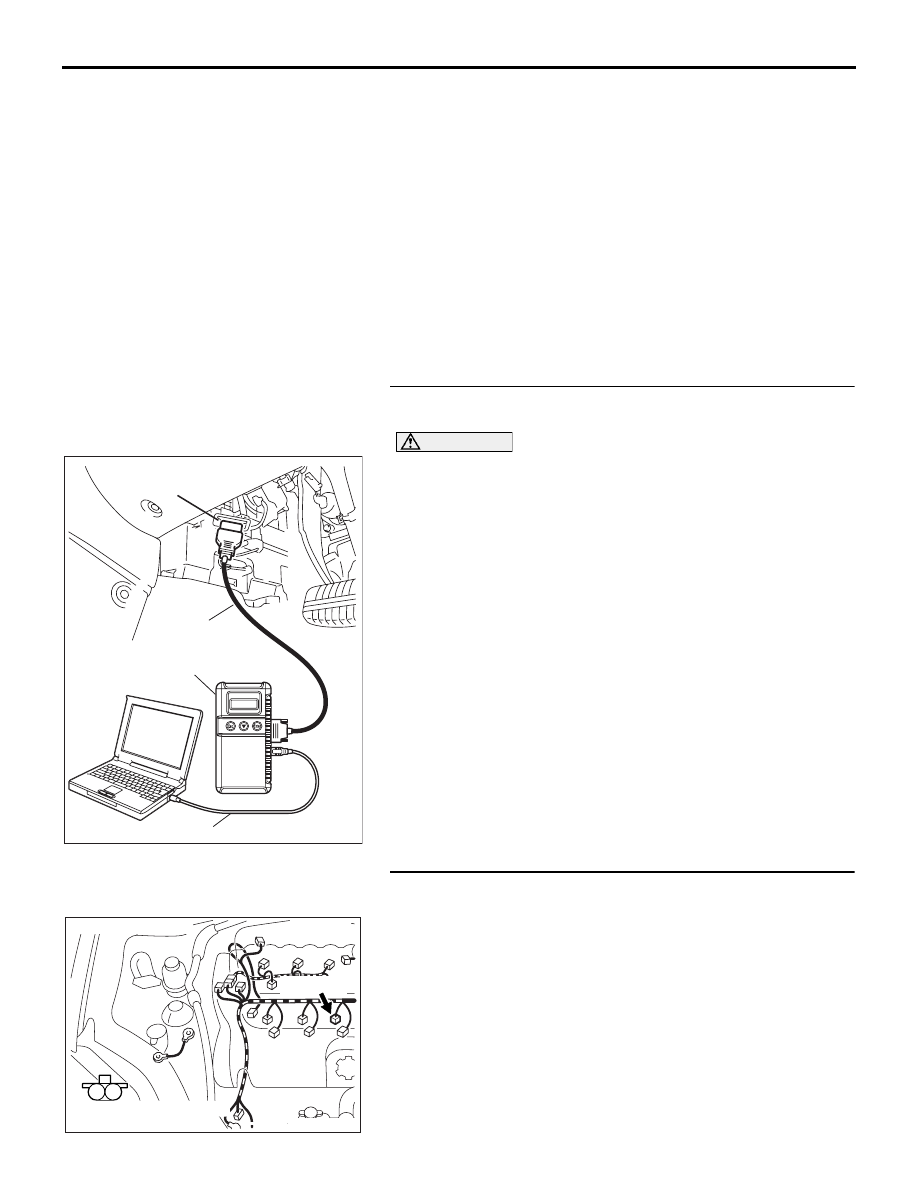

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AK303116

M

1

2

CONNECTOR: B-26

B-26 (GR)

HARNESS CONNECTOR:

COMPONENT SIDE

AB
