MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-228

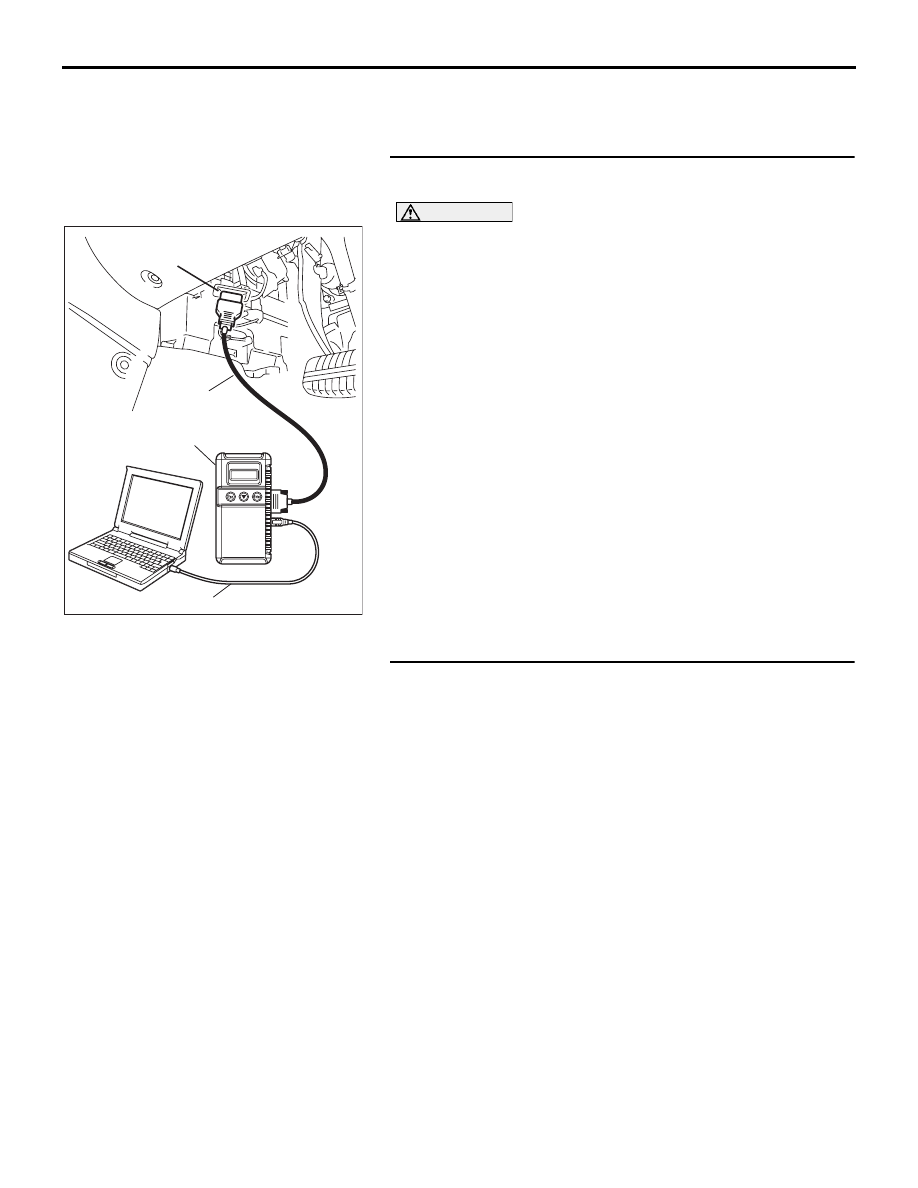

STEP 4. Using diagnostic tool, check data list item AE:
Heated Oxygen Sensor Bank 2, Sensor 1 (left front).

CAUTION

To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting diagnostic tool .
(1) Connect diagnostic tool  to the data link connector.
(2) Start the engine and run at idle.
(3) Ensure engine is at running temperature (80

° C or higher).

(4) Set diagnostic tool  to the data reading mode for item AE,

Heated Oxygen Sensor Bank 2, Sensor 1 (left front).

• Warm engine. When the engine is revved up and down,

the output voltage should cycle between  0.1 to 0.8 volt.

• Warm engine. When the engine is idling, the output volt-

age should alternate between 0.1 to 0.6 - 1.0 volt.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

NOTE: If data list readings are low or appear slow to cycle
during check the sensor is likely to be malfuctioning. Ensure
wiring and connector checks are performed prior to replac-
ing sensor.

Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Replace the sensor. Then go to Step 5.

STEP 5. Test the EOBD drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− EOBD Drive Cycle −

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).

Q: Is DTC P0152 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-229

DTC P0153: Heated Oxygen Sensor Circuit Slow Response (bank 2, sensor 1).

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the
ENGINE-ECU (terminal No. 15) from the output
terminal (terminal No. 1) of the left bank heated
oxygen sensor (front).

• Terminal No. 2 of the left bank heated oxygen

sensor (front) is grounded with ENGINE-ECU
(terminal No. 14).

.

TECHNICAL DESCRIPTION

• The left bank heated oxygen sensor (front)

detects the concentration of oxygen in the
exhaust gas; it converts those data to voltage,
and inputs the resulting signals to the
ENGINE-ECU.

• When the left bank heated oxygen sensor (front)

begins to deteriorate, the left bank heated oxygen
sensor signal response becomes poor.

• The ENGINE-ECU forcibly varies the air/fuel mix-

ture to make it leaner and richer, and checks the
response speed of the left bank heated oxygen
sensor (front). In addition, the ENGINE-ECU also
checks for an open circuit in the left bank heated
oxygen sensor (front) output line.

.

DTC SET CONDITIONS

Check Conditions

• Engine speed between 1320 and 3200rpm.

Judgment Criteria

• MIL is activated after 2 Drive cycles.

• No limp home.

.

EOBD DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− EOBD Drive Cycle  −

P.13A-11

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are: )

• Left bank heated oxygen sensor (front) deterio-

rated.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• : Diagnostic Tool (MUT-III Sub Assembly)

AK303070

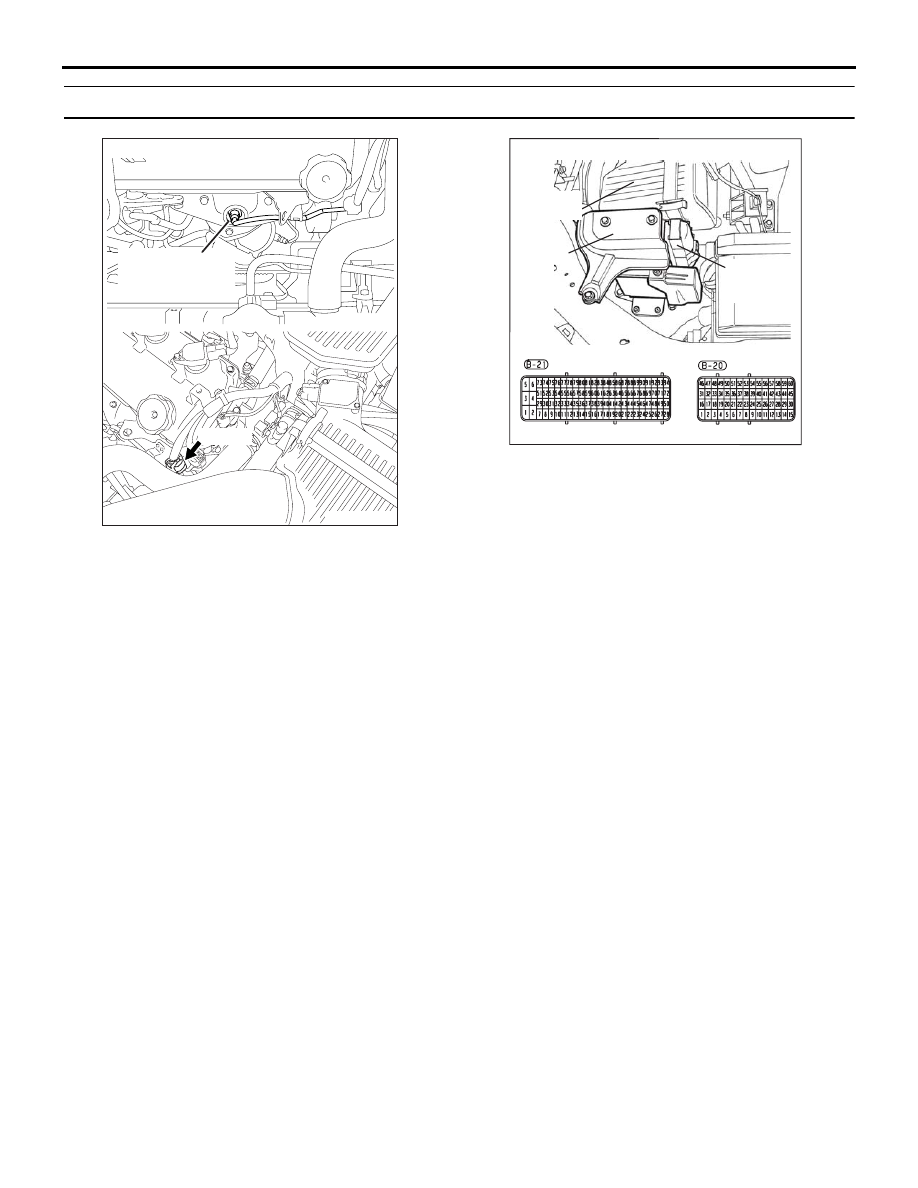

LEFT BANK

HEATED OXYGEN

SENSOR (FRONT)

CONNECTOR: B-25

B-25 (B)

AB

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-230

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

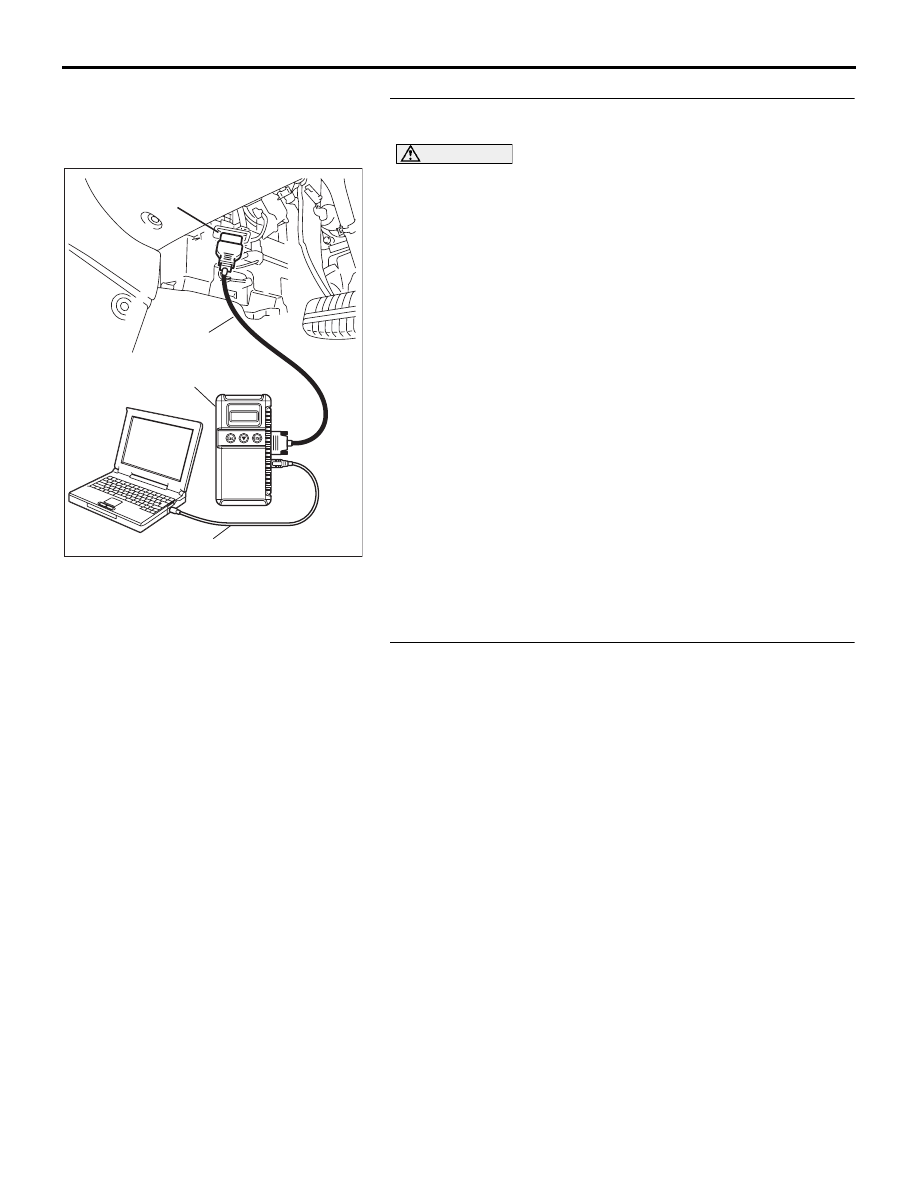

STEP 1. Using diagnostic tool, check data list item AE:
Heated Oxygen Sensor Bank 2, Sensor 1 (left front).

CAUTION

To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting diagnostic tool .
(1) Connect diagnostic tool  to the data link connector.
(2) Start the engine and run at idle.
(3) Ensure engine is at running temperature (80

° C or higher).

(4) Set diagnostic tool  to the data reading mode for item AE,

Heated Oxygen Sensor Bank 2, Sensor 1 (left front).

(5) Warm up the engine, hold at 2,500 r/min.

• Output voltage alternates between 0.1 volt and 0.6 − 1.0

volt 10 times or more within 10 seconds.

(6) Turn the ignition switch to the "LOCK" (OFF) position.

NOTE: If data list readings are consistantly low or appear
slow to cycle( should cycle every 0.5-1.0 sec.) during check
the sensor is likely to be malfuctioning.

Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Replace the sensor. Then go to Step 2.

STEP 2. Test the EOBD drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− EOBD Drive Cycle −

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).

Q: Is DTC P0153 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-231

DTC P0154: Heated Oxygen Sensor Circuit No Activity Detected (bank 2, sensor 1)

CAUTION

If DTC P0134 has been set, TCL related DTC
U1120 is also set. After P0134 has been diag-
nosed, don't forget to erase DTC U1120.

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the
ENGINE-ECU (terminal No. 15) from the output
terminal (terminal No. 1) of the left bank heated
oxygen sensor (front).

• Terminal No. 2 of the left bank heated oxygen

sensor (front) is grounded with ENGINE-ECU
(terminal No. 14).

.

TECHNICAL DESCRIPTION

• The left bank heated oxygen sensor (front)

detects the concentration of oxygen in the
exhaust gas; it converts those data to voltage,
and inputs the resulting signals to the
ENGINE-ECU.

• When the left bank heated oxygen sensor (front)

begins to deteriorate, the heated oxygen sensor
signal response becomes poor.

• The ENGINE-ECU forcibly varies the air/fuel mix-

ture to make it leaner and richer, and checks the
response speed of the left bank heated oxygen
sensor (front). In addition, the ENGINE-ECU also
checks for an open circuit in the left bank heated
oxygen sensor (front) output and ground lines.

.

DTC SET CONDITIONS

Check Conditions

• Battery voltage < 11.02 volts

• Engine coolant temperature is higher than 80°C.

Judgment Criteria

• MIL is activated after 2 Drive cycles.

• No limp home.

.

EOBD DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− EOBD Drive Cycle −

P.13A-11

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are: )

• Left bank heated oxygen sensor failed.

• Open circuit in left bank heated oxygen sensor

(front) output line.

• Open circuit in left bank heated oxygen sensor

(front) sensor ground.

• Wiring harness or connector damage.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• : Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MB992044:  ENGINE-ECU Check Harness
