MULTIPOINT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPOINT FUEL INJECTION (MPI)

13A-28

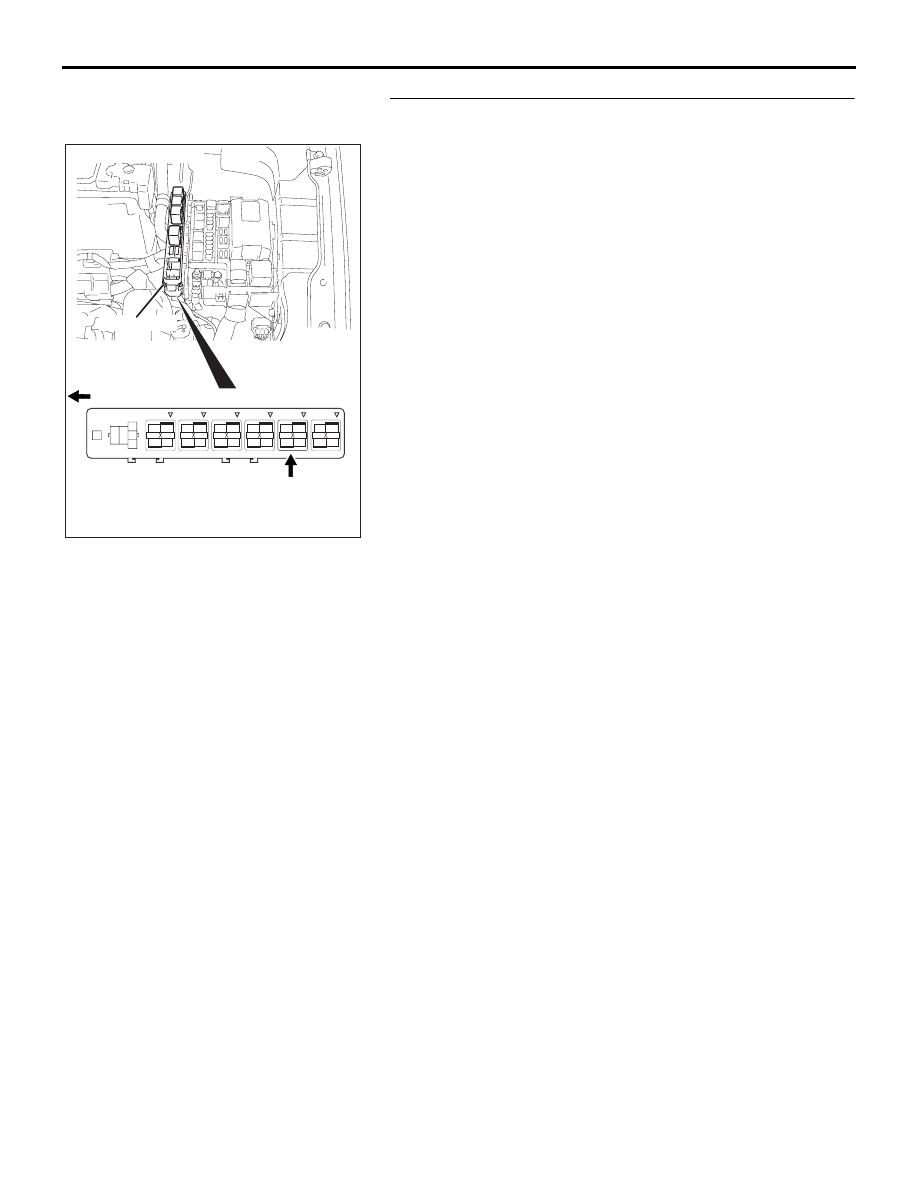

STEP 4. Check harness connector B-17X at the MPI relay
for damage.
Q: Is the harness connector in good condition?

YES : Repair harness wire between MPI relay connector

B-17X (terminal No. 4) and right bank heated oxygen
sensor (front) connector B-09 (terminal No. 3)
because of open circuit or short circuit to ground.
Then go to Step 11.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

1

2

3

4

AK303017

CONNECTOR: B-17X

FRONT OF VEHICLE

B-17X

AB

HARNESS

CONNECTOR:

COMPONENT SIDE

RELAY BOX

MULTIPOINT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPOINT FUEL INJECTION (MPI)

13A-29

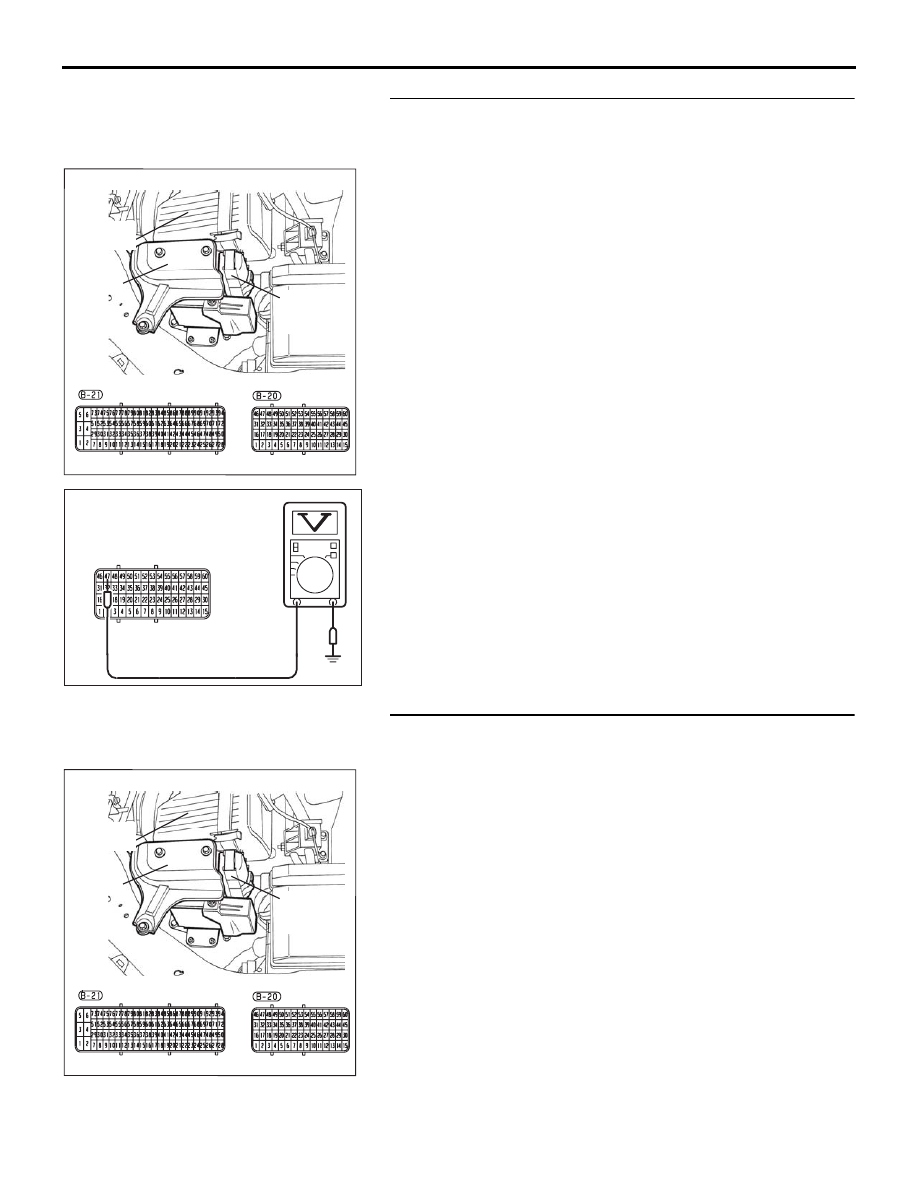

STEP 5. Measure the power supply voltage at ENGINE-ECU
connector B-20 by using  ENGINE-ECU check harness
special tool MB992044.
(1) Disconnect the all ENGINE-ECU connectors and connect

ENGINE-ECU check harness special tool MB992044
between the separated connectors.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 47 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 8.
NO :  Go to Step 6.

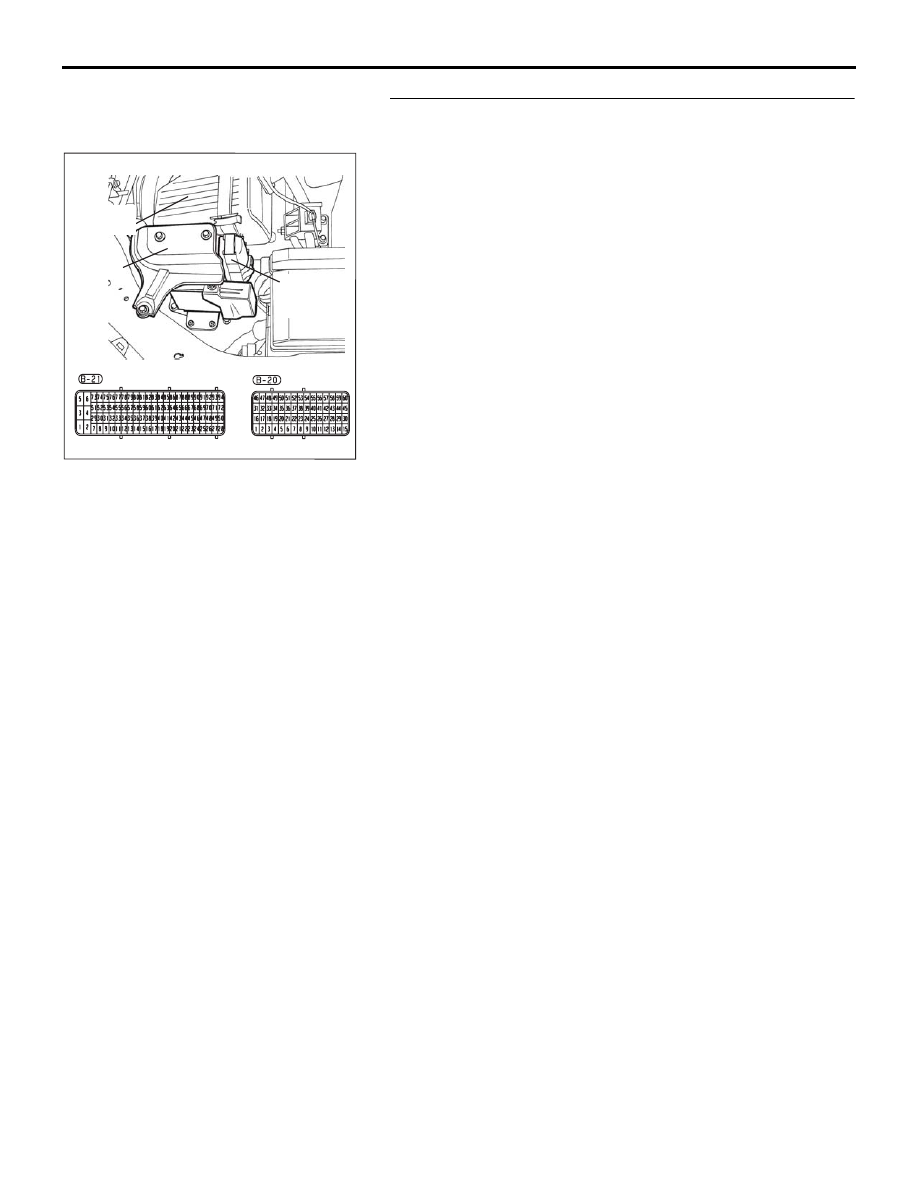

STEP 6. Check harness connector B-20 at ENGINE-ECU for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

03DB201A

B-20 HARNESS

CONNECTOR

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPOINT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPOINT FUEL INJECTION (MPI)

13A-30

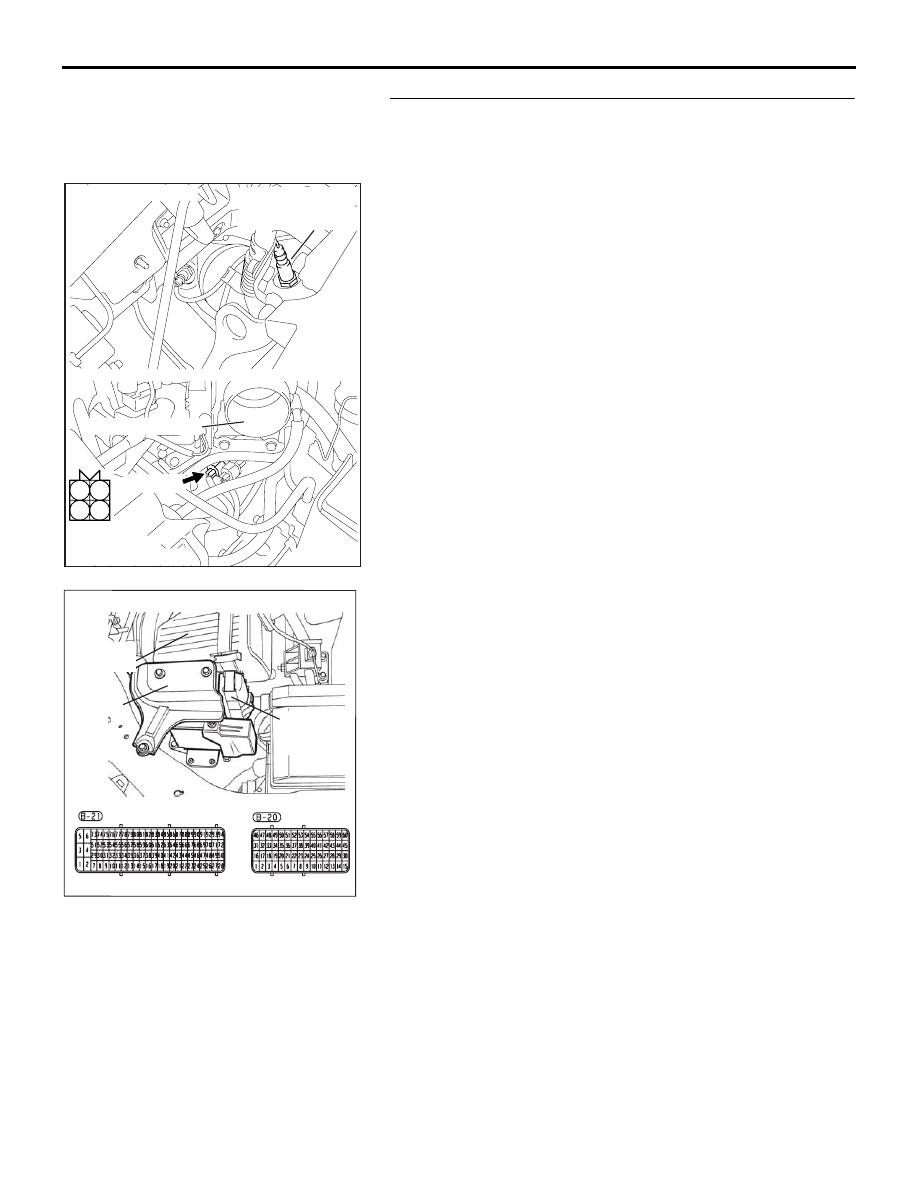

STEP 7. Check for open circuit or short circuit to ground
between right bank heated oxygen sensor (front)
connector B-09 (terminal No. 4) and ENGINE-ECU
connector B-20 (terminal No. 47).
Q: Is the harness wire in good condition?

YES : Then go to Step 8.
NO :  Repair it. Then go to Step 11.

1

2

3

4

AK303048

B-09 (B)

CONNECTOR: B-09

THROTTLE BODY

RIGHT BANK

HEATED OXYGEN

SENSOR (FRONT)

AB

HARNESS

CONNECTOR:

COMPONENT SIDE

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPOINT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPOINT FUEL INJECTION (MPI)

13A-31

STEP 8. Check harness connector B-20 at ENGINE-ECU for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER
