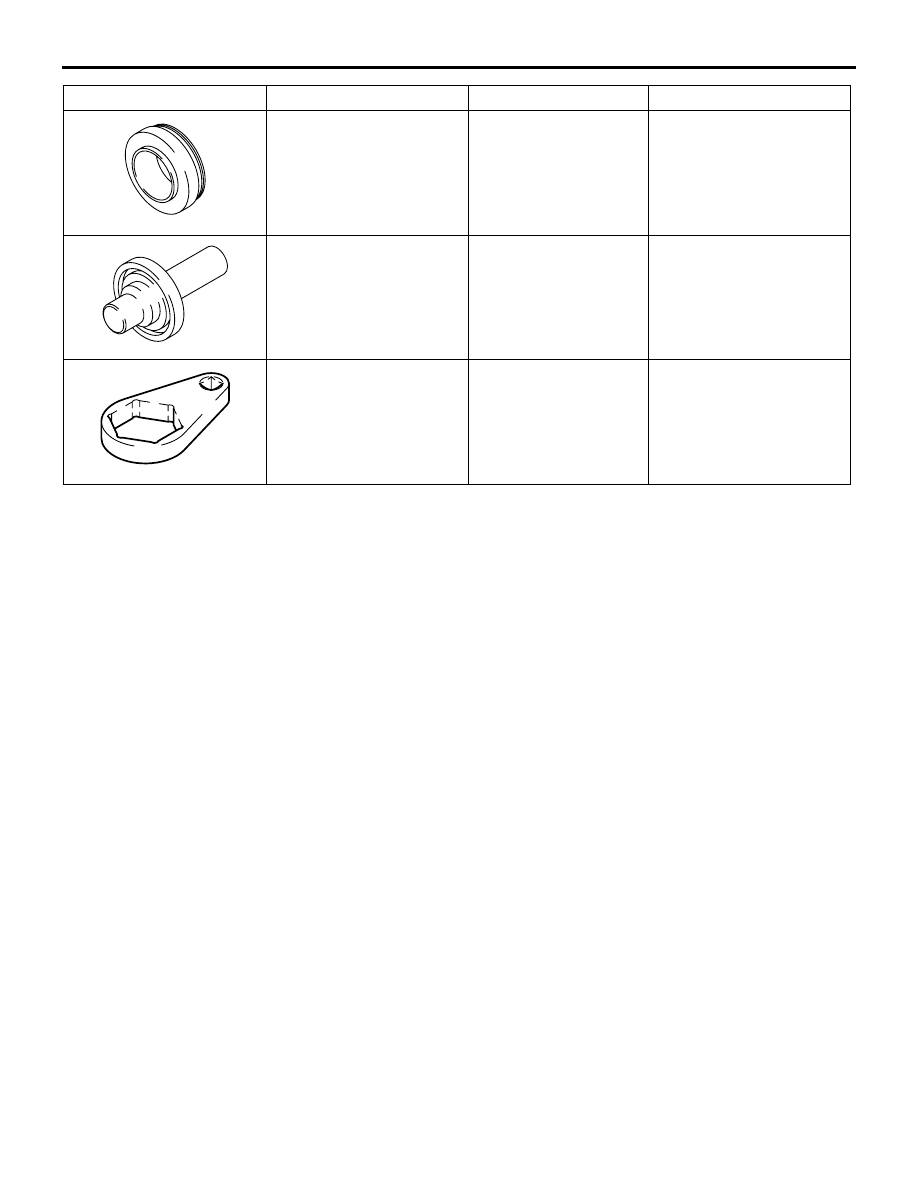

SPECIAL TOOL(S)

AUTOMATIC TRANSMISSION OVERHAUL

23B-12

MD998820

Installer adapter (42)

Installation of differential
taper roller bearing

MD998800

Oil seal installer

Installation of drive shaft
oil seal

MD998834

Special spanner

Removal and installation
of direct planetary carrier
lock nut

Tool

Number

Name

Use

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL

23B-13

TRANSMISSION

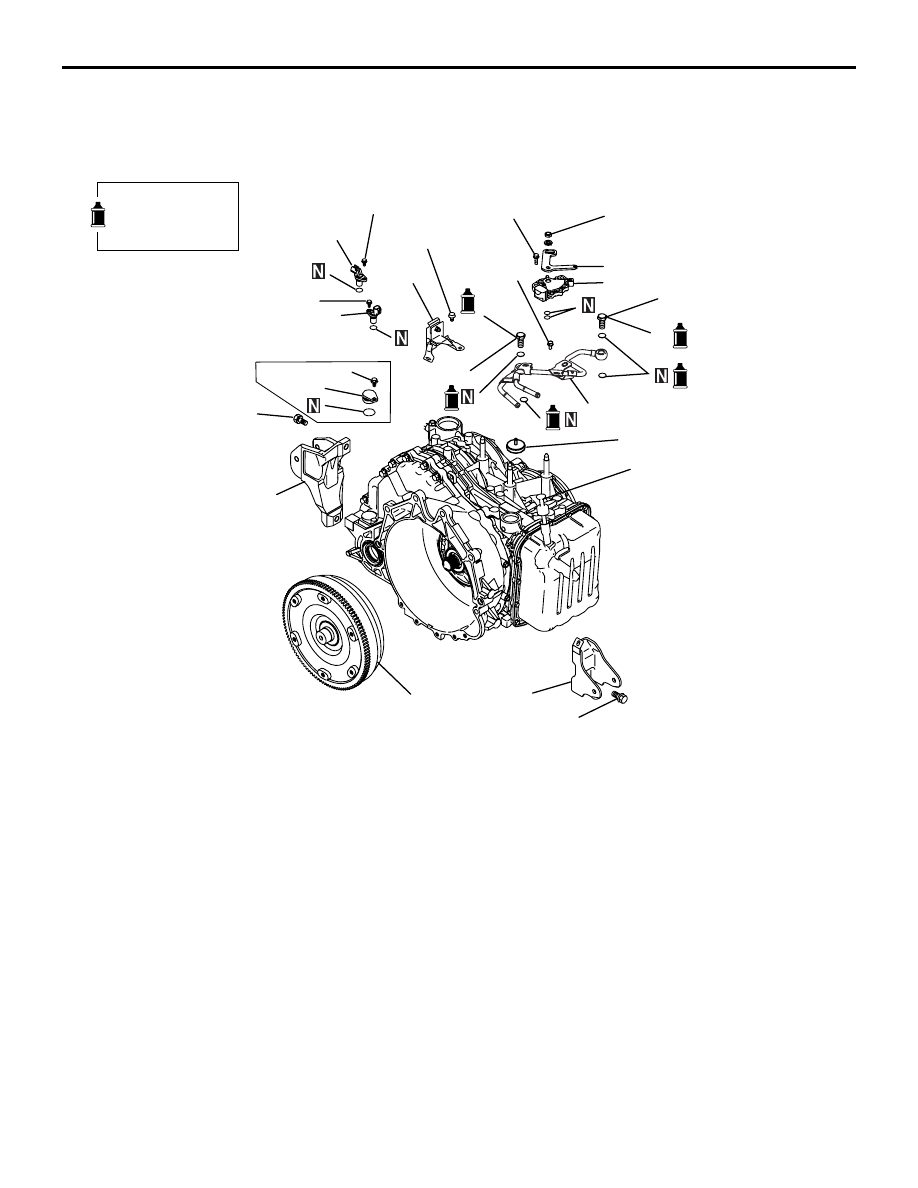

DISASSEMBLY AND REASSEMBLY

M1233001000766

AK501919AB

1

2

3

4

5

6

7

8

9

10

11

2

5

11 ± 1 N·m

11 ± 1 N·m

11 ± 1 N·m

70 ± 10 N·m

70 ± 10 N·m

24 ± 3 N·m

23 ± 3 N·m

5.0 ± 1.0 N·m

22 ± 3 N·m

24 ± 3 N·m

11 ± 1 N·m

12

Apply automatic

transmission fluid

to all moving parts

before installation.

<Type with sealing cap>

1.

Torque converter

2.

Roll stopper bracket

3.

Control cable support bracket

4.

Oil level gauge

5.

Eye bolt

6.

Oil cooler feed tube

7.

Input shaft speed sensor

8.

Output shaft speed sensor

9.

Manual control lever

10. Inhibitor switch
11. Sealing cap <Type with sealing cap>
12. Air breather

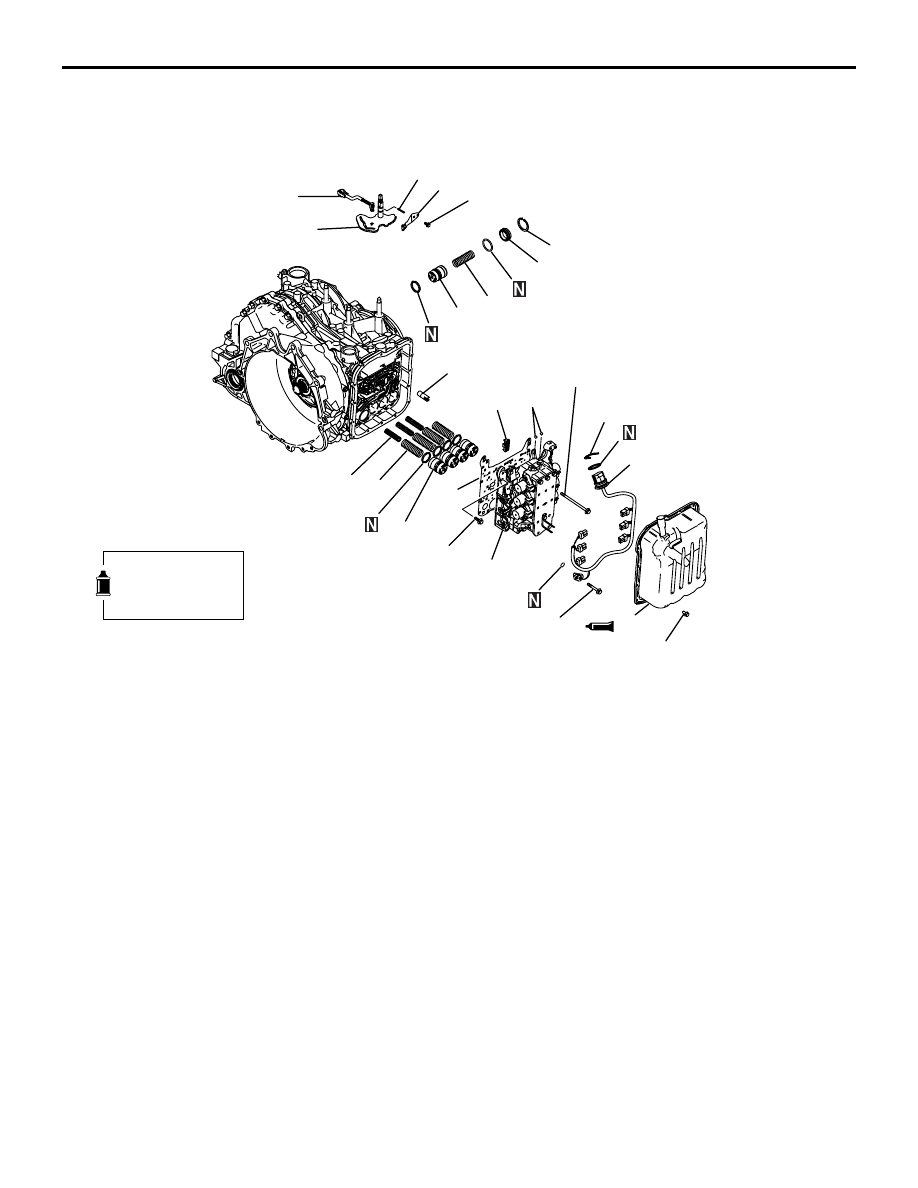

AK403264AC

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

11 ± 1 N·m

11 ± 1 N·m

11 ± 1 N·m

6.0 ± 1.0 N·m

11 ± 1 N·m

Apply automatic

transmission fluid

to all moving parts

before installation.

13. Valve body cover
14. Manual control shaft detent
15. Valve body
16. Steel ball
17. Gasket
18. Snap ring
19. Solenoid valve harness
20. Strainer
21. Solenoid brake retainer oil seal
22. Accumulator piston

23. Accumulator spring
24. Accumulator spring
25. Snap ring
26. Accumulator cover
27. Accumulator spring
28. Accumulator piston
29. Manual control lever shaft roller
30. Manual control lever shaft
31. Parking pawl rod

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL

23B-14

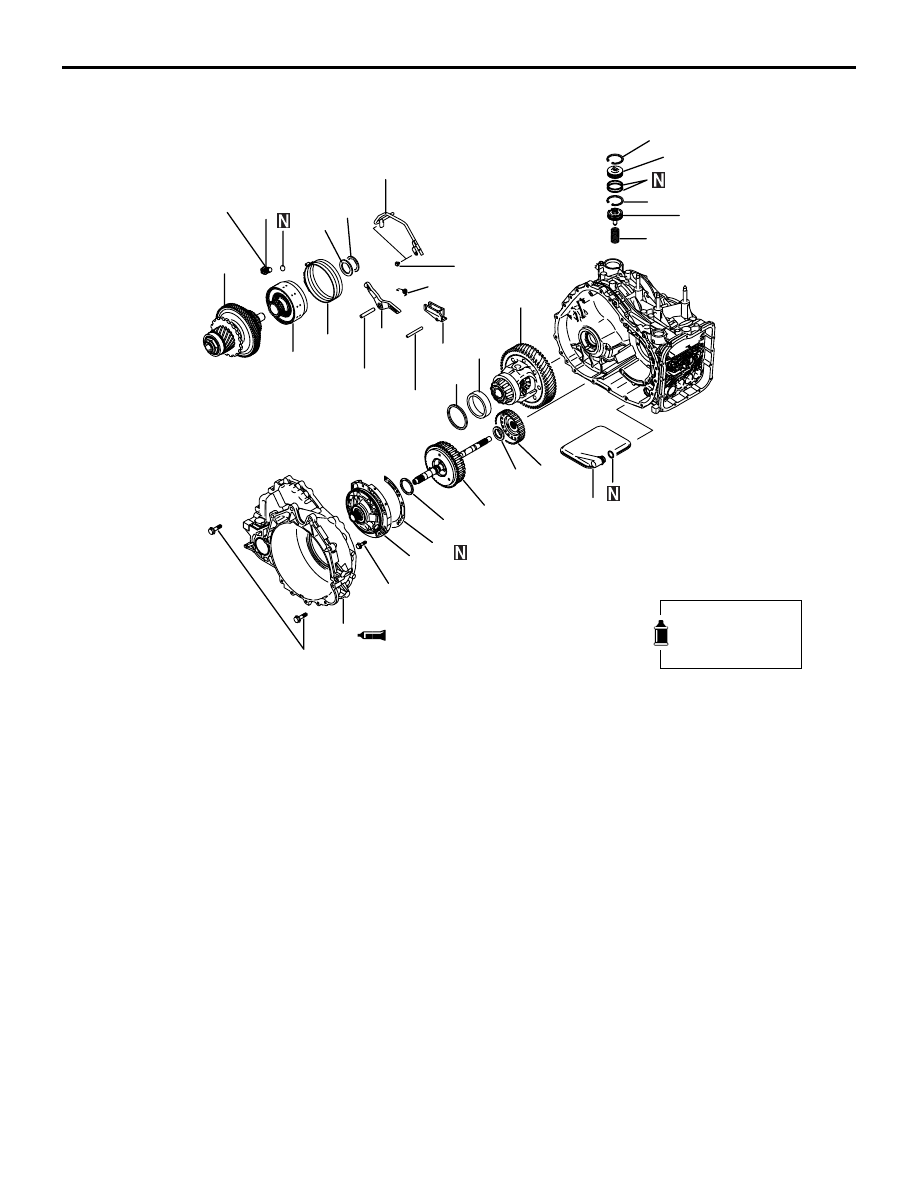

AK502957AB

98 ± 15 N·m

32

33

34

29 ± 2 N·m

35

36

37

38

39

40

41

42 43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

11 ± 1 N·m

48 ± 6 N·m

Apply automatic

transmission fluid

to all moving parts

before installation.

32. Torque converter housing
33. Spacer
34. Outer race
35. Differential
36. Oil filter
37. Oil pump
38. Gasket
39. Pipe
40. Thrust washer # 1
41. Underdrive clutch and input shaft
42. Thrust bearing #2
43. Underdrive clutch hub
44. Snap ring
45. Reduction brake piston cover

46. Snap ring
47. Reduction brake piston
48. Reduction brake spring
49. Parking pawl shaft
50. Parking pawl spring
51. Parking roller support shaft
52. Parking pawl
53. Parking roller support
54. Direct planetary carrier assembly
55. Anchor plug
56. Direct clutch
57. Reduction brake band
58. Thrust bearing #11
59. Thrust race #12

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL

23B-15
