INTAKE MANIFOLD AND FUEL PARTS

ENGINE OVERHAUL <3.8L ENGINE>

11B-18

INSTALLATION SERVICE POINTS

.

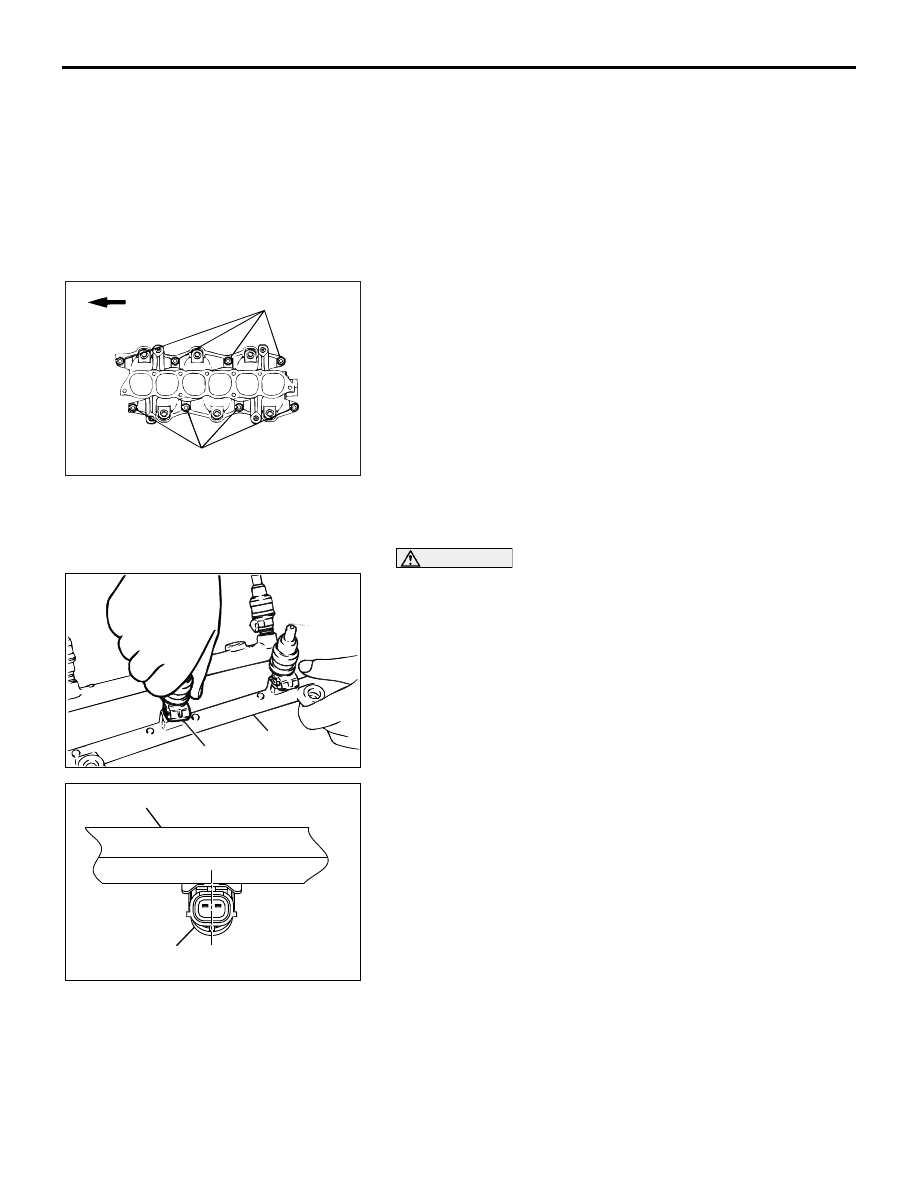

>>A<< INTAKE MANIFOLD INSTALLATION

1. Tighten the nuts "R" to 6.4

± 1.5 N⋅m (57 ± 13 in-lb).

2. Tighten the nuts "L" to the specified torque.

Tightening torque: 20

− 23 N⋅m (15 − 17 ft-lb)

3. Tighten the nuts "R" to the specified torque.

Tightening torque: 20

− 23 N⋅m (15 − 17 ft-lb)

4. Tighten the nuts "L" to the specified torque.

Tightening torque: 20

− 23 N⋅m (15 − 17 ft-lb)

5. Tighten the nuts "R" to the specified torque.

Tightening torque: 20

− 23 N⋅m (15 − 17 ft-lb)

.

>>B<< INJECTOR INSTALLATION

CAUTION

Use care not to let engine oil enter the fuel rail.
1. Apply clean engine oil to the O-ring.

2. Insert the injector into the fuel rail.

3. Make sure the injector rotates smoothly. If not, remove the

injector to check the O-ring for damage, and replace the
O-ring if necessary. Then reinsert the injector and check that
it rotates smoothly.

4. Confirm the protrusion of injector is at center. If not, rotate

the injector for protrusion to be center.

REMOVAL STEPS

1.

INJECTOR HARNESS

2.

INJECTOR AND FUEL RAIL

3.

INSULATOR

4.

INSULATOR

>>B<<

5.

INJECTOR

6.

O-RING

7.

FUEL RAIL

8.

CONED DISC SPRING

>>A<<

9.

INTAKE MANIFOLD

10. INTAKE MANIFOLD GASKET

REMOVAL STEPS (Continued)

AKX00680

TIMING

BELT SIDE

NUT "R"

NUT "L"

AB

AK302905AB

FUEL RAIL

INJECTOR

AK302906AB

INJECTOR

FUEL RAIL

WATER PUMP & WATER HOSE

ENGINE OVERHAUL <3.8L ENGINE>

11B-19

WATER PUMP & WATER HOSE

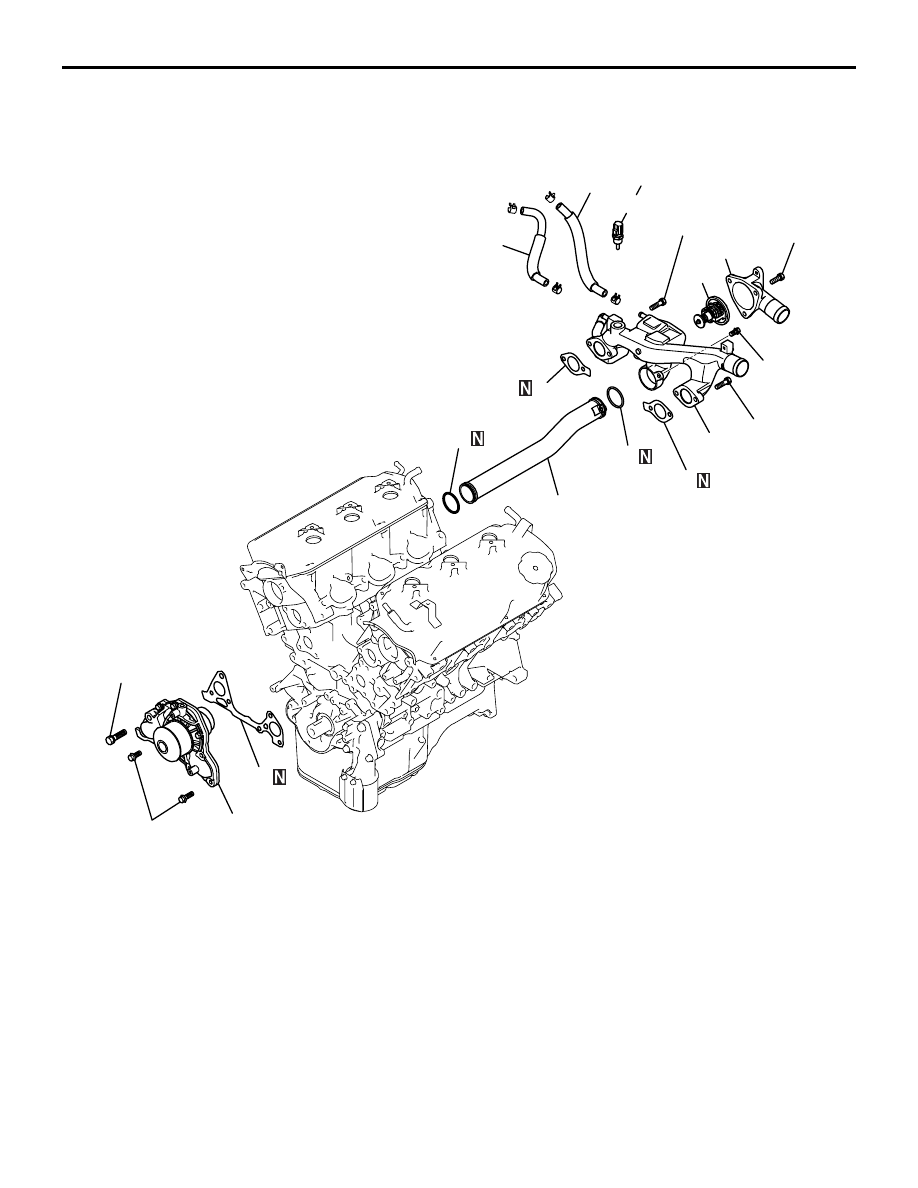

REMOVAL AND INSTALLATION

M1113017900286

AK302897AB

19 ± 1 N·m

14 ± 1 ft-lb

19 ± 1 N·m

14 ± 1 ft-lb

19 ± 1 N·m

14 ± 1 ft-lb

11 ± 1 N·m

95 ± 9 in-lb

29 ± 10 N·m

22 ± 7 ft-lb

42 ± 8 N·m

31 ± 6 ft-lb

(M10 BOLT)

24 ± 3 N·m

17 ± 2 ft-lb

(M8 BOLT)

4

5

2

6

3

1

9

12

11

8

7

7

10

REMOVAL STEPS

1.

WATER HOSE

2.

WATER HOSE

>>D<<

3.

ENGINE COOLANT TEMPERATURE
SENSOR

4.

WATER INLET FITTING

>>C<<

5.

THERMOSTAT

6.

THERMOSTAT HOUSING

>>B<<

7.

THERMOSTAT HOUSING GASKET

>>A<<

8.

O-RING

>>A<<

9.

WATER INLET PIPE

>>A<<

10. O-RING
11. WATER PUMP
12. WATER PUMP GASKET

REMOVAL STEPS (Continued)

WATER PUMP & WATER HOSE

ENGINE OVERHAUL <3.8L ENGINE>

11B-20

INSTALLATION SERVICE POINTS

.

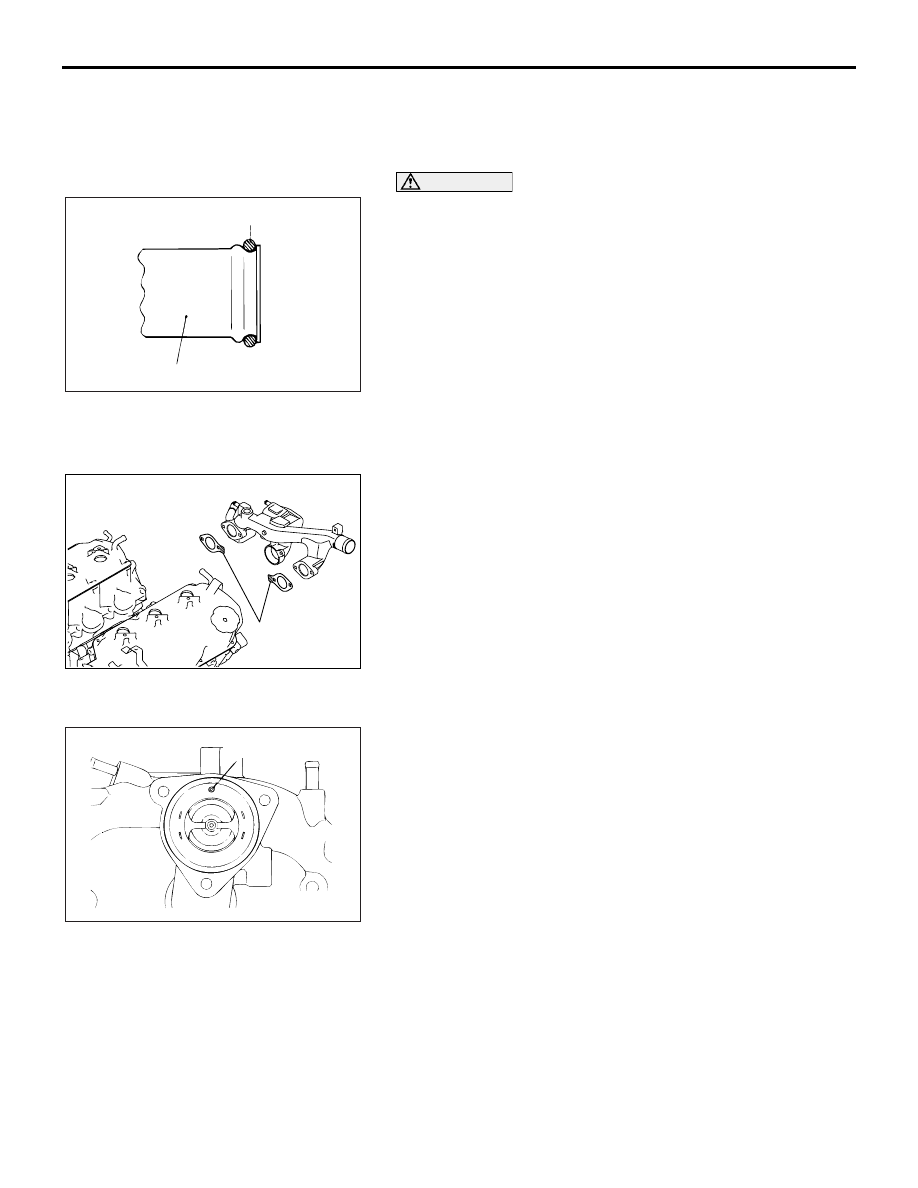

>>A<< O-RING AND WATER INLET PIPE INSTAL-
LATION

CAUTION

Keep the O-ring free of oil or grease.
1. Attach a new O-ring to each end of the water inlet pipe.

2. Wet the O-ring with water.

3. Insert the front end of the pipe into the water pump.

.

>>B<< THERMOSTAT HOUSING GASKET
INSTALLATION

Install the thermostat housing gasket so that the tab is posi-
tioned as shown in the illustration.

.

>>C<< THERMOSTAT INSTALLATION

1. Check that the rubber ring is free from damage and seated

correctly in the thermostat flange.

2. Install the thermostat as shown in the illustration. The jiggle

valve must be at the top position.

.

AKX00711

O-RING

WATER INLET

PIPE

AB

AK302907

TAB

AB

AKX00670AB

JIGGLE VALVE

EXHAUST MANIFOLD

ENGINE OVERHAUL <3.8L ENGINE>

11B-21

>>D<< SEALANT APPLICATION TO ENGINE
COOLANT TEMPERATURE SENSOR

Apply 3M

™ AAD Part number 8731 or equivalent to the engine

coolant temperature sensor.

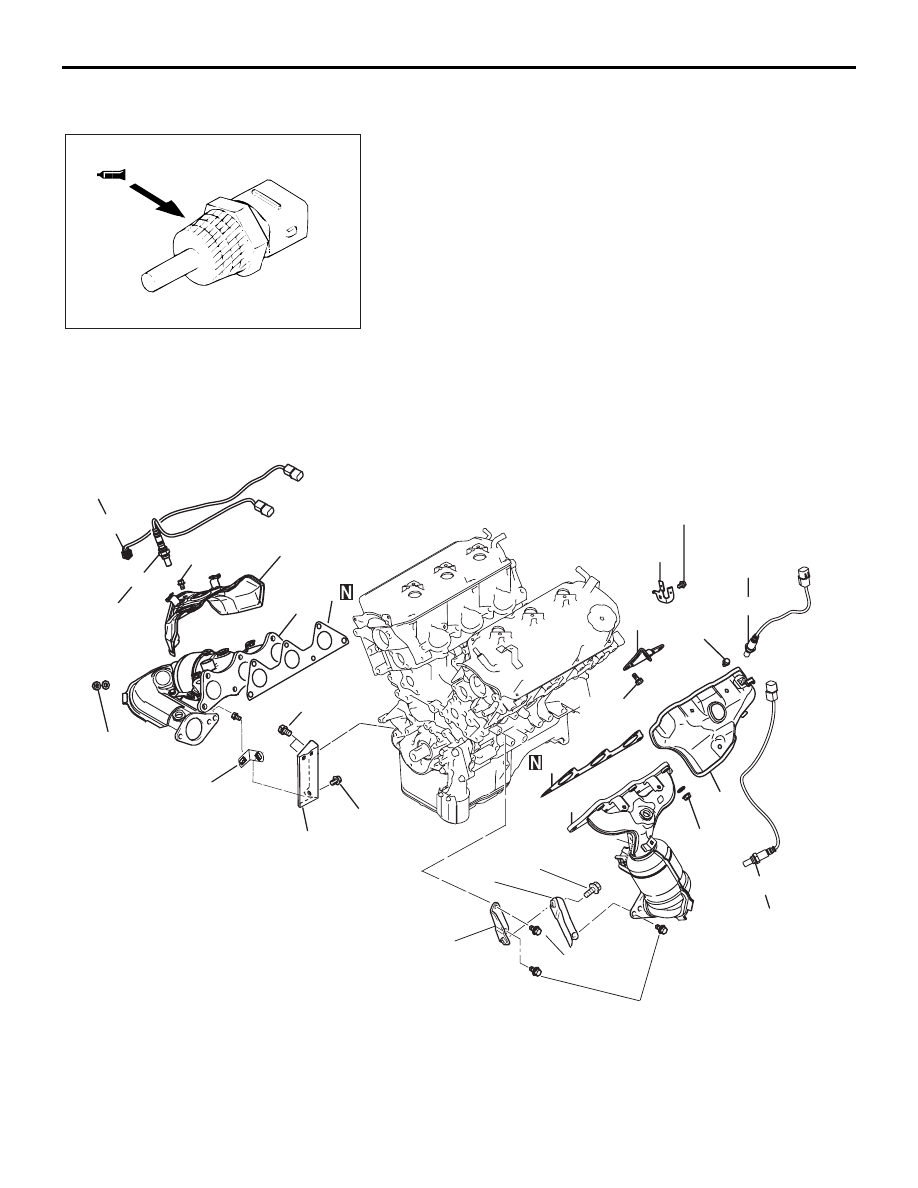

EXHAUST MANIFOLD

REMOVAL AND INSTALLATION

M1113004900424

AKX00686

01DB045A

44 ± 5 N·m

33 ± 4 ft-lb

14

10

15

13

17

16

44 ± 5 N·m

33 ± 4 ft-lb

14 ± 1 N·m

122 ± 9 in-lb

11 ± 1 N·m

95 ± 9 in-lb

11

9

35 ± 6 N·m

26 ± 4 ft-lb

44 ± 5 N·m

33 ± 4 ft-lb

12

44 ± 8 N·m

33 ± 5 ft-lb

7

8

44 ± 5 N·m

33 ± 4 ft-lb

44 ± 5 N·m

33 ± 4 ft-lb

3

14 ± 1 N·m

122 ± 9 in-lb

2

1

44 ± 5 N·m

33 ± 4 ft-lb

75 ± 10 N·m

56 ± 7 ft-lb

5

4

19 ± 3 N·m

14 ± 2 ft-lb

44 ± 8 N·m

33 ± 5 ft-lb

44 ± 8 N·m

33 ± 5 ft-lb
