TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION

23A-304

TRANSMISSION ASSEMBLY

REMOVAL AND INSTALLATION

M1231005700459

CAUTION

*

: Indicates parts which should be temporarily tightened, and then fully tightened after placing the

vehicle horizontally and loading the full weight of the engine on the vehicle body.

Pre-installation Operation
• Front Under Cover, Side Under Cover Removal
• Transmission Fluid Draining (Refer to GROUP 00, Main-

tenance Service

− Automatic Transmission

P.00-45

.)

• Engine Cover Removal (Refer to GROUP 11C, Engine

Assembly

11A-14

.)

• Air Cleaner Assembly Removal (Refer to GROUP 15, Air

Cleaner

P.15-4

.)

• Engine-ECU and A/T-ECU Removal (Refer to GROUP

13A

13A-675

.)

• Battery and Battery Tray Removal

• Front Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-14

.)

Post-installation Operation
• Front Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-14

.)

• Battery and Battery Tray Installation

• Engine-ECU and A/T-ECU Installation (Refer to GROUP

13A

13A-675

.)

• Air Cleaner Assembly Installation (Refer to GROUP 15,

Air Cleaner

P.15-4

.)

• Engine Cover Installation (Refer to GROUP 11C, Engine

Assembly

11A-14

.)

• Transmission Fluid Supplying (Refer to GROUP 00, Main-

tenance Service

− Automatic Transmission

P.00-45

.)

• Front Under Cover, Side Under Cover Installation

• Selector Lever Operation Check (Refer to

P.23A-299

.)

• Speedometer Operation Check (Refer to GROUP 54A,

Combination Meter

− On-vehicle Service − Speedometer

Check

P.54A-92

.)

• Front Wheel Alignment Check and Adjustment (Refer to

GROUP 33, On-vehicle Service

− Front Wheel Alignment

Check and Adjustment

P.33-6

.)

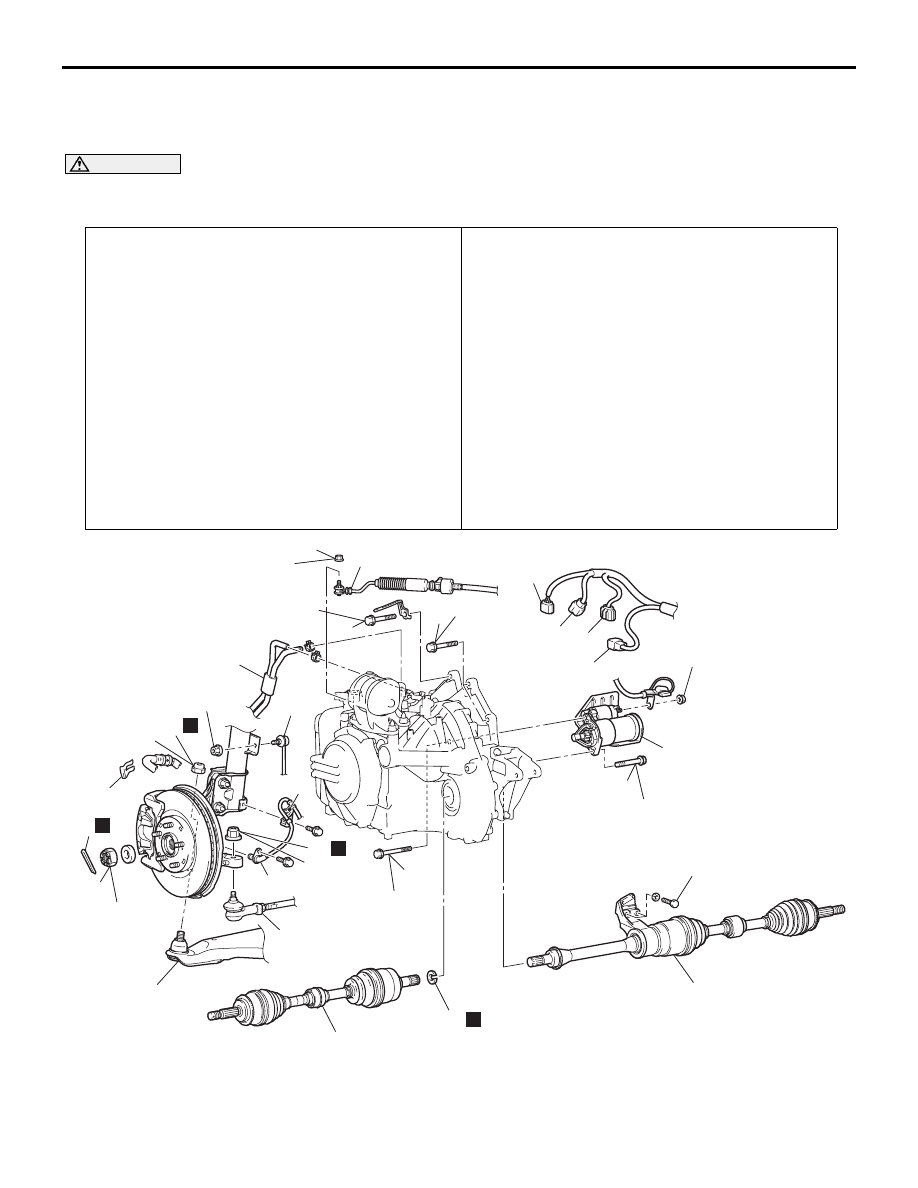

AC305969

7

N

8

226 ± 29 N·m

167 ± 21 ft-lb

65 ± 6 N·m

48 ± 4 ft-lb

12

N

48 ± 7 N·m

36 ± 5 ft-lb

10

9

29 ± 4 N·m

21 ± 3 ft-lb

N

14

16

20

2

1

12 ± 2 N·m

107 ± 17 in-lb

73 ± 10 N·m

54 ± 7 ft-lb

3

4 5

6

22

30 ± 3 N·m

23 ± 2 ft-lb

30 ± 3 N·m

22 ± 2 ft-lb

41 ± 4 N·m

30 ± 3 ft-lb

N

17

19

AB

23

23

73 ± 10 N·m

54 ± 7 ft-lb

13

15

18

21

21

11

12 ± 2 N·m

102 ± 22 in-lb

REMOVAL STEPS

>>E<<

1.

ADJUSTING NUT

>>E<<

2.

TRANSMISSION CONTROL
CABLE CONNECTION

3.

INHIBITOR SWITCH SENSOR
CONNECTOR

4.

A/T CONTROL SOLENOID VALVE
ASSEMBLY CONNECTOR

REMOVAL STEPS (Continued)

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION

23A-305

5.

INPUT SHAFT SPEED SENSOR
CONNECTOR

6.

OUTPUT SHAFT SPEED
SENSOR CONNECTOR

7.

SPLIT PIN

<<A>>

>>D<<

8.

DRIVE SHAFT NUT

9.

WHEEL SPEED SENSOR

10. WHEEL SPEED SENSOR

BRACKET

11. BRAKE HOSE CLAMP
12. STABILIZER LINK CONNECTION

<STRUT SIDE>

13. SELF-LOCKING NUT

(CONNECTION FOR TIE ROD
END)

REMOVAL STEPS (Continued)

<<B>>

14. TIE ROD END CONNECTION
15. SELF-LOCKING NUT

(CONNECTION FOR LOWER
ARM BALL JOINT)

<<B>>

16. LOWER ARM BALL JOINT

CONNECTION

<<C>>

>>C<<

17. DRIVE SHAFT <LH>
18. CIRCLIP

<<C>>

>>C<<

19. DRIVE SHAFT AND INNER

SHAFT ASSEMBLY <RH>

20. TRANSMISSION FLUID COOLER

HOSE

21. STARTER MOTOR ATTACHING

BOLTS

22. STARTER MOTOR
23. TRANSMISSION ASSEMBLY

UPPER PART COUPLING BOLTS

REMOVAL STEPS (Continued)

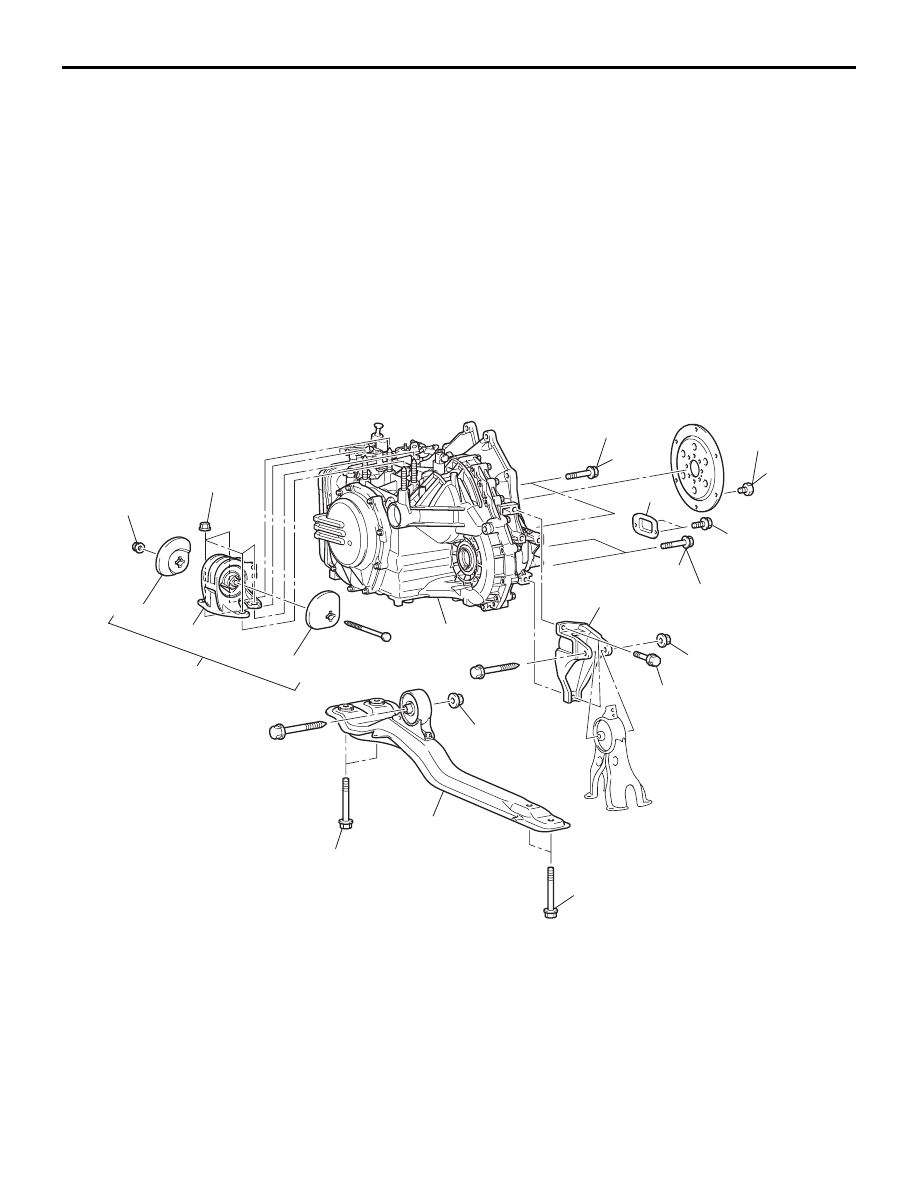

10DB155A

83 ± 12 N·m

61 ± 9 ft-lb

83 ± 12 N·m

61 ± 9 ft-lb

69 ± 10 N·m*

51 ± 7 ft-lb*

26

90 ± 10 N·m

67 ± 7 ft-lb

11 ± 0.5 N·m

93 ± 4 in-lb

49 ± 3 N·m

36 ± 2 ft-lb

25

24

32

88 ± 10 N·m

65 ± 7 ft-lb

83 ± 12 N·m*

61 ± 9 ft-lb*

30

30

31

29

28

33

27

35 ± 6 N·m

26 ± 4 ft-lb

69 ± 10 N·m*

51 ± 7 ft-lb*

83 ± 12 N·m*

61 ± 9 ft-lb*

REMOVAL STEPS

24. COVER

<<D>>

25. TORQUE CONVERTER AND

DRIVE PLATE BOLTS

26. CENTERMEMBER ASSEMBLY
27. ENGINE OIL PAN AND

TRANSMISSION  COUPLING
BOLTS

28. REAR ROLL STOPPER BRACKET
•

AIR CLEANER BRACKET

29. TRANSMISSION MOUNT

BRACKET ASSEMBLY

>>B<<

30. TRANSMISSION MOUNT

STOPPER

31. TRANSMISSION MOUNT

BRACKET

<<E>>

•

ENGINE ASSEMBLY
SUPPORTING

•

LIFTING UP OF THE VEHICLE

REMOVAL STEPS (Continued)

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION

23A-306

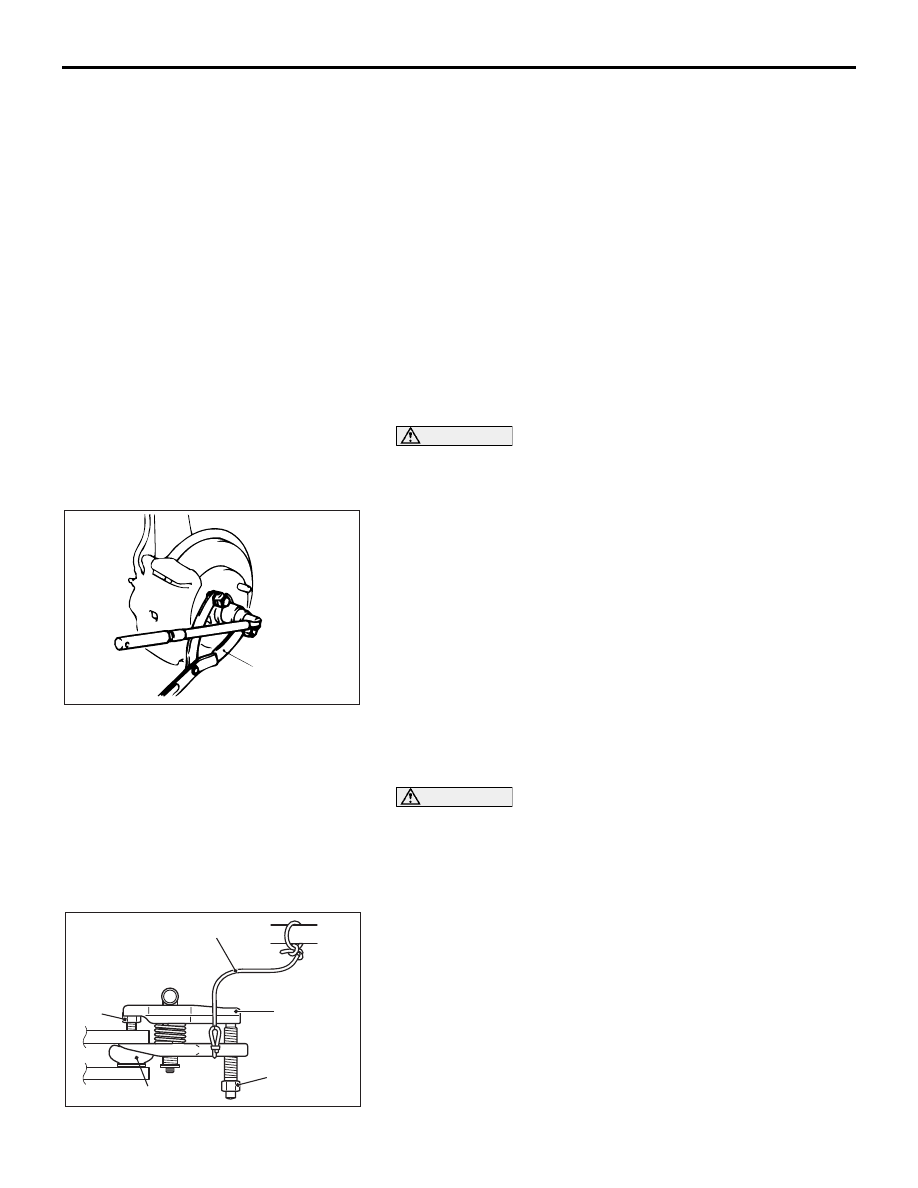

Required Special Tools:

• MB990767: End Yoke Holder

• MB991897: Ball Joint Remover

• MB990242: Puller Shaft Puller

• MB990244: Puller Bar

• MB991354: Puller Body

• MB990998: Front Hub Remover and Installer

• MB991000: Spacer

• MB991454: Engine Hanger Balancer

• MB991895: Engine Hanger

• MB991928: Engine Hanger

• MB991932: Foot (standard)

• MB991929: Joint (50)

• MB991931: Joint (140)

• MB991934: Chain and Hook Assembly

REMOVAL SERVICE POINTS

.

<<A>> DRIVE SHAFT NUT REMOVAL

CAUTION

Do not apply pressure to the wheel bearing by the vehicle
weight to avoid possible damage when the drive shaft nut
is loosened.
Use special tool MB990767 to fix the hub and remove the drive
shaft nut.

.

<<B>> TIE ROD END CONNECTION/LOWER ARM
BALL JOINT CONNECTION REMOVAL

CAUTION

• Do not remove the nut from ball joint. Loosen it and use

the special tool to avoid possible damage to ball joint
threads.

• Hang the special tool with cord to prevent it from fall-

ing.

1. Replace the self locking nut with a regular nut, because the

original one is a little bit large to install the special tool.
Install special tool MB991897 as shown in the figure.

•

SUPPORT THE TRANSMISSION
WITH A TRANSMISSION JACK

32. TRANSMISSION ASSEMBLY

LOWER PART COUPLING BOLTS

>>A<<

33. TRANSMISSION ASSEMBLY

REMOVAL STEPS (Continued)

AC102462

AC

MB990767

AC208247AC

CORD

BOLT

MB991897

NUT

BALL JOINT

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION

23A-307

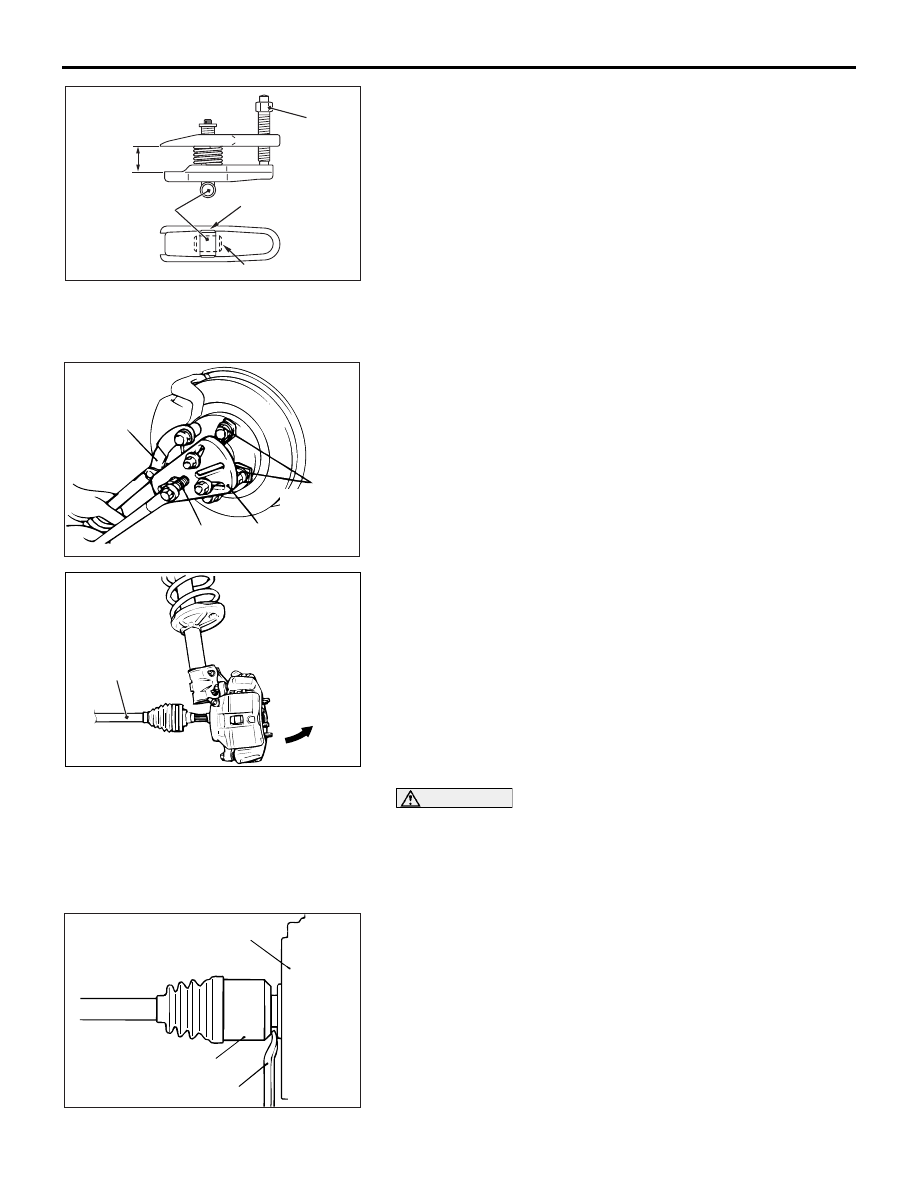

2. Turn the bolt and knob as necessary to make the jaws of

special tool MB991897 parallel, tighten the bolt by hand and
confirm that the jaws are still parallel.

NOTE: When adjusting the jaws in parallel, make sure the
knob is in the position shown in the figure.

3. Tighten the bolt with a wrench to disconnect the tie rod end

and remove the self locking nut.

.

<<C>> DRIVE SHAFT <LH>/DRIVE SHAFT AND
INNER SHAFT ASSEMBLY <RH> REMOVAL

1. Use special tools MB990242, MB990244, MB991354 and

MB990767 to push out the drive shaft or the drive shaft and
inner shaft assembly from the hub.

2. Remove the drive shaft from the hub by pulling the bottom of

the brake disc towards you.

CAUTION

• Do not pull on the drive shaft; doing so will damage the

PTJ; be sure to use the pry bar.

• When pulling the drive shaft out from the transmission,

be careful that the spline part of the drive shaft does
not damage the oil seal.

3. Insert a pry bar between the transmission case and the drive

shaft, and then pry and remove the drive shaft from the
transmission.

AC106821

KNOB

PARALLEL

BOLT

CORRECT

WRONG

AC

AC102550

MB990244
(THREE)

MB991354

MB990242

MB990767

AC

AC102551AD

DRIVE
SHAFT

AC100141AL

TRANSAXLE

PTJ ASSEMBLY

PRY BAR
