TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TRACTION CONTROL SYSTEM (TCL)

13C-44

• Connect oscilloscope to FL sensor signal terminal (5) at

ABS-ECU (A-02)

• Connect oscilloscope to FR sensor signal terminal (10)

at ABS-ECU (A-02)

• Connect oscilloscope to RL sensor signal terminal (17)

at ABS-ECU (A-02)

• Connect oscilloscope to RR sensor signal terminal (19)

at ABS-ECU (A-02)

(7) Recommended Oscilloscope setting:

•  Y-axis:  2Volts

•  X-axis:  100ms

(8) Turn the ignition switch to the "ON" position.
(9) Turn wheel by hand at approximately 1 revolution per

second (r/sec) or drive on brake dynamometer at 5km/h.

The measurement reading of the active wheel speed sen-
sors on the oscilloscope should correspond to figure 3
below.

NOTE: If the oscilloscope signal shape is correct and wheel
sensor air gap is within specification, but the voltage values are
either higher or lower as shown in the table below, the wheel
speed sensor must be changed.

1.50

1.00

0.50

0.00

U-CH1

0

20

40

60

80

100

ms

V

Test Procedure:   Universal Oscilloscope

FIGURE  3

35DB120A

SPECIAL TOOLS

TRACTION CONTROL SYSTEM (TCL)

13C-45

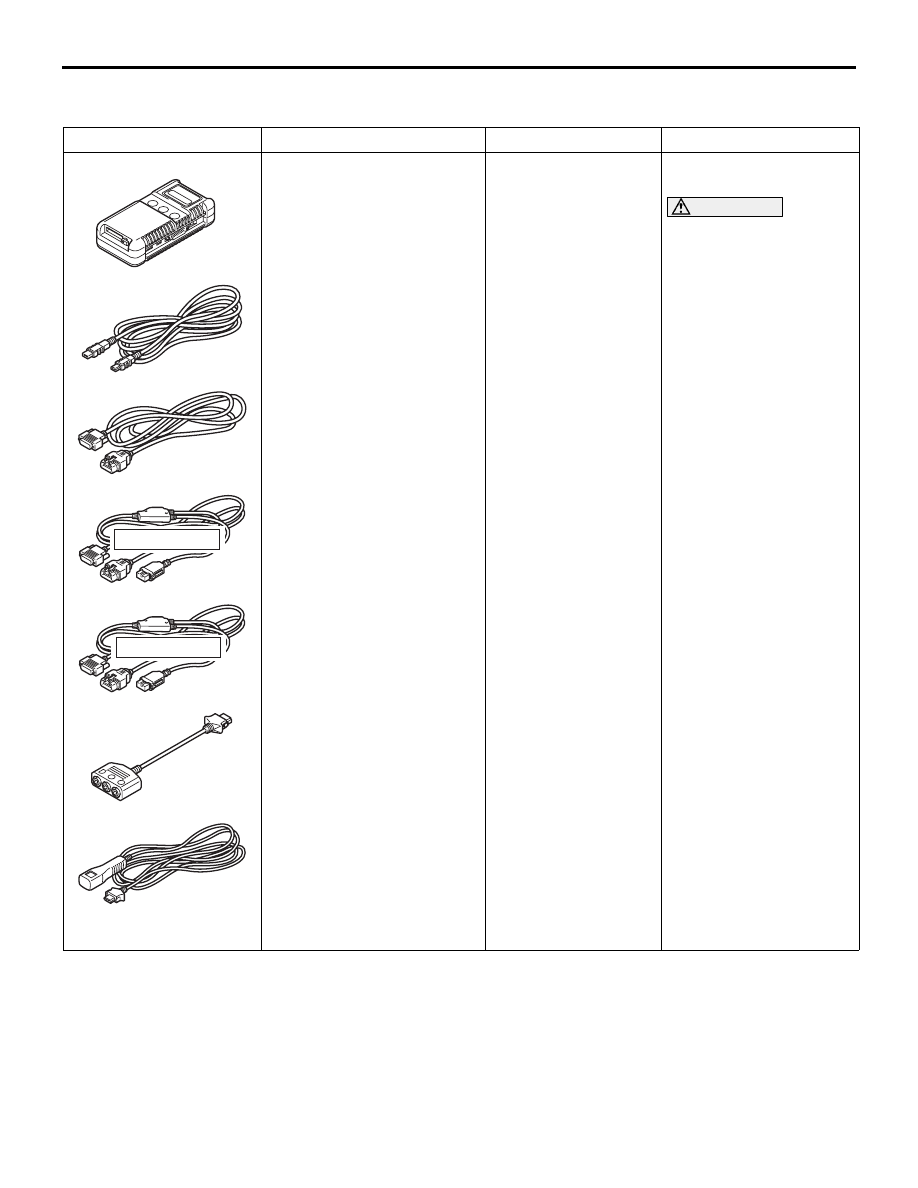

SPECIAL TOOLS

M1136000600024

TOOL

TOOL NUMBER AND NAME SUPERSESSION

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III sub assembly

A: Vehicle communication

interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main harness A

(Vehicles with CAN
communication system)

D: MUT-III main harness B

(Vehicles without CAN
communication system)

E: MUT-III main harness C

(for Daimler Chrysler
models only)

F: MUT-III measurement

adapter

G: MUT-III trigger harness

MB991824-KIT

NOTE: G: MB991826
MUT-III trigger
harness is not
necessary when
pushing V.C.I. ENTER
key.

Checking diagnostic
trouble codes

CAUTION

For vehicles with CAN
communication, use
MUT-III main harness A
to send simulated
vehicle speed. If you
connect MUT-III main
harness B instead, the
CAN communication
does not function
correctly.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

SPECIAL TOOLS

TRACTION CONTROL SYSTEM (TCL)

13C-46

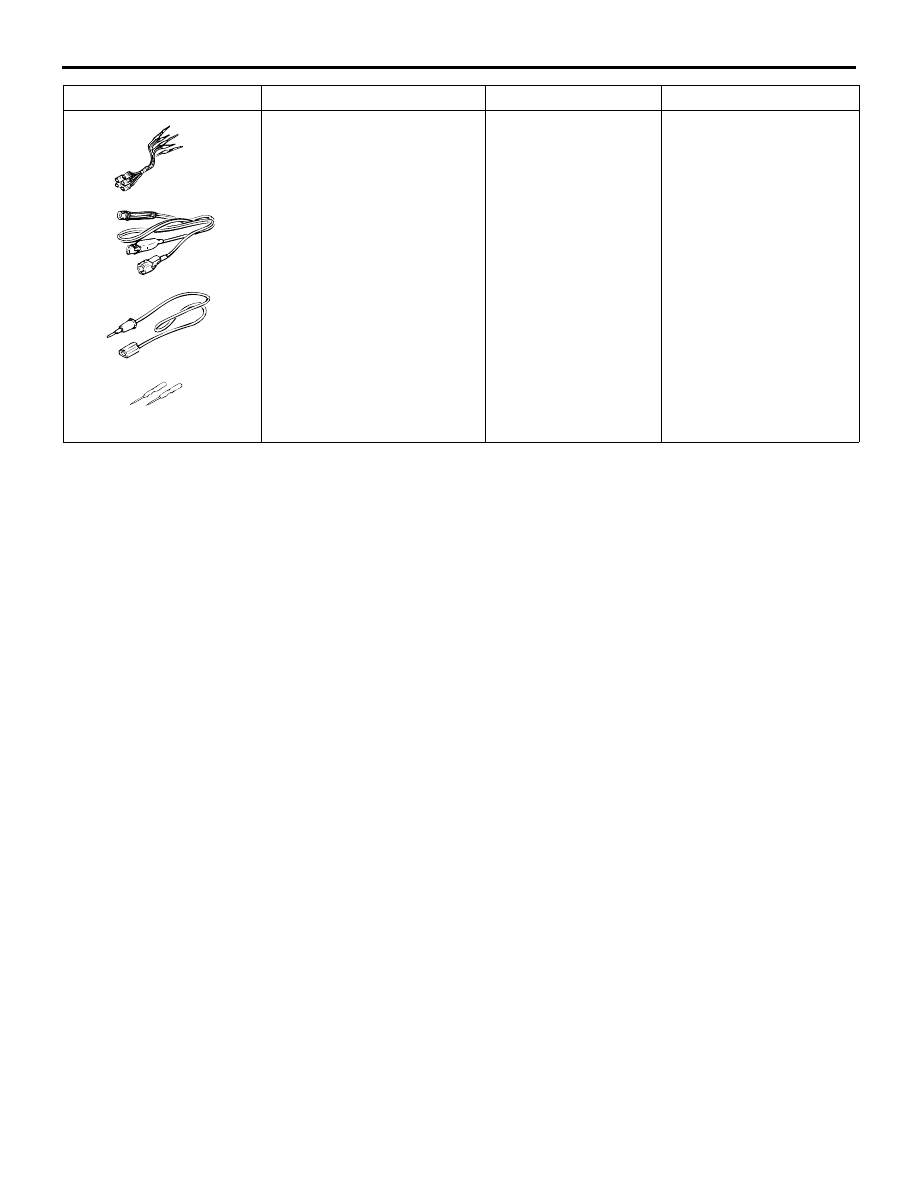

MB991223

A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Inspection harness
B: LED harness
C: LED harness adapter
D: Probe

General service tools

Checking the continuity
and measuring the
voltage at the harness
connector

TOOL

TOOL NUMBER AND NAME SUPERSESSION

APPLICATION

MB991223

A

D

C

B

AD

ON-VEHICLE SERVICE

TRACTION CONTROL SYSTEM (TCL)

13C-47

ON-VEHICLE SERVICE

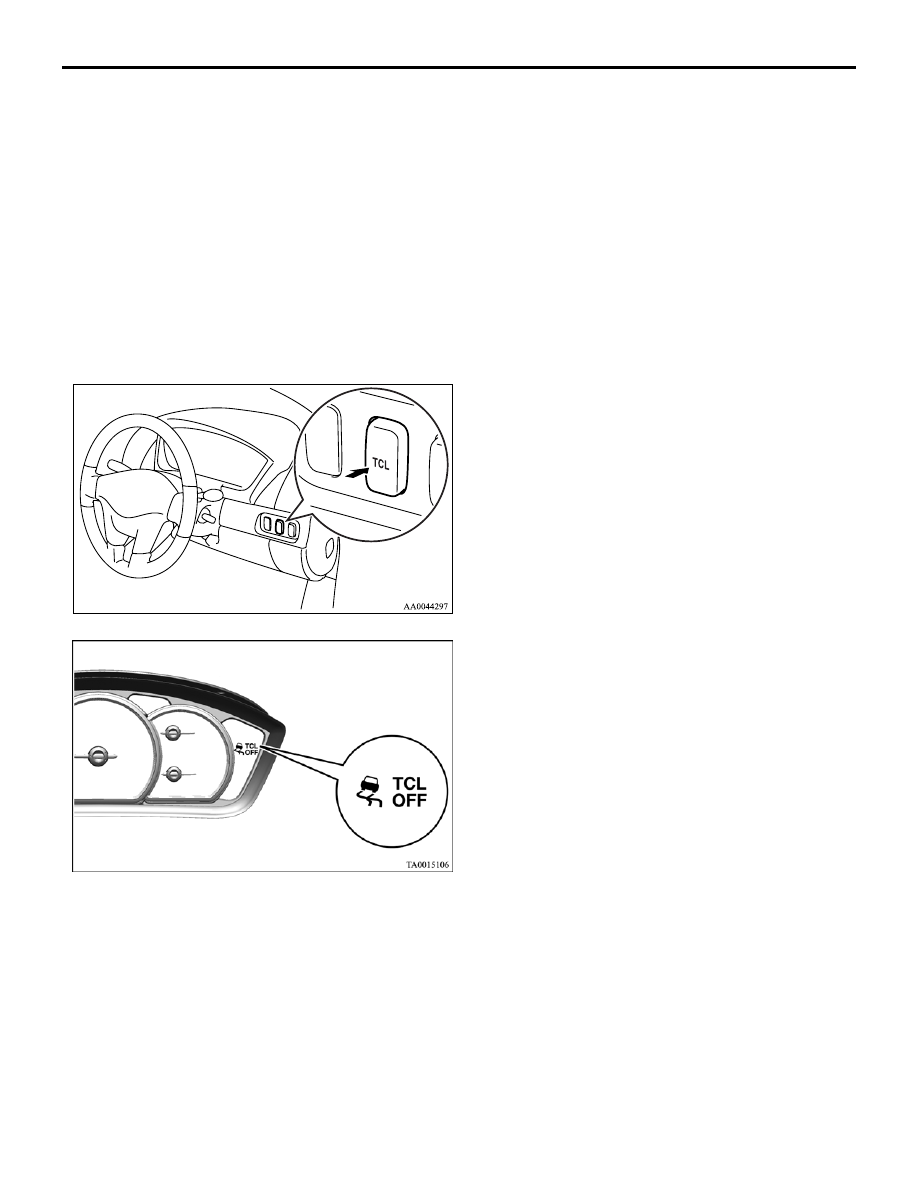

TCL INDICATOR LIGHT CHECK

M1136000900058

1. Check that the "TCL OFF" indicator light and the TCL work

indicator light illuminate for three seconds when the ignition
switch is turned to the "ON" position.

2. Check that the "TCL OFF" indicator light illuminates and

goes off in cycles each time the TCL switch is pushed after
starting the engine.

3. Check that the "TCL OFF" indicator light and the TCL work

indicator light do not illuminate, when driving at 30km/h
(37.5 mph) for more than 2 seconds.

4. If defective, repair it. (Refer to

P.13C-23

, TCL diagnosis

−

Symptom Procedures

− Inspection Procedure 1, 2, 3 and 4).

TCL OPERATION CHECK

M1136001100055

Required Special Tools:

• MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A
