SUNROOF ASSEMBLY

BODY

42-80

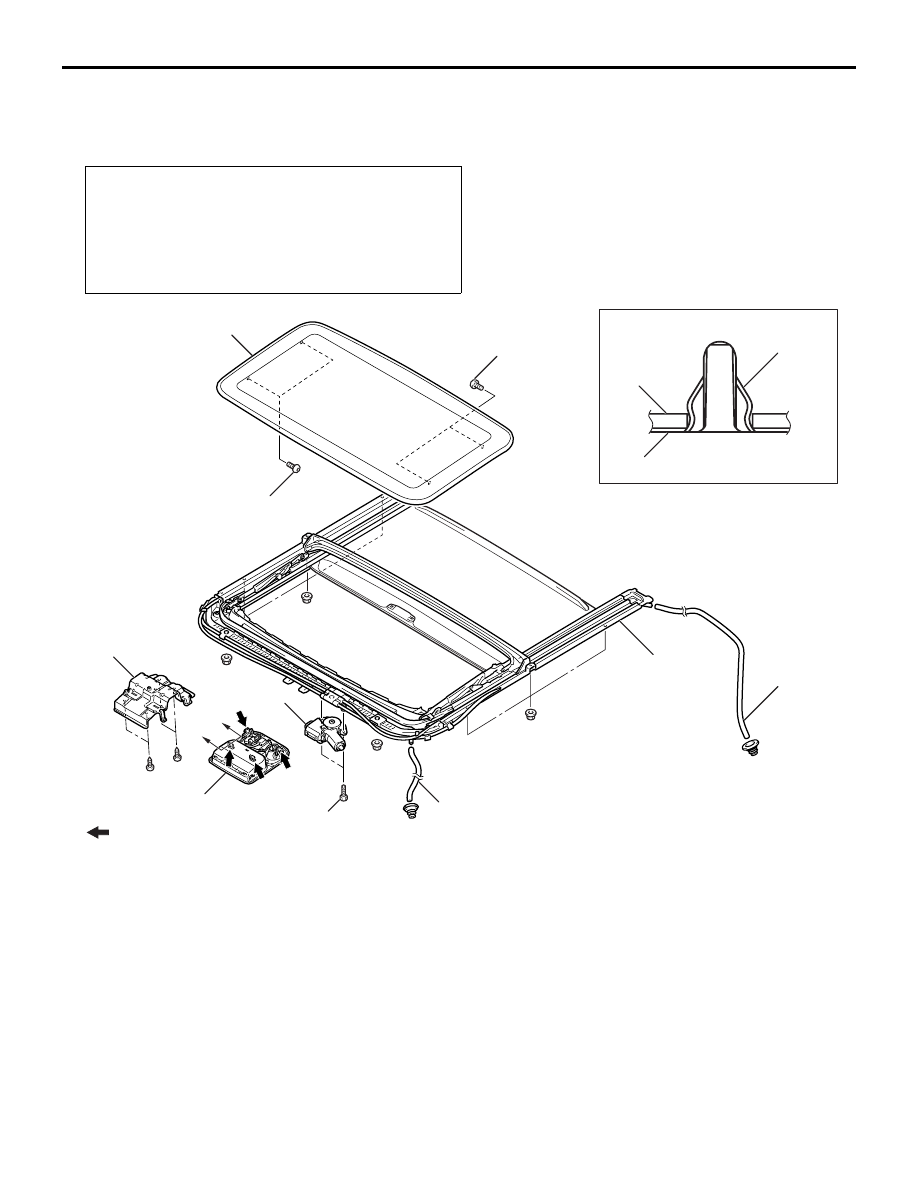

SUNROOF ASSEMBLY

REMOVAL AND INSTALLATION

M1426001200308

Post-installation Operation <Roof lid glass assembly,
Sunroof assembly>
• Sunroof Water Test (Refer to

P.42-75

).

• Sunroof Fit Adjustment (Refer to

P.42-76

).

Post-installation Operation <Roof lid glass assembly,
Sunroof motor assembly>
• Sunroof Initializing Adjustment (Refer to

P.42-77

).

AC307032

AC307985

AC206389

1

2

2

3

4

6

5

5

7

NOTE
         : CLIP POSITIONS

SECTION A – A

AB

A

A

4.0 ± 0.5 N·m
36 ± 4 in-lb

4.0 ± 0.5 N·m
36 ± 4 in-lb

5.4 N·m
48 in-lb

CLIP

REMOVAL

1. ROOF LID GLASS ASSEMBLY
2. OVERHEAD CONSOLE ASSEMBLY

DRAIN PIPE REMOVAL STEPS

•

FRONT HEADLINING PAD (REFER
TO GROUP 52A, HEADLINING

P.52A-19

).

•

FRONT SPLASH SHIELD (REFER
TO

P.42-10

).

•

UPPER FRAME TO FRONT PILLAR
BRACE (FRONT DRAIN PIPE <LH>)
(REFER TO

P.42-84

).

•

INSTRUMENT PANEL PARCEL BOX
(FRONT DRAIN PIPE <RH>)
(REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-4

).

>>A<<

3. FRONT DRAIN PIPE
•

REAR HEADLINING PAD (REFER
TO GROUP 52A, HEADLINING

P.52A-19

).

•

TRUNK TRIM ASSEMBLY (REFER
TO GROUP 52A, TRIMS

P.52A-11

).

•

REAR SPLASH SHIELD (REFER TO
GROUP 51, REAR BUMPER

P.51-5

).

>>A<<

4. REAR DRAIN PIPE

SUNROOF MOTOR ASSEMBLY
REMOVAL STEPS

•

HEADLINING (REFER TO GROUP
52A, HEADLINING

P.52A-19

).

5. SUNROOF MOTOR ASSEMBLY

DRAIN PIPE REMOVAL STEPS

SUNROOF ASSEMBLY

BODY

42-81

Required Special Tool:

• MB991223: Harness set

INSTALLATION SERVICE POINT

.

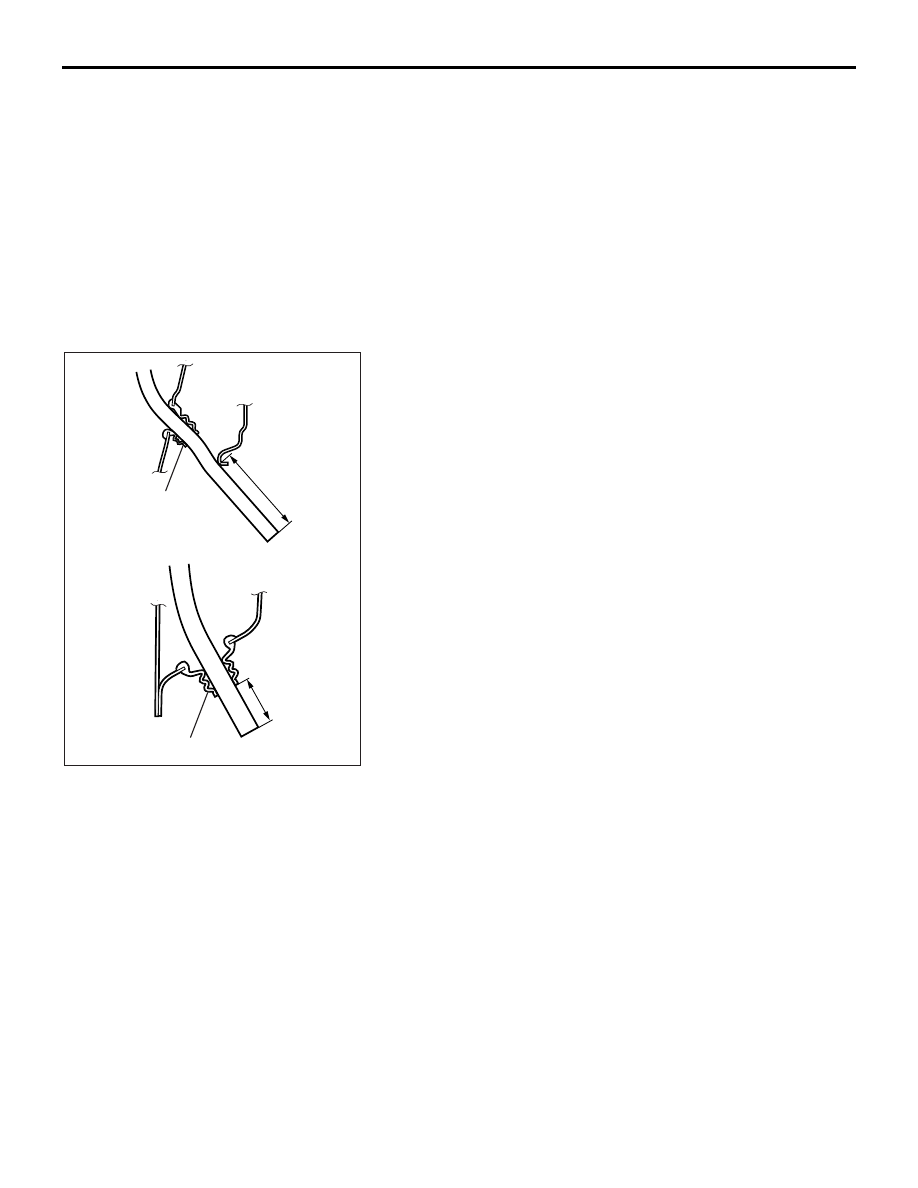

>>A<< REAR DRAIN PIPE/FRONT DRAIN PIPE
INSTALLATION

Install the grommet, and then position the drain pipe so that it
protrudes from the grommet as shown in the illustration.

SUNROOF ASSEMBLY REMOVAL
STEPS

1. ROOF LID GLASS ASSEMBLY
•

HEADLINING (REFER TO GROUP
52A, HEADLINING

P.52A-19

).

•

DRAIN PIPE CONNECTION

5. SUNROOF MOTOR ASSEMBLY

6. OVERHEAD CONSOLE BRACKET
7. SUNROOF ASSEMBLY

SUNROOF ASSEMBLY REMOVAL
STEPS (Continued)

AC307033

AC307034

AC307305

UNITS: mm (in)

94 ± 14

(3.7 ± 0.6)

37 ± 17

(1.5 ± 0.7)

AB

<FRONT>

<REAR>

GROMMET

GROMMET

SUNROOF ASSEMBLY

BODY

42-82

INSPECTION

M1421007600440

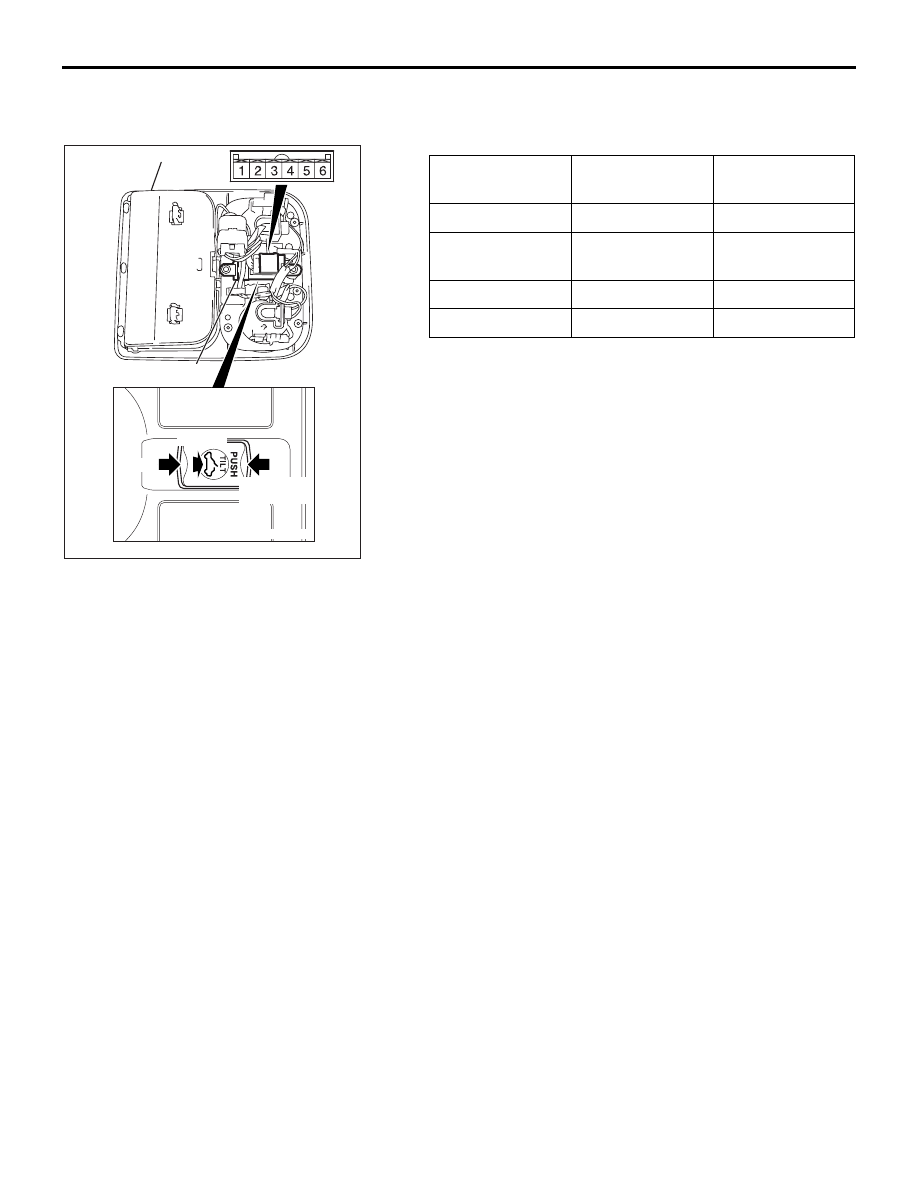

SUNROOF SWITCH CONTINUITY  CHECK

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Open

4

− 5

Less than 2 ohms

Off

3

− 4, 3 − 5, 3 − 6,

4

− 5, 4 − 6, 5 − 6

Open circuit

Tilt-up

3

− 4

Less than 2 ohms

Close/Tilt-down

4

− 6

Less than 2 ohms

AC306720

AC307038

AC209094

AB

OPEN

OVERHEAD CONSOLE

CLOSE/

TILT-DOWN

TILT-UP

SUNROOF SWITCH

SUNROOF ASSEMBLY

BODY

42-83

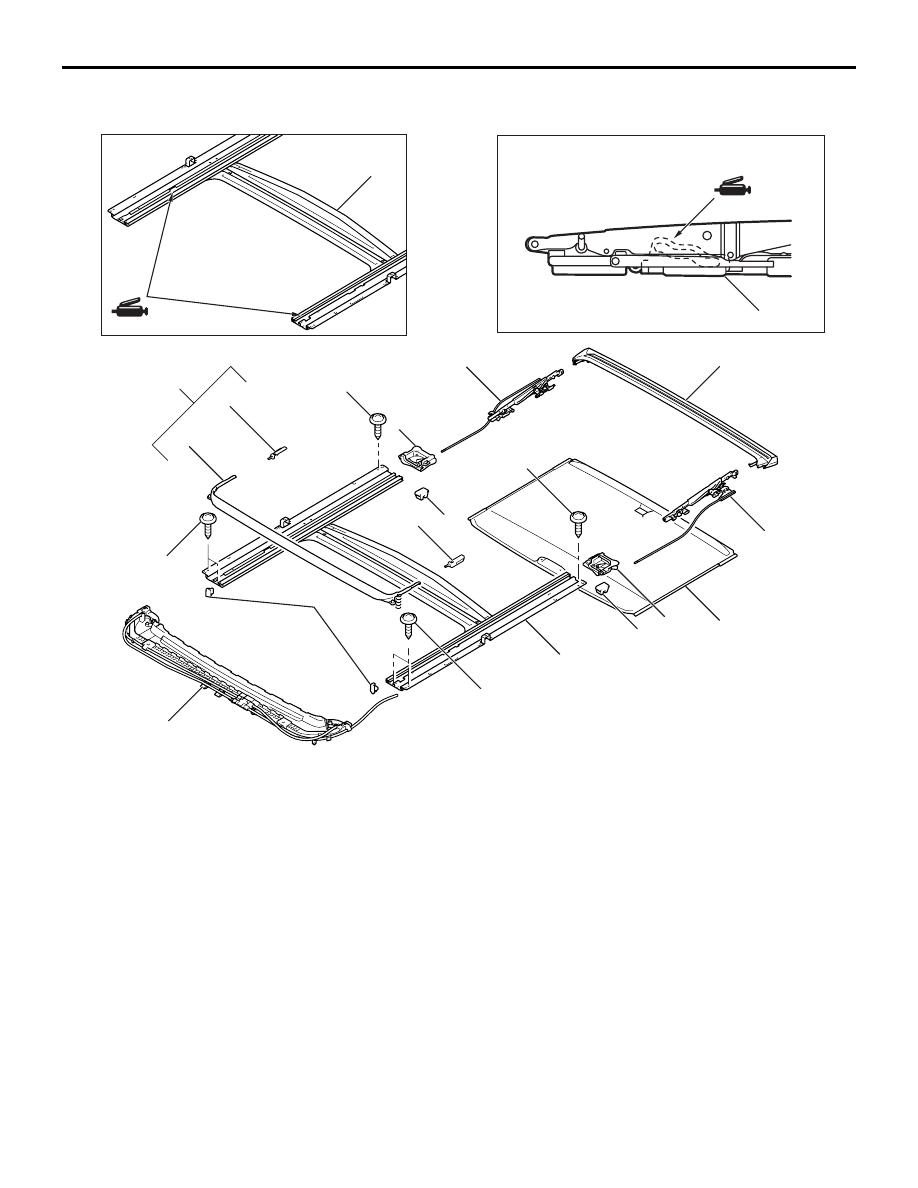

DISASSEMBLY AND ASSEMBLY

M1426001400294

AC308120

AC309052

1

2

1

2

3

4

5

6

6

7

8

8

8

9

10

11

11

AB

2.0 N·m
18 in-lb

2.0 N·m
18 in-lb

2.0 N·m
18 in-lb

2.0 N·m
18 in-lb

DISASSEMBLY STEPS

1. SUNROOF DRIP PLATE
2. SUNROOF SUNSHADE STOPPER
3. SUNROOF SUNSHADE

<<A>>

4. SUNROOF DEFLECTOR

ASSEMBLY

5. SUNROOF DEFLECTOR

6. SUNROOF GUIDE RAIL ROD

HOLDER

7. SUNROOF DRIP RAIL
8. ROOF LID SLIDER
9. SLIDING ROOF OPERATING UNIT
10. ROOF BLIND STOPPER
11. SUNROOF HOUSING

DISASSEMBLY STEPS
