AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-32

STEP 5. Check the wiring harness between A/C-ECU
connectors C-15 (terminals 16 and 20), C-16 (terminal 29)
and air mixing damper control motor and potentiometer
connector C-105 (terminals 5, 7 and 3).
Q: Are the wiring harness between A/C-ECU connector

C-15 (terminals 16 and 20), C-16 (terminal 29) and air
mixing damper control motor and potentiometer
connector C-105 (terminals 5, 7 and 3) in good
condition?
YES : Go to Step 6.
NO :  Repair the wiring harness. Then go to Step 7.

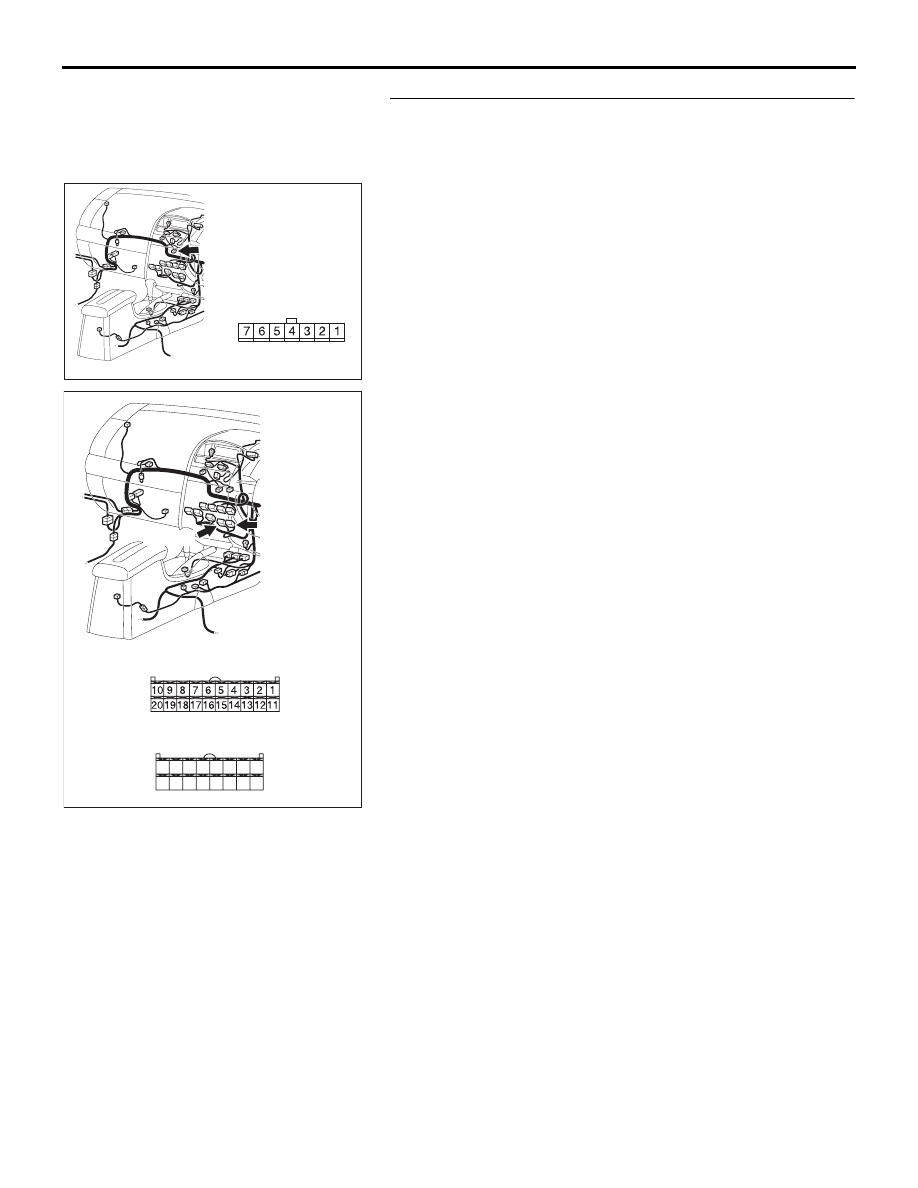

25DB084A

CONNECTOR: C-105

C-105

C-105

HARNESS SIDE

25DB070A

CONNECTORS: C-15, C-16

C-16 (B)

HARNESS SIDE

C-16

C-15

C-15 (B)

HARNESS SIDE

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-33

STEP 6. Check the air mixing damper control motor and
potentiometer.

CAUTION

Do not apply battery voltage when the damper is in the
MAX COOL or MAX HOT position.
(1) Operate the air mixing damper control motor as described

in the table below.

(2) Measure the resistances between connector terminals 3

and 5, and between 3 and 7, while the air mixing damper
control motor is running. The resistances should change
gradually within the standard value.

Standard value: 1.7 (MAX HOT)

− 5.0 (MAX COOL)

k

Ω

Q: Are the air mixing damper control motor and

potentiometer in good condition?
YES : Replace the A/C-ECU. Then go to Step 7.
NO :  Replace the air mixing damper control motor and

potentiometer. Then go to Step 7.

LEVER POSITION BATTERY

CONNECTION

LEVER
OPERATION

At the MAX COOL
position

• Connect

terminal 2 to the
positive battery
terminal

• Connect

terminal 1 to the
negative battery
terminal

The lever moves
from the MAX
COOL position to
the MAX HOT
position

At the MAX HOT
position

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 2 to the
negative battery
terminal

The lever moves
from the MAX HOT
position to the MAX
COOL position

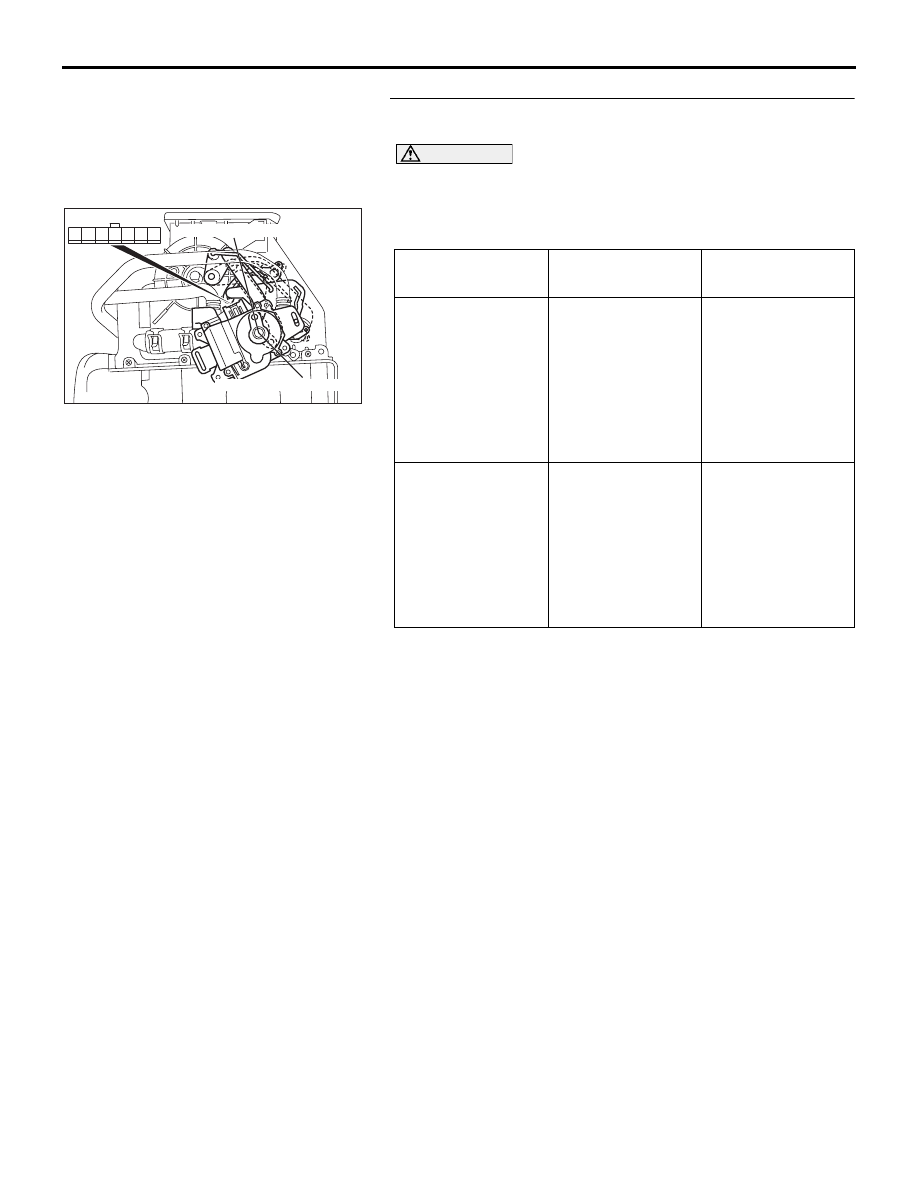

25DB063A

MAX HOT POSITION

MAX COOL POSITION

1 2

4

3

5

7

6

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-34

STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Connect diagnostic tool  to the data link connector
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the check result satisfactory?

YES : The procedure is complete.
NO :  Return to Step 1.

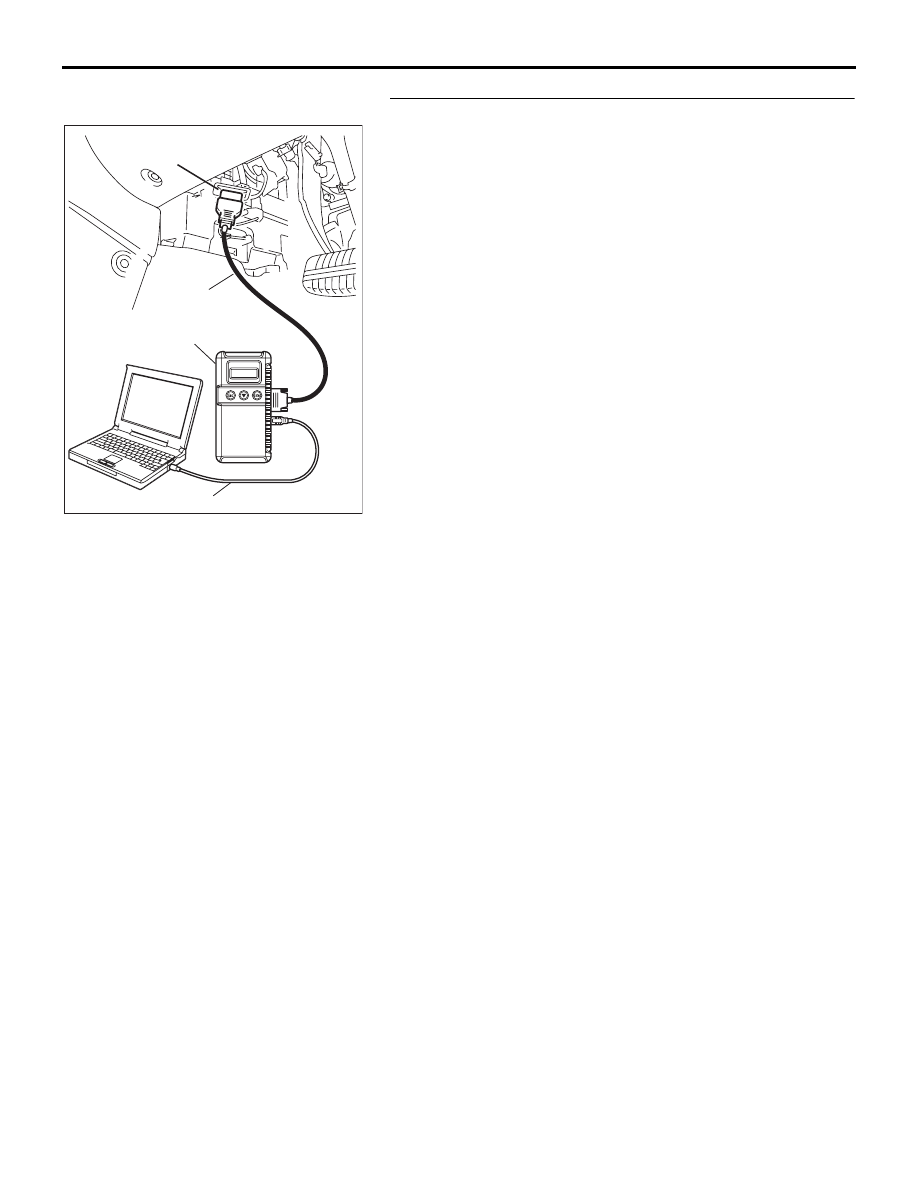

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-35

DTC B1045:  Air mixing damper control motor and potentiometer (activating system failure)

.

DTC SET CONDITION

• If the air mixing damper control motor does not

work normally, DTC No.B1045 will be set.

.

TECHNICAL DESCRIPTION (COMMENT)

Current trouble

• The A/C-ECU, the air mixing damper control

motor and potentiometer, or connector(s) or wir-
ing between the two may be defective.

Past trouble

• If DTC B1045 is stored as a past trouble, carry

out diagnosis with particular emphasis on wiring
and connector(s) between the A/C-ECU and the
air mixing damper control motor and potentiome-
ter. If the connectors and wiring are normal, and
obviously the ECU is the cause of the trouble,
replace the ECU. If in doubt, do not replace the
ECU.

TROUBLESHOOTING HINT

• Malfunction of connector.

• Malfunction of the harness.

• Malfunction of the air mixing damper control

motor and potentiometer.

• Malfunction of the A/C-ECU.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

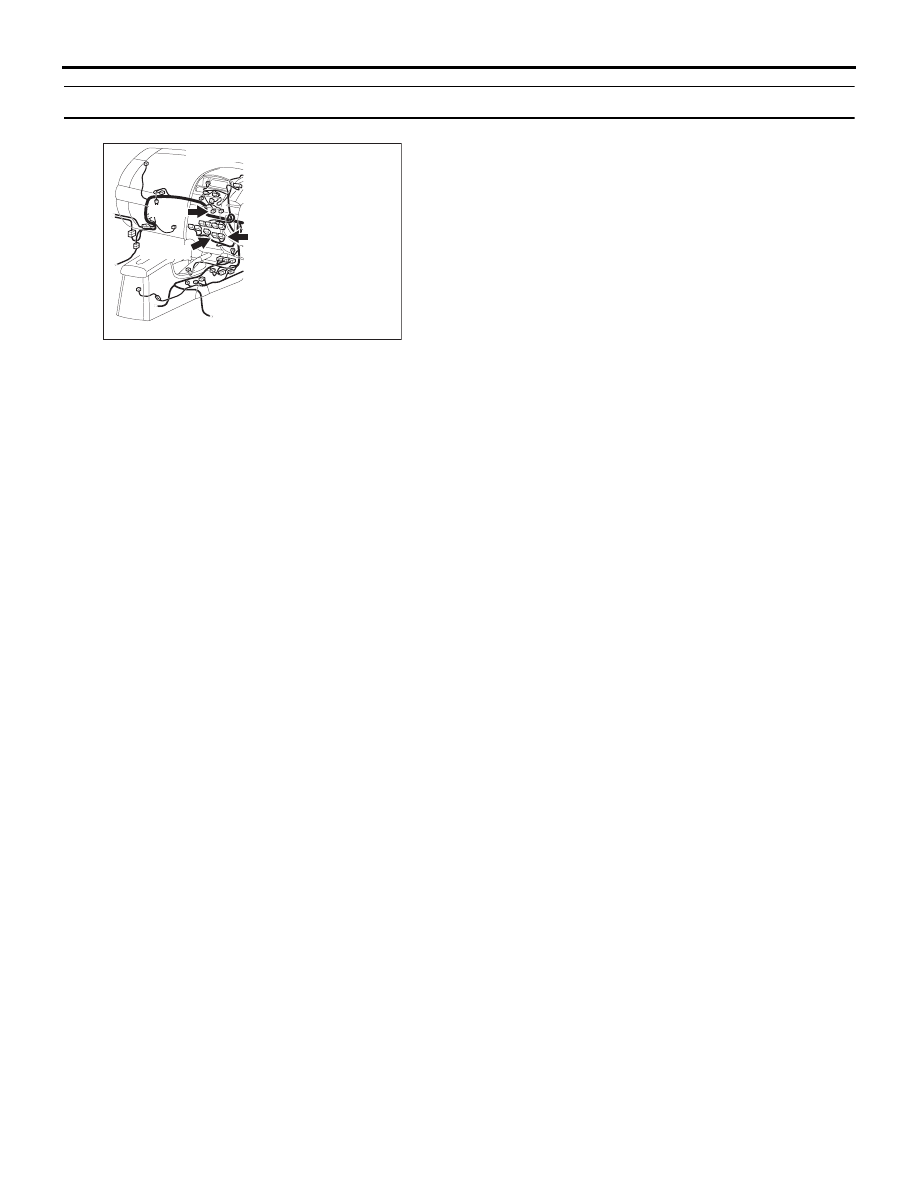

25DB146A

C-16 (B)

C-15 (B)

C-105

CONNECTORS: C-15, C-16, C-105
