FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP AND IGNITION KEY HOLE ILLUMINATION LAMP

CIRCUIT DIAGRAMS

90-44

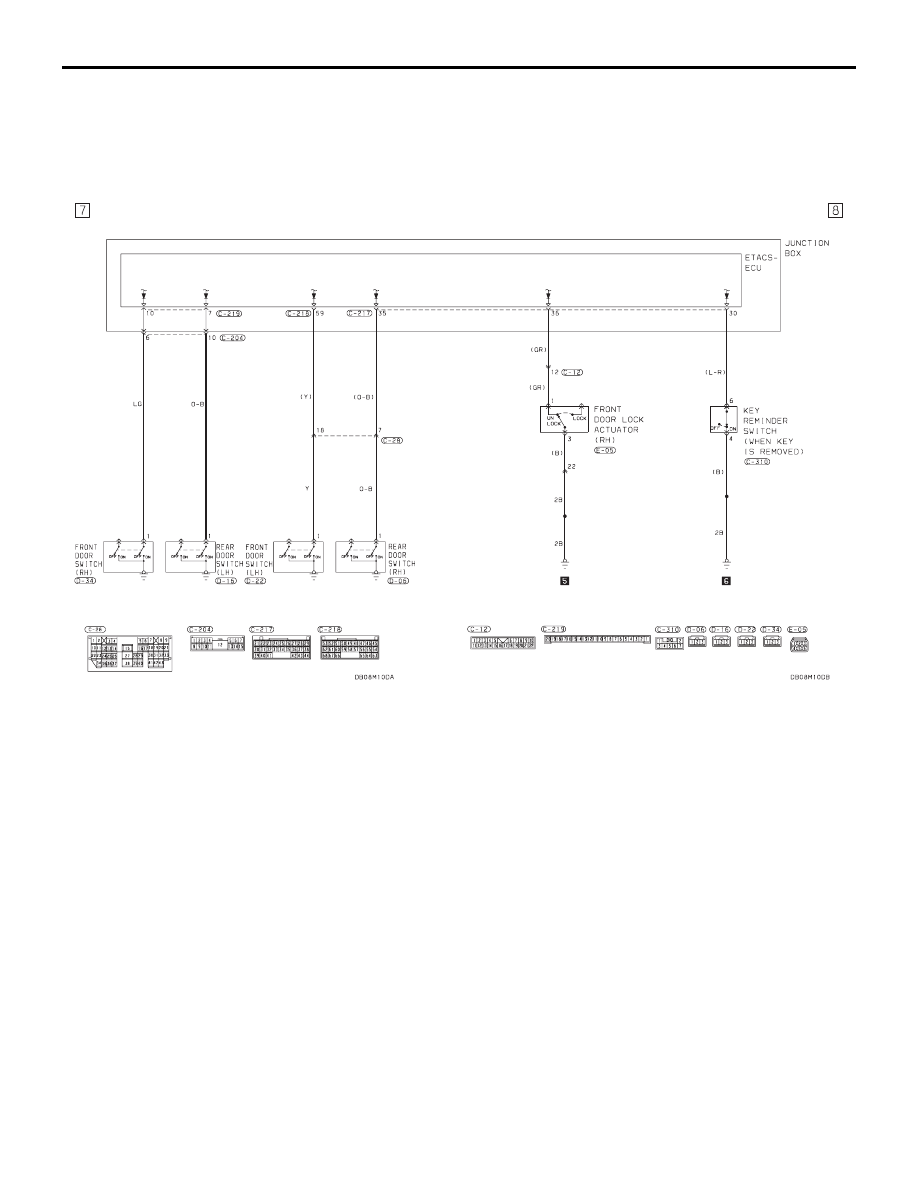

FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP

AND IGNITION KEY HOLE ILLUMINATION LAMP

M1901002100313

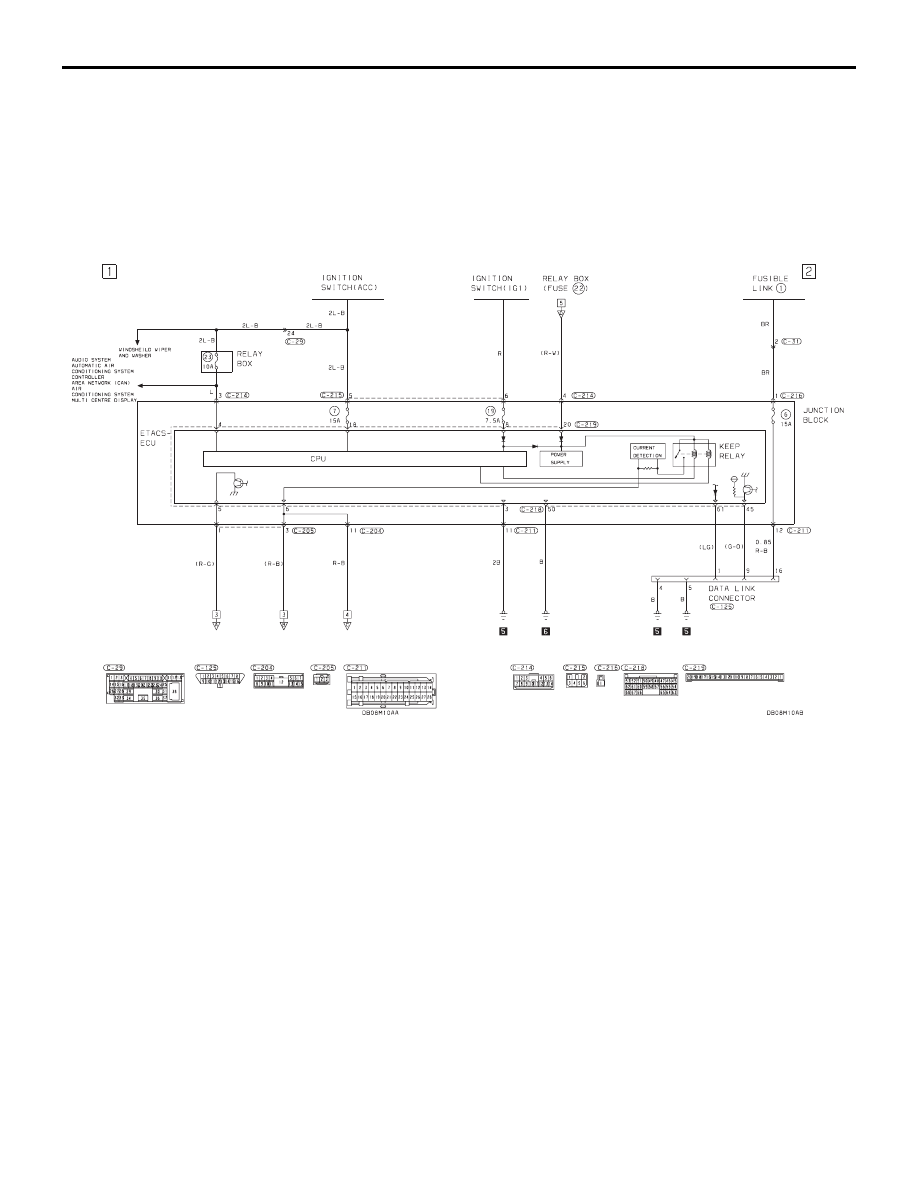

FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP AND IGNITION KEY HOLE ILLUMINATION LAMP

CIRCUIT DIAGRAMS

90-45

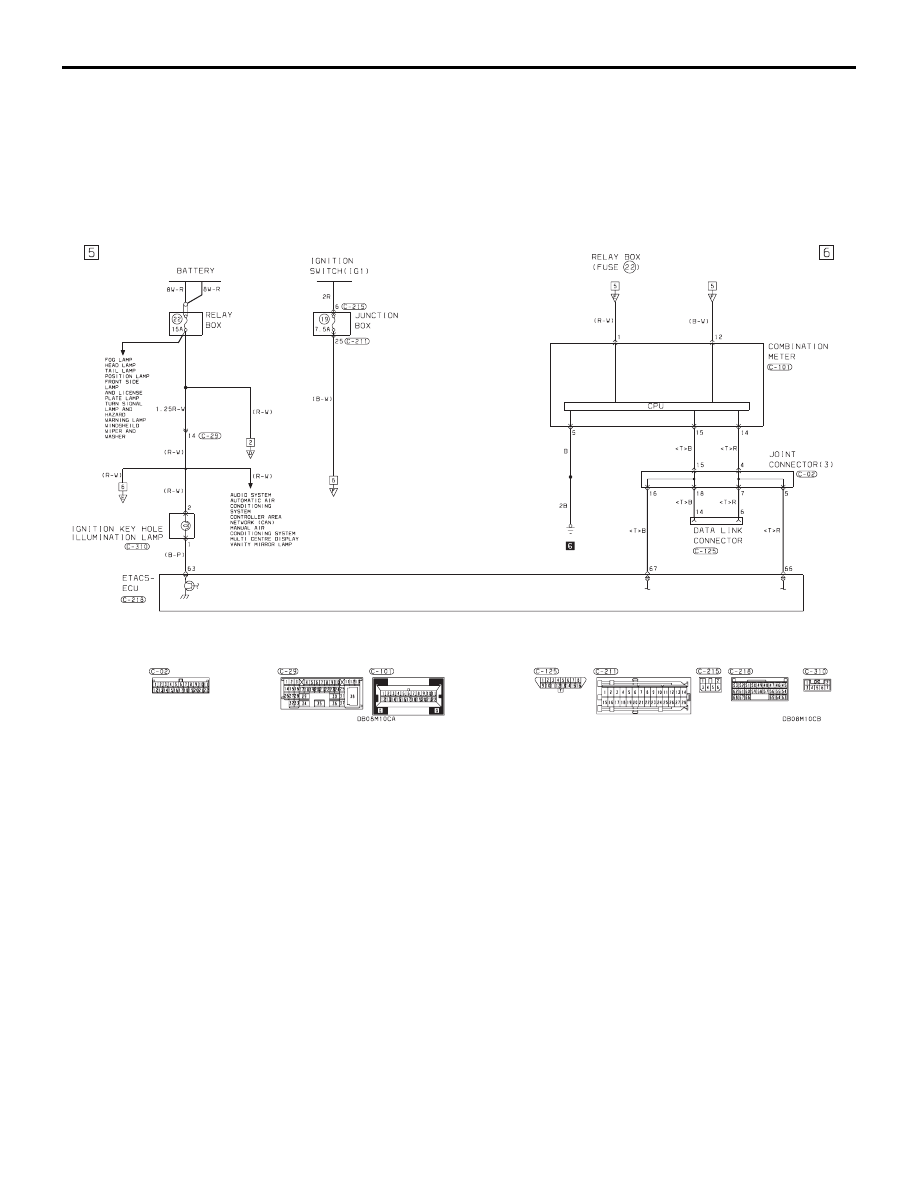

FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP AND IGNITION KEY HOLE ILLUMINATION LAMP

CIRCUIT DIAGRAMS

90-46

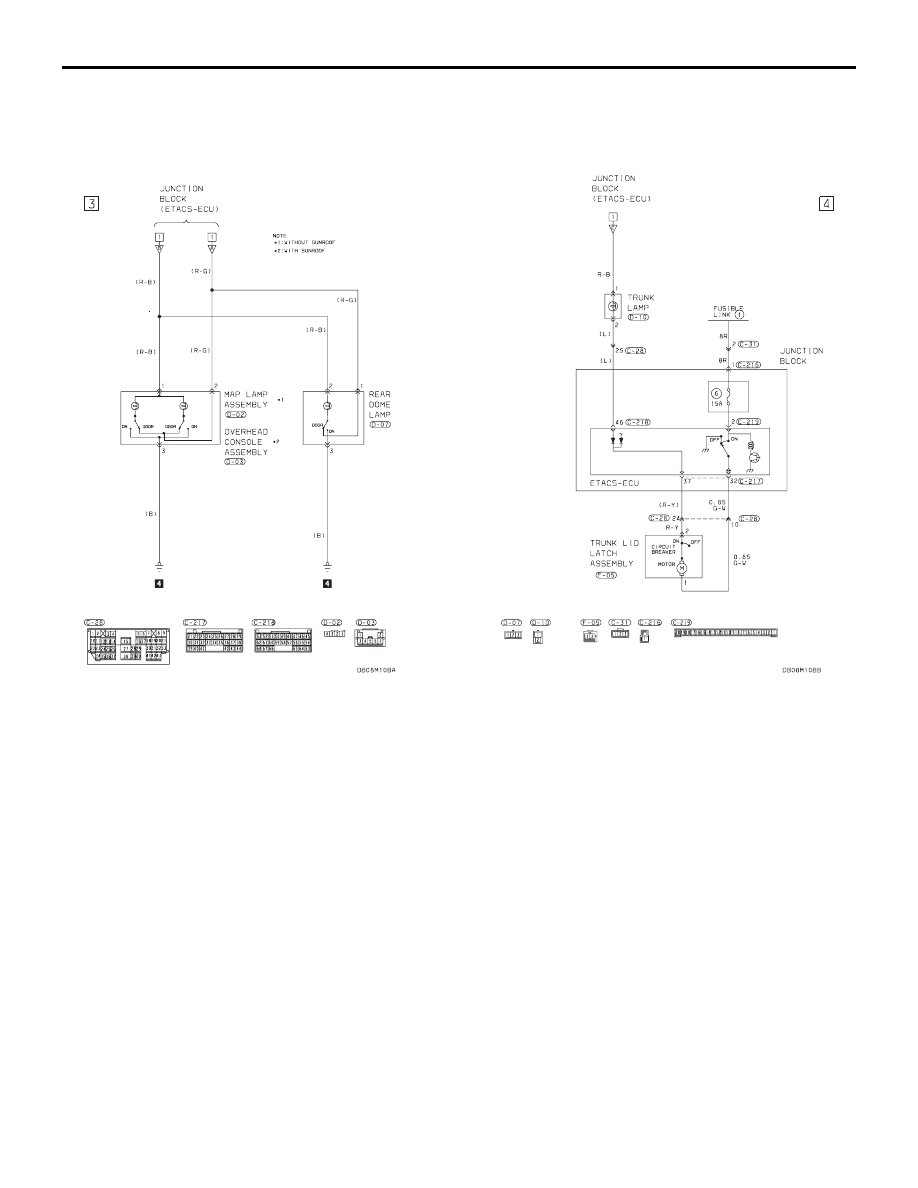

FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP AND IGNITION KEY HOLE ILLUMINATION
LAMP (CONTINUED)

FRONT DOME LAMP, REAR DOME LAMP, TRUNK LAMP AND IGNITION KEY HOLE ILLUMINATION LAMP

CIRCUIT DIAGRAMS

90-47
