Mitsubishi 380. Manual - part 138





SPECIFICATIONS

INTERIOR

52A-60

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1521004100227

ITEM

SPECIFICATION

FRONT SEAT

Front seatback assembly bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Front seat cushion assembly bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Front seat bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Front seat nut

30

± 5 N⋅m (22 ± 4 ft-lb)

REAR SEAT

Seatback assembly bolt

22

± 4 N⋅m (16 ± 3 ft-lb)

FRONT SEAT BELT

Adjustable seat belt anchor bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Inner seat belt bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Outer seat belt bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

REAR SEAT BELT

Center seat belt outer and inner seat belt bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Inner seat belt bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Seat belt shoulder anchor bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Seat belt lower anchor bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

80-1

GROUP 80

CONFIGURATION

DIAGRAMS

CONTENTS

OVERALL CONFIGURATION
DIAGRAM. . . . . . . . . . . . . . . . . . . . . .

80-2

HOW TO READ CONFIGURATION
DIAGRAMS  . . . . . . . . . . . . . . . . . . . .

80-3

ENGINE COMPARTMENT. . . . . . . . .

80-4

ENGINE AND TRANSMISSION . . . . .

80-6

DASH PANEL . . . . . . . . . . . . . . . . . . .

80-10

FLOOR, SEAT AND ROOF  . . . . . . . .

80-17

DOOR . . . . . . . . . . . . . . . . . . . . . . . . .

80-23

LUGGAGE COMPARTMENT . . . . . . .

80-24

HOME

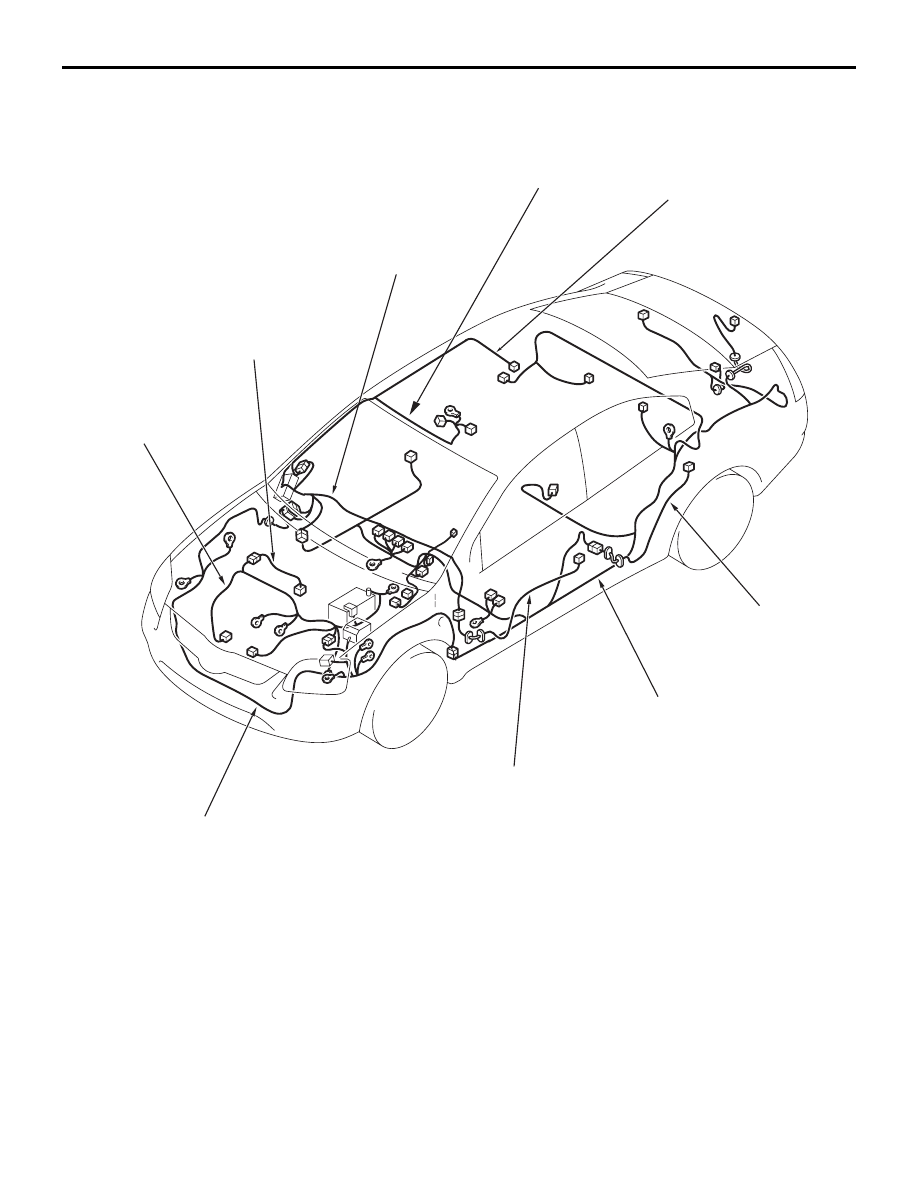

OVERALL CONFIGURATION DIAGRAM

CONFIGURATION DIAGRAMS

80-2

OVERALL CONFIGURATION DIAGRAM

M1801000100558

NOTE:

.

1. This illustration shows only major wiring harnesses.

2. *: also equipped at the right side.

37DB222A

CONTROL WIRING

HARNESS

INJECTOR WIRING

HARNESS

<3.8L ENGINE>

INSTRUMENT PANEL

WIRING HARNESS

REAR DOME LIGHT

WIRING HARNESS

ROOF WIRING

HARNESS

FRONT WIRING

HARNESS

FLOOR WIRING

HARNESS

REAR DOOR

WIRING HARNESS

*

FRONT DOOR

WIRING HARNESS

*

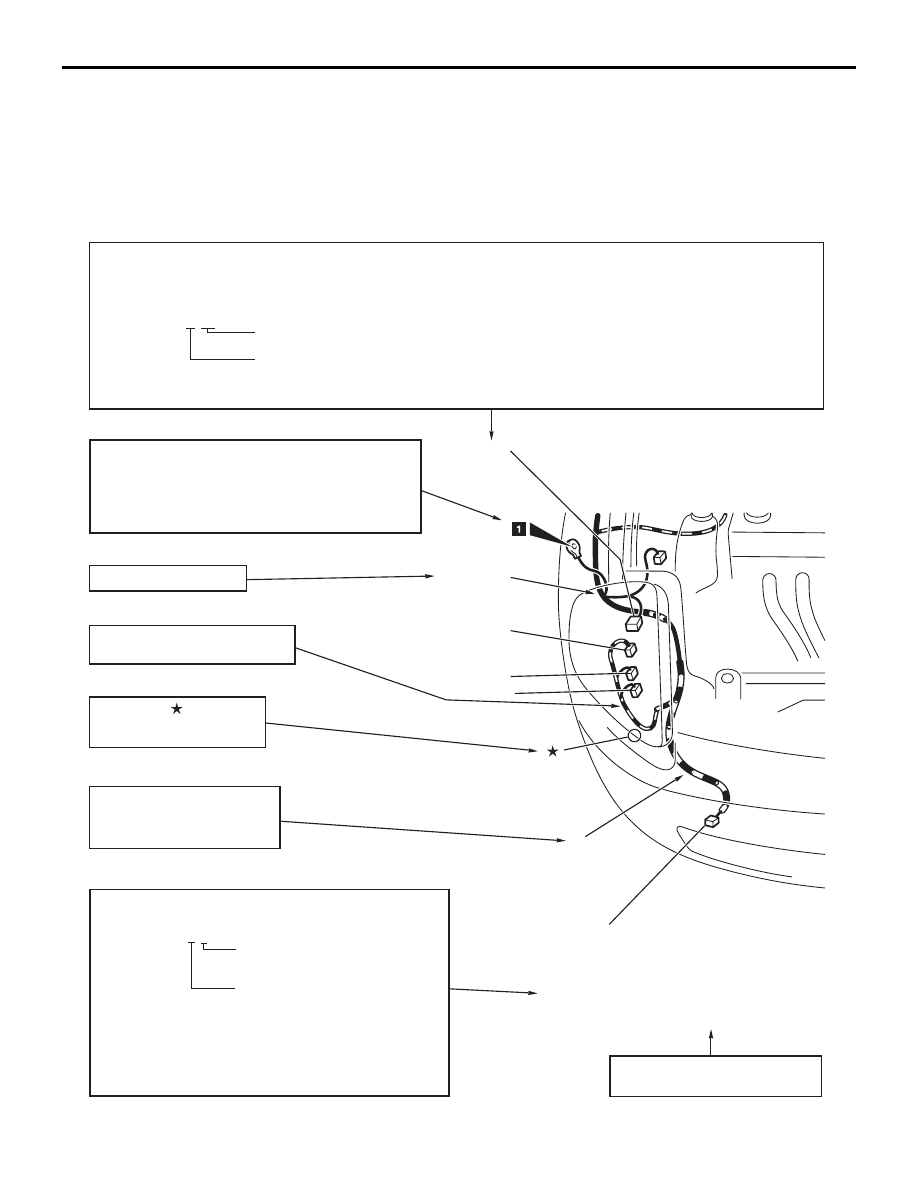

HOW TO READ CONFIGURATION DIAGRAMS

CONFIGURATION DIAGRAMS

80-3

HOW TO READ CONFIGURATION DIAGRAMS

M1801000200555

The wiring harness diagrams clearly show the connector locations and harness configurations on actual vehi-
cles. Some variations are included in one configuration diagram. Accordingly, some diagrams may not be
applicable for individual vehicles.

37DB235A

Denotes connector No.

The same connector No. is used throughout the circuit diagrams to facilitate connector location searches.

The first alphabetical symbol indicates the location site of the connector and a number that follows is the unique number.

Numbers are usually assigned to parts in clockwise order on the diagram.
       Example: A-30







Number specific to connector (serial number)







Connector location site symbol







A:  ENGINE COMPARTMENT

D:  FLOOR AND ROOF







B:  ENGINE AND TRANSAXLE

E:  DOOR







C:  DASH PANEL



F:  LUGGAGE COMPARTMENT

Denotes ground point.

Same ground number is used throughout circuit

diagrams to facilitate search of ground point.

Refer to GROUP 70 COMPONENT LOCATIONS

-GROUND MOUNTING LOCATIONS for details

of ground points.

Denotes the color of the tube

(If not specified, it is black).

R:  Red

Y:   Yellow

The number of connector pins and the connector color

(except milk white)* are shown for ease of retrieval.
       Example: (6-B)





          Connector color





          (milk white if no color is indicated)





          Number of connector pins

*: Typical connector colors

        B:   Black



BR: Brown

        Y:    Yellow

V:    Violet

        L:    Blue



O:   Orange

        G:   Green

GR: Grey

        R:   Red



NONE: Milk white

A-28 (2)              FOG LAMP (RH)

A-34 (2)             TURN SIGNAL (RH)

A-32 (6-B)          HEADLAMP (RH)

A-29 (2-B)          WINDSHIELD WASHER MOTOR

A-30 (3-B)          DUAL PRESSURE SWITCH

Indicates the device to which the

connector is connected.

The mark            shows the

standard mounting position

of wiring harness.

A-32

A-28

A-29

A-30

Y

Denotes a section covered by a

corrugated tube.

FRONT

WIRING

HARNESS

(RH)

Denotes harness name.

A-34
