INSIDE REAR VIEW MIRROR

INTERIOR

52A-20

REMOVAL SERVICE POINT

.

<<A>> HEADLINING ASSEMBLY REMOVAL

Remove the front passenger's door check (body side mounting
bolt), open the front passenger's door and remove the headlin-
ing assembly.   (Refer to GROUP 42, Door Assembly

P.42-37

.)

INSIDE REAR VIEW MIRROR

M1521002600248

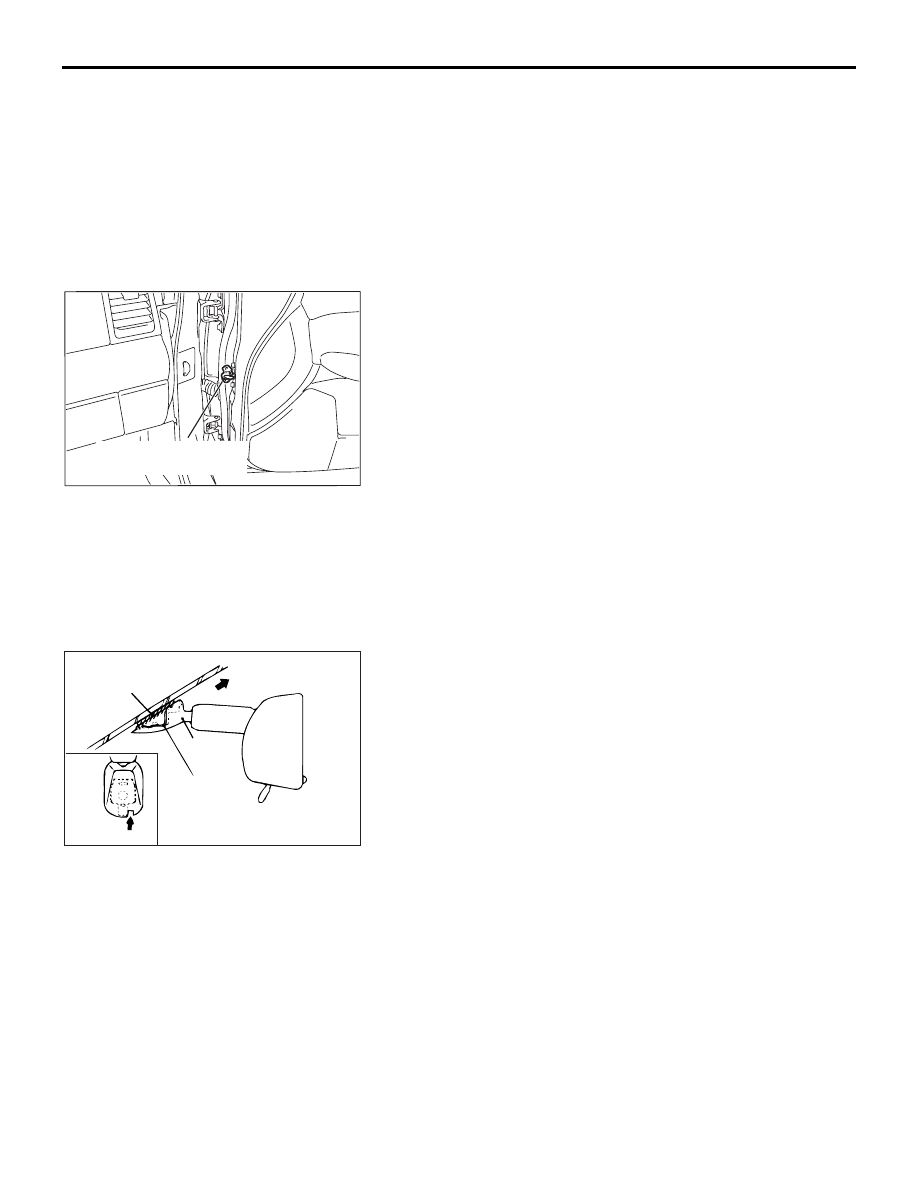

REMOVAL SERVICE POINT

.

INSIDE REAR VIEW MIRROR REMOVAL

Insert a narrow flat-tip screwdriver into the slit in the inside rear
view mirror bracket, keep the spring pushed in and remove the
inside rear view mirror in the direction of the arrow in the illus-
tration.

NOTE: While the spring is pushed in, the connection between
the spring and the pawl of the button is released.

13. CENTER HEADLINING PAD
14. REAR HEADLINING PAD
15. ROOF INSIDE ASSIST GRIP

BRACKET <VEHICLES WITH
ROOF INSIDE ASSIST GRIP>

16. ASSIST GRIP BRACKET

REMOVAL STEPS (Continued)

AC307195AB

FRONT PASSENGER'S
DOOR CHECK

AC000333 AB

BUTTON

BRACKET

SPRING

SLIT

FRONT SEAT ASSEMBLY

INTERIOR

52A-21

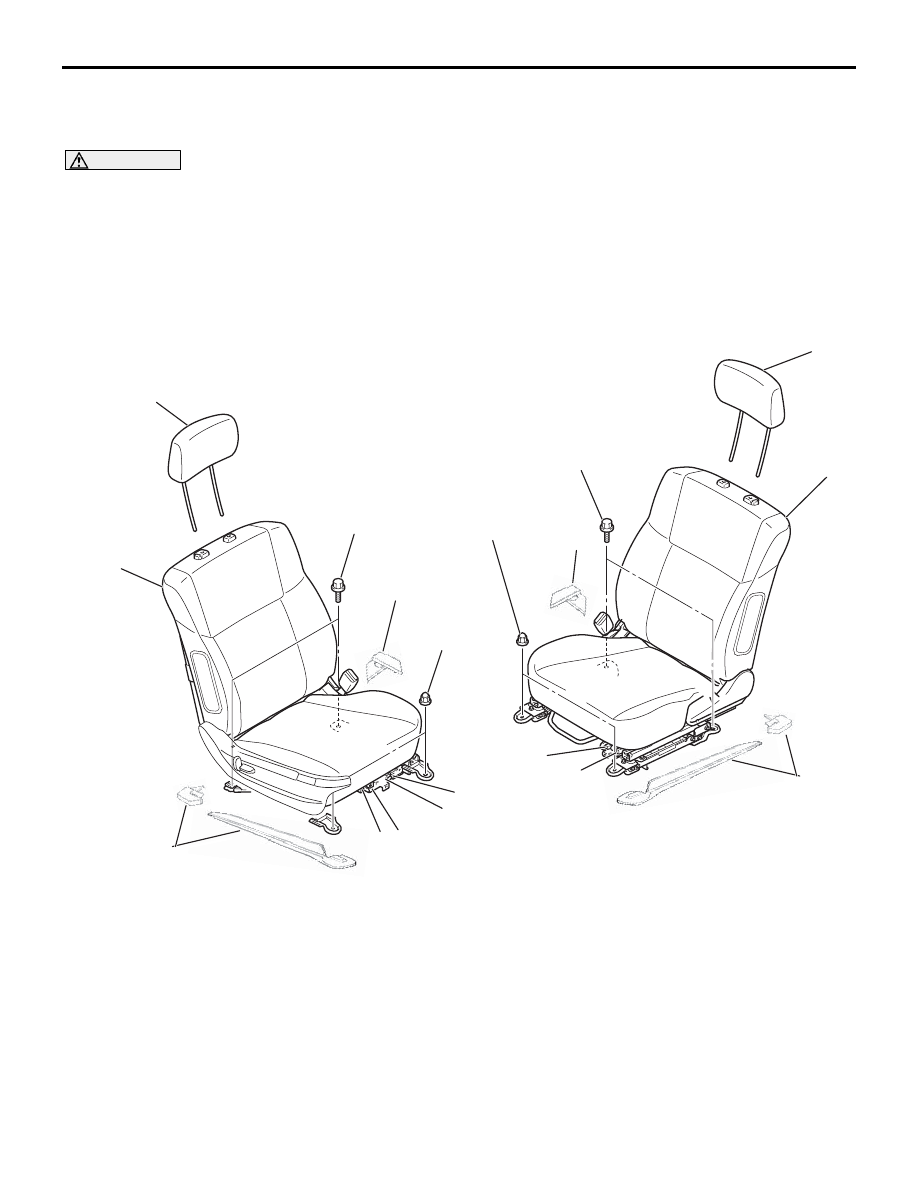

FRONT SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522001300560

WARNING

•

Before removing the front seat assembly, refer to GROUP 52B, Service Precautions

P.52B-16

 and Air Bag Module and Clock Spring

P.52B-237

.

19DB002A

7 6

3

8

10

2

8

44 ± 10 N·m
33 ± 7 ft-lb

30 ± 5 N·m
22 ± 4 ft-lb

7

8

44 ± 10 N·m
33 ± 7 ft-lb

2

10

30 ± 5 N·m
22 ± 4 ft-lb

8

4

6

2.

HEADREST
FRONT SEAT ASSEMBLY
REMOVAL STEPS

3.

SEAT BELT SWITCH
CONNECTOR

4.

POWER SEAT CONNECTOR RH
<VEHICLES WITH MEMORY
SEAT>

6.

POWER SEAT CONNECTOR
<VEHICLES WITH POWER SEAT>

7.

SIDE-AIR BAG MODULE
CONNECTOR <VEHICLES WITH
SIDE-AIR BAG>

8.

FRONT SEAT REAR ANCHOR
COVER

>>A<<

10. FRONT SEAT ASSEMBLY

FRONT SEAT ASSEMBLY
REMOVAL STEPS (Continued)

FRONT SEAT ASSEMBLY

INTERIOR

52A-22

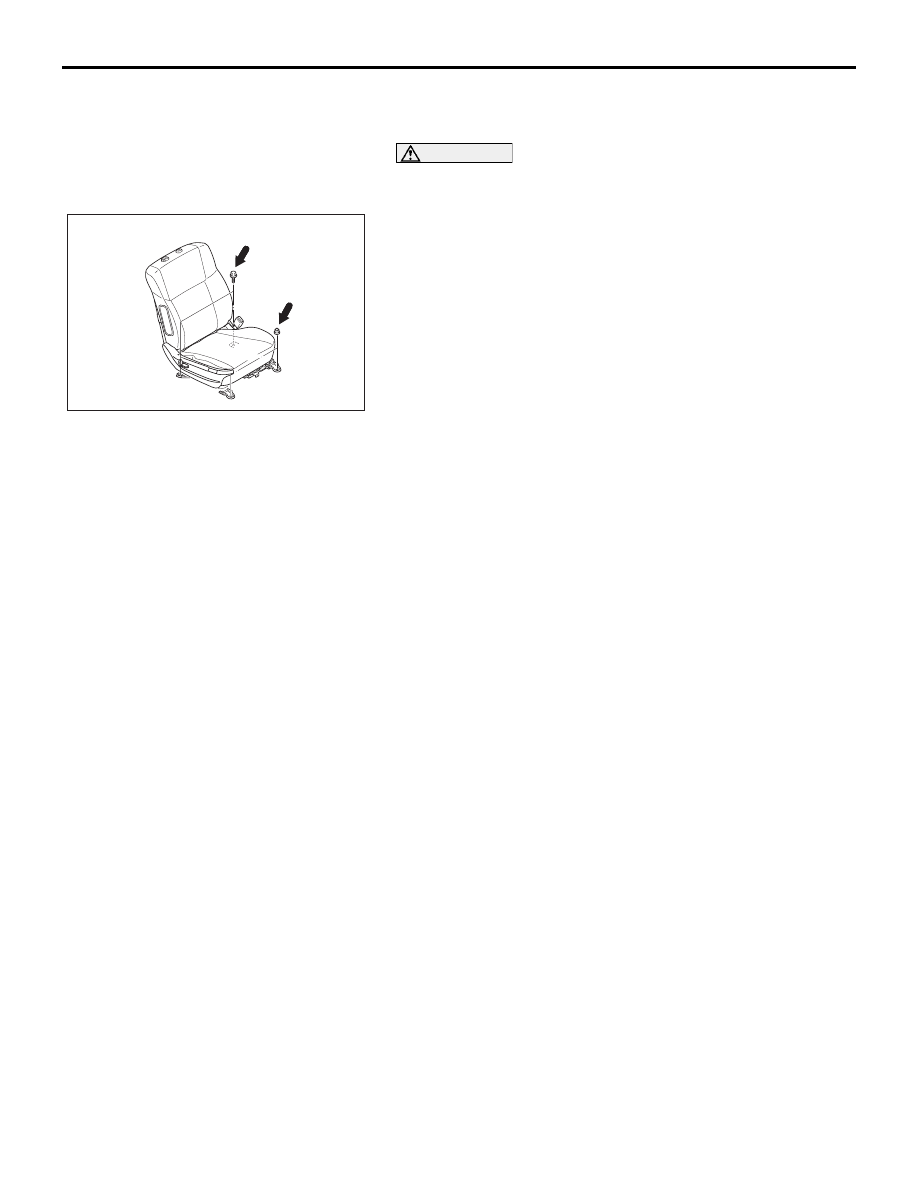

INSTALLATION SERVICE POINT

.

>>A<< FRONT SEAT ASSEMBLY INSTALLATION

CAUTION

Install the front passenger's seat assembly before install-
ing the outer seat belt.

1. Temporarily tighten the nuts in mounting locations shown in

the illustration with no weight on the front seat cushion and
check the operation of the seat slide.

2. Temporarily tighten the bolts in mounting locations shown in

the illustration with no weight on the front seat cushion.

3. Tighten the nuts and bolts in all mounting locations to the

specified torque.

19DB018A

1

2

FRONT SEAT ASSEMBLY

INTERIOR

52A-23

INSPECTION

M1522005500113

POWER SEAT CONTINUITY AND DIAGNOSIS
CHECK

SPECIAL TOOL:

• MB991219:  Inspection Test Harness

CIRCUIT DIAGRAMS:

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

NOTE: Check connectors and terminals for damage or
loose connections at the seat harness and all supply
circuits connections to seat. Repair or replace wiring
harness if damaged.

NON-MEMORY SEAT DIAGNOSIS

POWER SEAT SUPPLY AND GROUND CONNECTOR (D-40)

NOTE: The special tool (Inspection test harness) MB991219
for connector pin contact pressure should be used. The test
probe should never be forcibly inserted, as it may cause a
defective contact.

4-WAY TRACK (NON MEMORY)

NOTE: The special tool (Inspection test harness) MB991219
for connector pin contact pressure should be used. The test
probe should never be forcibly inserted, as it may cause a
defective contact.

 SUPPLY

TEST
CONNECTION
(D-40)

         SPECIFIED CONDITION

BATTERY
SUPPLY

1

12V

GROUND

2

Less than 2 ohms or 0V

               SWITCH POSITION

TEST CONNECTION          SPECIFIED CONDITION

SWITCH

MOTOR

REAR LIFT MOTOR

UP

1

1

Less than 2 ohms

DOWN

4

5

Less than 2 ohms

FRONT LIFT MOTOR

UP

2

1

Less than 2 ohms

DOWN

3

5

Less than 2 ohms
