SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)
54B-293
STEP 7. Check the headlamp (RH) bulb.
(1) Remove the headlamp (RH) bulb.
(2) Verify that the headlamp (RH) bulb is not damaged or
burned out.
Q: Is headlamp (RH) bulb normal?
YES : Go to Step 8.
NO : Replace the headlamp (RH) bulb. Verify that the
headlamps illuminate normally.

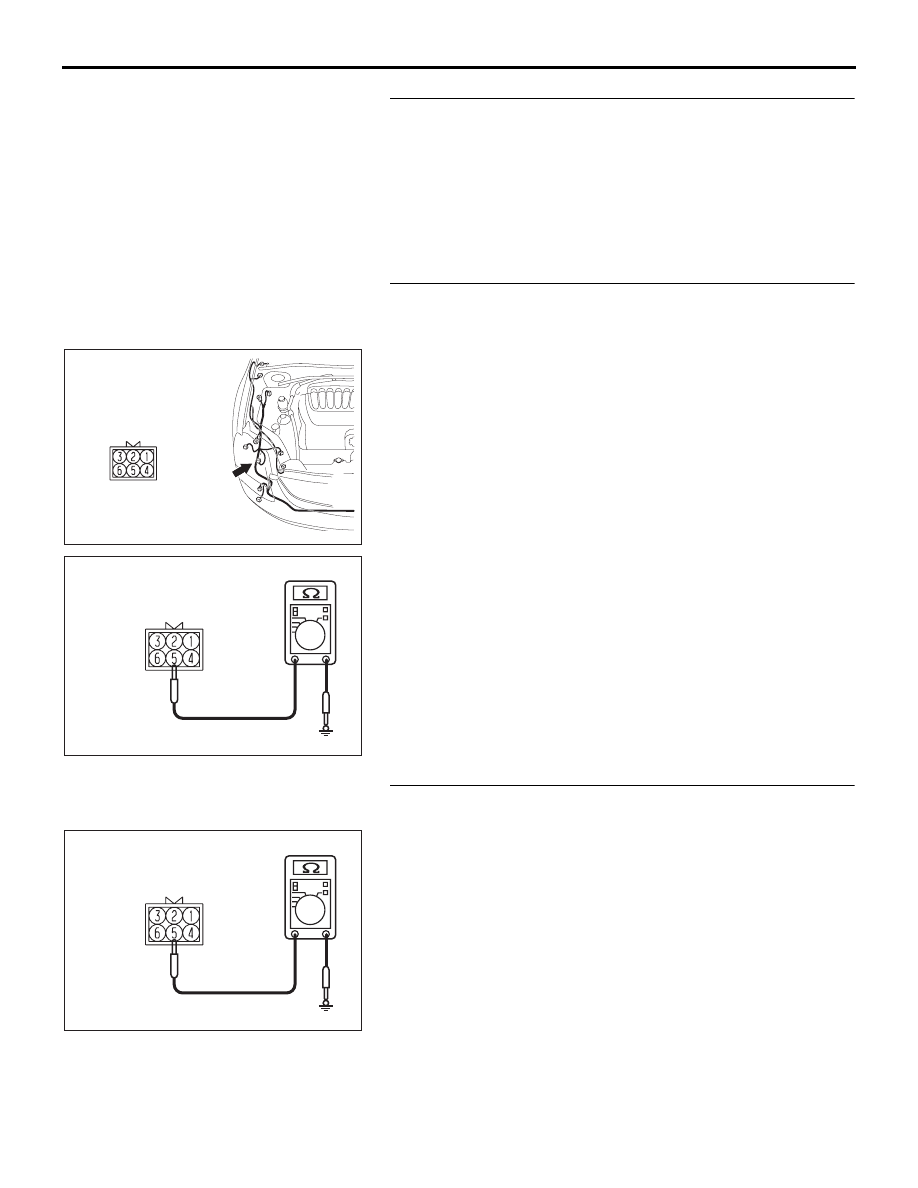

STEP 8. Check the ground circuit to the front Headlamp
(RH). Measure the resistance at front combination lamp
(RH) connector A-32.
(1) Disconnect front combination lamp (RH) connector A-32
and measure the resistance available at the wiring harness
side of the connector.
(2) Measure the resistance value between terminal (5) and
ground.
• The resistance should be 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES : Go to step 13.
NO : Go to Step 9.
STEP 9. Check the wiring harness between headlamp (RH)
connector A-32 (terminal 5) and ground.
Q: Is the wiring harness between headlamp (RH) connector
A-32 (terminal 5) and ground in good condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the headlamps illuminate normally.

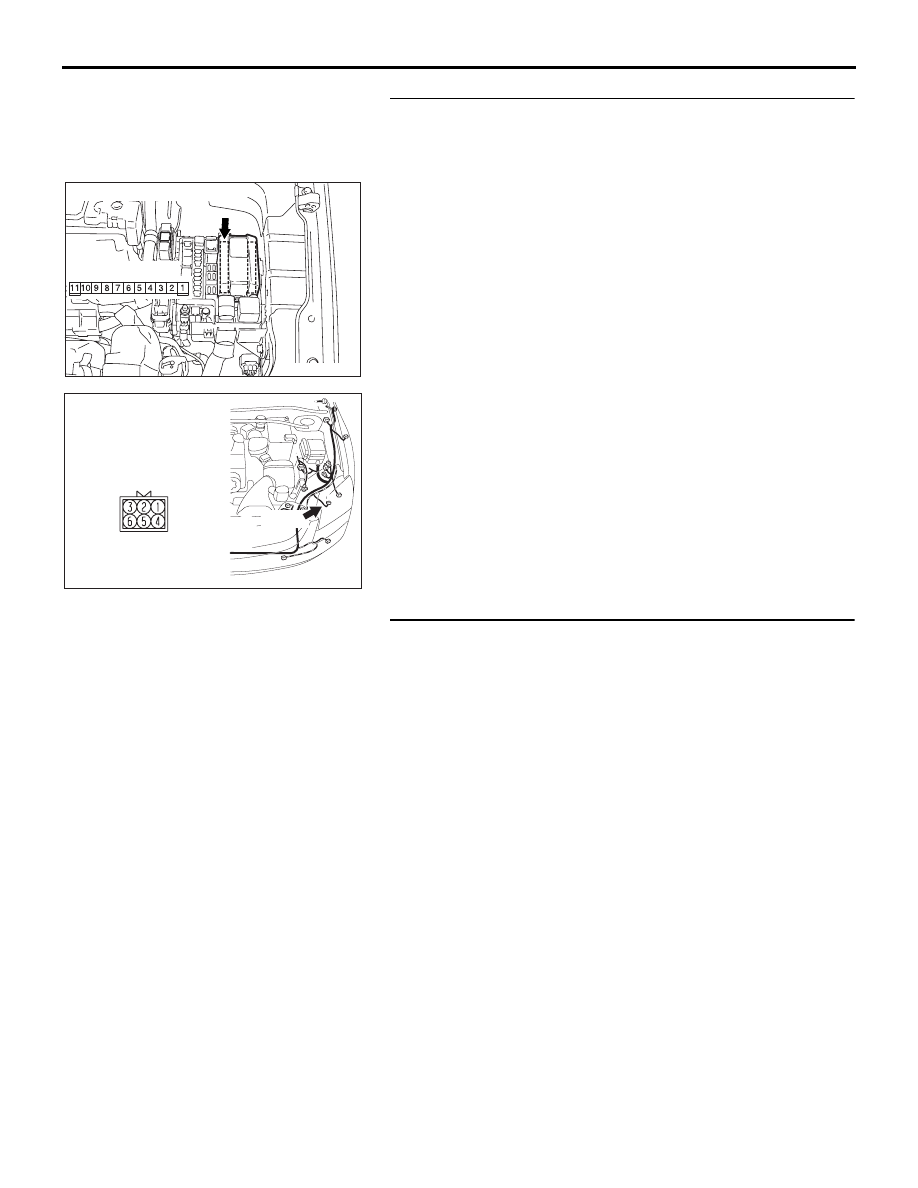

16DB433A
A-32

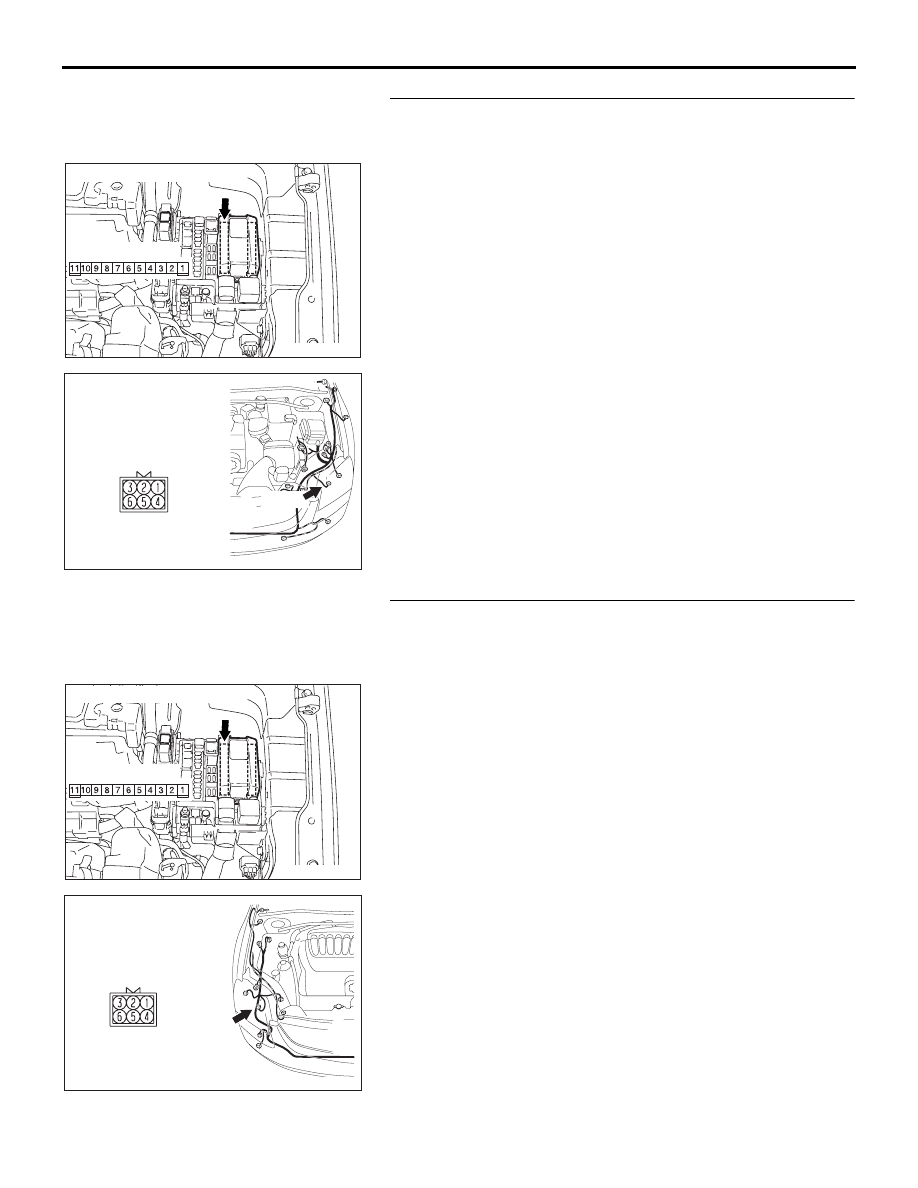

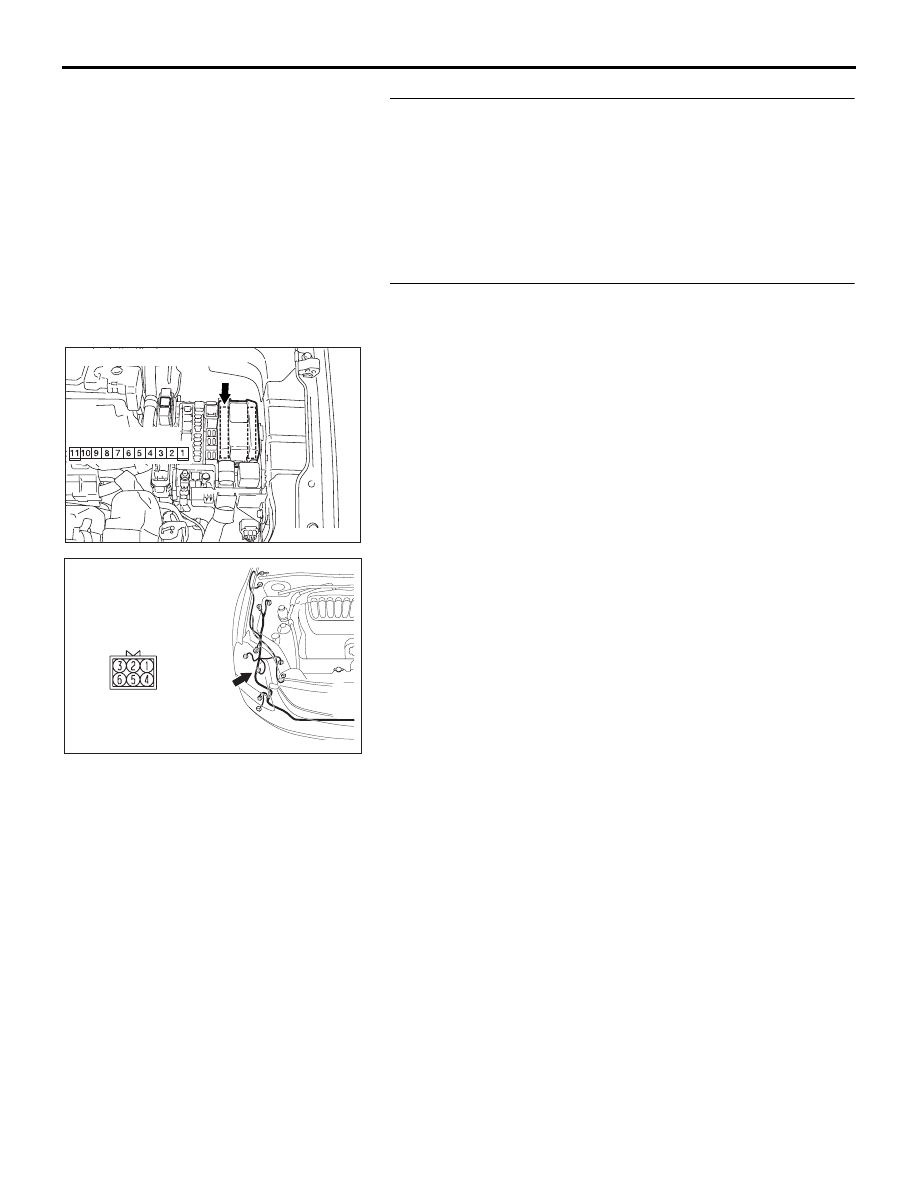

CONNECTORS: A-32
16DB437A
CONNECTOR A-32
(HARNESS SIDE)
16DB437A
CONNECTOR A-32
(HARNESS SIDE)
