SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-161

INSPECTION PROCEDURE D-2: Power Window: The power window timer function does not work
normally.

NOTE: This troubleshooting procedure requires use
of diagnostic tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to connect SWS monitor

P.54B-13

."

.

CIRCUIT OPERATION

The ETACS-ECU operates the power window timer
function according to the following signals:

• Ignition switch (IG1)

• Front door switch

.

TECHNICAL DESCRIPTION (COMMENT)

If the power window timer function does not work
normally, its input circuit, the ETACS-ECU or the
front-ECU may be defective.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The ETACS-ECU may be defective

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-162

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: diagnostic tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Test Probe Harness

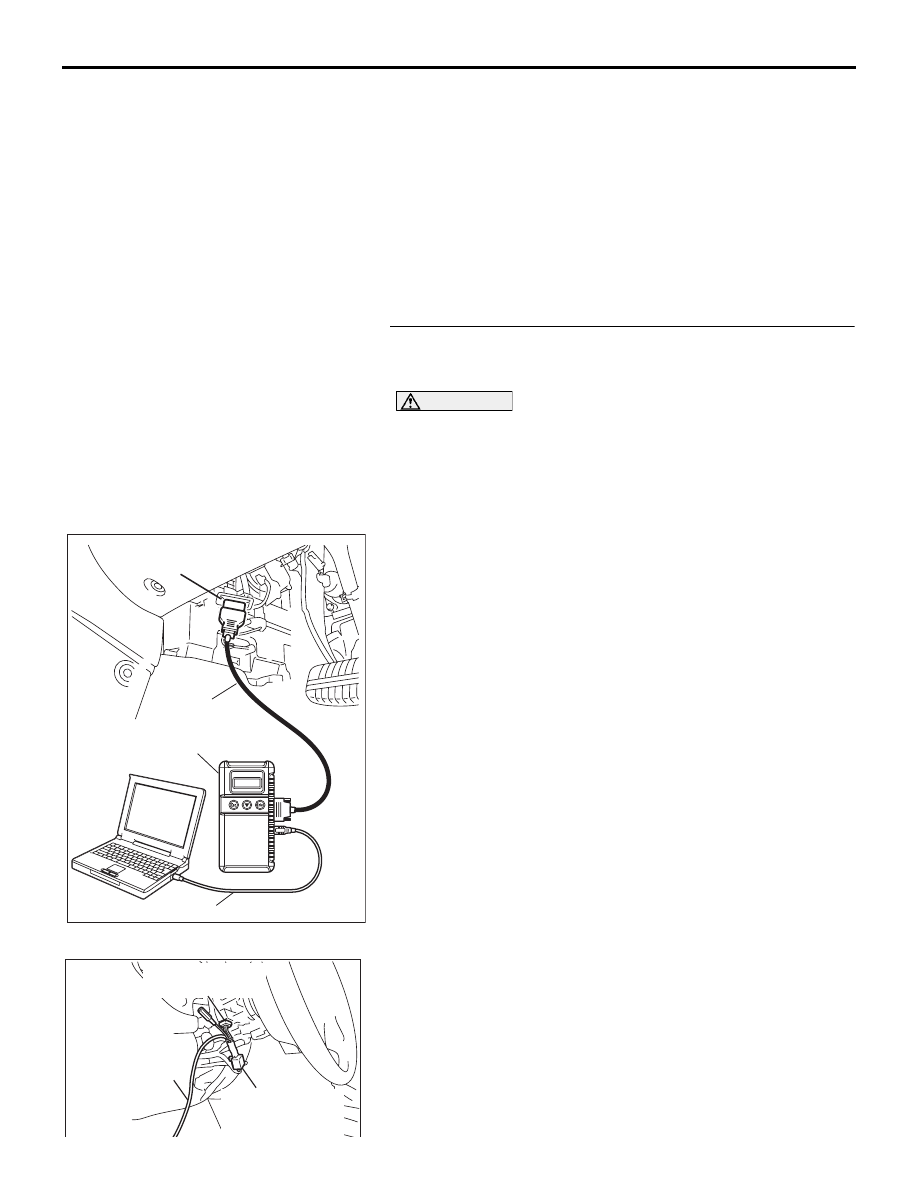

STEP 1. Use diagnostic tool MB991958 to select "ECU
COMM Check" on the SWS monitor display.
Check the ETACS-ECU.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958. Connect special tool MB991910 before con-
necting special tool MB991812. Be sure to connect special
tool MB991806 after turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Operate the diagnostic tool MB991958 according to the

procedure below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System Select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) diagnostic tool MB991958 should show "OK" on the "ECU

COMM Check" menu for the "ETACS ECU" menu.

Q: Is "OK" displayed for the "ETACS ECU" menu?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure A-3 "Communication

with the ETACS-ECU is not possible

P.54B-74

."

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-163

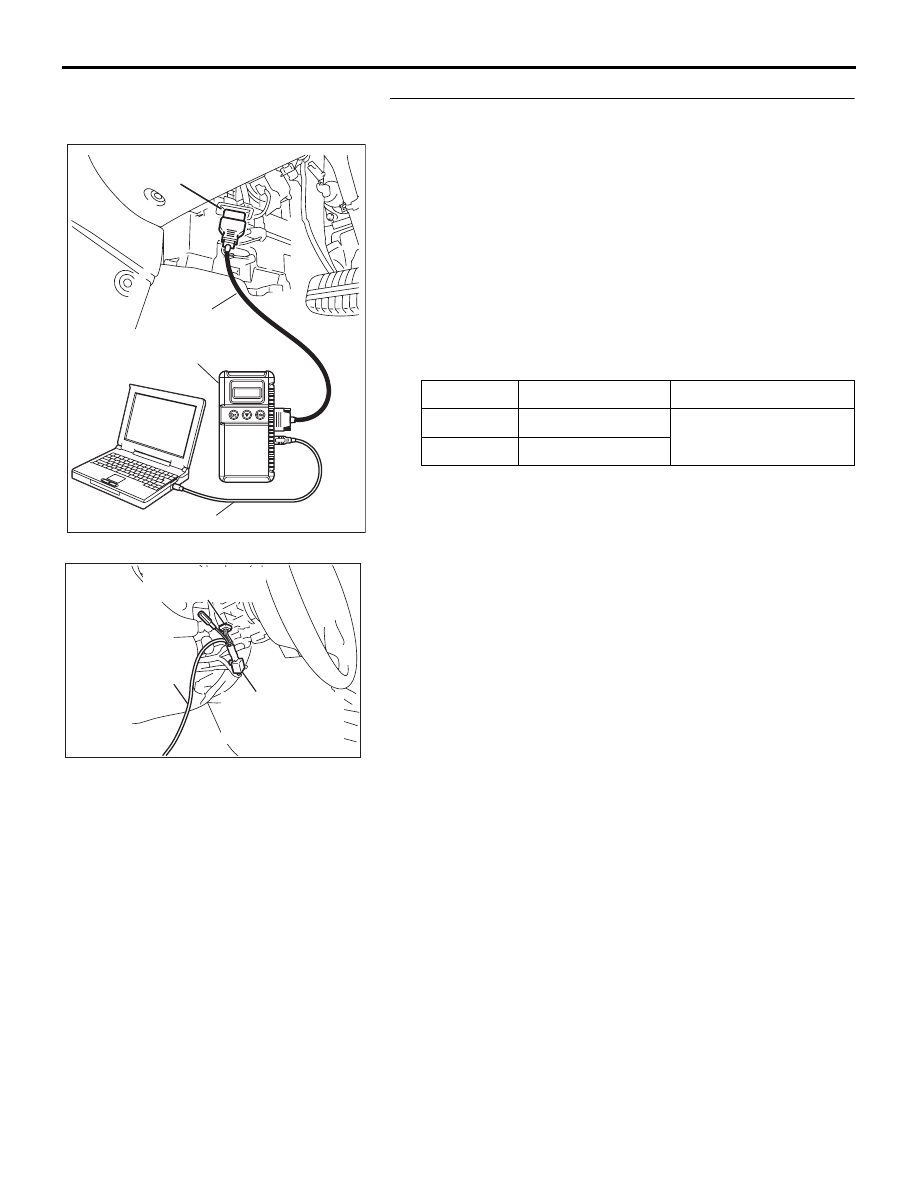

STEP 2. Check the input signal by using "DATA LIST"
menu of the SWS monitor.
Turn the ignition switch to the "ON" position before checking
input signals from the ignition switch (IG1).
(1) Operate diagnostic tool MB991958 according to the

procedure below to display "ETACS ECU."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "Data List."
f.

Select "ETACS ECU."

(2) Check that normal conditions are displayed for the items

described in the table below.

Q: Does the diagnostic tool MB991958 display the items

"IG SW (IG1)", "FRONT DOOR SW" as normal
condition?
Normal condition displayed for all the items : Replace

the ETACS-ECU. Verify that the power window timer
works normally.

Normal condition is not displayed for "IG SW (IG1)" :

Refer to Inspection Procedure M-2 "ETACS-ECU
does not receive any signal from the ignition switch
(IG1)

P.54B-408

."

Normal condition is not displayed for "FRONT DOOR
SW" : Refer to Inspection Procedure M-4 "ETACS-ECU

does not receive any signal from the front door
switches

P.54B-413

."

ITEM NO.

ITEM NAME

NORMAL CONDITION

ITEM 30

IG SW (IG1)

OFF

ITEM 32

FRONT DOOR SW

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-164

INSPECTION PROCEDURE D-3: Power Window: Only the front door window (RH) does not work by
operating power window main switch.

.

CIRCUIT OPERATION

The front power window regulator motor (RH) lower
or raises the door window (RH) when the power win-
dow main switch is moved to "UP" or "DOWN" posi-
tion.

.

TECHNICAL DESCRIPTION (COMMENT)

The power window main switch or the front power
window regulator motor (RH) may be defective.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

• The power window main switch may be defective

• The front power window regulator motor (RH)

may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

.

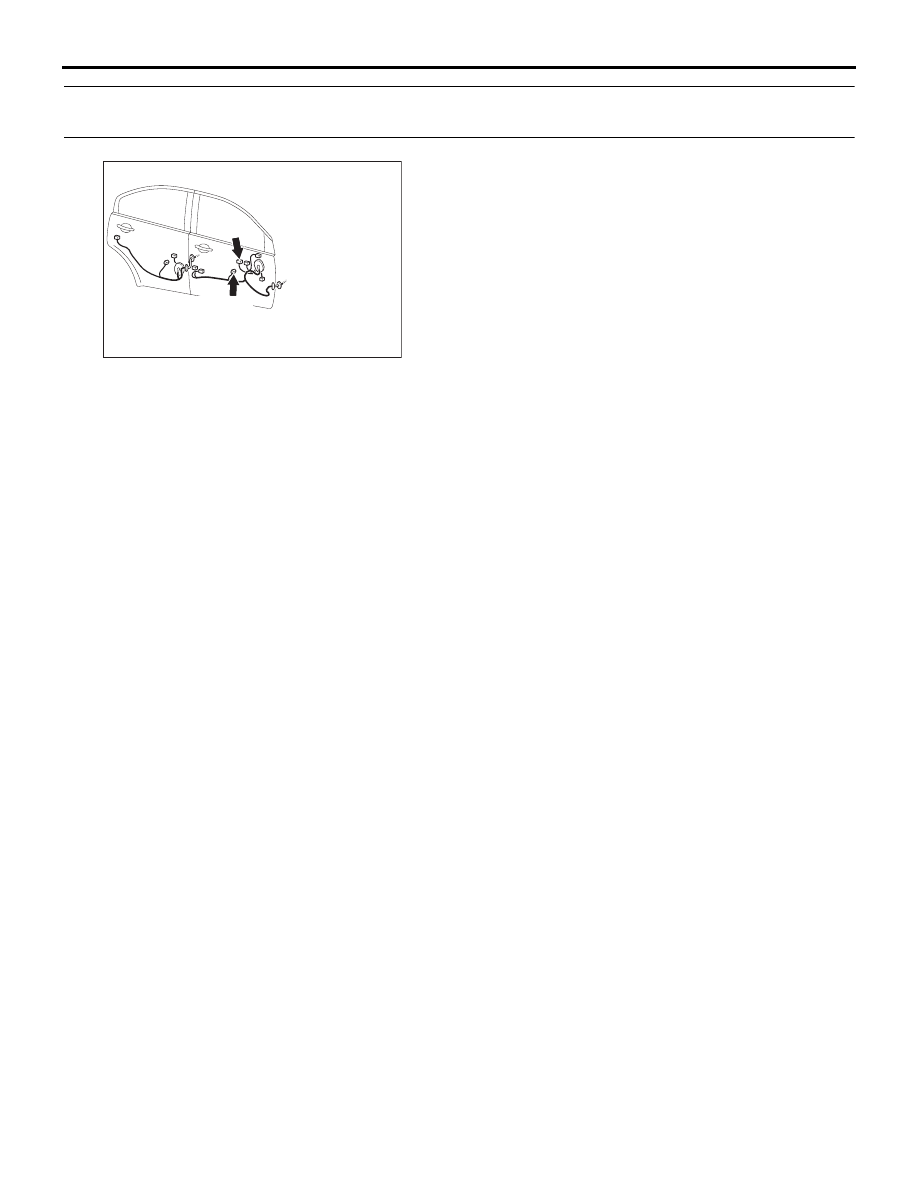

16DB334A

CONNECTORS:E-04,E-03

E-04

E-03(GR)
